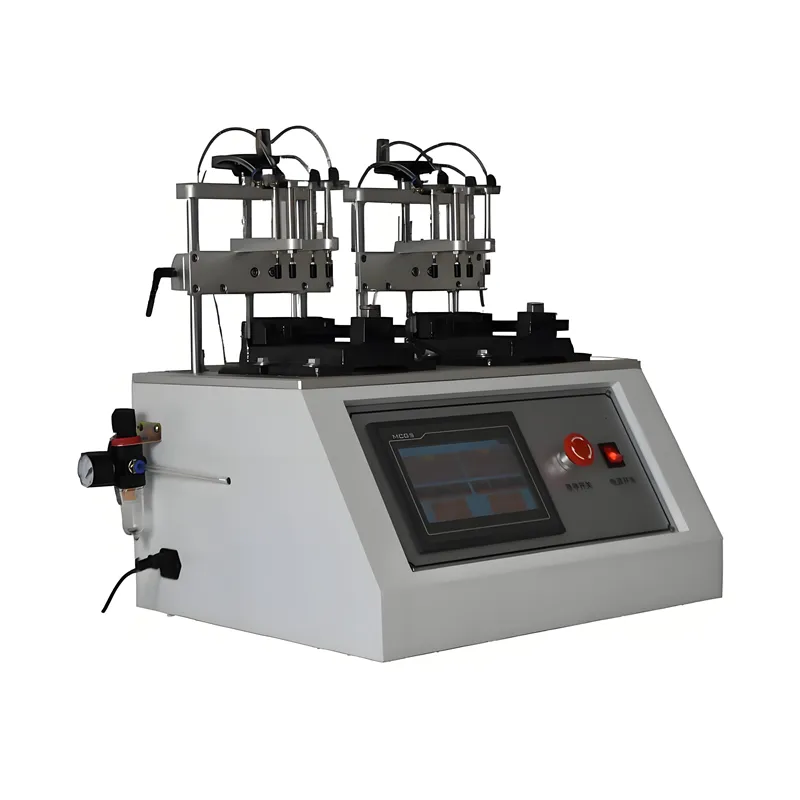

1. It is mainly applicable to the key pressing fatigue test of electronic counting skipping ropes. The keys of electronic counting skipping ropes should be able to work normally after being continuously pressed 5000 times, and the keys of mechanical counting skipping ropes should be able to work normally after being continuously pressed 2000 times.
2. Counting parameters:
1. Test stations: 2 (working simultaneously)
2. Load weights: Four each of 50/100/200/300/500G (optional)
3. Test times counter: 0~99999999 times (pre - settable, operated, controlled and displayed on the touch screen)
4. Test conduction times counter: 0~999999 times (automatic counting for four - station conduction, automatic stop of counting when disconnected)
5. Test speed: 5~60 times/min (adjustable by knob, displayed on the touch screen)
6. Test stroke: 0~60MM (manually adjustable), the equipment movement stroke is fixed at 20MM
7. Conventional clamping range of the test fixture: 60x70MM (manually adjustable)
8. Overall dimensions (LxWxH): 500x400x550MM
9. Machine weight: 25KG
10. Working power supply: AC220V, 50HZ
11. Control mode: Pneumatic control.
