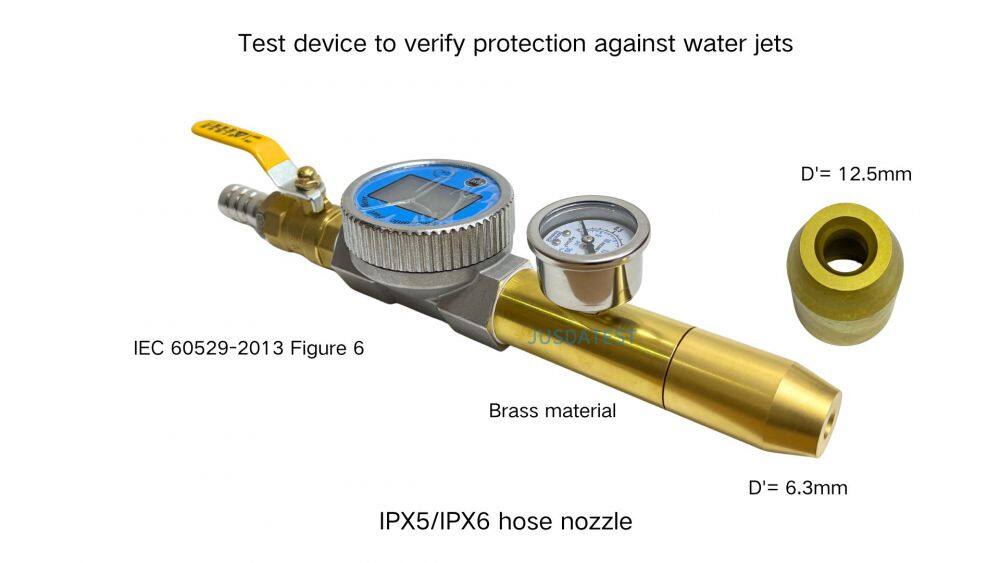

IPX5 IPX6 Spray Hose Nozzle Tester
Specifications
internal diameter of the nozzle:6.3mm
--delivery rate:12.5/min+/- 5%
--water pressure:to be adjusted to achieve the specified delivery rate
--Core of the substantial stream: circle of approximately 40mm diameter at 2.5 distance from nozzle
--Test duration per square meter of enclosure surface area likely to be sprayed :1mm
--Minimum test duration :3min
--Distance from nozzle to enclosure surface:between2.5 and 3m

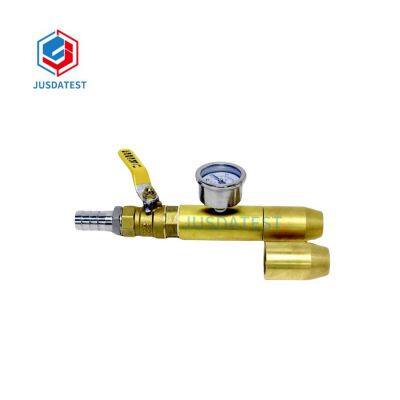

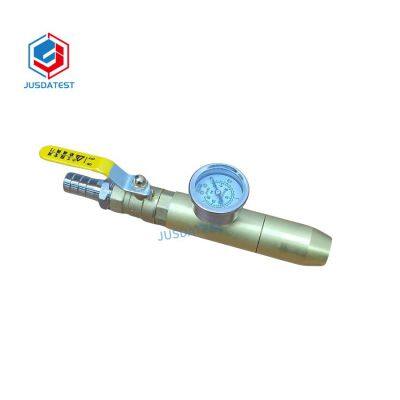

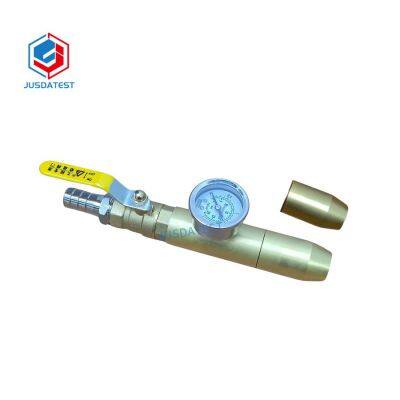

Test Set consists of a jet handle that is equipped with a pressure gauge and an easy-to-adjust flow valve.The interchangeable nozzles assemble easily to the jet handle.

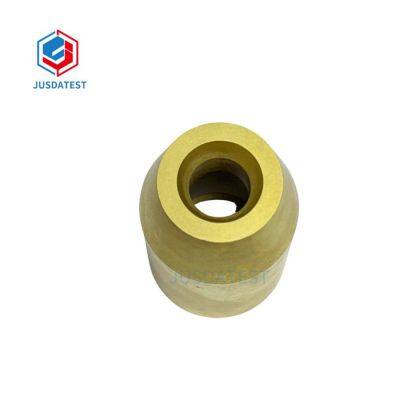

The nozzles are made from stainless steel.
Pressure Gauge |
1- 1.6 bar |
Nozzle Diameter |
6.3mm(IPX5) ; 12.5mm(IPX6) |
Material |
Stainless steel nozzle |
Reference standards |
IEC60529 IPX5 IPX6, IEC60598-1 IEC 60335-1,IEC60745-1 |
