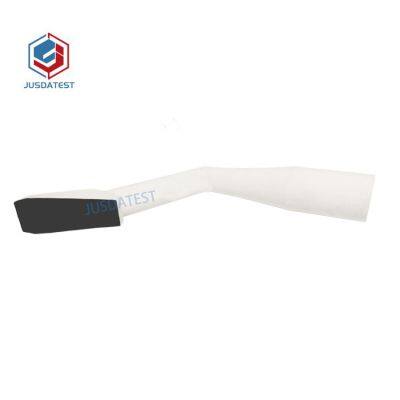

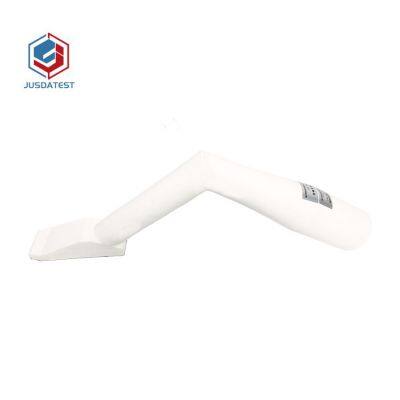

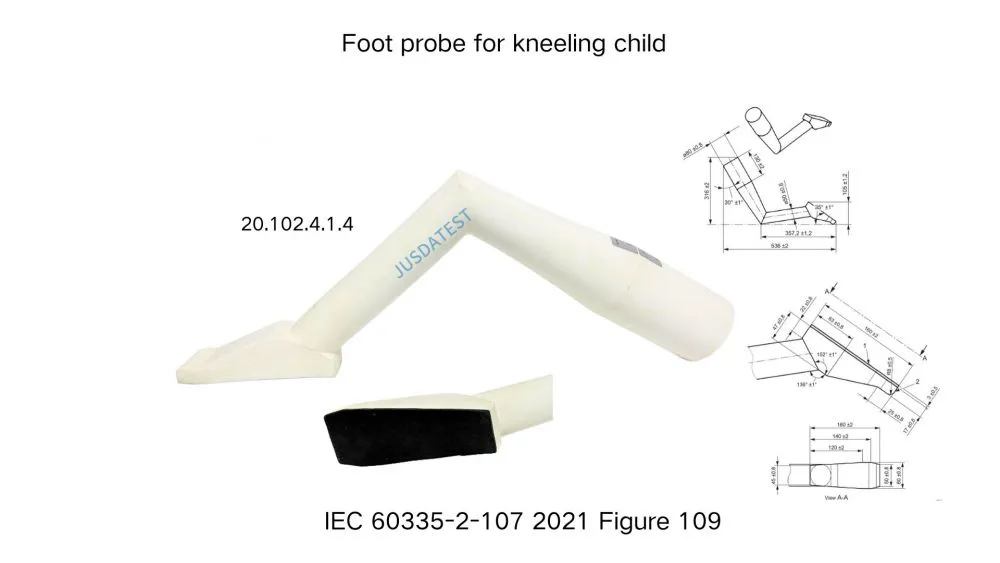

Foot probe for kneeling child of IEC 60335-2-107 Figure 109
20.1 02.4.1 .4 Foot probe test for kneeling child
The machine is placed on a test surface as described in Annex CC, except that
– the minimum size as described in Clause CC.2 shall be such that the machine is capable of attaining its maximum traction drive speed in automatic mode during normal use with the cutting means operating; and
– an injection tube as shown in Figure CC.1 need not be incorporated into the test surface.
The machine is tested by means of the foot probe shown in Figure 109. The sole of the foot probe shall be constructed of a material with a 70 Shore A hardness (nominal) and a thickness of (3 ± 0,5) mm. The sole of the foot probe shall be free from dust and grease. Prior to the series of tests, the sole of the foot probe in Figure 109 shall be checked to ensure a dynamic coefficient of friction of (0,6 ± 0,06) with respect to the same material surface in accordance with ISO 8295:1995.
