Home > Instruments & Meters > Other Instruments & Meters > Adult Foot Probe Test of IEC 60335-2-107 2021 Figure 102

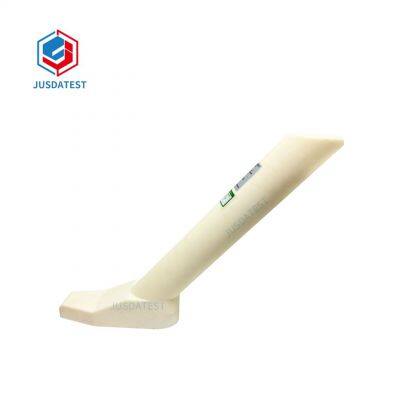

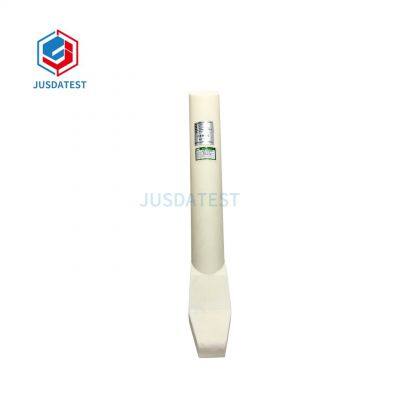

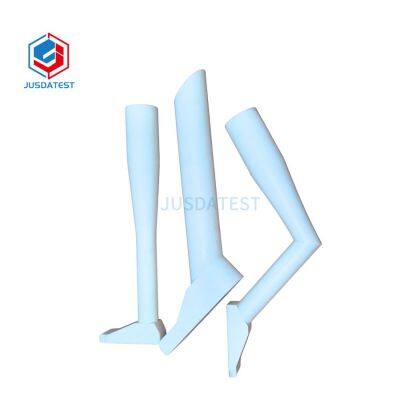

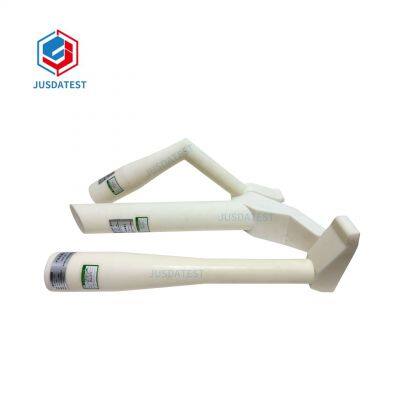

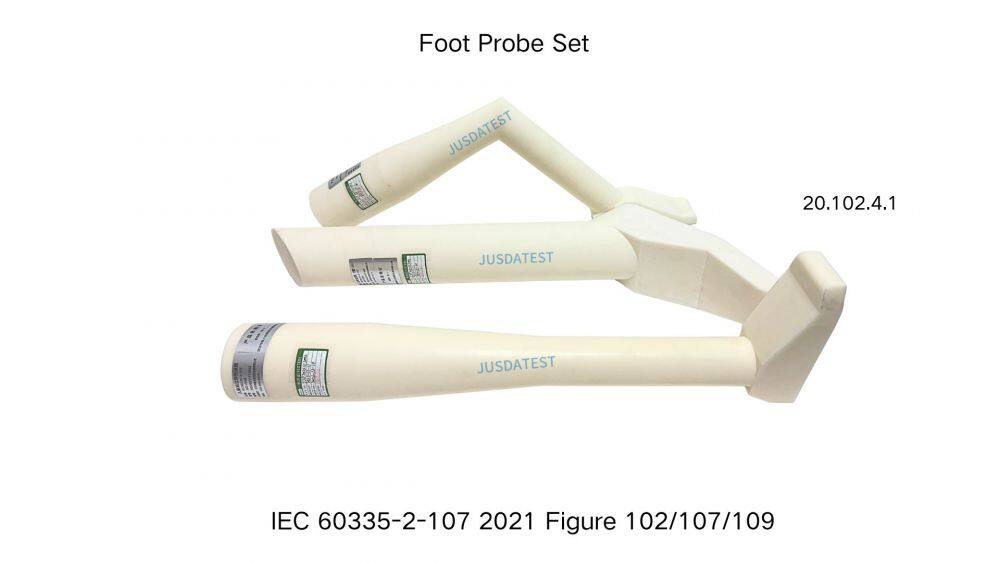

Adult Foot Probe Test of IEC 60335-2-107 2021 Figure 102
Product Spotlights
IEC 60335-2-107，Adult foot probe test，Adult foot probe
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Warranty:
one year
Transport Package:
carton packaging
Specification:
Figure 102
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
7 days
Related Products
-
Foot Probe for Kneeling Child of IEC 60335-2-107 2021 Figure 109NegotiableMOQ: 1 Piece -
Carbon Steel Vessel Φ110–Φ300mm | 5pcs/set | Wall Thickness 2mm±0.5mm | IEC60335-2-9 Figure 104NegotiableMOQ: 1 Combo
-
IEC60335-2-75 Figure 101 Splash Apparatus Waterproof Test DeviceNegotiableMOQ: 1 Piece
-
Load for Testing Rotating Spits IEC60335-2-6 Figure 103NegotiableMOQ: 1 Piece
-
Aluminium Vessel for Drop Test of IEC 60335-2-3 21.102US$ 290 - 320MOQ: 1 Piece
Warranty
one year
Transport Package
carton packaging
Specification
Figure 102
Origin
CHINA

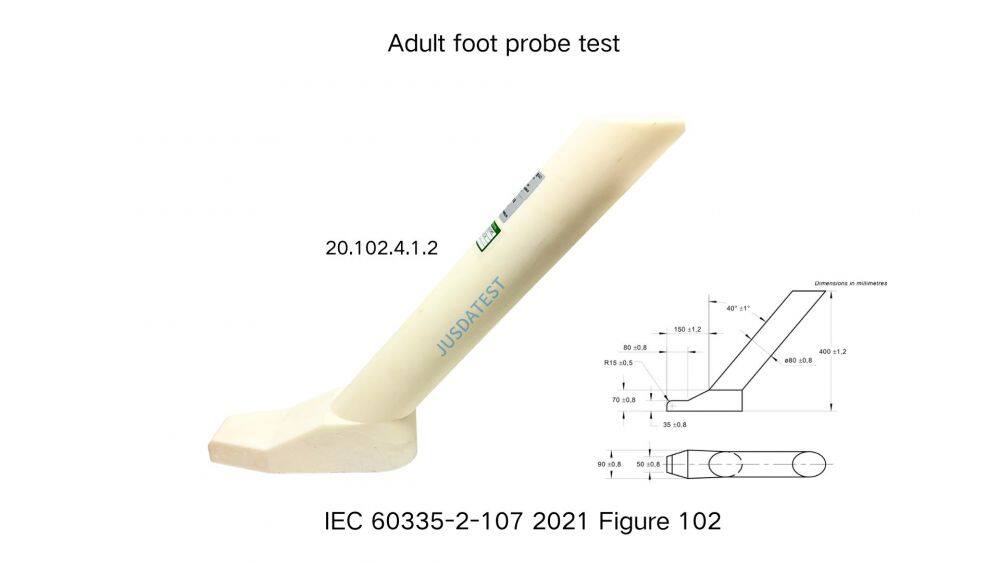

20.1 02.4.1 .2 Adult foot probe test
The foot probe of Figure 102 shall be inserted towards the cutting means around the outer periphery of the machine (see Figure 102). The base of the probe is inserted horizontally at any height and then inclined up to 15° forward or backward from the horizontal. The probe is applied around the entire machine as described in Figure 102 until a horizontal force of 20 N maximum is reached, or until any portion of the machine is displaced from its original position, or until contact is made with the cutting means path, whichever occurs first.
The test probe shall not enter the path of the cutting means assembly.
