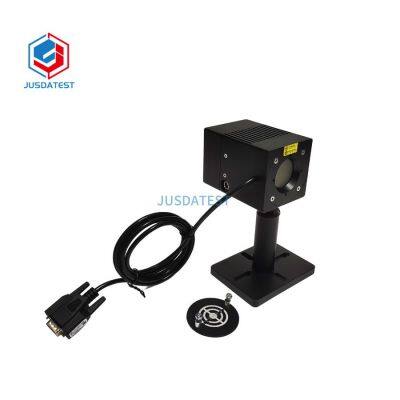

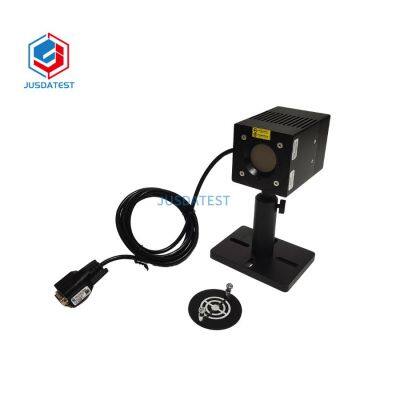

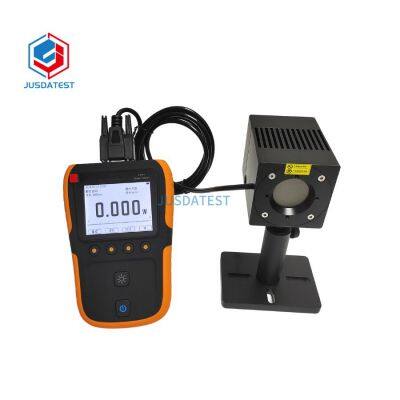

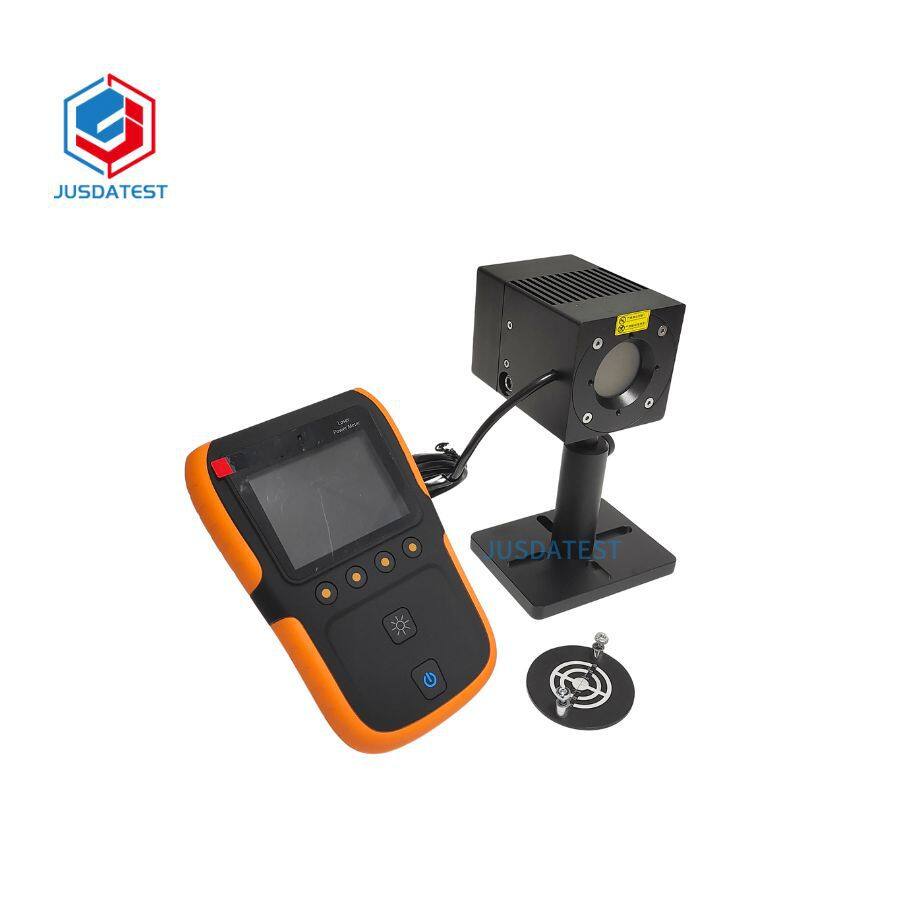

The F150-DC-25 is a general-purpose fan-cooled laser power meter probe with a 25 mm aperture. It measures optical power from 50 mW to 150 W over a wavelength range of 240–2200 nm. The probe comes with a standard 1.5 m cable for connection to a meter or PC interface. A USB interface is available as a custom option.
Model |
F150-DC-25 |
Wavelength (nm) |
240 – 2200 |
Power Range |
50mW – 150W (300W) |
Intermittent Measurement Power |
150W (cont.), 200W (3min), 300W (1min) |
Measurement Capability |
|
Resolution (mW) |
5 |
Measurement Uncertainty (±%) |
|
Nonlinearity (±%) |
|
Accuracy (±%) |
|
Response Time (s) |
|
Absorber Type |
DC |
Aperture (mm) |
25 |
Max Average Power Density |
100kW/cm², 10W, CW |
Max Energy Density |
1.0J/cm², 1ns, 1064nm |
Characteristics |
|
Dimensions (mm) |
65 × 65 × 97 |
Cooling Method |
Fan cooling |
Connector Type |
DB-9M |
Cable Length (m) |
1.5 |
