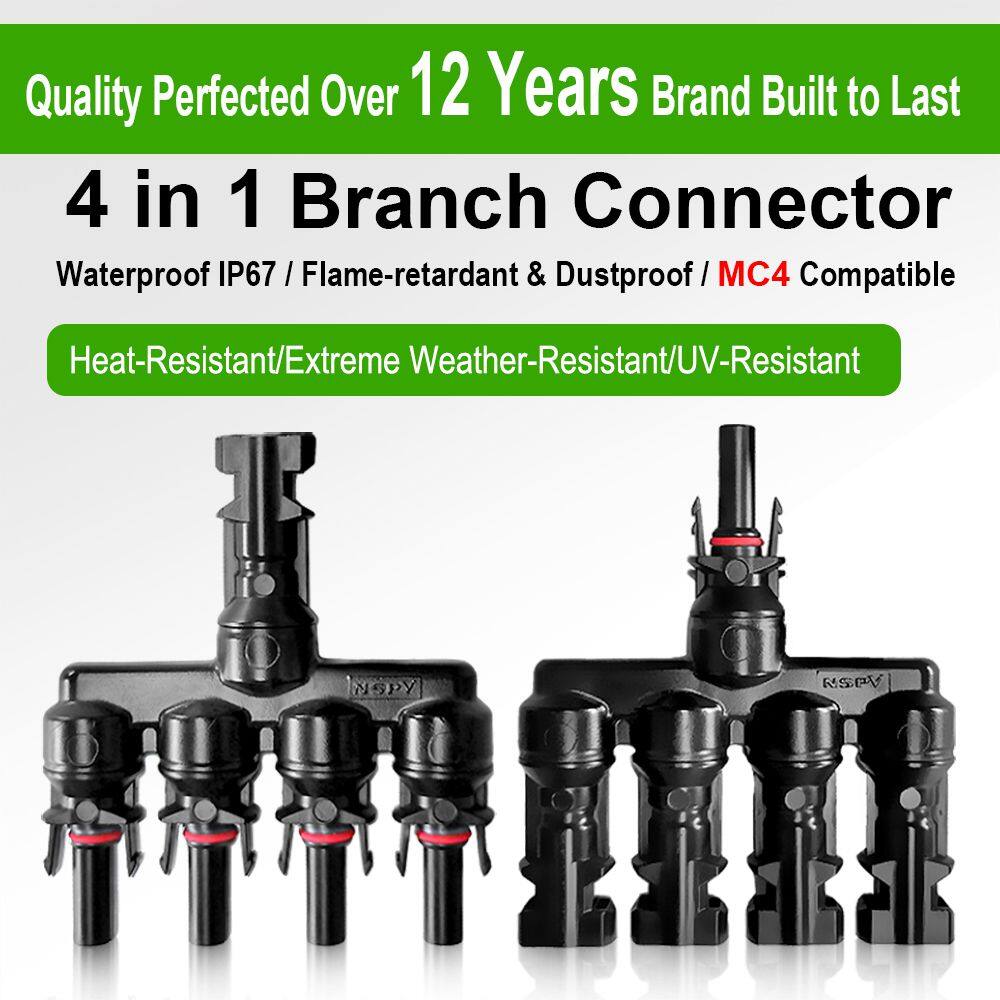

NSPV Compatible MC Flame Resistant Solar Parallel Cable 4 in 1 Branch ConnectorUS$ 5.4 - 6MOQ: 500 Pairs
-
NSPV Solar PV EC1A Junction Box End Cap Dust Caps Waterproof CoverUS$ 0.16 - 0.2MOQ: 100 Pairs
-
Wholesales NSPV MLJ-01 Connector Solar PV Panel Mini Junction BoxUS$ 3 - 5MOQ: 1000 Pairs
NSPV Solar DC1500V 3-in-1 Branch Connector 60A UV Resistant
Product Overview:

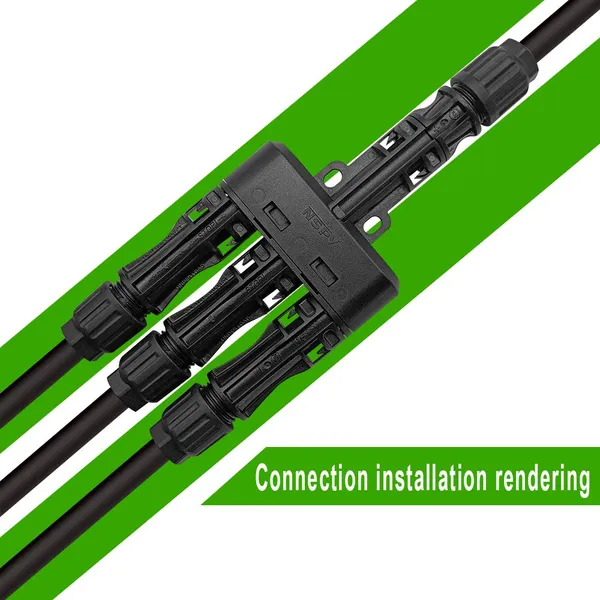

The NSPV Solar DC1500V 3-in-1 Branch Connector 60A UV Resistant is a cutting-edge electrical component designed specifically for solar photovoltaic (PV) systems. This connector facilitates the efficient and safe connection of three solar panel strings into a single output, operating at a high voltage of 1500V DC and capable of handling up to 60A of current. Its UV-resistant properties ensure longevity and reliability even under prolonged exposure to sunlight, making it an ideal choice for outdoor solar installations.
Product Features:
High Voltage and Current Rating: With a rated voltage of 1500V DC and a current capacity of 60A (when used with a 10mm² cable), this connector is well-suited for high-power solar arrays, enhancing system efficiency and reducing energy loss.
UV Resistance: The connector is engineered with UV-resistant materials, ensuring that it can withstand the harmful effects of prolonged sun exposure without degrading in performance or safety. This feature extends the connector's service life, reducing maintenance costs and enhancing overall system reliability.
Superior Insulation and Safety: Constructed with PPE (Polyphenylene Ether) insulation material, the connector provides excellent electrical insulation, minimizing the risk of electrical shock or short circuits. It also boasts a safety degree of II, ensuring compliance with international safety standards.

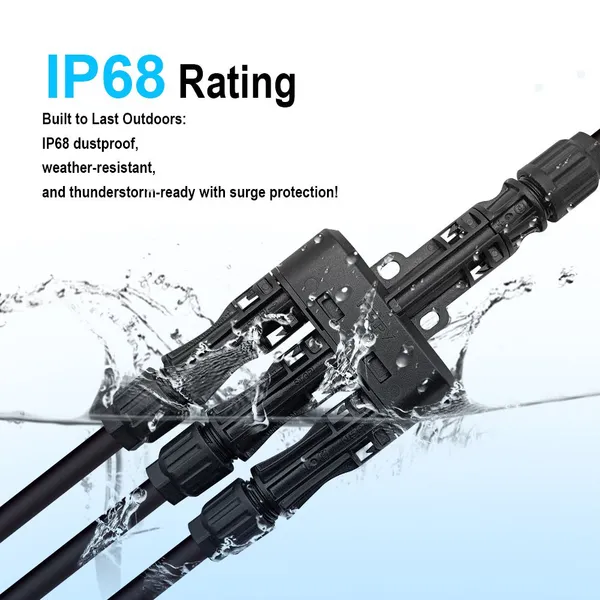

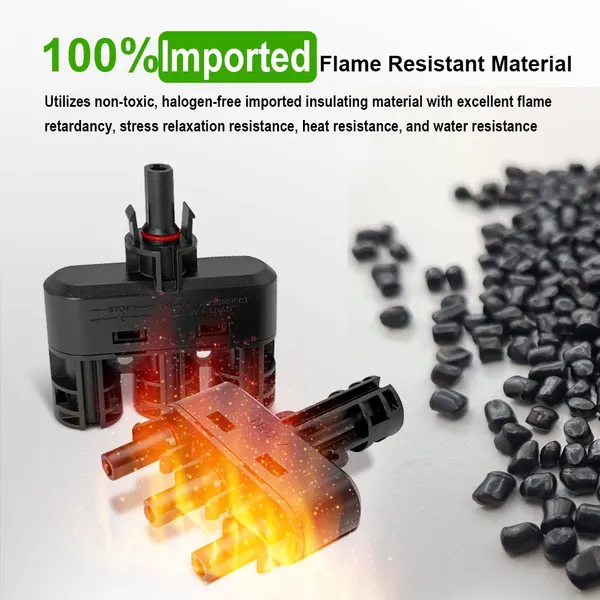

Robust Construction: The connector features a flame-retardant rating of UL94-V0, indicating its resistance to ignition and flame spread. Additionally, its IP68 protection rating ensures that it is dust-tight and can withstand temporary immersion in water, making it suitable for harsh outdoor environments.

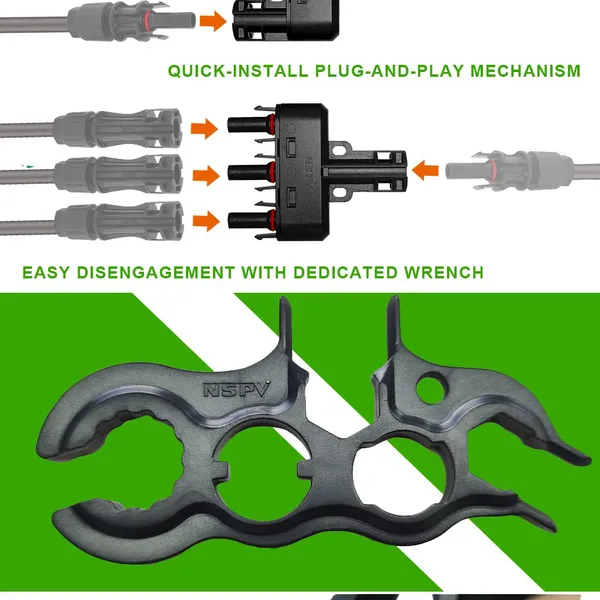

Easy Installation: The connector utilizes a crimp connection system, which simplifies the installation process and ensures a secure and reliable connection. This feature reduces installation time and labor costs, enhancing overall project efficiency.
Product Advantages:
Enhanced System Efficiency: By enabling the connection of three solar panel strings into a single output, this connector reduces the number of components required in the system, thereby minimizing energy loss and improving overall efficiency.
Cost-Effective Solution: The connector's high current and voltage ratings, combined with its UV resistance and robust construction, provide a cost-effective solution for solar PV installations. It reduces the need for frequent replacements and maintenance, lowering long-term operational costs.
Improved Safety: With its superior insulation, flame-retardant properties, and high protection rating, the connector ensures the safety of both personnel and equipment in solar PV systems. This reduces the risk of electrical accidents and enhances system reliability.
Versatility: The connector's compatibility with a wide range of cable cross-sections (2.5~10mm² / 14~8AWG) makes it suitable for various solar PV applications, from residential to commercial and industrial installations.
FAQs:
Q: What is the maximum current rating of this connector?
A: The maximum current rating is 60A when used with a 10mm² cable.
Q: Is this connector UV resistant?
A: Yes, the connector is engineered with UV-resistant materials to ensure longevity and reliability under prolonged sun exposure.
Q: What is the protection rating of this connector?
A: The connector has an IP68 protection rating, making it dust-tight and resistant to temporary immersion in water.
Q: Can this connector be used in high-voltage solar PV systems?
A: Absolutely, the connector is rated for 1500V DC, making it suitable for high-voltage solar PV installations.
Q: What type of connection system does this connector use?
A: The connector utilizes a crimp connection system for secure and reliable electrical connections.
Application:
The NSPV Solar DC1500V 3-in-1 Branch Connector 60A UV Resistant is widely used in solar photovoltaic systems, particularly in applications where high voltage and current ratings are required. It is suitable for connecting multiple solar panel strings in residential, commercial, and industrial solar installations, ensuring efficient energy transfer and system reliability. Its UV-resistant properties make it an ideal choice for outdoor environments, where prolonged sun exposure is a concern.
