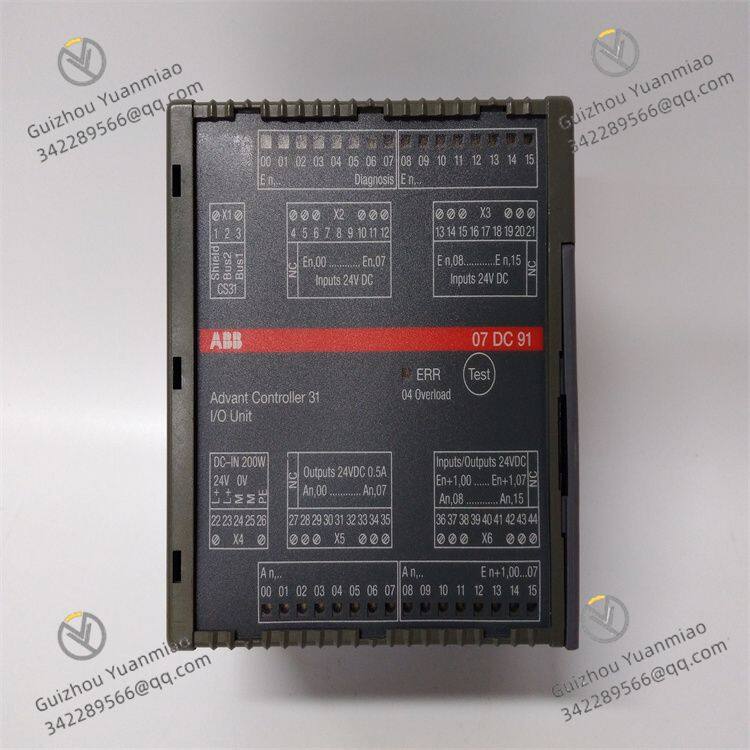

ABB 07DC91C is an industrial-grade digital input/output (I/O) module, belonging to the expansion unit of DCS/PLC systems. It is optimized for device interconnection and signal interaction in harsh industrial environments. Featuring a compact modular structure, high-speed signal processing, flexible configuration, and high reliability, this module acts as an efficient data interaction bridge for industrial automation systems, enabling accurate digital signal acquisition and stable equipment control. It is one of the core components for improving industrial production efficiency and operational stability. Compatible with ABB AC31 and earlier programmable logic controller (PLC) systems, it supports easy integration with the host via the CS31 bus interface and is widely used in various industrial automation scenarios.
Specifications
| Parameter Category | Details |
|---|---|
| Model | 07DC91C |
| Manufacturer | ABB (Switzerland); some products are manufactured in the US, Germany, etc. |
| Product Type | Configurable Digital I/O Module |
| Channel Configuration | 16-channel DI/DO (configurable switchable); some versions support 8 configurable I/O channels |
| Response Time | ≤ 0.05 ms (high-speed type); processing speed can reach 550 μs ~ 16.3 μs in some applications |
| Operating Voltage | Standard 24 VDC ±10% (reverse polarity protection); some versions support 220 V |
| Output Current | 0.5 A per channel (peak 2 A) |
| Dimensions | Standard compact size: 85×140×120 mm; slight variations in some versions (e.g., 11.40×11.70×9.00 cm) |
| Communication Interface | Integrated RS-485 (Modbus RTU), supports CS31 bus; some versions include Ethernet, serial communication, etc. |
| Protection Grade | IP20 (for cabinet installation), resistant to dust in industrial environments |
| Environmental Rating | Operating temperature: -40 °C ~ +85 °C; Storage temperature: -25 °C ~ 75 °C; suitable for harsh industrial environments |
| Weight | Normal: 0.261 kg ~ 1.07 kg; up to 2.5 kg for some versions (varies by configuration) |
Functions & Features
Flexible Configuration & High Compatibility
With a true bidirectional channel architecture, each channel supports dynamic DI/DO switching. I/O modes can be flexibly configured according to actual application requirements, greatly saving cabinet space (up to 50%). It supports multiple communication protocols (Modbus RTU, PROFIBUS, etc.) and can be quickly integrated with ABB AC31 and earlier PLC systems. It is also compatible with commonly used DC power supplies in industrial automation, offering strong adaptability.
High-Speed Processing & Precise Control
Equipped with advanced signal processing technology, the module achieves transmission rates up to dozens of Mbps and response time as low as 0.05 ms. It quickly identifies and processes various digital signals (switching, pulse, etc.), ensuring seamless and precise control of industrial processes. In high-speed printing, robot control, and other real-time-critical applications, it effectively improves control accuracy and reduces production errors.
High Reliability & Durability
Constructed from high-quality metal and engineering plastics and tested under strict manufacturing processes, the module features strong anti-electromagnetic interference and dust protection. It operates stably in harsh environments such as high/low temperatures and dust, reducing system failures caused by environmental factors and ensuring production continuity. It also supports hot-swapping for easy installation, commissioning, and maintenance, lowering operational costs.
Rich Expansion & Easy Maintenance
Highly configurable and programmable, the module supports basic equipment start/stop control, complex logic operations, and sequential control to meet the requirements of different industries and processes. It supports remote monitoring and diagnostics. Via dedicated software, users can monitor module status, read fault information, and perform remote debugging in real time, further improving maintenance efficiency.
Applications
Manufacturing: automated production lines, printing presses, robot control, etc. For example, in a high-end printing line in Dongguan, precise synchronous roller control reduced reject rate by 40%.
Energy Management: equipment monitoring and control in power, new energy, and other fields, enabling data acquisition and device linkage.
Transportation: automatic control and signal transmission for transportation equipment, ensuring stable operation.
Building Automation: control and monitoring of building lighting, ventilation, and other equipment.
Environmental Monitoring: acquisition and transmission of signals from various sensors in industrial environments, providing data support for environmental regulation.
FAQs & Solutions
How does the module communicate with a PLC?
The module supports multiple communication protocols including Modbus RTU and PROFIBUS. It can connect to a PLC via RS-485 or CS31 bus interface for data exchange. Communication parameters must be configured according to the actual application and PLC model to ensure interface matching and stable signals.
How to troubleshoot faults during operation?
First, verify that the power supply is normal (stable 24 VDC, no reverse polarity). Second, check that input/output wiring is correct and secure. Finally, use the module fault indicators or dedicated software to read fault codes and locate issues. If self-troubleshooting fails, contact ABB after-sales service or professional technicians.
How to ensure stable operation in harsh environments?
The module has an IP20 rating and wide temperature tolerance, providing dust and temperature variation resistance. Install it inside a cabinet, keep the environment clean and dry, and avoid long-term exposure to moisture or corrosive conditions. Perform regular inspections and maintenance to ensure tight connections and clean interfaces, extending service life.
