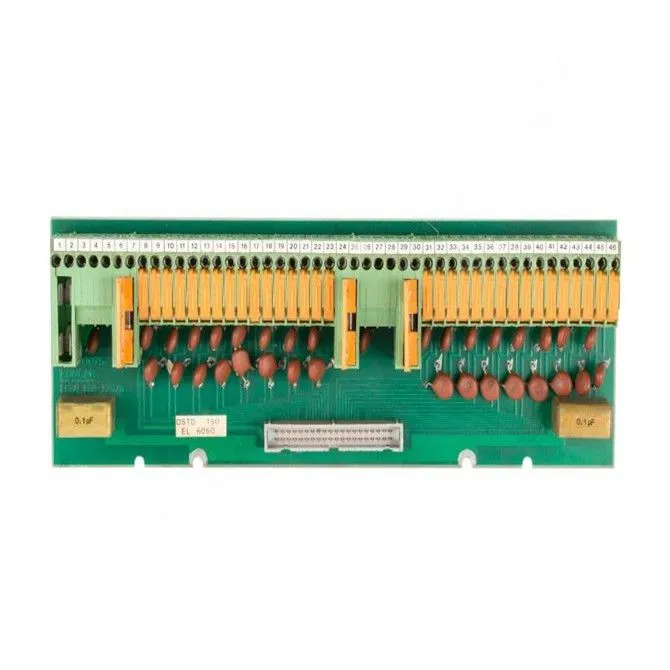

Help CenterABB 3BHB019265R0410 Analogue Input/Output (I/O) Module
Related Products
-
ABB R474A11XE HAFAABAAABE1BCA1XENegotiableMOQ: 1 Piece -
ABB CRBX01 2VAA008424R1 Remote Bus ExtenderNegotiableMOQ: 1 Piece
-
ABB FET3251C0P184C0H2 Power Control Board / Process Transmitter Companion UnitNegotiableMOQ: 1 Piece
-
ABB UNITROL1005-0011 ECO 3BHE043576R0011 Industrial‑grade Control ModuleNegotiableMOQ: 1 Piece
-
ABB SAFT183VMC Control ModuleNegotiableMOQ: 1 Piece
ABB 3BHB019265R0410 is an industrial-grade analog input/output (I/O) module, optimized for harsh environments in medium-to-high-end industrial control systems. It is mainly used for accurate acquisition, stable transmission, and reliable control of analog signals. Adopting an integrated modular structure, the module complies strictly with IEC 61131-2 (industrial control equipment) and IEC 61000 (EMC) standards. It features high-precision signal processing, flexible configuration, strong anti-interference performance, and redundancy and fault tolerance. It provides a full-link analog signal interaction solution for industrial automation systems, enabling accurate measurement of physical quantities such as temperature, pressure, and flow, as well as closed-loop control of actuators. As a core component, it ensures efficient and stable operation in critical industrial applications such as power and chemical industries. It is seamlessly compatible with mainstream ABB control systems and achieves high-speed integration with controllers via PROFINET or ABB proprietary backplane buses. It is widely used in various medium-to-high-end industrial automation scenarios.
Specifications
| Parameter Category | Details |
|---|---|
| Model | 3BHB019265R0410 |
| Manufacturer | ABB (Switzerland); some products manufactured in the US, Germany, etc. |
| Product Type | Analog I/O module (composite, configurable) |
| Channel Configuration | 16-channel analog input (AI) + 8-channel analog output (AO) (standard configuration), supports multiple signal types |
| Response Time | Communication delay ≤ 0.5 ms; sampling rate continuously adjustable from 10 Hz to 200 Hz, meeting high-speed closed-loop control requirements |
| Operating Voltage | DC 24 V ±15% or DC 48 V ±15% (dual redundant input, hot backup supported, automatic switchover time ≤ 5 ms) |
| Power Consumption | ≤ 20 W under normal operation; ≤ 30 W at full load output |
| Dimensions | Standard industrial compact size, suitable for standard cabinet mounting in control systems, enabling dense deployment of multiple modules |
| Communication Interface | Integrated PROFINET or ABB proprietary backplane bus (e.g., PRP/HSR high-availability bus), communication speed up to 1 Gbps, compatible with Modbus-related protocols |
| Protection Grade | IP20 for module body (for cabinet installation); IP44 for front connector; optional IP67 waterproof connector for complex industrial environments |
| Environmental Rating | Operating temperature: -25 °C ~ +70 °C (wide-temperature version); Storage temperature: -40 °C ~ +85 °C; Relative humidity: 5% ~ 95% (non-condensing), compliant with IEC 60068-2-3 |
| Weight | 0.4 kg ~ 1.2 kg typical, varies slightly with interface configuration and redundancy design, suitable for lightweight cabinet installation |
| Other Features | MTBF ≥ 1,000,000 hours; front connector insertion/removal cycles ≥ 1000 times; compliant with IEC 61373 hot-swap standard |
Functions & Features
Flexible Configuration & Seamless Integration with Control Systems
Designed for mainstream ABB control systems including AC 800M and Symphony Plus, the module supports seamless integration with controllers and enables fast deployment without complex protocol debugging. It supports full-parameter software configuration. Using ABB Control Builder M or Symphony Plus Engineering software, users can visually configure signal type, measuring range, filtering parameters, alarm thresholds, etc., for each channel. Configuration data can be stored encrypted and imported/exported in batches, greatly improving multi-module deployment efficiency. It is also compatible with third-party industrial control systems and supports flexible switching of signal types to match field instruments of different brands and specifications, offering strong versatility.
High-Precision Acquisition & Precise Control
Equipped with 24-bit high-precision A/D and D/A converters and signal conditioning circuits, the module achieves accurate capture of microvolt-level weak signals and stable output of control signals. AI channels support 4–20 mA DC current signals and 0–5 V DC / 1–5 V DC / 0–10 V DC voltage signals. Some channels can be configured for thermocouple or RTD input, with measurement error ≤ ±0.02% FS. AO channels feature 24-bit output accuracy, linearity error ≤ ±0.05% FS, and ripple ≤ 1 mV, allowing direct driving of actuators such as control valves and inverters without additional signal amplifiers, ensuring precise execution of control commands.
High Reliability & Strong Anti-Interference
Built with high-quality industrial-grade components and tested under strict high/low-temperature and EMC conditions, the module meets IEC 61000-6-2 (immunity) and IEC 61000-6-4 (emission) Class A standards. It provides strong resistance to electromagnetic interference from inverters, motors, and other field equipment. The module adopts triple galvanic isolation between channels, between channels and the system, and between the system and the backplane bus, with isolation voltage up to 2500 V AC for 1 minute, effectively eliminating ground loops and common-mode voltage interference. Built-in overcurrent, short-circuit, overvoltage, and reverse-polarity protection prevent damage to the module and actuators, ensuring continuous and stable system operation.
Redundancy & Fault Tolerance & Convenient Operation & Maintenance
The module features complete redundancy and fault tolerance, including dual redundant power input and 1:1 redundancy for critical channels, with fast switchover to ensure stable operation under extreme conditions. It supports hot-swap in accordance with IEC 61373, allowing online replacement and maintenance without interrupting the control system, reducing downtime losses. Built-in full-scenario fault diagnosis detects abnormalities such as sensor breakage, over-range signals, and channel faults, sends real-time alarms, and records fault information. Combined with configuration software, it supports remote diagnosis and debugging, greatly improving O&M efficiency.
Applications
Power Industry: Equipment monitoring and control in power plants and substations, acquiring signals such as temperature, pressure, and current to realize closed-loop control of generator sets and power transmission and transformation equipment, ensuring stable operation of the power system.
Chemical Industry: Parameter monitoring and regulation in chemical production processes, such as acquisition of temperature, pressure, and level signals in reactors and control of actuators, achieving precise management of production and ensuring safety.
High-End Manufacturing: Signal acquisition and control in precision processing and automated assembly lines, such as accurate measurement of machining parameters and material flow, improving production accuracy and efficiency.
Energy Industry: Equipment monitoring and control in new energy (PV, wind power) and energy storage systems, enabling accurate acquisition of energy parameters and energy scheduling to optimize energy efficiency.
Metallurgical Industry: Acquisition and control of temperature, level, flow, and other parameters in metallurgical processes, adapting to high-temperature and high-interference industrial environments and ensuring stable and orderly production.
FAQs & Solutions
How to integrate the module with ABB control systems for communication?
The module can connect to controllers of systems such as AC 800M and Symphony Plus via PROFINET or ABB proprietary backplane buses for high-speed data exchange. After connection, configure parameters including module address, channel signal type, and measuring range in ABB Control Builder M or Symphony Plus Engineering software. No additional communication protocol debugging is required, ensuring stable data exchange and supporting system expansion and upgrade.
How to troubleshoot inaccurate signal acquisition or abnormal output during operation?
First, verify that the power supply is normal (stable dual redundant power, no voltage fluctuation or reverse polarity). Next, check that channel wiring is correct and secure, and verify that connected sensors or actuators are functional. Then, use the configuration software to confirm that channel parameters (signal type, range, filtering, etc.) are properly set. Finally, review fault alarms and use self-diagnosis to identify the cause. If the module itself is defective, contact ABB after-sales service.
How to ensure stable continuous operation in critical industrial applications?
The module features redundancy, strong anti-interference, and multiple protections. During operation, install it in a control cabinet and avoid exposure to moisture, corrosive gases, or strong electromagnetic interference sources. Regularly inspect wiring connectors, remove dust, and ensure reliable connections. Perform periodic self-tests and calibration via the configuration software to detect potential faults early. Maintain normal dual redundant power supply to ensure smooth switchover under extreme conditions and extend service life.
