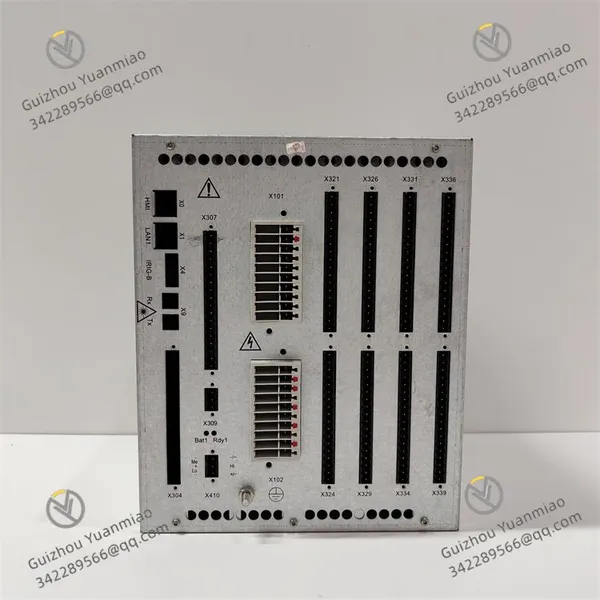

ABB R474A11XE HAFAABAAABE1BCA1XE is an industrial-grade feeder protection and control relay, belonging to the Relion® series Pre-configured Matching Unit (PCMU). It is primarily positioned as a retrofit and upgrade solution for traditional Micro Screen Overcurrent (MSOC) relays, optimized for the harsh operating environments of utility substations and industrial power systems.
Based on the proven REF615 relay technology, the relay features a compact withdrawable design and complies strictly with relevant industrial standards. It offers comprehensive protection functions, flexible configuration, convenient upgrade compatibility, and high reliability. It provides primary protection and control for overhead lines, cable feeders, and distribution busbar systems, and is compatible with both earthed and unearthed distribution systems. As a key component, it supports power system retrofits and ensures safe and stable operation of distribution networks.
It fits seamlessly into existing MSOC relay installations and achieves efficient integration with SCADA systems and field devices via standardized communication interfaces. It is widely used in various power distribution and industrial power supply applications.
Specifications
| Parameter Category | Details |
|---|---|
| Model | R474A11XE HAFAABAAABE1BCA1XE |
| Manufacturer | ABB (Switzerland); some products manufactured in the US, Germany, etc. |
| Product Type | Feeder protection and control relay (PCMU MSOC, dedicated for MSOC retrofit and upgrade) |
| Core Purpose | Replace traditional ABB Micro Screen Overcurrent (MSOC) relays for power system upgrade and retrofit |
| CT Input | 1 A or 5 A field-selectable, adapting to current measurement requirements in different scenarios |
| Response Time | Standard response; high-speed output ( |
| Operating Voltage | Compatible with standard power system supplies, supports wide voltage range, with overvoltage and undervoltage protection |
| Dimensions | Compact withdrawable design; rear terminals fully match existing MSOC relays, fitting original mounting positions without cabinet modification |
| Communication Interface | Supports DNP3.0 and Modbus protocols, compatible with SCADA systems, enabling data upload and remote control; provides web browser-based HMI |
| Protection Degree | Complies with industrial power equipment protection standards, suitable for substations and industrial power distribution rooms, dustproof and resistant to minor foreign objects |
| Environmental Rating | Operating temperature: -25 °C ~ +70 °C; Storage temperature: -40 °C ~ +85 °C; Relative humidity: 5% ~ 95% (non-condensing), adaptable to complex power system environments |
| Weight | Typical 0.5 kg ~ 1.5 kg; withdrawable design facilitates handling and maintenance, suitable for existing installations |
| Other Features | Supports 6 setting groups and user-programmable function blocks; ring terminals for all I/O; large customizable LCD display; RoHS-compliant; basic configuration via PCM600 software |
Functions & Features
Easy Upgrade & Seamless Compatibility
Designed specifically for retrofitting traditional MSOC relays, the rear terminals fully match the wiring of existing MSOC relays. No wiring diagram changes or rewiring are required, greatly reducing engineering time and cost. It is an ideal solution for upgrading power systems to state-of-the-art technology.
It can directly replace legacy MSOC relays while retaining similar protection and control logic. It is also compatible with existing DNP3.0 points and Modbus registers in SCADA systems, enabling a seamless upgrade without major modifications to the current system.
Comprehensive Protection & Precise Control
The relay provides complete feeder protection functions, including time and instantaneous overcurrent, negative-sequence overcurrent, phase failure, circuit breaker failure, and feeder cable thermal overload protection. It delivers primary protection for overhead lines, cable feeders, and distribution busbars.
Optional functions include High-Impedance (HIZ) fault detection, Sensitive Earth Fault (SEF) detection, and Arc Flash Detection (AFD), suitable for both earthed and unearthed distribution systems to effectively handle various power faults. It supports flexible three-phase multi-shot auto-reclosing to quickly restore feeder supply during temporary faults on overhead lines, improving power supply reliability.
Flexible Configuration & User-Friendly Operation
It supports user-programmable function blocks, allowing flexible configuration of protection parameters and control logic to meet diverse feeder protection requirements. It is equipped with a large, customizable, easy-to-read LCD display that clearly shows key data such as operating status and fault information. Web browser-based HMI is supported for convenient on-site operation and parameter viewing.
Basic configuration can be completed using PCM600 software in a simple and efficient manner, with parameter backup and restoration supported to enhance configuration efficiency.
High Reliability & Convenient Maintenance
Built with high-quality industrial-grade components and based on field-proven Relion® series technology, the relay has undergone rigorous high/low-temperature and EMC testing. It features strong anti-interference capabilities to withstand electromagnetic interference in power systems and ensure accurate execution of protection commands.
The withdrawable design supports hot swapping, simplifying installation, commissioning, and maintenance. Servicing and replacement can be performed without system shutdown, minimizing downtime losses. Built-in comprehensive fault diagnosis monitors operating status in real time, detects faults promptly, and records fault information, helping O&M personnel quickly locate and resolve issues and improve efficiency.
Applications
Utility Substations: Primary protection and supervision of overhead lines, cable feeders, and distribution busbars to ensure safe and stable operation of substation distribution equipment, supporting substation retrofits.
Industrial Power Systems: Protection of distribution systems in industrial plants and parks, providing full overcurrent, thermal overload, and other protections for both earthed and unearthed systems to safeguard power supply for industrial production.
Distribution Line Upgrades: Retrofit projects for existing MSOC relays, enabling fast technical upgrades of distribution systems without rewiring, improving protection accuracy and reliability.
Cable & Overhead Line Protection: Cable Fault Detection (CFD) for underground and overhead cable faults, quickly locating faults, reducing troubleshooting time, and accelerating power restoration.
Large Building Distribution: Protection of power distribution systems in high-rise buildings and commercial complexes, ensuring stable and safe internal power supply in complex distribution environments.
FAQs & Solutions
How to achieve seamless replacement with existing MSOC systems?
The relay uses rear terminals fully matching existing MSOC relays with identical wiring. It can directly replace the old relay without modifying wiring diagrams or rewiring. It also supports the original DNP3.0 points and Modbus registers in the SCADA system. After replacement, only basic parameter configuration via PCM600 software is needed; no SCADA communication re-commissioning is required for seamless and stable operation.
How to troubleshoot fault alarms during operation?
First, check the fault alarm information on the built-in LCD to identify the fault type (e.g., overcurrent, earth fault, communication abnormality). Next, verify correct and secure CT/VT connections and check for actual line faults. Then, view detailed fault logs via PCM600 software or Web HMI for further diagnosis. If the relay itself is defective, use the withdrawable design for quick replacement to restore system operation, and contact ABB after-sales service for repair.
How to configure protection parameters and optional functions?
Basic configuration and parameter adjustment (including protection thresholds, response time, setting group switching, etc.) can be performed using PCM600 software. Optional functions such as HIZ fault detection and AFD can be enabled and configured via the software. User-programmable function blocks are also supported for custom control logic. After configuration, parameters can be backed up for future maintenance and restoration.
