1. Product Description

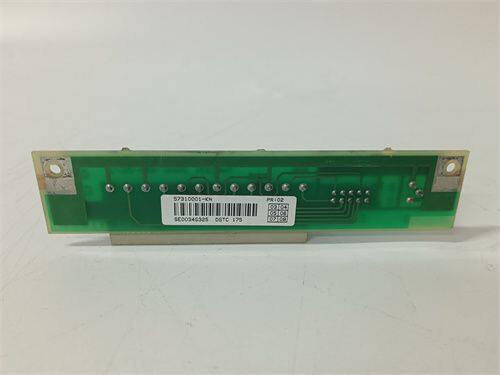

ABB DSTC175 (Order No.: 57310001-KN) is a core dynamic analog input module for Safety Instrumented Systems (SIS), specially designed for mechanical condition monitoring and safety protection of high‑speed rotating equipment.It acquires dynamic signals such as vibration, shaft displacement, and key phase (speed) from key equipment including steam turbines, compressors, and pumps. It achieves highly reliable data transmission through a Triple Modular Redundancy (TMR) architecture, providing accurate and reliable input for safety logic such as overspeed protection and vibration protection.
The module integrates professional signal conditioning circuits, optimizing frequency response and signal integrity for dynamic sensors including eddy current probes, velocity sensors, and accelerometers, ensuring high‑fidelity acquisition of vibration waveforms and key phase pulses.Its TMR 2oo3D (2-out-of-3 with diagnostics) voting mechanism eliminates single‑point failure risks at the source, fully complying with stringent safety and industry standards such as IEC 61508 SIL 3 and API 670.It is widely used in Machinery Protection Systems (MPS) and Integrated Turbine Compressor Control (ITCC) systems in oil & gas, power, chemical, metallurgy and other industries, serving as an indispensable hardware foundation for ensuring safe and stable operation of large rotating machinery.
2. Technical Specifications
| Parameter Category | Details |
|---|---|
| Model / Order No. | Model: DSTC175; Order No.: 57310001-KN; Type: TMR Dynamic Analog Input Module |
| Manufacturer / System | ABB (Triconex); Compatible with Tricon V9/V10 and Tricon CX safety systems |
| Core Functions | 1) Dynamic signal acquisition: 4 independent channels for vibration, shaft displacement, key phase signals;2) TMR redundancy: Triple independent processing and voting for safety and reliability;3) Signal conditioning: Integrated pre‑amplification, filtering, ADC for various dynamic sensors;4) Comprehensive diagnostics: Channel‑level and module‑level self‑diagnostics with real‑time fault reporting;5) Safety certification: IEC 61508 SIL 3 compliant, meets API 670 machinery protection standard |
| Channels & Signals | 4 independent dynamic input channels; compatible with eddy current probes, velocity sensors, accelerometers, key phase probes; input range configurable via software (e.g., eddy current: -1 V ~ -18 V DC) |
| Electrical & Power | Powered by Tricon chassis backplane; no external power connector; supports sensor loop open/short detection |
| Communication & Interface | Communicates with Tricon TCM (Triple I/O Bus Module) backplane for TMR data transfer and diagnostic reporting; fully integrated in Tristation 1131 engineering software |
| Physical Characteristics | Standard modular mounting; net weight approx. 0.06 kg; dimensions approx. 255 mm × 20 mm × 115 mm (for Tricon chassis) |
| Environmental | Operating temperature: 0℃ ~ +60℃; relative humidity: 5%–95% (non‑condensing); vibration/shock: compliant with industrial standards |
| Reliability | MTBF > 100,000 hours; TMR architecture, fail‑safe design |
3. Functions & Features
(1) Accurate Dynamic Signal Acquisition for Rotating Machinery Protection
Professional dynamic signal conditioning: Integrated dedicated circuits for vibration, displacement and key phase signals, with high sampling rate and wide frequency response, accurately capturing transient characteristics for order analysis, overspeed protection and other high‑quality applications.
Multi‑sensor compatibility: Uniformly supports eddy current, velocity, acceleration and other dynamic sensors, simplifying on‑site integration and reducing system cost.
Flexible software configuration: Input range, engineering units, alarm limits and other key parameters configurable via Tristation 1131 to match different sensors and working conditions.
(2) TMR Redundant Architecture for Solid Safety Foundation
Triple hardware design: Each input signal is acquired, conditioned and digitized in parallel through three independent channels, eliminating single‑point failures at the physical layer.
2oo3D voting mechanism: 2‑out‑of‑3 voting after triple data synchronization ensures data consistency and integrity. Any single channel fault will not cause protection mal‑operation or failure, meeting SIL 3.
Seamless system integration: Native Tricon module, deeply compatible with TCM backplane and main processor, no extra conversion equipment needed, simplifying architecture and reducing failure points.
(3) Full Diagnostics & Easy Maintenance for Lower Operational Risk
End‑to‑end self‑diagnostics: Continuous monitoring of input loops (open/short), module hardware and communication links; diagnostic data uploaded to Tricon controller in real time for predictive maintenance.
Visual status monitoring: Real‑time channel status, diagnostic codes and alarms via Tristation 1131 for fast troubleshooting.
Hot‑swap & quick replacement: Modular design supports online replacement; no re‑configuration required, only restore original project to resume operation, greatly reducing downtime.
4. Applications
Oil & Gas: Machinery protection for natural gas pipeline compressors, LNG refrigerant compressors, refinery rich‑gas compressors – vibration, shaft displacement and overspeed protection to prevent surge and mechanical damage.
Power: Overspeed protection and vibration monitoring for gas turbines and steam turbines, ensuring safe start/stop and stable operation of generator sets.
Chemical & Metallurgy: Protection and control of syngas compressors, air separation expanders, blast furnace blowers for continuous and stable processes.
Other Critical Equipment: Condition monitoring and safety protection for high‑speed rotating machinery such as large boiler feed pumps and fans, used in continuous production with ultra‑high reliability and safety requirements.
5. FAQs & Troubleshooting
1. Abnormal signal (abnormal amplitude, no signal, high noise)
Check that sensors and probes (eddy current probe, extension cable, pre‑amplifier) are intact and securely connected, and gap voltage is within specification.Verify module input range configuration matches the sensor.Ensure signal cable shield is single‑point grounded at the cabinet to avoid ground loop interference.Inspect connection between Tricon TCM backplane and module for looseness.
2. Diagnostic alarm, redundant switchover or system degradation
Check fault codes in Tristation 1131 to identify faulty channel/module.Verify correct redundancy configuration (1:1 or N+1).Upgrade module firmware to the latest compatible version.In case of hardware failure, replace with the same model per procedure and download configuration.
3. Abnormal key phase signal (missing, jitter, inaccurate)
Verify key phase probe type and mounting position; ensure stable square or sine wave output.Check key phase signal conditioning and configuration; apply filtering if needed.Confirm probe power and cabling are normal, eliminate poor connections.
