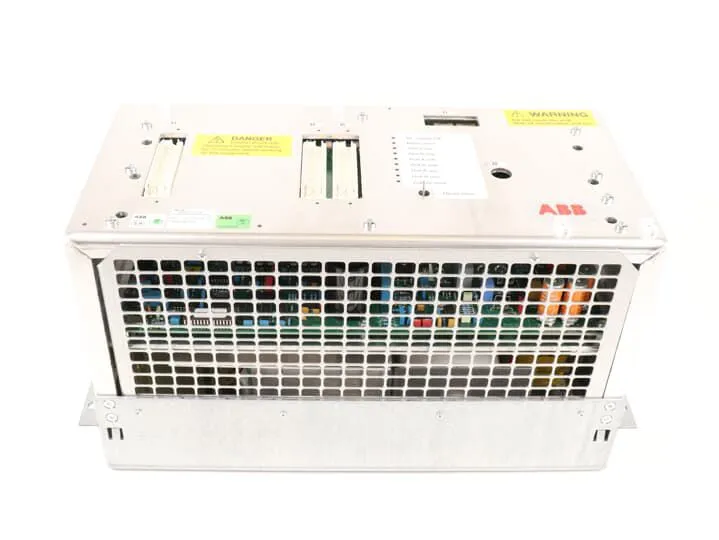

Help CenterABB PFSA140RULLM1I 3BSE06503R1 Roll Supply Unit
Related Products
-
ABB DSTC175 57310001-KN Digital Signal Transducer ControllerNegotiableMOQ: 1 Piece -
ABB REF620C_F NCFNAAAAABC2DNN1XF Medium-voltage Feeder Protection and Control RelayNegotiableMOQ: 1 Piece
-
ABB DSRF182AK02 3BSE014078R1 Expansion I/O RackNegotiableMOQ: 1 Piece
-
ABB REF615E_E HBFHAEAGNBA1BNN1XE Medium-voltage Feeder Protection and Control UnitNegotiableMOQ: 1 Piece
-
ABB CM772F 3BDH000368R0001 PROFIBUS DP Master ModuleNegotiableMOQ: 1 Piece
1. Product Description
ABB PFSA140RULLM1I (Order No.: 3BSE06503R1) is a high-performance industrial automation controller adopting an advanced dual-core processor architecture. It integrates multiple types of I/O interfaces and various industrial communication protocols, combining high-precision control and flexible integration capabilities. It serves as a core component for process control, equipment coordination, and energy management in industrial automation.
The controller features high-precision tension control, digital/analog signal acquisition and output, multi-device communication and coordination, and is suitable for harsh industrial environments. With high-quality components and advanced manufacturing processes, it delivers high reliability and stability. It features a compact and small-size design for easy cabinet installation and maintenance, supports seamless compatibility with other ABB automation equipment, and adapts to integration requirements in various industrial scenarios.It supports multiple mainstream programming methods to flexibly implement logic control, process regulation and energy management. It is widely used in process automation, building automation, machine automation, HVAC control, lighting control, energy management and other fields, especially for tension control in material processing. It is an industrial control solution that balances accuracy, reliability and ease of integration.
2. Technical Specifications
| Parameter Category | Details |
|---|---|
| Model / Order No. | Model: PFSA140RULLM1I; Order No.: 3BSE06503R1; Product type: Industrial automation controller, belonging to ABB roll unit industrial controller module series |
| Manufacturer | ABB (Country of origin: Switzerland / Europe) |
| Product Type | Industrial-grade automation controller with high-precision tension control function; capable of digital/analog signal acquisition and output; suitable for multi-scenario industrial automation control; core unit for process control and equipment coordination |
| Core Functions | 1) High-precision control: With high-precision tension control for tension adjustment in material processing;2) Signal acquisition and output: Supports digital and analog I/O for field device signal collection and control command output;3) Multi-protocol communication: Supports Ethernet, RS-485 and Modbus TCP/IP for data exchange and coordinated control with other devices;4) Programming control: Supports Structured Text (ST), Function Block Diagram (FBD) and Sequential Function Chart (SFC) for flexible logic control and process regulation;5) Energy management: Adaptable to lighting control, HVAC control and energy management for energy consumption optimization;6) System compatibility: Good compatibility with other ABB automation equipment for easy integration into existing systems. |
| Electrical Parameters | Input voltage: 24 VDC; Output voltage: 0–10 VDC; Output current: 0–20 mA; Max. load current: 10 A;Stable power supply and signal output to ensure control accuracy and equipment coordination reliability. |
| Communication & Interface | Supports Ethernet and RS-485 interfaces; compatible with Modbus TCP/IP protocol for seamless communication with host systems and field devices, facilitating remote monitoring, parameter configuration and data exchange;Rational interface layout, easy connection, strong anti-interference capability. |
| Physical Characteristics | Installation: Cabinet embedded installation, compact size for easy installation and maintenance;Standard dimensions: approx. 150mm × 120mm × 60mm (basic), some versions: 100mm × 80mm × 30mm;Weight: approx. 0.5 kg (basic); compact structure, small installation space, easy on-site deployment. |
| Environmental Adaptability | Operating temperature: -40℃ ~ +70℃, extendable to -40℃ ~ +85℃ in some scenarios;Storage temperature: -40℃ ~ +85℃;Relative humidity: 5% ~ 95% (non-condensing);Excellent environmental adaptability for stable operation in harsh industrial environments and complex working conditions. |
| Reliability | Adopts high-quality industrial-grade components and advanced manufacturing processes to ensure long-term reliable operation;Modular design for easy maintenance and replacement;Good anti-interference capability to resist on-site electromagnetic interference, ensuring stable control signals and normal equipment operation. |
| Core Configuration | Processor: Dual-core ARM Cortex-A9; Memory: 2GB RAM + 4GB Flash; Operating system: Linux;I/O points: Up to 256 I/O points, meeting medium and large-scale control scenarios. |
3. Functions & Features
(1) High-Precision Control for Diverse Scenarios
High-precision tension control: Core high-precision tension adjustment function accurately meets tension control requirements in material processing, reduces material waste, improves processing accuracy and product quality, and satisfies strict demands of precision manufacturing.
Flexible I/O expansion: Supports digital and analog I/O, expandable up to 256 I/O points. Flexible configuration according to on-site control needs without extensive additional modules, adapting to small-to-medium and medium-to-large control scenarios with strong compatibility.
Multi-programming support: Compatible with mainstream industrial programming languages including Structured Text (ST), Function Block Diagram (FBD) and Sequential Function Chart (SFC), enabling flexible programming based on control logic, reducing difficulty and improving development efficiency.
(2) High-Reliability Design for Harsh Conditions
Premium component assurance: Uses industrial-grade high-quality components with advanced manufacturing processes and strict quality inspection, effectively improving stability, reducing failure rates, ensuring long-term continuous operation and lowering maintenance costs.
Superior environmental adaptability: Wide operating temperature range (-40℃ ~ +70℃, extendable to -40℃ ~ +85℃) suitable for extreme high/low temperature industrial environments; strong anti-electromagnetic interference capability for stable operation in high-interference sites (e.g., near inverters, high-voltage equipment) and pure control signals.
Stable power supply and output: Stable 24 VDC input, accurately controllable output voltage and current (0–10 VDC, 0–20 mA), max. load current up to 10 A, stably driving field actuators and avoiding control failure caused by abnormal power or output.
(3) Easy Integration & Maintenance for Improved Efficiency
Seamless system integration: Excellent compatibility with other ABB automation equipment for fast integration into existing systems without complex modification, reducing system upgrade and integration costs; supports multi-protocol communication for seamless connection with field devices of different brands and types, realizing system interconnection.
Compact and convenient design: Small and compact structure with small installation space for easy cabinet embedded installation; modular design enables easy installation, plugging and replacement without special tools, greatly improving maintenance efficiency and reducing downtime.
Convenient remote management: Supports Ethernet, RS-485 and Modbus TCP/IP for remote monitoring, parameter configuration and data exchange. Maintenance personnel can monitor real-time operation status and troubleshoot quickly without on-site operation, improving management efficiency.
4. Applications
Material processing: Various material processing lines (textile, film, metal processing, etc.), using high-precision tension control to achieve accurate tension adjustment during processing, reduce material loss and improve product accuracy.
Process automation: Core controller in process industries such as large chemical plants, oil refineries and mines, realizing signal acquisition, logic control and process regulation of field devices to ensure stable and efficient production.
Building automation: HVAC and lighting control systems in office buildings, shopping malls, industrial parks and other buildings, realizing intelligent adjustment of temperature, humidity and lighting as well as energy management, optimizing consumption and improving comfort.
Machine automation: Coordinated control and logic regulation for various industrial machinery (machine tools, assembly lines, packaging equipment, etc.), improving operation efficiency and stability while reducing equipment failures.
Energy management: Energy management systems in industrial parks and large enterprises, collecting, analyzing and optimizing energy consumption data to reduce energy use in line with green production concepts.
5. FAQs & Troubleshooting
1. Reduced tension control accuracy, deviation in material processing
First check whether tension sensor wiring is secure, troubleshoot open circuits and poor connections, and calibrate sensor zero and range.Then verify stable controller output voltage and current (0–10 VDC, 0–20 mA) and eliminate power fluctuations.Next re-optimize tension control parameters and adjust programming logic to ensure timely tension response.Finally check that load current is within rated range (≤10 A) to avoid overload-induced accuracy degradation.
2. Communication interruption, unable to perform remote monitoring and data exchange
Check secure Ethernet and RS-485 wiring for open circuits, short circuits or poor contact.Verify that communication protocol settings (e.g., Modbus TCP/IP parameters) match the host system.Test communication interfaces with debugging tools to rule out damaged interfaces.Check whether firewalls or switches block communication ports and open them if necessary.Restart the controller and host system to troubleshoot software communication faults.
3. Abnormal I/O output, non-responsive actuators
Verify I/O channel configuration to ensure channels are enabled and correctly defined; check that I/O expansion does not exceed maximum limit (≤256 points).Measure output channel voltage and current to check for faulty actuators.Check stable controller power supply to avoid output failure from abnormal power.Restore factory settings and reconfigure parameters to eliminate configuration errors.Check reliable module grounding to reduce electromagnetic interference on I/O output.
4. Unstable controller operation, frequent fault alarms
Check whether operating environment is within applicable range (temperature, humidity) and improve heat dissipation and moisture protection.Verify stable power supply voltage to avoid abnormal operation from voltage fluctuations.Upgrade controller firmware to the latest version to fix known bugs.Check programming logic for errors and optimize the control program.For hardware failures (e.g., processor, memory abnormality), contact ABB authorized service for inspection, repair or replacement.
