1. Product Description

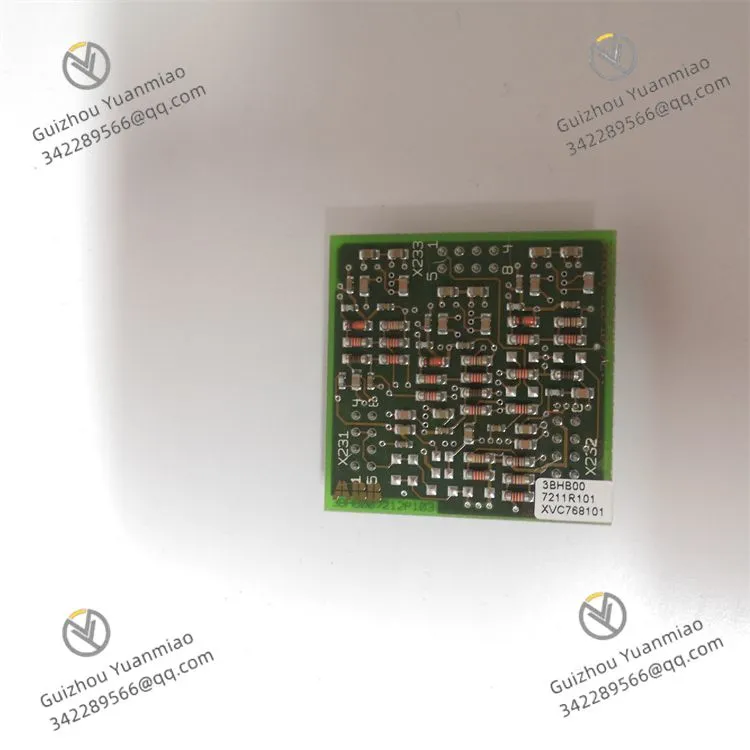

ABB XVC768AE102 (Order No.: 3BHB007211R0102) is a 16‑channel AC digital input module dedicated to the Symphony® Plus DCS system. It is mainly used for high‑speed acquisition and status monitoring of on‑site discrete signals in industrial environments, suitable for connecting operating status signals from circuit breakers, disconnectors, pressure switches, level switches and other equipment.
The module features an industrial‑grade modular design, supporting dual input voltage modes: AC 120V / AC 230V, which can be flexibly configured via jumpers or software without additional adapters. It integrates 2500V AC electrical isolation and anti‑interference circuits to ensure high reliability and signal stability. It supports hot‑swap maintenance, and is equipped with independent LED status indicators for each channel (green = ON) to enable fast fault location and zero‑downtime maintenance. It is a core spare part for the expansion and retrofit of Symphony® systems in power, petrochemical, water treatment and other industries.
2. Technical Specifications
| Parameter Category | Details |
|---|---|
| Model | XVC768AE102 (Order No.: 3BHB007211R0102) |
| Manufacturer | ABB |
| Product Type | 16‑channel AC digital input module for Symphony® Plus DCS |
| Core Purpose | 16‑channel high‑speed AC discrete signal acquisition; suitable for industrial field device status monitoring; supports hot‑swap and wide voltage configuration |
| Input Characteristics | Channels: 16 independent inputs;Voltage modes: selectable AC 120V (85–132V AC) / AC 230V (198–264V AC);Response time: ≤2ms (typical);Electrical isolation: 2500V AC/1min |
| Diagnostics & Indications | Independent LED per channel (green = signal valid);Built‑in short‑circuit / open‑circuit fault detection and reporting; supports DCS system diagnostics |
| Power & Mounting | Backplane power: +5V DC, +24V DC;Mounting: rack‑mount insertion into dedicated Symphony® chassis;Protection degree: IP20 |
| Environmental Rating | Operating temperature: 0°C ~ 60°C;Storage temperature: -40°C ~ 85°C;Relative humidity: 5% ~ 95% (non‑condensing) |
| Certification & Reliability | Certifications: CE, UL, CSA;MTBF: >100,000 hours;Supports hot‑swap; maintenance without full system shutdown |
| Physical Data | Form factor: compatible with standard Symphony® chassis;Weight: approx. 0.3kg per module;Structure: modular plug‑in design; backplane connection without extra wiring modification |
3. Functions & Features
(1) Wide Compatibility & Flexible Configuration
16 independent AC input channels supporting dual voltage modes AC 120V/230V, which can be quickly switched according to on‑site wiring without module replacement or additional adapters. The wide voltage range tolerates industrial voltage fluctuations and adapts to power standards in different regions, reducing on‑site adaptation costs.
(2) High Isolation, Anti‑Interference & Stable Acquisition
Built‑in 2500V AC optical isolation circuit effectively isolates strong field interference and noise, ensuring accurate signal acquisition even in harsh industrial EMI environments. Response time ≤2ms meets real‑time monitoring requirements for high‑speed switching devices such as circuit breakers and valves without signal delay.
(3) Intelligent Diagnostics & Easy Maintenance
Each channel is equipped with an LED indicator for direct visual status checking without an upper computer. Built‑in self‑diagnostics for short‑circuit and open‑circuit faults automatically report abnormalities to the DCS system for fast fault channel location. Hot‑swap support allows module replacement with an ESD wristband without shutdown, minimizing downtime losses.
(4) Seamless System Compatibility & Scalability
Designed exclusively for Symphony® Plus DCS, fully compatible with backplane power and chassis structure without extra communication protocol debugging. It can directly replace legacy AC input modules, preserving existing system configurations, simplifying system expansion and retrofit, and reducing costs and risks.
4. Applications
Power industry: Status monitoring of circuit breakers and disconnectors in steam turbines and auxiliary systems in power plants; signal acquisition of earthing switches and interlock circuits in substations to ensure safe operation of power equipment.
Petrochemical industry: Status monitoring of valves, compressors and flare systems in refineries and chemical plants, ensuring stable signal transmission in strong‑interference industrial environments.
Water treatment industry: Acquisition of operating status of pumps, screens and dosing pumps in wastewater treatment plants to realize automatic equipment monitoring and fault pre‑warning.
Rail transit / Building energy: Switch status monitoring in rail transit power supply systems; equipment signal integration in large‑building energy management systems, matching Symphony® system integration requirements.
5. FAQs & Troubleshooting
1. No signal input or abnormal signal
Check that input voltage is within the rated range of the selected mode (AC 85–132V / 198–264V) and that voltage configuration matches the on‑site supply.
Verify secure channel wiring and correct polarity; check for poor contact in field switch contacts.
Observe channel LED status and combine DCS diagnostic information to distinguish short‑circuit, open‑circuit or module hardware fault, and take targeted measures.
2. Hot‑swap failure or module not detected
Confirm the chassis is in hot‑swap enabled state and backplane power is stable without interruption.
Check that module and backplane connectors are clean and undamaged; ensure full engagement during insertion to avoid poor contact.
Use an ESD wristband during replacement to prevent electrostatic damage; verify communication and function via DCS after installation.
3. False alarms or signal fluctuation caused by interference
Relocate the module away from strong EMI sources (e.g., high‑power inverters, motors) with sufficient clearance.
Use shielded cables for input wiring and route them separately from power cables to reduce interference.
Verify normal operation of electrical isolation; contact ABB authorized service for module inspection if needed.
