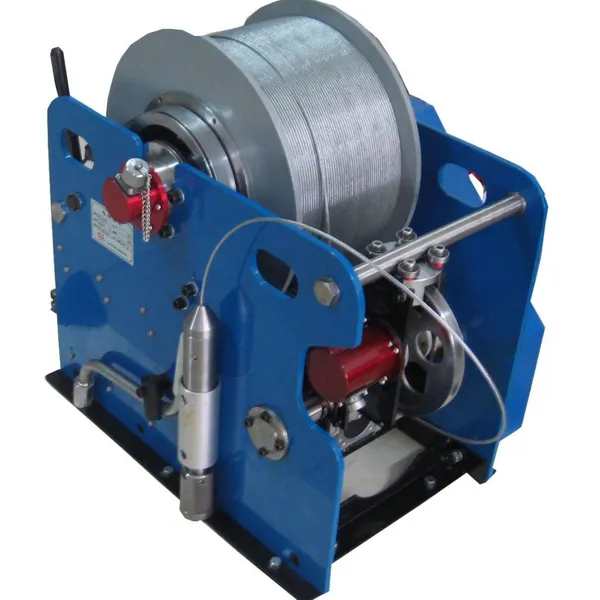

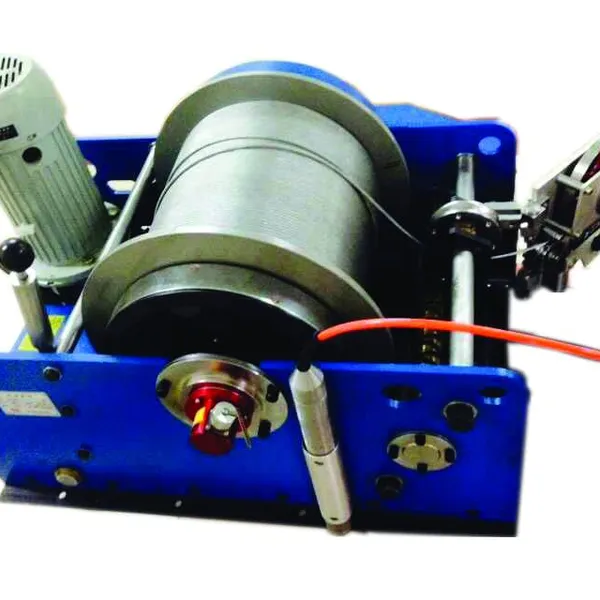

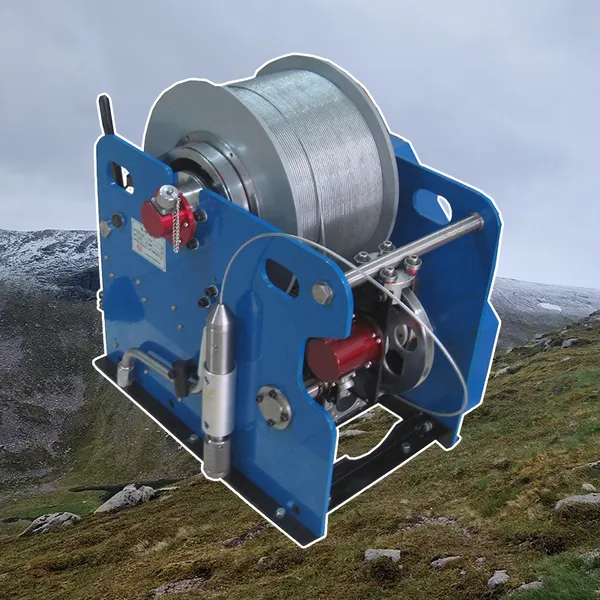

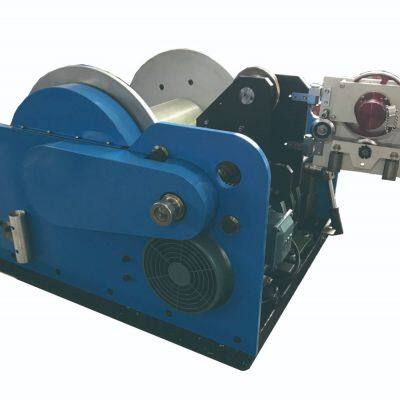

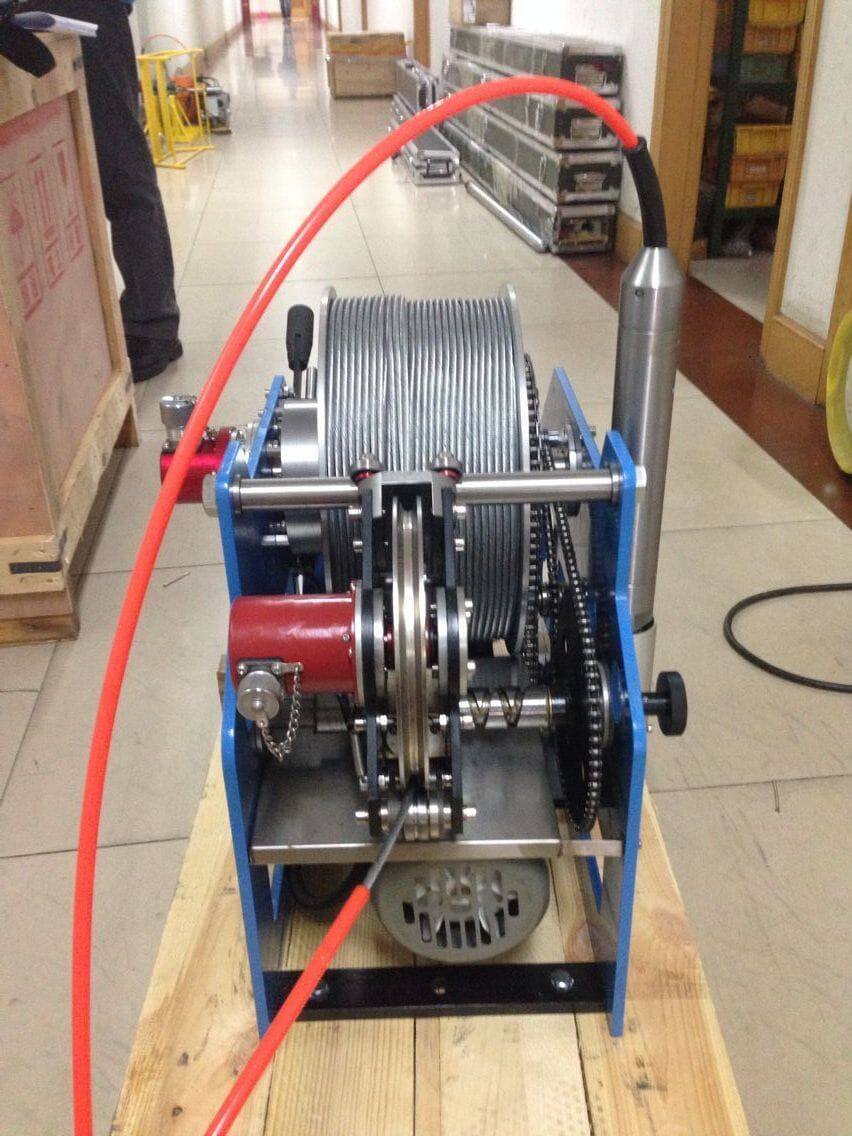

DJ Series Geophysical Wireline Winch Systems: Setting the Global Standard for Borehole Logging Reliability
Engineering Philosophy That Prioritizes Performance and Durability
The DJ Series logging winch represents the culmination of decades of geophysical engineering experience combined with modern manufacturing precision and advanced materials science. Designed for professionals who understand that equipment reliability directly translates to project profitability and data credibility, this comprehensive winch family delivers uncompromising performance across the entire spectrum of borehole logging applications from shallow 100 meter environmental monitoring wells to extreme 3000 meter deep exploration boreholes.

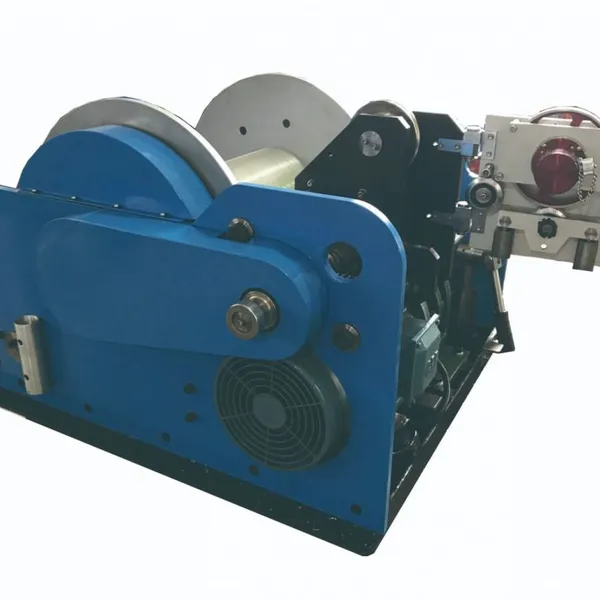

The Science Behind Smooth, Controlled Operations
What truly distinguishes the DJ Series from conventional logging winches is its implementation of advanced AC variable-frequency drive technology. This sophisticated power management system fundamentally transforms how the winch interacts with downhole loads by delivering precisely regulated torque throughout the entire logging cycle. Unlike traditional DC drive systems that exhibit performance degradation over time, the AC variable-frequency design maintains consistent responsiveness throughout the equipment's operational lifetime.
The practical implications of this technology become immediately apparent during actual field use. Operators experience silky-smooth acceleration and deceleration that protects sensitive downhole instrumentation from shock loads while maintaining precise positional control. The drive system's regenerative braking capability recovers energy during controlled descents, reducing overall power consumption and minimizing heat generation within the drive components. This energy-efficient operation translates to lower field generator fuel consumption and extended component longevity.
Precision Speed Regulation for Uncompromising Data Quality
The DJ Series dual-mode speed control architecture provides logging professionals with unprecedented flexibility in managing downhole operations. When conducting standard profiling runs where consistent data spacing proves essential, the automatic constant speed mode maintains selected velocities within a remarkable plus or minus 5 percent tolerance band across the entire 0.5 to 20 meters per minute operating range. This consistency ensures that formation measurements occur at precisely known intervals, eliminating the data normalization challenges that plague less capable systems.
For specialized operations requiring nuanced control, the manual speed regulation mode places comprehensive command directly in operator hands. The responsive control interface translates hand movements into immediate, proportional cable motion across the full 0 to 30 meters per minute capability envelope. Whether performing delicate station positioning for nuclear magnetic resonance logging or executing precise velocity checks for seismic studies, operators appreciate the predictable, linear response that manual mode provides.

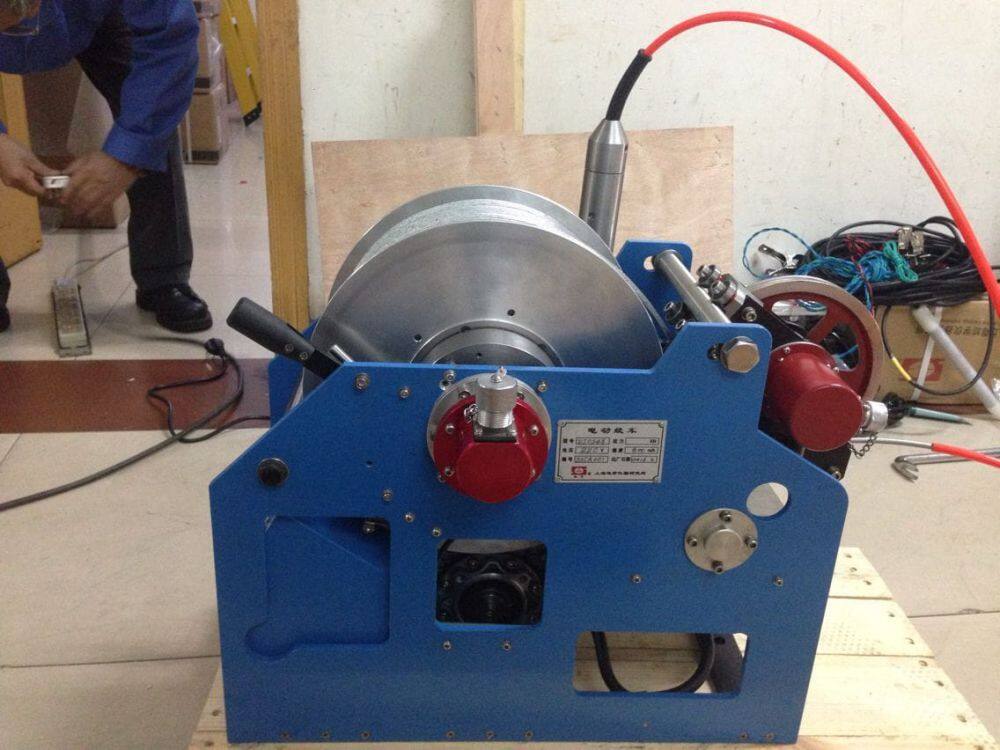

Advanced Depth Management Intelligence
Depth measurement accuracy fundamentally constrains the value of all subsequent logging interpretations. The DJ Series addresses this critical requirement through its sophisticated automated depth calculation and self-compensating error correction algorithms. These intelligent systems continuously monitor multiple parameters including cable tension variations, temperature-induced dimensional changes, and drum layer transitions to maintain exceptional positional accuracy throughout extended logging campaigns.
The system's real-time error compensation operates transparently, automatically adjusting depth calculations to account for cable stretch under load, thermal expansion effects, and accumulated drum buildup inconsistencies. This continuous self-correction maintains overall system accuracy within 0.4 percent even during operations approaching the winch's maximum 3000 meter depth capability. For long-term monitoring programs spanning months or years, this consistent accuracy ensures that water level trends and formation property changes reflect actual subsurface conditions rather than equipment drift.

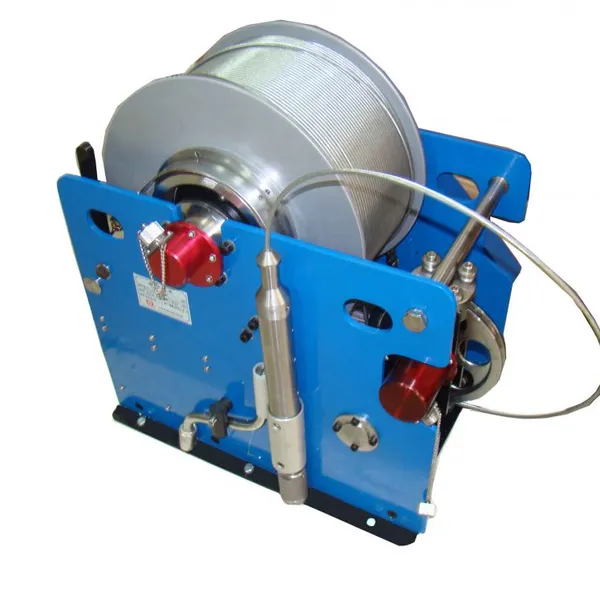

Comprehensive Safety Architecture
Field safety represents the highest priority in the DJ Series design philosophy, reflected in the redundant dual braking system that protects personnel and equipment under all operating conditions. The self-locking brake mechanism engages instantaneously whenever control power is interrupted, providing immediate positive load holding without requiring operator action. This automatic response proves particularly valuable during unexpected power fluctuations or emergency situations where every second counts.
The independently operable manual brake provides an additional layer of security, giving operators complete mechanical control regardless of electrical system status. During maintenance procedures, setup operations, or critical positioning tasks, this manual capability ensures that loads remain securely controlled at all times. The combination of automatic and manual braking systems creates a safety architecture that exceeds industry requirements while providing operators with confidence during challenging operations.
Intelligent Overload Prevention
The DJ Series automatic overload protection system continuously evaluates operational parameters against established safety thresholds, intervening proactively before conditions can develop into damaging overload events. By monitoring real-time cable tension, motor current draw, and drum torque characteristics, the system identifies potentially hazardous situations and automatically reduces speed or initiates controlled shutdowns as appropriate.
This protective intelligence proves invaluable when working through unpredictable borehole conditions or when encountering unexpected obstructions. Rather than relying on operator reaction time to prevent damage, the system automatically responds to emerging overload conditions, protecting expensive downhole sensor arrays and extending winch component life. Field experience demonstrates that this proactive protection significantly reduces unplanned downtime and equipment replacement costs over the system's operational lifetime.
Technical Specifications Reference
| Winch Designation | Maximum Depth Meters | Cable Specification | Conductor Configuration | Speed Range Meters per Hour | Rated Lifting Force Kilonewtons | Control Mode Availability |
|---|---|---|---|---|---|---|
| DJ0348 | 300 | 3/16 Inch Steel | 4 Conductor | 600 to 1200 | 1.8 and 0.9 | Automatic and Manual |
| DJ0648 | 650 | 3/16 Inch Steel | 4 Conductor | 800 to 1960 | 2.6 and 1.1 | Automatic and Manual |
| DJ1031 | 1000 | 1/8 Inch Steel | Single Conductor | 800 to 1960 | 2.6 and 1.1 | Automatic and Manual |
| DJ1231 | 1200 | 1/8 Inch Steel | Single Conductor | 800 to 1960 | 2.6 and 1.1 | Automatic and Manual |
| DJ1048 | 1000 | 3/16 Inch Steel | 4 Conductor | 800 to 1800 | 5.9 and 2.6 | Automatic and Manual |
| DJ2048 | 2000 | 3/16 Inch Steel | 4 Conductor | 660 to 1725 | 10.0 and 5.1 | Automatic and Manual |
| DJ2548 | 2500 | 3/16 Inch Steel | 4 Conductor | 660 to 1725 | 10.0 and 5.1 | Automatic and Manual |
| DJ3048 | 3000 | 3/16 Inch Steel | 4 Conductor | 660 to 1725 | 10.0 and 5.1 | Automatic and Manual |

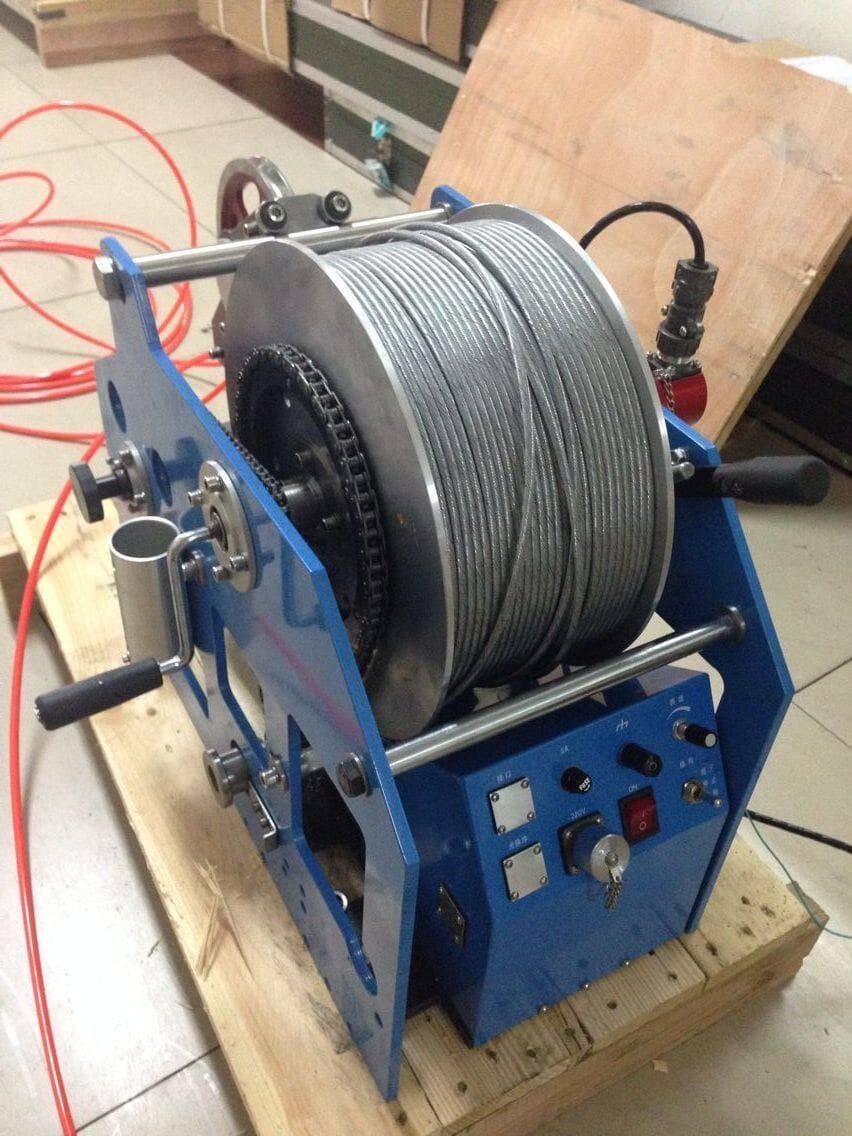

Controller Functionality for Professional Applications
The DJ Series integrated winch controller serves as the operational command center, providing comprehensive system management through an ergonomically designed interface that minimizes operator fatigue during extended logging campaigns. Three distinct operating modes address the full spectrum of field requirements: automatic mode for efficient routine profiling, manual mode for specialized operations requiring direct operator involvement, and check mode for thorough system verification and preventive maintenance procedures.
The controller's measurement mode flexibility accommodates both fixed point station logging for detailed formation analysis and continuous profiling for efficient borehole characterization. Directional control switches provide instantaneous response to operator commands, with dedicated up and down functions delivering positive, predictable cable motion throughout the operational envelope.
Engineered for reliable performance in demanding field environments, the controller maintains full functionality across minus 10 to plus 55 degrees Celsius ambient temperature ranges and accepts standard AC 220 volt plus or minus 10 percent, 50 Hertz power sources. This robust design ensures dependable operation whether connected to utility power or field generators at remote exploration sites.
Application Versatility Across Industries
The DJ Series demonstrates exceptional adaptability across the diverse range of industries requiring accurate subsurface characterization. In mineral exploration programs, the winch's precise depth control and reliable cable handling enable acquisition of high-quality geophysical data that directly supports resource estimation and mine planning decisions. The availability of models with varying depth capabilities allows exploration companies to match equipment precisely to project requirements, optimizing capital allocation while maintaining operational capability.
Hydrogeological investigators appreciate the system's consistent performance during long-term monitoring programs where data comparability over time proves essential. The self-compensating depth accuracy ensures that water level measurements and quality samples collected years apart can be confidently compared, supporting defensible regulatory compliance and resource management decisions.
Geotechnical engineering firms rely on the DJ Series for critical site characterization projects supporting infrastructure development. The winch's smooth, controlled operation enables acquisition of undisturbed samples and accurate in-situ measurements that form the foundation for safe, economical foundation designs. The vehicle mountable configuration provides the mobility necessary to access multiple project sites efficiently while maintaining the precision required for professional engineering practice.
Environmental consultants conducting site assessments and remediation monitoring find particular value in the DJ Series overload protection and dual braking features, which provide essential safety margins when investigating unknown subsurface conditions at potentially contaminated sites. The system's reliable performance and accurate depth control support generation of defensible data suitable for regulatory submission and legal proceedings.
