Product Function Description: In conjunction with various online inspection instruments such as spark testers, profile meters, eccentricity detectors, length counters, and diameter measuring instruments, special labels are applied to surface defects of cables to facilitate locating the defect points.
External dimensions: 585mm (length) x 640mm (width) x 1575mm (height)
Wire diameter: ≤8mm (customizable)
Detection speed: ≤120m/min (customizable)
Labeling interval: 2S (max.)

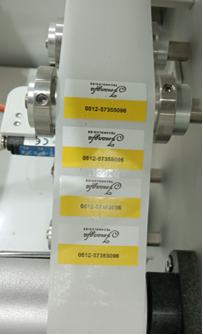

Tag color: White and yellow alternating
The labeling center height is 1 meter (adjustable)
Maximum power: 0.2KW
Device Configuration:
Modular design with four major modules: upper marking, moving marking, labeling, and electrical control
Independent labeling header for easy setup on the production line
The label has high adhesion and strong bonding force
The tags are water-resistant, not easy to fall off, and can be crushed
Quick and accurate labeling
The number of alarms and the number of labeled items are automatically recorded
Linked with production line inspection instruments for convenient quality control
Touchscreen with PLC control, offering good human-machine interaction and visualization
Advantages:
Labeling is quick and accurate
The labels adhere strongly, are easy to identify, and can be easily removed.
Supports a wide range of wire diameters
Integrate with existing production line inspection instruments for convenient quality control
Defect Record Printing Function: The number of defect-labeled items and the length of defective material can be recorded and saved. Abnormal labels can be printed via the built-in thermal printer of the device, allowing subsequent processes to trace abnormalities.
