automatic shrink label sleeving machine
GY-L series labeling machineis suitable for label sleeving in the fields of drinking, health-care products, cosmetics, washing articles for use, pharmaceuticals and petroleum and so on.GY-LSeries Shrinking Label Sleeving Machines are easy to control, to change bottles and labels smoothly , ande easy for cleaning and maintenance. This series machines also have a high degree of automation. Constantly improving the quality is our goal; we also use the Intention, Resolution, Sincerity and Persiverence to operate our career.
Main technical parameters of the equipment:
1. Host machine; AC220V, 50/60HZ, 3KW, single-phase
2. Production speed: 12000 b/h as 100mm label
3. The standard length of label is 300mm and the speed can be adjusted accord to customer’s requirments.
The speed willl be faster if the label is shorter.
4. Diameter of bottle body : 40mm-100mm
5. Length of label: 100mm
6. Thickness of label: 0.045mm
7. Material of label:PVC, PET, OPS
Model
|
Machine |
Model |
GY-L100~GY-L500 |
|
Dimensions(L×W×H) (mm) |
2440×1000×2200 |
|
|
Weight |
500kg |
|
|
Electric Power |
220V/380V |
|
|
Speed |
100BPM~600BPM or 6000BPH~20000BPH |
|
|
Container |
Height |
MAX320mm |
|
Diameter |
φ50~φ110mm |
|
|
Materials |
Glass, Metal, Plastic |
|
|
Shapes |
Round, Oval, Square, Rectangle |
|
|
Shrink Sleeve |
Materials |
PVC,PET,OPS,OPP |
|
Thickness |
0.035-0.10mm |
|
|
Length |
MAX200mm |
|
|
Flat Width |
MAX175mm |

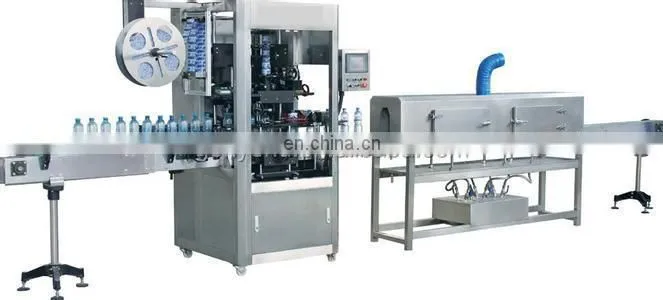

GY-L 1800 Steam Shrink Tunnel
1. In the case of different and irregular round bottles, square bottles and flat bottles etc, the new-style both steam and electricity shrinking oven is easy to adjust and maintain. It has an even shrinking .
2. The distribution of low-pressure steam drum and sqouting way of steam are uniform and designed with seamless tube.
3. The nozzle is divided to be adjustable three segments and the height ,
position and steam output of every segment can be adjusted respectively so as to gain the perfect shrinking effect.
4 .The whole machine is made of stainless steel with heat preservation, which not only saves energy, but also complys with the international safety standard.
5 .The stainless steel defrosting tray collects condense water.
6. The whole machine adopts the water-proof design with the convenience of easy operation and low maintenance.
Technical Parameters
|
Input Power Supply of Blower |
3 380VAC 18KW |
|
Input Power Supply of Steam Generator |
380V/50HZ |
|
Working Pressure |
0.1Mpa |
|
Weight |
500kg |
|
Steam Consumption |
10-20Kg/h |
|
Size of Oven Body |
L1800mm×W600mm×H450mm |
|
Transporting Speed |
0-35m/min |
1. We provide English manual, one year warranty,life-long maintenance.
2. If customer need, our engineers will provide assembling and training the workers.
The buyer shall bear the engineers round trip tickets fees, basic accommodation and Transportation,the allowance shall be paid by buyer.
3 we are factory
4.what capacity do you want. and we provide both half automatic and full automatic machines
5. pls tell me detail functions of machine , so that we can recommend the best quality and the best price machine for you.
