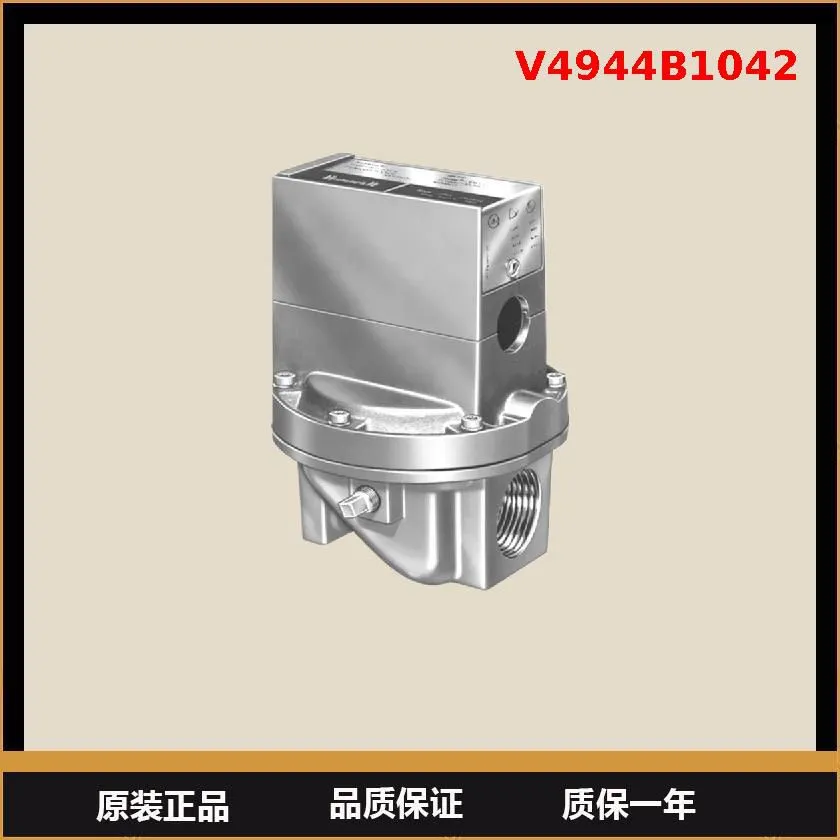

Ok. Here are the technical parameters and detailed product descriptions of Honeywell gas solenoid valve V4944B1042.
Product Overview
Honeywell V4944B1042 is a high-performance and highly reliable normally closed (opens when powered on and closes when powered off) gas solenoid valve. It is specially designed for commercial and industrial gas combustion systems, such as large boilers, industrial furnaces, commercial kitchen equipment, etc., serving as a key safety shut-off device in gas pipelines. The core function of this valve is to quickly and safely open or cut off the gas supply according to the controller's instructions when the system starts up, operates or encounters a fault. It is an indispensable component for ensuring the safe operation of equipment.
Product Description
V4944B1042 is a member of Honeywell's V4944 series, which is renowned for its robust construction and outstanding reliability. The valve body is usually made of high-strength aluminum alloy by die-casting and undergoes special surface treatment, featuring excellent corrosion resistance. The internal seals are made of high-quality materials that are resistant to gas and aging (such as Viton® fluororubber), ensuring long-term sealing performance and service life.
This valve is of the "normally closed" type, which means that when it is not powered on, the valve core is tightly pressed against the valve seat under the action of the spring force, and the gas passage is completely cut off, ensuring absolute safety in the shutdown state. When the control system applies the rated voltage to the coil, the electromagnetic coil generates a strong magnetic force, which overcomes the spring force and fluid pressure, lifting the valve core and thus opening the channel to allow gas to pass through.
Its design usually includes a manual operation device (manual valve opening knob), which facilitates manual operation during commissioning, maintenance or emergency situations, increasing the flexibility of use. V4944B1042, with its fast response speed, high sealing grade and ability to adapt to harsh working environments, has become the first choice for many original equipment manufacturers (Oems) and system integrators.
Technical parameters
The following are the typical technical parameters of Honeywell V4944B1042. When applying it specifically, please refer to the latest official data sheet
Model: V4944B1042
Valve body material: Die-cast aluminum alloy
** * Interface type ** : Usually internal thread connection (Specific specifications need to be confirmed, common ones include G1/2", G3/4" or NPT)
** * Working medium: ** Natural gas, liquefied petroleum gas (LPG), artificial gas and other combustible gases
** * Voltage Specification: Multiple options are available, including alternating current (AC) or direct current (DC).
