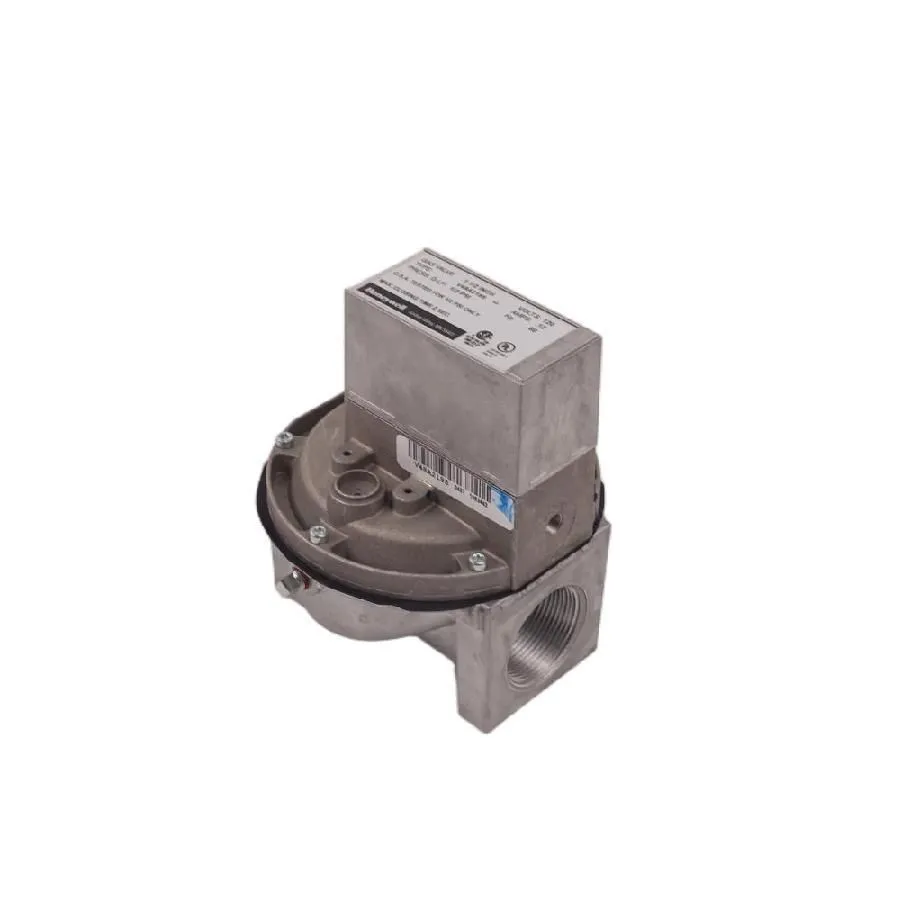

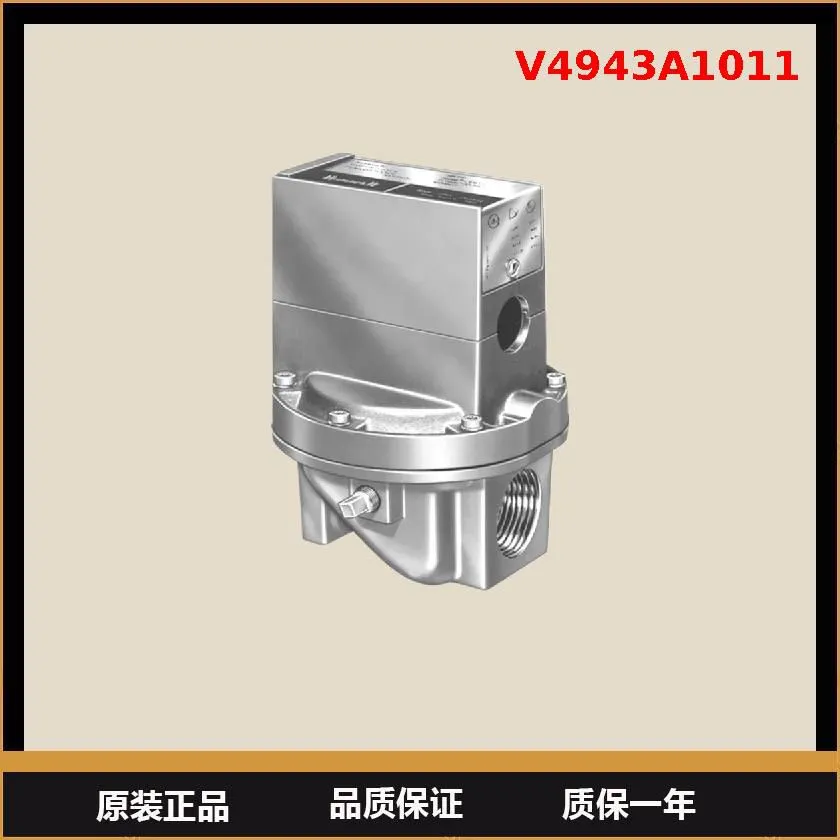

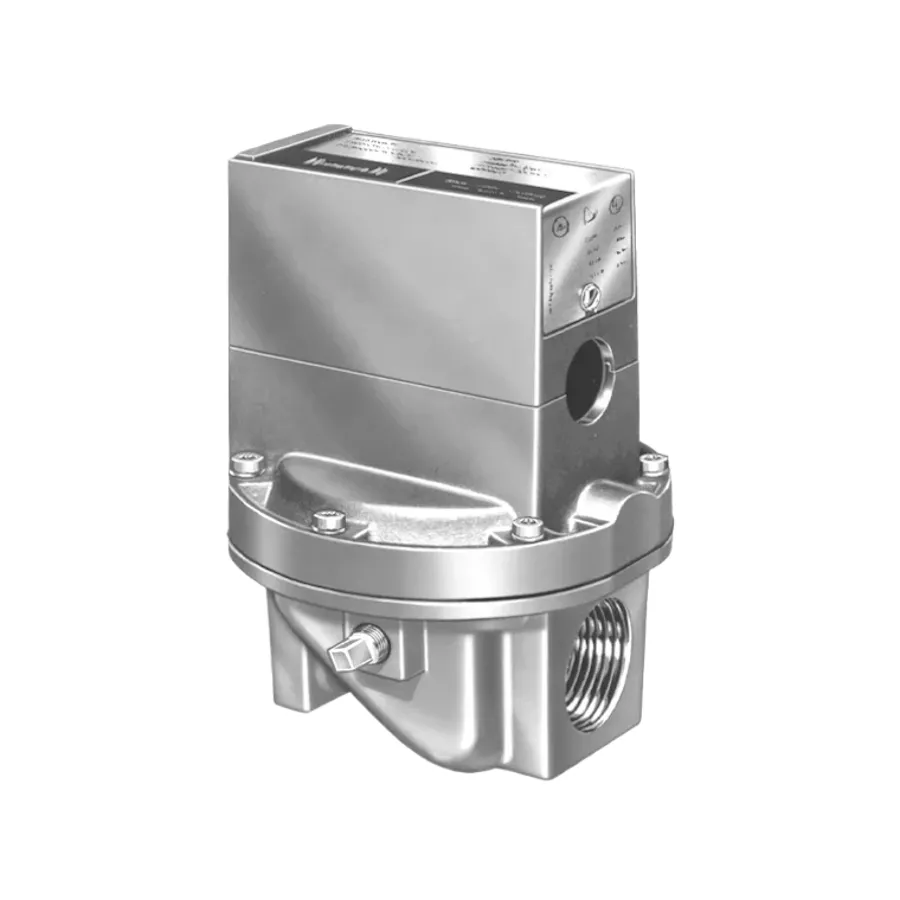

Ok. Here are the technical parameters and detailed product descriptions of Honeywell gas solenoid valve V4943A1011.
Product Overview
Honeywell V4943A1011 is a high-quality, normally closed (opens upon power-on) solenoid valve widely used in commercial and industrial gas combustion systems. It is usually used as a gas safety shut-off valve, installed on the gas pipeline of the burner or boiler, and is a key component to ensure the safe and reliable operation of the system. This valve is designed to precisely control the supply of natural gas or liquefied petroleum gas (LPG), and it only opens when the control system issues a signal allowing operation, thereby providing a crucial safety protection layer for the entire combustion system.
Product Description
V4943A1011 is a bistable, forced pilot-operated solenoid valve. Its core feature is the adoption of an efficient electromagnetic pilot system to drive the opening and closing of the main valve disc. The valve contains a pilot valve and a main valve inside. When the coil is energized, the pilot valve opens, and the main valve disc is driven by the pressure of the medium (gas) itself to overcome the spring force and the large-area differential pressure and open rapidly. This method enables the valve to control large flow and high pressure gas with relatively small electromagnetic force, which is fast and energy-saving (only requiring electricity at the moment of switching states).
The valve body is usually die-cast from high-strength aluminum alloy, and the key internal seals are made of corrosion-resistant and wear-resistant materials (such as Viton® fluororubber or similar high-performance materials), ensuring the long service life and sealing reliability of the valve under harsh working conditions. This valve is standard equipped with a plastic protective cover with a high waterproof and dustproof grade, which contains a junction box inside. It is convenient for on-site installation and wiring and can effectively protect the electrical part from environmental influences.
Main technical parameters
Parameter items, parameter values and descriptions
| : - | : - |
** Product Model ** V4943A1011
Valve Type: Normally closed (NC), Double-coil pulse control (bistable)
** Drive mode ** Forced pilot type
** Applicable Medium ** : Natural gas, liquefied petroleum gas (LPG), and other neutral gases that meet the requirements
** Diameter size ** 1-1/4 inch (DN32
** Interface method ** Flange connection, meeting the standard hole pitch requirements
** Pressure Range ** * Maximum inlet pressure: ** 345 mbar (5 psi)
** Working Pressure Difference (ΔP) : ** Minimum: 17 mbar (0.25 psi)/Maximum: 345 mbar (5
