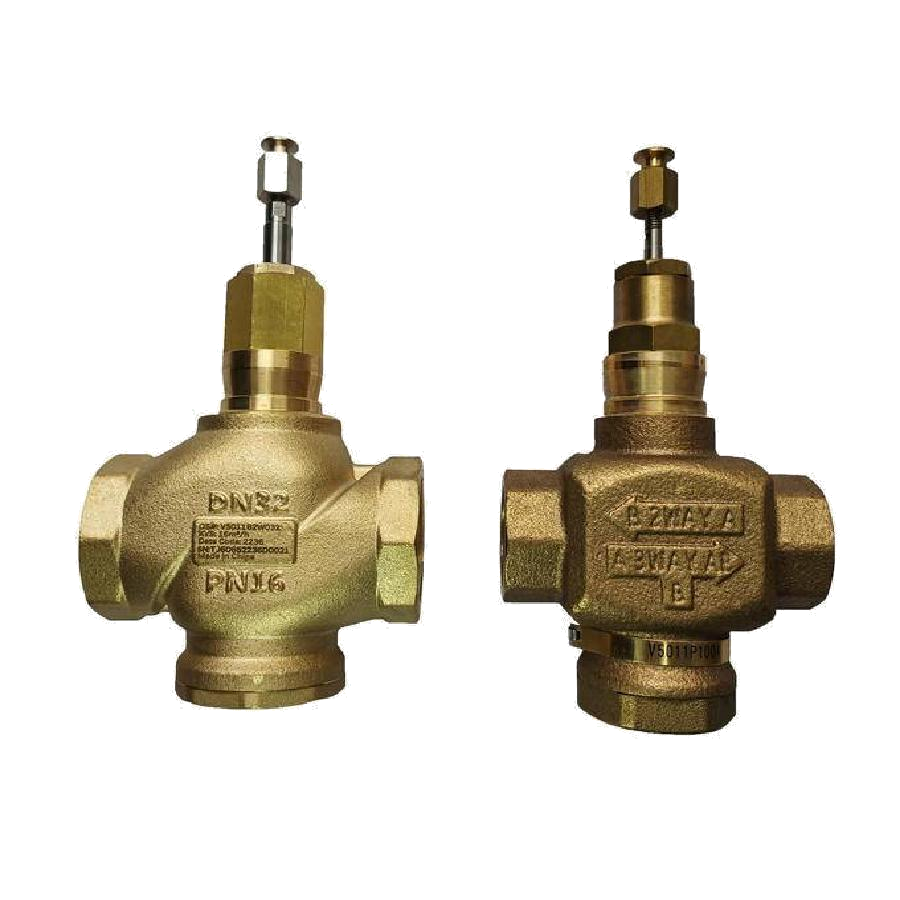

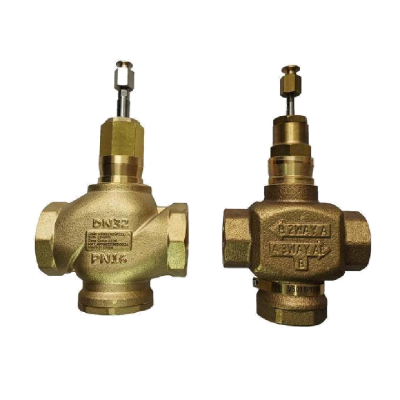

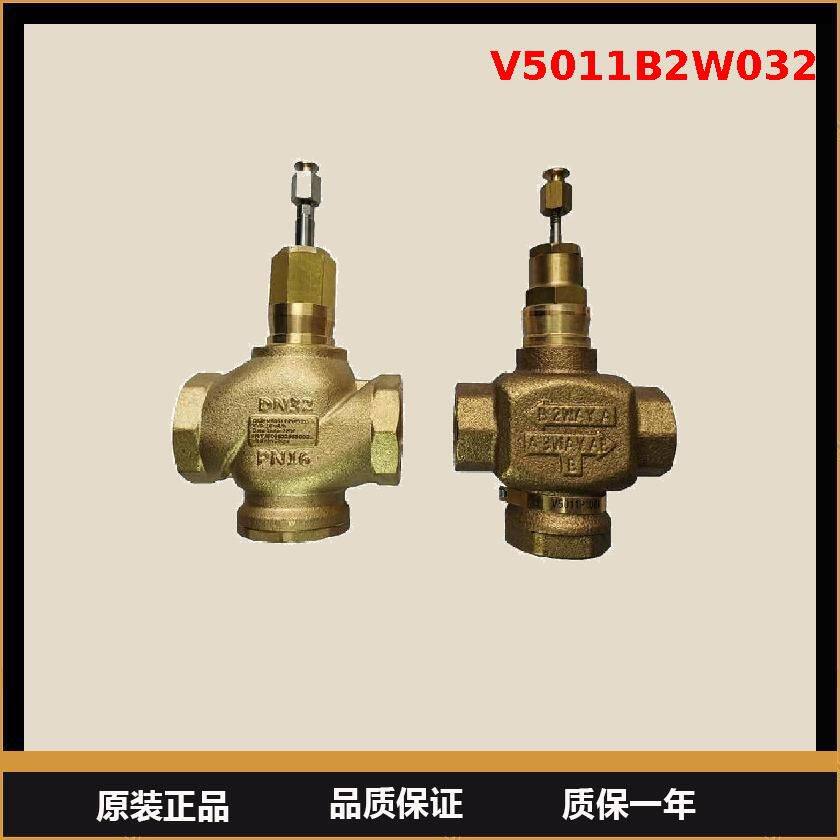

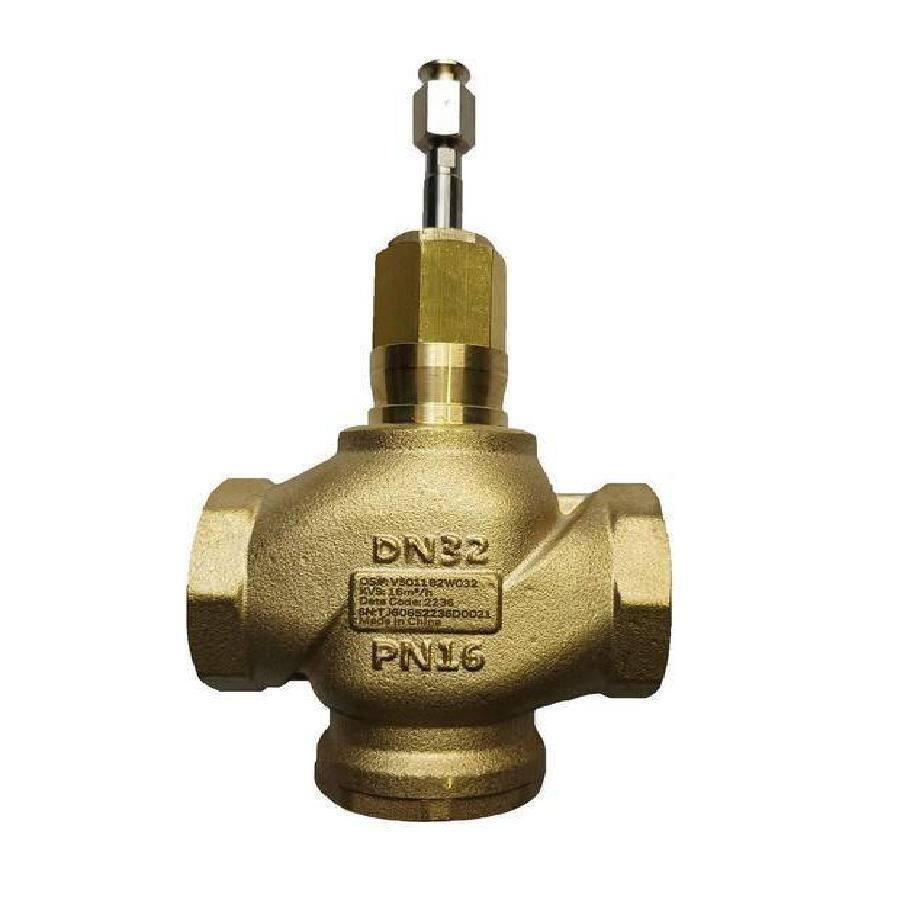

The Honeywell V5011B2W032 is a two-way electric threaded water-saving valve designed for precise control of water flow in various HVAC and plumbing applications. It operates as a normally closed valve, meaning it closes when de-energized and opens when power is applied, ensuring energy efficiency and system safety.
**Technical Parameters:**
* **Valve Type:** Two-way (2-port)
* **Actuator Type:** Electric, synchronous motor
* **Valve Action:** Normally Closed (NC)
* **Connection Type:** Threaded (Rc)
* **Valve Seat Material:** Brass
* **Valve Seal Material:** EPDM
* **Media:** Water, suitable for potable water applications
* **Maximum Operating Pressure:** 16 bar (232 psi)
* **Fluid Temperature Range:** 2°C to 95°C (36°F to 203°F)
* **Ambient Temperature Range:** -5°C to 60°C (23°F to 140°F)
* **Voltage:** 230V AC, 50/60 Hz
* **Power Consumption:** 4.5 VA
* **Stroke Time:** Approximately 150 seconds (for full travel)
* **Protection Class:** IP54
* **Close-off Pressure:** 4 bar (58 psi)
* **Kvs Value:** 2.5 m³/h
* **Body Material:** Brass, dezincification resistant
**Product Description:**
This valve is engineered for reliable on/off and modulating control in heating, ventilation, and air conditioning systems, as well as in domestic hot water circulation. The threaded connections facilitate straightforward installation into piping systems. The electric actuator receives a control signal from a thermostat or controller to modulate the valve opening, allowing for precise regulation of water flow to maintain desired temperatures or optimize system performance.
Its water-saving design helps in reducing unnecessary water consumption in recirculation systems. The robust brass body and corrosion-resistant materials ensure long-term durability and consistent operation. The V5011B2W032 is an ideal component for improving energy efficiency and providing automated control in residential and commercial buildings.
