Ok. Here are the technical parameters and product descriptions of the Honeywell hydrogen sulfide detection probe SPXCDALMHX generated for you.
---
### Product Overview

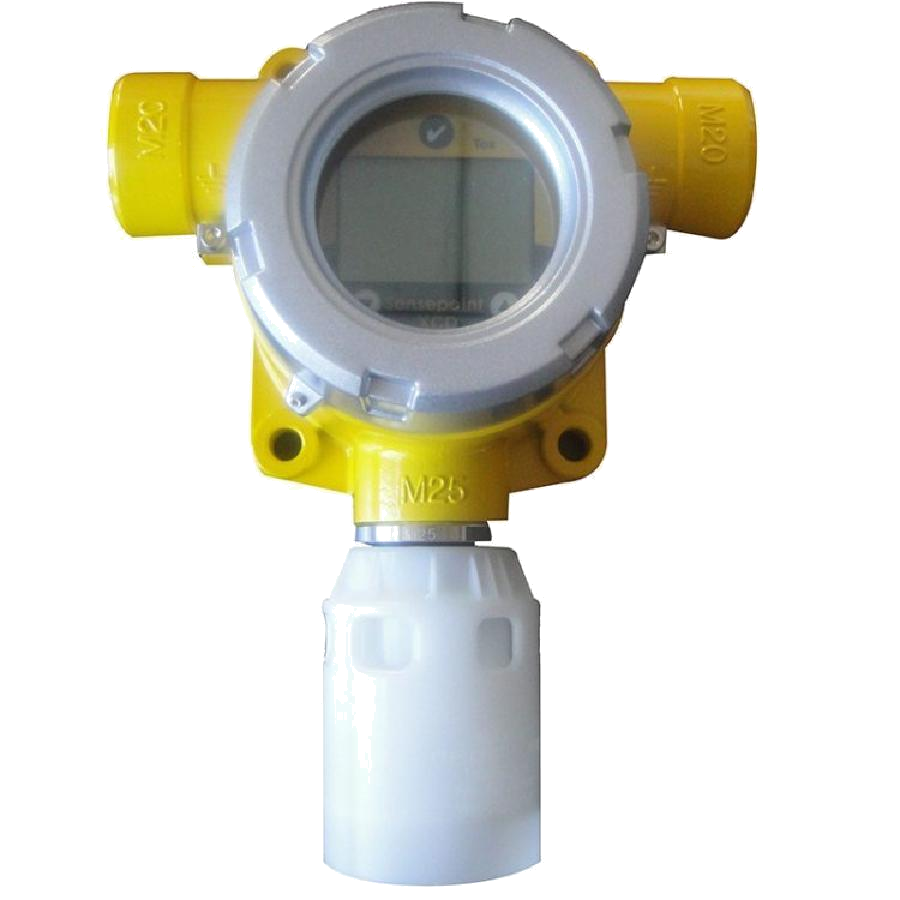

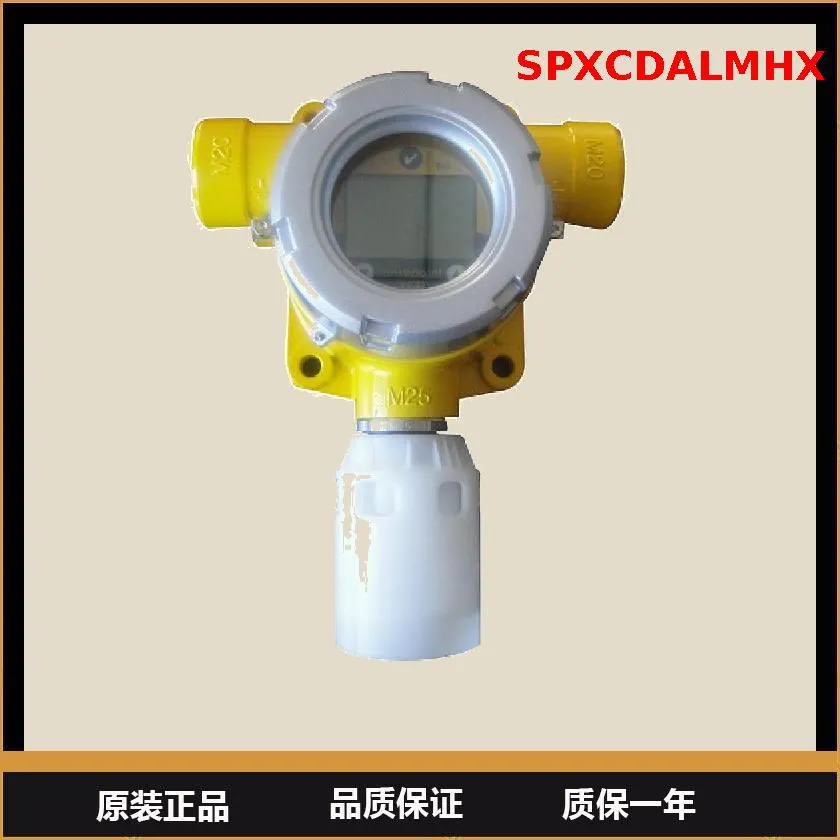

Honeywell SPXCDALMHX is a high-performance electrochemical hydrogen sulfide gas detection probe, specifically designed for continuous monitoring of hydrogen sulfide concentration in various industrial environments. As an important component of Honeywell's fixed gas detection system, this probe, with its high precision, excellent stability and strong anti-interference ability, is widely used in fields such as oil and gas, chemical refining, sewage treatment and papermaking where there is a risk of hydrogen sulfide leakage, providing reliable early warning for personnel safety and equipment protection.
### Product Description
The core of the SPXCDALMHX probe adopts advanced electrochemical sensor technology, which has high selectivity for hydrogen sulfide gas and can effectively reduce cross-interference from other background gases, ensuring the accuracy of the measurement results. The probe is designed to be robust and durable, usually equipped with a stainless steel housing and a sintered steel dust filter, which can adapt to harsh industrial environments, prevent damage to the sensor from particles and moisture, and extend its service life.

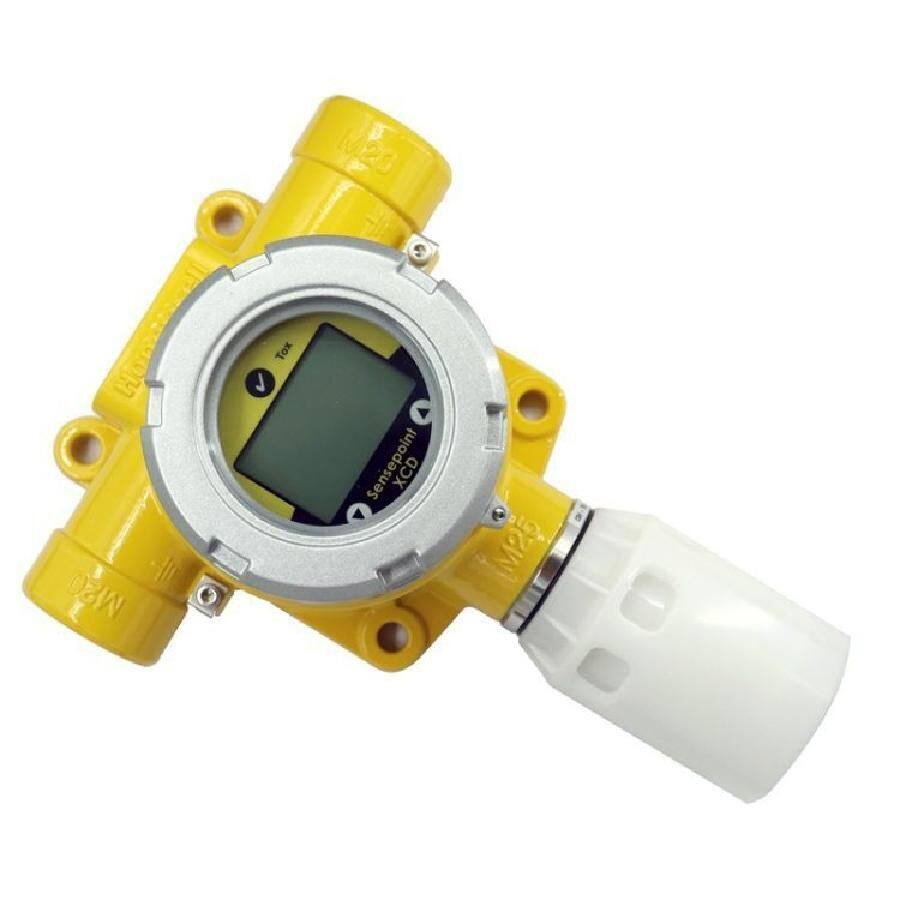

This probe is usually used in conjunction with Honeywell's fixed gas detection controllers (such as the Sensepoint XCD series controllers), providing a convenient plug-and-play installation experience. Its output signal is stable and can convert the detected gas concentration value into a standard analog or digital signal, which can be transmitted over long distances to the control room to achieve centralized monitoring and alarm. The product design complies with international safety standards and is an ideal choice for building a reliable industrial gas detection system.
### Technical Parameters
Parameter Category: Parameter Details
| : - | : - |
** Detected Gas ** Hydrogen sulfide
** Range ** : 0-100 ppm (Standard range, customizable as required
Resolution: 0.1 ppm
** Sensor Type ** Electrochemical
Output signal: 4-20mA analog signal (used in conjunction with Sensepoint XCD controller
** Response Time (T90)** ≤ 30 seconds
Accuracy: ± 2%FS (typical value
** Working voltage ** provided by the accompanying controller (usually 12-30 VDC)
** Expected sensor lifespan ** : 2 years (typical value, depending on environmental conditions
Operating temperature: -40°C to +55°C
Operating humidity: 15% - 90% RH (non-condensing
** Protection grade **
