Ok. Here are the technical parameters and detailed product descriptions of Honeywell gas solenoid valve V48A2177/U.
Product Overview

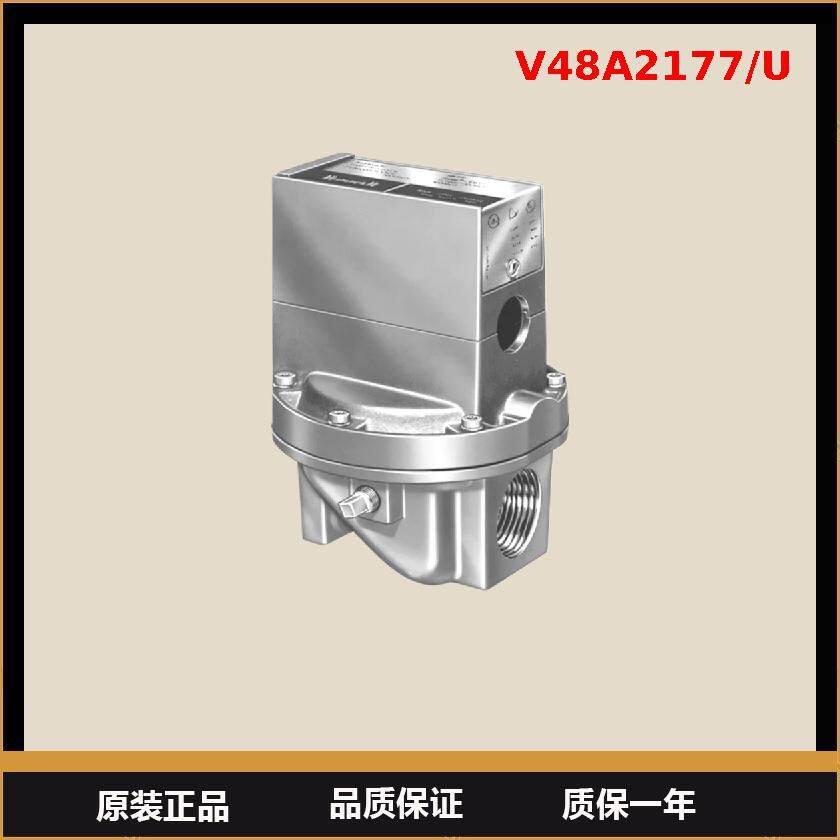

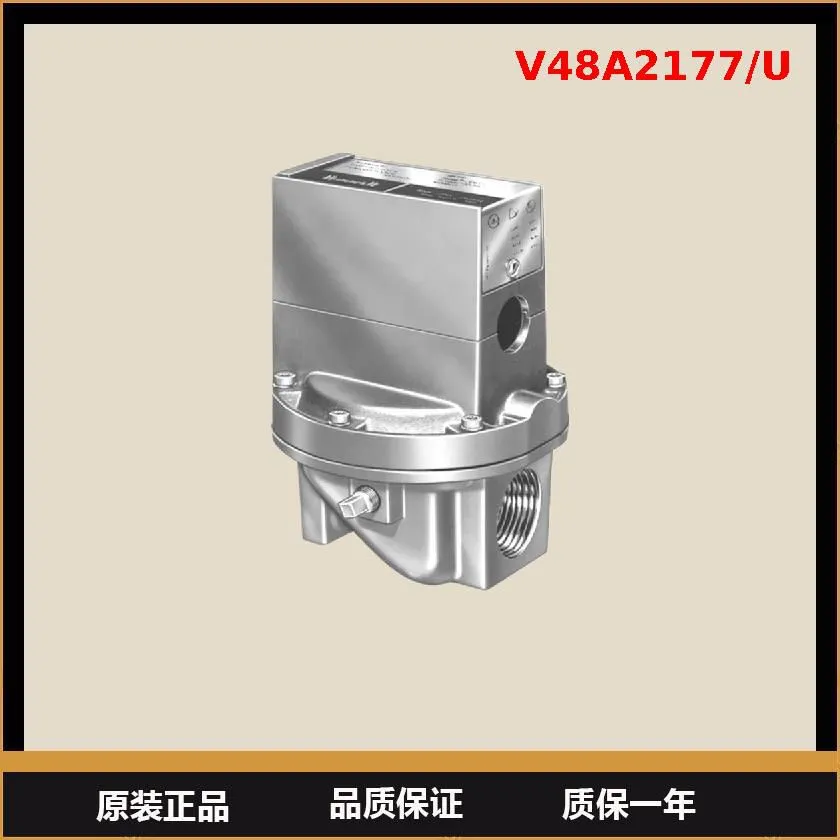

Honeywell V48A2177/U is a Normally Closed solenoid valve widely used in commercial and industrial gas equipment (Normally closed). Its core function is to safely and reliably turn on or off the gas supply according to the instructions of the control system (power on or off), and it is a crucial safety control component in gas burners, boilers, HVAC systems and other gas application equipment. This model is renowned for its high reliability, durability and safety, and is the preferred choice for many original equipment manufacturers (Oems).
Product Description
The V48A2177/U solenoid valve features a robust metal valve body design, typically made of die-cast aluminum or similar alloy materials, ensuring long-term durability and corrosion resistance in harsh industrial environments. The internal structure of the valve is precise, including key components such as electromagnetic coils, valve cores, seals and filter screens.
Its working principle is as follows: In the state of power failure, the valve core is tightly pressed against the valve seat under the action of the spring force and the medium pressure, and the valve is in a closed state, blocking the flow of gas. When the control system supplies the rated voltage to the electromagnetic coil, the coil generates electromagnetic force, overcomes the spring force and fluid pressure, and lifts the valve core, thereby opening the valve channel and allowing gas to pass through.
This model of valve is usually equipped with a manual operation device (manual valve opening screw), which facilitates manual operation during installation, commissioning or maintenance to check the valve function, enhancing the convenience of use. The valve port is usually integrated with a fine filter, which can effectively capture impurities in the pipeline, prevent them from damaging the valve seat seal or downstream equipment, and enhance the reliability of the entire system.
Main technical parameters
Parameter item: Parameter value/Description
| : - | : - |
Product Model: V48A2177/U
** Valve Type ** : Normally closed type (opens when powered on and closes when powered off
** Mode of action ** Direct motion type
** Interface size ** 3/4" NPT internal thread
** Flow coefficient (Cv value)** Approximately 6.0 (Please note that this value may vary depending on specific working conditions. It is recommended to refer to the latest manual for confirmation.
** Working medium ** : Combustible gases such as natural gas, liquefied petroleum gas (LPG), and artificial gas
** Maximum working pressure ** : 17.5 kPa (approximately 177 mmH₂O / 7 inch w.c.
|
