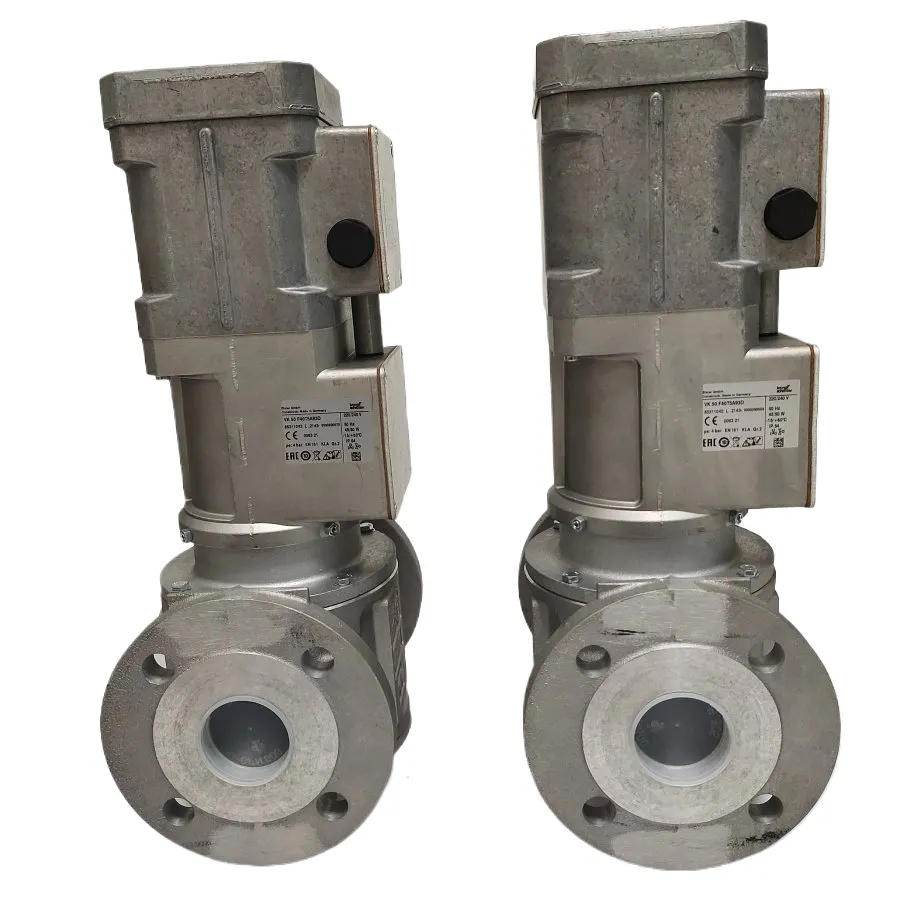

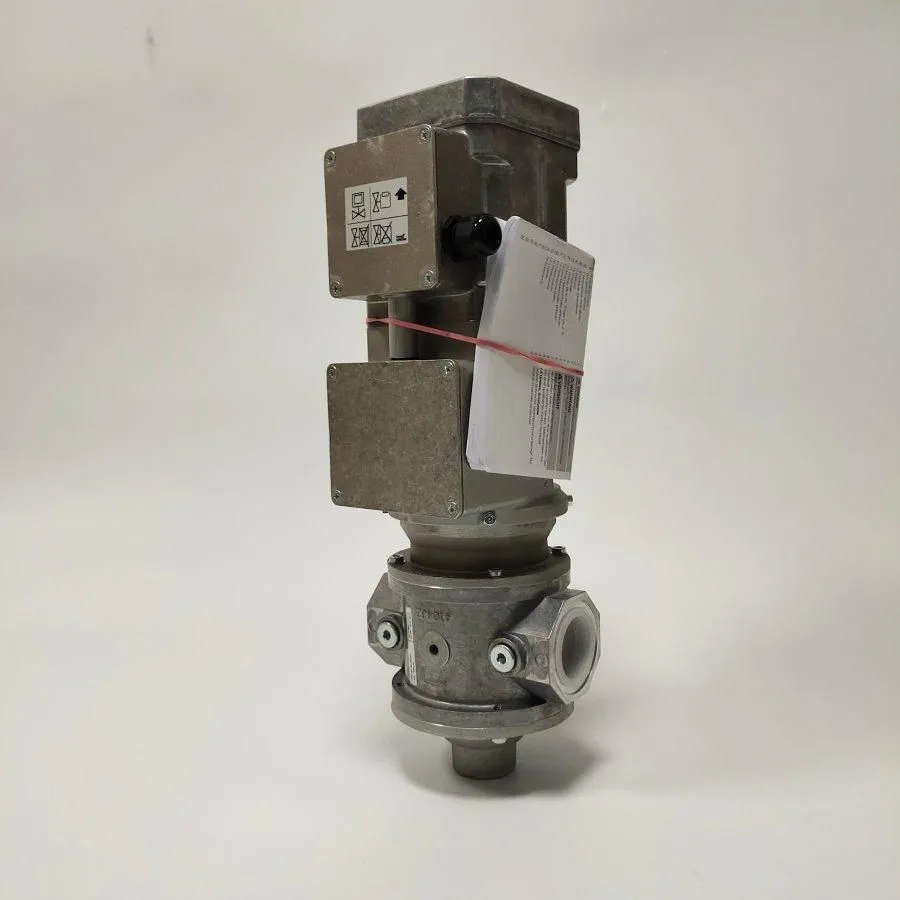

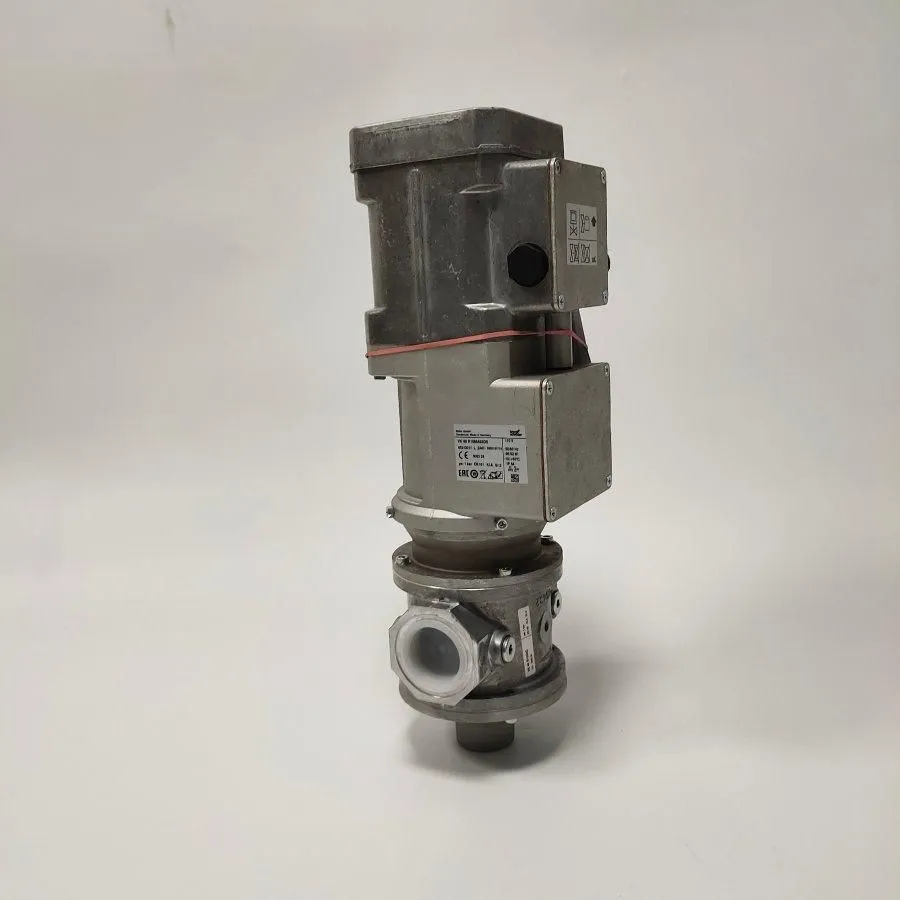

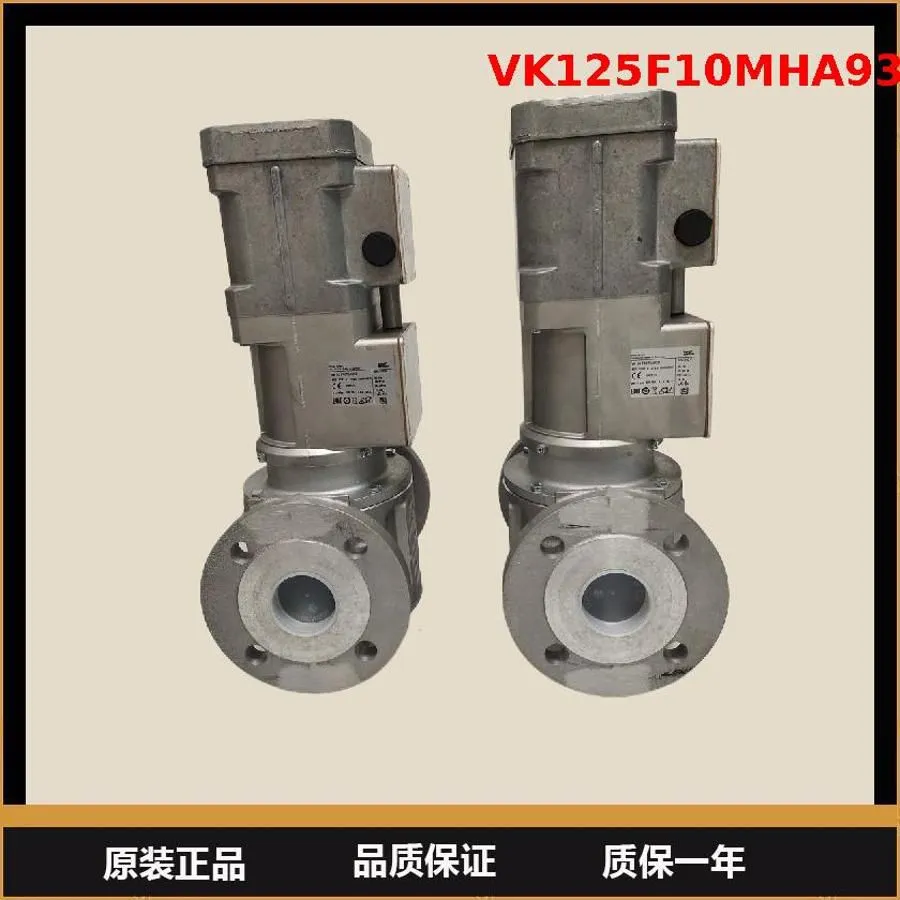

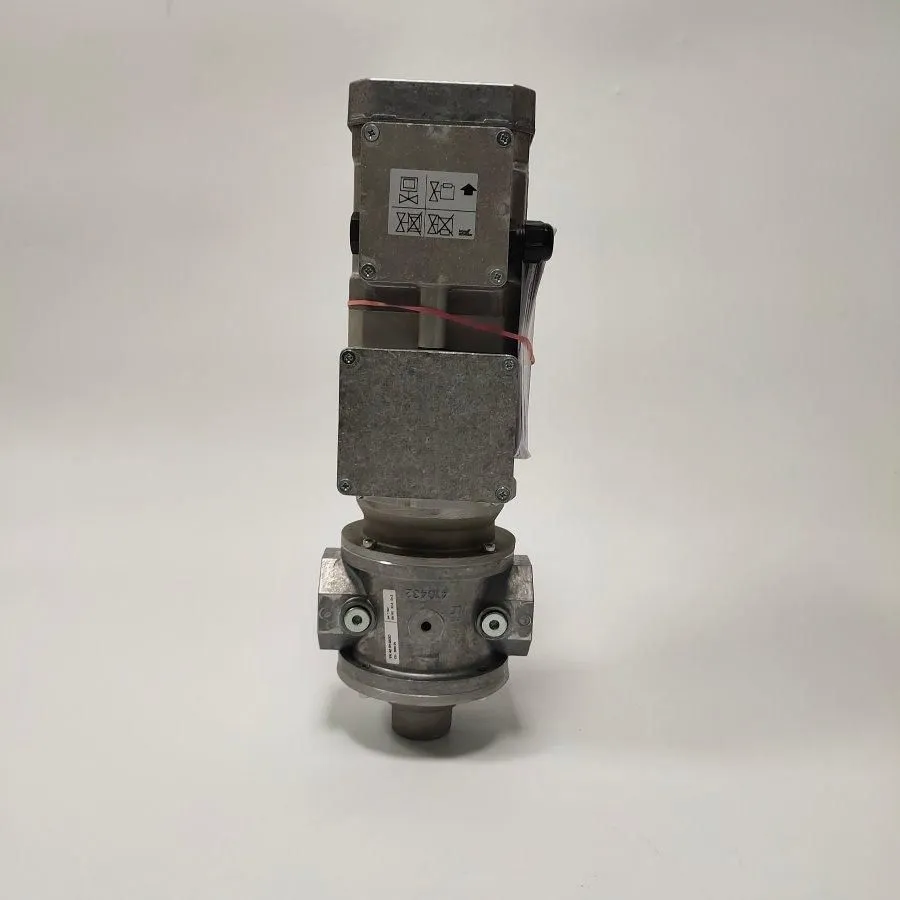

**Product Name:** Hokde VK Series Gas Solenoid Valve
**Model:** VK125F10MHA93S
**Technical Parameters:**
* **Valve Type:** Direct-acting solenoid valve.
* **Operation Type:** Normally closed (closes when de-energized).
* **Orifice Diameter:** 10 mm.
* **Connection Type:** Threaded connection (specific thread standard to be confirmed based on regional specifications).
* **Body Material:** Brass or forged brass, suitable for gas applications.
* **Seal Material:** NBR (Nitrile Rubber) or equivalent, compatible with fuel gases.
* **Coil Class:** Insulation class F or higher.
* **Voltage:** Standard options include AC/DC voltages such as 12V, 24V, 110V, 220V (specific voltage is denoted by the code and must be confirmed per order).
* **Duty Cycle:** Continuous duty (100% ED).
* **Protection Class:** IP65 or equivalent, offering protection against dust and water jets.
* **Ambient Temperature Range:** Typically -10°C to +50°C.
* **Medium Temperature Range:** Suitable for gases at temperatures up to approximately 60°C.
* **Maximum Operating Pressure (MOP):** Suitable for low-pressure gas systems, typically up to 50 kPa or as specified.
* **Applicable Medium:** Manufactured fuel gases such as natural gas (NG), liquefied petroleum gas (LPG), and town gas.
* **Certifications:** Designed to meet relevant international gas appliance safety standards (e.g., EN 161, CSA standards). Specific certifications must be verified per production batch.
**Product Description:**
The Hokde VK125F10MHA93S is a direct-acting, normally closed solenoid valve engineered for precise on/off control of gas flow in commercial and industrial appliance applications. Its robust brass body construction ensures durability and corrosion resistance in gas environments.
Featuring a reliable direct-acting design, the valve provides secure shut-off when de-energized, enhancing system safety. The coil is encapsulated and offers a high degree of environmental protection (IP65), ensuring stable operation in demanding conditions involving dust and moisture.
This model is primarily used as a main gas safety shut-off valve or
