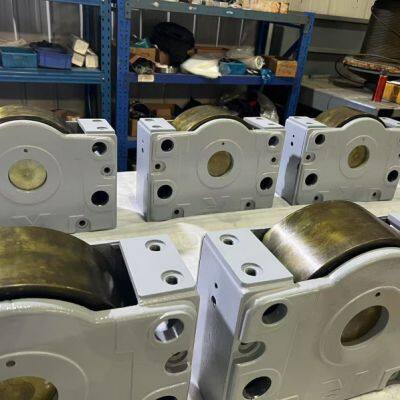

The DRS 315-A90-B-0-B-H-W80 wheel block is a high-performance system engineered for diverse industrial and logistics applications. Known for its precise specifications and superior durability, it provides stable and reliable travel support for various mobile equipment, including material handling systems, warehouse logistics vehicles, and specialized industrial production platforms.
I. Basic Model & Performance
DRS 315: This represents the medium-sized specification within the DRS lineup. It offers a broad load-bearing range, with a maximum individual wheel load of up to 220KN(depending on specific configuration).

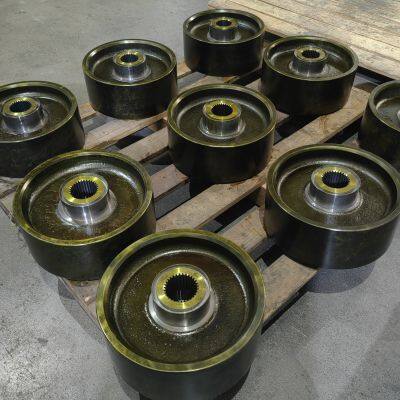

Material & Durability: The wheels are typically crafted from 42CrMo alloy steel or Spheroidal Graphite Cast Iron (GGG70). They undergo quenching, tempering, and high-frequency induction hardening to ensure high wear resistance and a design life of up to 10 years.
Modular Design: The system supports multiple connection methods (Top, End, Pin, etc.). It features a laser alignment system to eliminate installation errors, making it easy to integrate into cranes, stackers, and other heavy machinery.
II. Key Features & Advantages
Fully Enclosed Design: The sealed housing protects bearings and wheels from dust and mechanical impacts, ensuring a maintenance-free lifecycle.
High Load Capacity & Low Noise: Capable of handling massive loads while maintaining smooth, quiet operation—ideal for cleanrooms and quiet warehouse environments.
Flexible Adaptability: Available in various wheel materials (Polyurethane, Polyamide, Spheroidal Graphite Cast Iron) and guidance options (flange-guided, concave tread, etc.) to suit different track requirements.
Convenient Maintenance: Wheel blocks can be replaced without complete disassembly, and the design supports rapid calibration and lateral adjustment.
III. Typical Application Scenarios
1. Warehousing & Logistics
Four-Way Shuttles: Paired with HWS315 wheel sets for high-precision shelf access.
Stacker Cranes: Rated for 40-ton class loads, suitable for high-density automated storage and retrieval systems (AS/RS).
2. Industrial Manufacturing
Cleanroom Cranes: Customizable for dust-free environments (e.g., semiconductor or new-energy vehicle workshops).
Automated Conveyor Lines: Modular blocks allow for rapid deployment in RGV/AGV systems.
3. Specialized Environments
Corrosive Environments: Optional stainless steel materials for chemical or food processing industries.
Ultra-Low Temperatures: Customized low-temperature lubrication solutions for cold chain storage.
Summary
The DRS 315-A90-B-0-B-H-W80 wheel block stands out in industrial logistics and specialized engineering thanks to its high load capacity, modular flexibility, and environmental resilience.
