DRS 125mm-500mm Wheel Block System End Carriage Components for 5-20 Ton Bridge Cranes
The DRS Wheel Block System is a versatile, multi-purpose travel wheel system designed for heavy-duty material handling. As a leading crane wheel manufacturer, we provide a modular solution that integrates the travel wheel, housing, and gear motor into a single, compact unit. This system is the ideal choice for crane end carriages, transfer cars, and mobile architectural structures.
Product Features
1. Modular & Compact Design
The DRS system features a high-quality housing that protects the wheel and bearings. Its compact dimensions allow for easy integration into bridge crane end carriages where space is limited.
2. Premium Wheel Materials
Material: High-strength Ductile Iron (GJS-700) or Forged Steel.
Self-Lubricating: The material provides a natural damping effect and low noise during operation, reducing wear on the crane rails.
3. Precision Engineering
Multiple Mounting Surfaces: The housing is machined on five sides with pre-drilled holes, allowing for top, side, or pin connections.

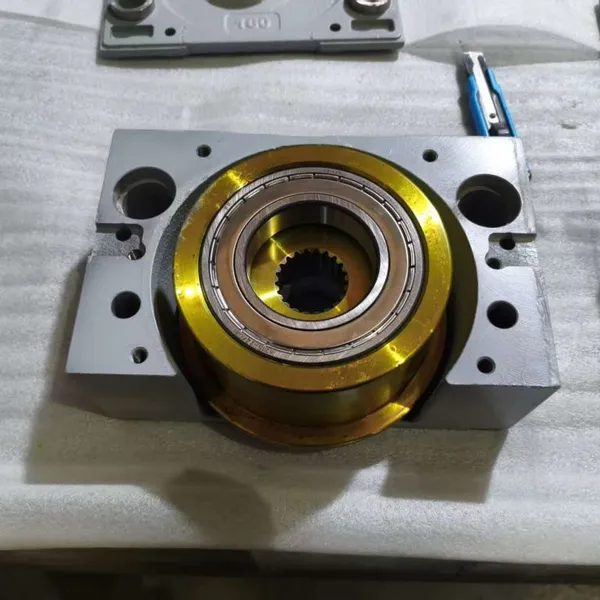

Sealed Bearings: Equipped with heavy-duty, maintenance-free roller bearings for high axial and radial load capacities.
4. Seamless Gear Motor Integration
Our DRS blocks are designed for direct spline or keyed connection with high-efficiency gear motors, ensuring smooth startup and braking for 5-20 ton loads.
Technical Specifications
Model Series |
Wheel Diameter (mm) |
Max. Load Capacity (kg) |
Support Crane Capacity |
Connection Options |
DRS 125 |
125 mm |
2,500 kg |
Up to 5 Ton |
K/B/E/W |
DRS 160 |
160 mm |
5,000 kg |
5 - 7.5 Ton |
K/B/E/W |
DRS 200 |
200 mm |
7,000 kg |
7.5 - 10 Ton |
K/B/E/W |
DRS 250 |
250 mm |
10,000 kg |
10 - 15 Ton |
K/B/E/W |
DRS 315-500 |
315 / 400 / 500 mm |
Up to 40,000 kg |
15 - 20+ Ton |
K/B/E/W |
Applications
Overhead Bridge Cranes: The primary component for end carriages.
Gantry Cranes: Reliable travel units for outdoor and indoor use.

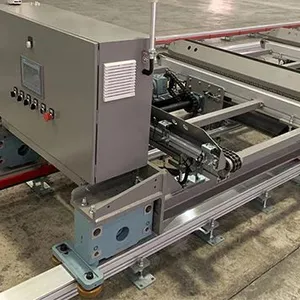

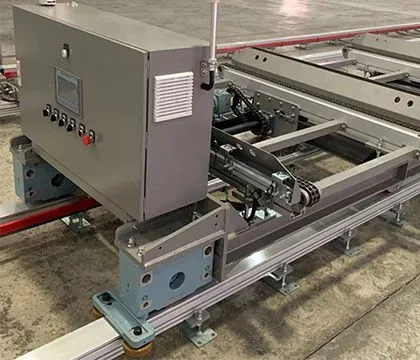

Transfer Carts: Heavy-duty motorized bogies for factory floors.
Conveyor Systems: Large-scale industrial material handling.
Why Partner With Us?
Manufacturer Direct: As a dedicated manufacturer, we control the entire process from casting to final precision machining, offering significant cost savings.
Customization: We offer various wheel profiles (flanged, flangeless, or V-groove) to match your specific rail type.
Interchangeability: Our DRS blocks are designed to be dimensionally compatible with international standards, making them perfect for both new builds and equipment retrofits.
Rapid Delivery: We maintain a stock of standard 125mm-315mm components for fast turnaround times.
Request a Technical Quote
To provide the best solution for your crane project, please specify:
Required Load Capacity per wheel.
