Help CenterDRS 250-NA-A-47-K-X-X Wheel Block System Applied Crane/Stacker Crane With SEW Gear Box
Related Products
-
DRS 125mm-500mm Wheel Block With Gear Motor End Carriage for Bridge Crane 5-20 Ton Crane Wheel ManufacturerNegotiableMOQ: 1 Unit -
Demag Type Polyamide DRS 112-500mm Wheel Block System With Double Flanged Spheroidal Cast Iron WheelNegotiableMOQ: 2 Units
-
Modular Flangless Demag Crane Driven Wheels Block Sverige Drs Wheel;dia 112-500mm,drvn AssyNegotiableMOQ: 2 Units
-
DRS -160-NA-A-65-K-X-X Modular Wheel Block System Spheroidal Cast Iron WheelNegotiableMOQ: 1 Unit
-
DRS 200/250mm Motorised/Electric Wheel Block System for Warehouse Stacker Cranes ManufacturerNegotiableMOQ: 2 Units

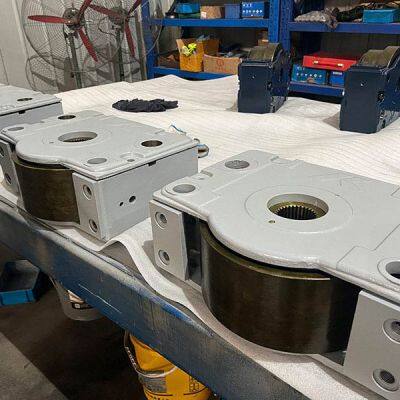

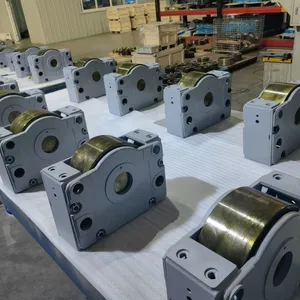

Demag DRS Modular Drive Wheel Block, with a single-unit load capacity of 16 tons and 250mm high-strength travel wheels, is suitable for stacker cranes, AGVs, and cranes. Its compact modular design ensures dust-tight sealing, easy installation, and maintenance, empowering efficient operations in logistics warehousing and industrial manufacturing.
I. Detailed Description
Load Capacity: Single-wheel load capacity reaches 16 tons (a heavy-duty model within the DRS series, which covers load capacities ranging from 2.75 tons to 40 tons).

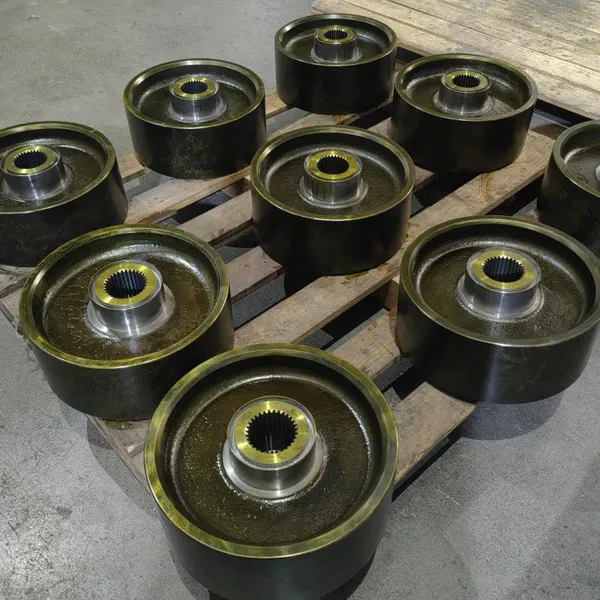

Housing Material: Spheroidal graphite cast iron (GGG70), machined as a single piece to ensure high strength and shape stability.
Key Features: Modular design, optional intelligent monitoring and laser alignment system, lifetime lubrication or convenient oil replenishment design.
Typical Applications: Automated storage and retrieval stacker cranes in automated warehouses, port container cranes, and RGV carts in logistics centers.
II. Core Advantages
High Reliability and Long Service Life:

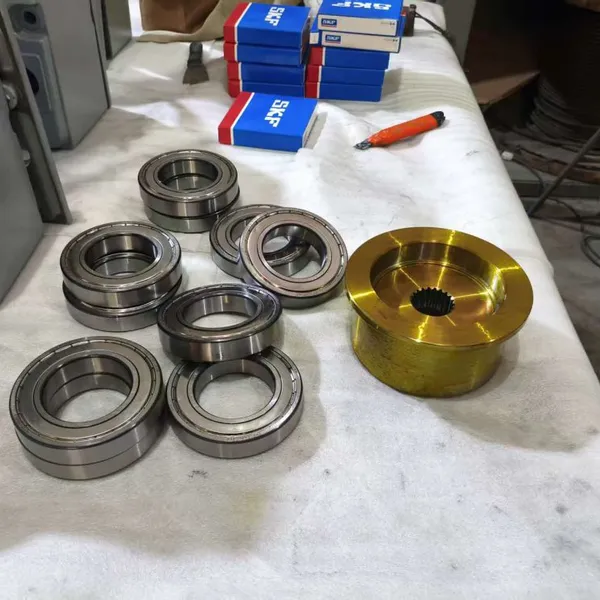

The spheroidal graphite cast iron housing and optimized bearing system (e.g., tapered roller bearings) provide extremely high rigidity and durability, capable of withstanding impacts and vibrations under heavy-load, high-speed conditions, resulting in a long design life.
Easy and Worry-Free Maintenance:
Its modular and asymmetrical housing design allows for the replacement of the travel wheel without needing to recalibrate the entire wheel block, significantly reducing downtime and maintenance workload. The housing is equipped with lubrication holes, making lubrication maintenance very convenient.
III. Selection Recommendations
Rail Matching: Verify that the wheel diameter and flange profile perfectly match the specifications of the rail you are using.
Configure Intelligent Functions as Needed: Assess whether the real-time condition monitoring and laser alignment functions are genuinely necessary to optimize costs.
Summary
In summary, the DRS250 Wheel Block, with its high performance, high adaptability, and customization capabilities, has become a preferred choice for drive systems in industrial mobile equipment. It excels particularly in scenarios demanding heavy loads, high precision, and clean environments.
