Help CenterDRS -160-NA-A-65-K-X-X Modular Wheel Block System Spheroidal Cast Iron Wheel
Related Products
-
DRS 112/125/160/200/315/500 Wheel Block System Overhead Crane Applied Customizable ModelsNegotiableMOQ: 1 Unit -
Double-Flange DRS 250-A65-BO-K-X-X-A50 Driven Wheel Applied CraneNegotiableMOQ: 1 Unit
-
Heavy Duty Double Flange DRS Wheel Block SystemNegotiableMOQ: 1 Unit
-
DRS-125-A45-D-65-K-X-A30 Wheel Block System Custom DimensionsNegotiableMOQ: 1 Unit
-
DRS-160-A45-B-0-18B-H-A30 Wheel Block SystemNegotiableMOQ: 1 Unit
In the realm of modern logistics automation and crane engineering, how do we achieve smooth and precise movement for heavy-duty equipment on rails? The answer often lies within the precision-engineered components identified by codes like DRS 160 NA A 65 K X X. As a benchmark in industrial drive technology, the DRS Wheel Block System has revolutionized how traditional machinery is constructed through its modular philosophy.
1. Decoding the Technical Specifications
Every letter and number in this code represents a critical parameter in engineering design:
160 (Size Specification): Refers to a nominal wheel diameter of 160 mm. This is one of the most balanced sizes in industrial applications, offering high load capacity (often exceeding 7 tons per wheel) while maintaining a compact installation footprint.
NA (Material Properties): Typically denotes non-alloyed steel or specific high-performance Polyamide. This choice determines whether the wheel prioritizes ultimate load rigidity or focuses on noise reduction and rail protection.
A (Convex Tread Design): This is an ingenious design feature. The Convex (crowned) tread allows the wheel to compensate for minor misalignments in the track, automatically adjusting for installation errors and preventing the "rail-gnawing" effect caused by rigid metal-on-metal friction.
65 (Width Parameter): A tread width of 65 mm ensures scientific distribution of contact pressure on the rail, effectively reducing surface fatigue and wear on the infrastructure.
K (Drive Interface): Indicates that this is a Drive Wheel, featuring a Keyway connection to ensure a reliable and slip-free coupling with a geared motor.
2. Why Choose the DRS Modular System?
Traditional travel mechanisms require complex welding and meticulous alignment. The DRS wheel set solves these pain points through three core characteristics:
High-Precision Housing Integration

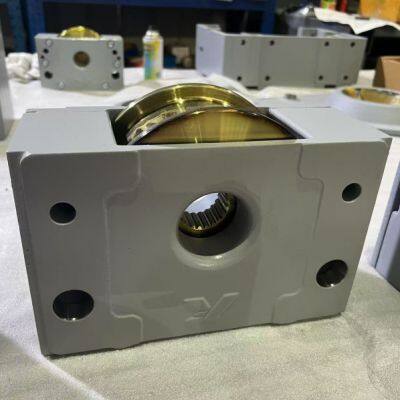

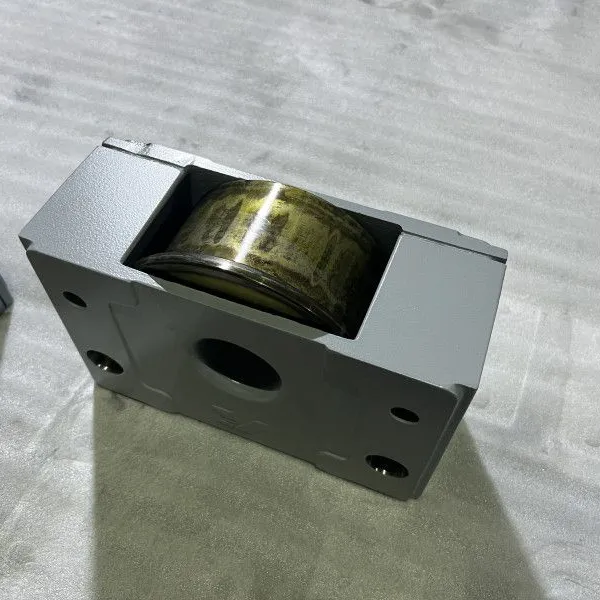

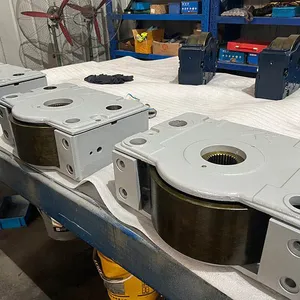

The wheel set is encased in a high-grade spheroidal cast iron housing. This "block" structure not only protects the internal bearings from dust and moisture but also provides multiple machined mounting surfaces. Engineers can complete installation with a few bolts, eliminating the need for precise on-site measurements.
The Flexibility of the "Convex" Profile
Compared to flat treads, the Type A Convex Wheel is much more forgiving when passing over rail joints or uneven sections. It reduces starting friction—much like the curved sole of a professional running shoe—making starts smoother and braking more stable.
Minimal Maintenance Costs
Thanks to pre-lubricated high-performance bearings and wear-resistant materials, the DRS 160 series is virtually "maintenance-free" under standard operating conditions. When the service life is finally reached, the modular nature allows for quick replacement, significantly reducing factory downtime.
3. Typical Application Scenarios
This specific wheel set is an "all-rounder" in the industrial world:
Automated Storage and Retrieval Systems (AS/RS): Used in the horizontal travel of stacker cranes, ensuring quiet operation and precise positioning during high-frequency cycles.
Heavy Industrial Doors: Supporting the smooth opening and closing of multi-ton factory doors or hangar gates.
Crane End Carriages: Serving as the travel mechanism for single or double-girder cranes to transport heavy materials.
Mobile Platforms: Utilized in automotive assembly lines where high operational continuity and reliability are mandatory.
4. Conclusion
The DRS 160 NA A 65 K X X is more than just a dry part number; it is a culmination of precision mechanical engineering. By integrating advanced materials science (Polyamide/Ductile Iron), geometry (Convex design), and modular concepts, it provides the physical foundation for the efficiency of modern industrial operations.
Email：sale10@kfqizhongji.com
Send Inquiry to This Supplier
