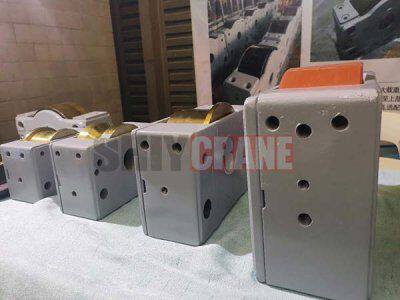

Help CenterDouble-Flange DRS 250-A65-BO-K-X-X-A50 Driven Wheel Applied Crane
Related Products
-
Heavy Duty Double Flange DRS Wheel Block SystemNegotiableMOQ: 1 Unit -
DRS-125-A45-D-65-K-X-A30 Wheel Block System Custom DimensionsNegotiableMOQ: 1 Unit
-
DRS-160-A45-B-0-18B-H-A30 Wheel Block SystemNegotiableMOQ: 1 Unit
-
High Speed DRS Wheel Block System Applied AGVs&RGVsNegotiableMOQ: 1 Unit
-
DRS 400-A90-B-0-B-H-W80 Wheel Block Applied Semi-Gantry Crane/Gantry CraneNegotiableMOQ: 1 Unit
1. Technical Configuration Breakdown
Model Series (DRS 250): A size 250 wheel block designed for substantial load-bearing capacity.
Drive Type (NA): Configured as a Driven Wheel (Non-drive), serving as a load-carrying follower unit.
Double-Flange Design: Features two flanges to ensure secure and precise tracking on the rail.
Material: Manufactured from high-strength Ductile Iron (GGG 70) for superior wear resistance and durability.
Tread Width (A65): Specifically sized with a 65mm tread to match standard rail profiles.
Mounting Type (K - Top): Utilizes a Top Connection structure for mounting to the upper chassis or crane beam.
Accessory Prep (X): Not prepared for additional accessories like horizontal guide rollers.
-
Gearbox Interface (X): As this is a driven wheel, it is not configured for a gearbox connection.
2. Key Features for Product Detail Page
Premium Material (GGG 70): The ductile iron construction provides high damping capacity and exceptional resistance to surface pressure, ensuring a long service life even under heavy loads.
Reliable Tracking: The double-flange "Type A" design is specifically built for rail-bound operations, preventing derailment and ensuring stable movement.
Modular Versatility: Part of a modular system that allows for easy integration and replacement within existing crane or stacker frames.
Maintenance-Free Housing: The wheel is enclosed in a high-quality housing that protects the bearings and internal components from dust and debris.
3. Target Applications
Overhead Cranes: Ideal as a trailing wheel for bridge or gantry crane trolleys.
Automated Storage & Retrieval Systems (ASRS): Used in stacker cranes for precise positioning.
Industrial Transfer Cars: Suitable for heavy-duty rail carts in manufacturing plants.
