1. Product Overview
The EC-9SA Wind Speed Sensor is a high-reliability, high-performance instrument designed for accurate wind speed measurement in demanding environments. It outputs an electrical signal that is linearly correlated with ambient wind speed and integrates robust protection circuits against radio-frequency interference, electromagnetic interference, and lightning surges.
Constructed from high-precision alloy materials with a protective coating, the sensor offers excellent waterproof and corrosion resistance. All internal and rotating components are fully sealed, effectively preventing water, salt spray, and dust intrusion. This makes the EC-9SA ideal for long-term outdoor deployment in harsh conditions.
The sensor is widely used in high-altitude operations, engineering machinery, ports, meteorological stations, environmental monitoring, wind energy systems, and other industrial applications where reliable wind speed data is critical.
2. Measurement Principle
The EC-9SA Wind Speed Sensor adopts a non-contact magnetic sensing principle to ensure high accuracy, long service life, and stable performance. The rotational motion of the wind cup is detected by the internal sensor module, which converts wind speed into a corresponding electrical output signal for real-time data acquisition and processing.
3. Key Features
High Accuracy & Reliability – Advanced non-contact magnetic sensing for precise measurement.
Wide Measurement Range – Capable of detecting wind speeds from 0 to 70 m/s.
Low Startup Speed – ≤ 0.5 m/s, enabling detection of light wind conditions.
Strong Anti-Interference Protection – Built-in EMC protection against electromagnetic noise and lightning surges.
Rugged & Durable Design – High-precision alloy body with corrosion-resistant coating.
Fully Sealed Structure (IP65) – Prevents water, salt spray, and dust ingress.
Multiple Output Options – Supports RS485, 4–20 mA, 0–5V, or pulse frequency output.
Easy Installation & Maintenance – Compact, lightweight, and reliable structure.
4. Technical Specifications
| Parameter | Specification |
|---|---|
| Working Voltage | DC 12V |
| Output Signal | RS485 / 4–20 mA / 0–5V / Pulse (Frequency) |
| Measurement Range | 0 – 70 m/s |
| Startup Wind Speed | ≤ 0.5 m/s |
| Accuracy | ± (0.3 + 0.03V) m/s |
| Operating Temperature | -40°C to +70°C |
| Operating Humidity | 0% – 95% RH (non-condensing) |
| Wind Resistance | > 70 m/s for 30 minutes |
| Static Protection | 15 kV |
| Material | Aluminum alloy with polyurethane coating |
| Protection Level | IP65 |
| EMC Standard | EMC Class III |
5. Applications
High-altitude operational monitoring
Engineering machinery and port equipment
Meteorological and environmental monitoring stations
Wind turbines and large industrial machinery
Industrial safety systems related to wind conditions
6. Why Choose EC-9SA?
The EC-9SA Wind Speed Sensor delivers precision, durability, and reliability in one compact device. Its advanced sensing technology, rugged construction, and multiple output options make it an ideal choice for professionals in meteorology, renewable energy, environmental science, and industrial automation.

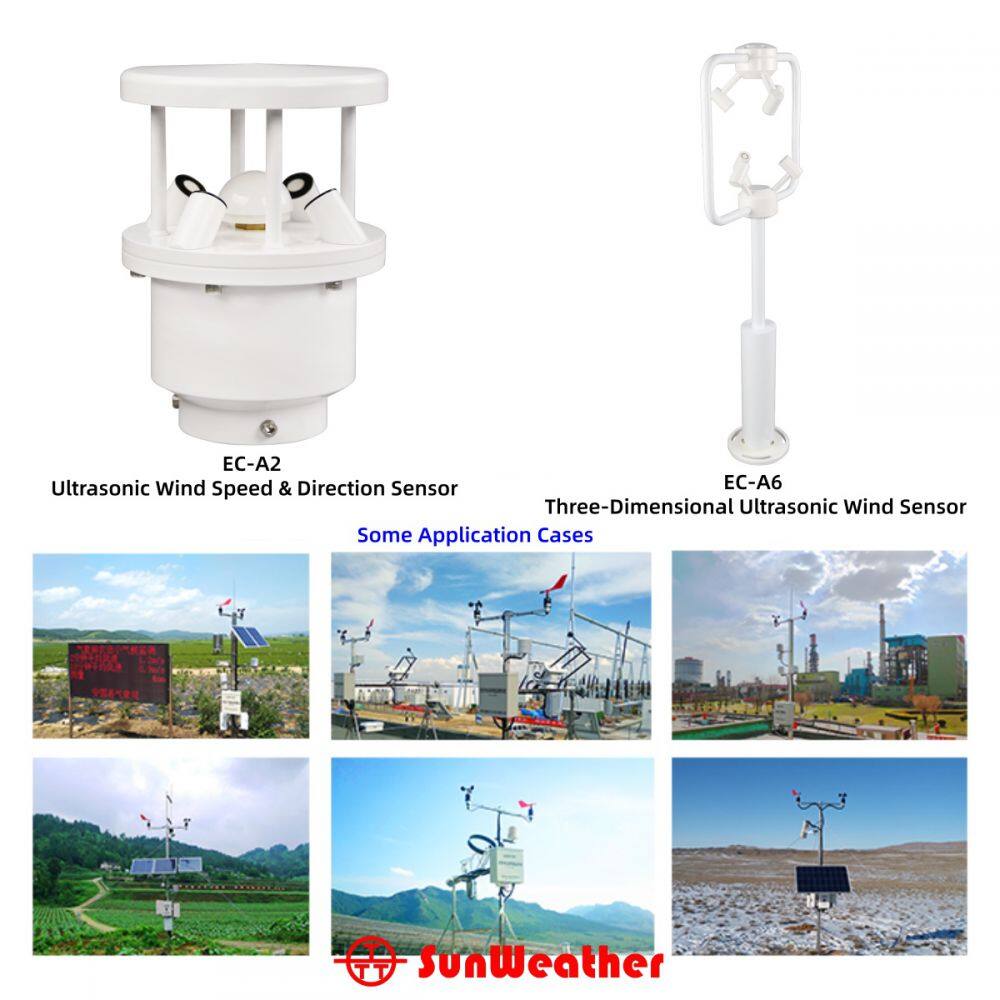

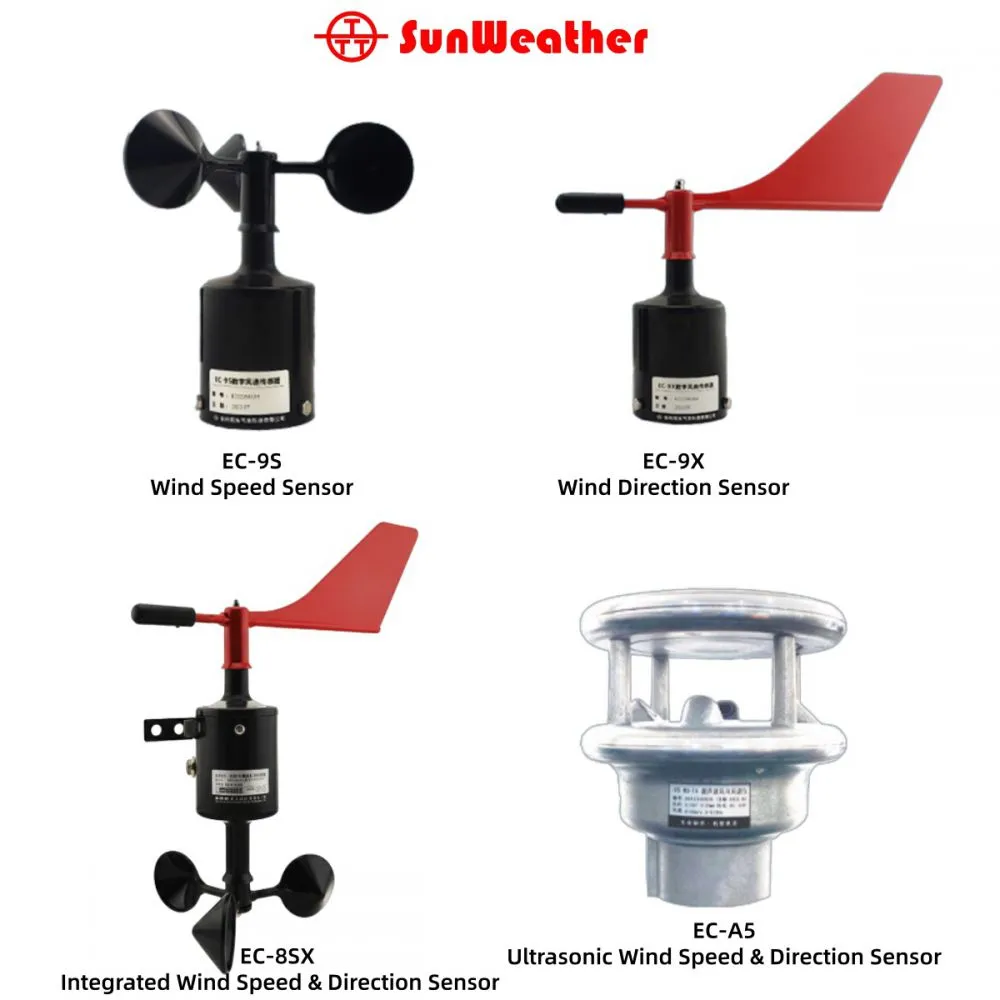

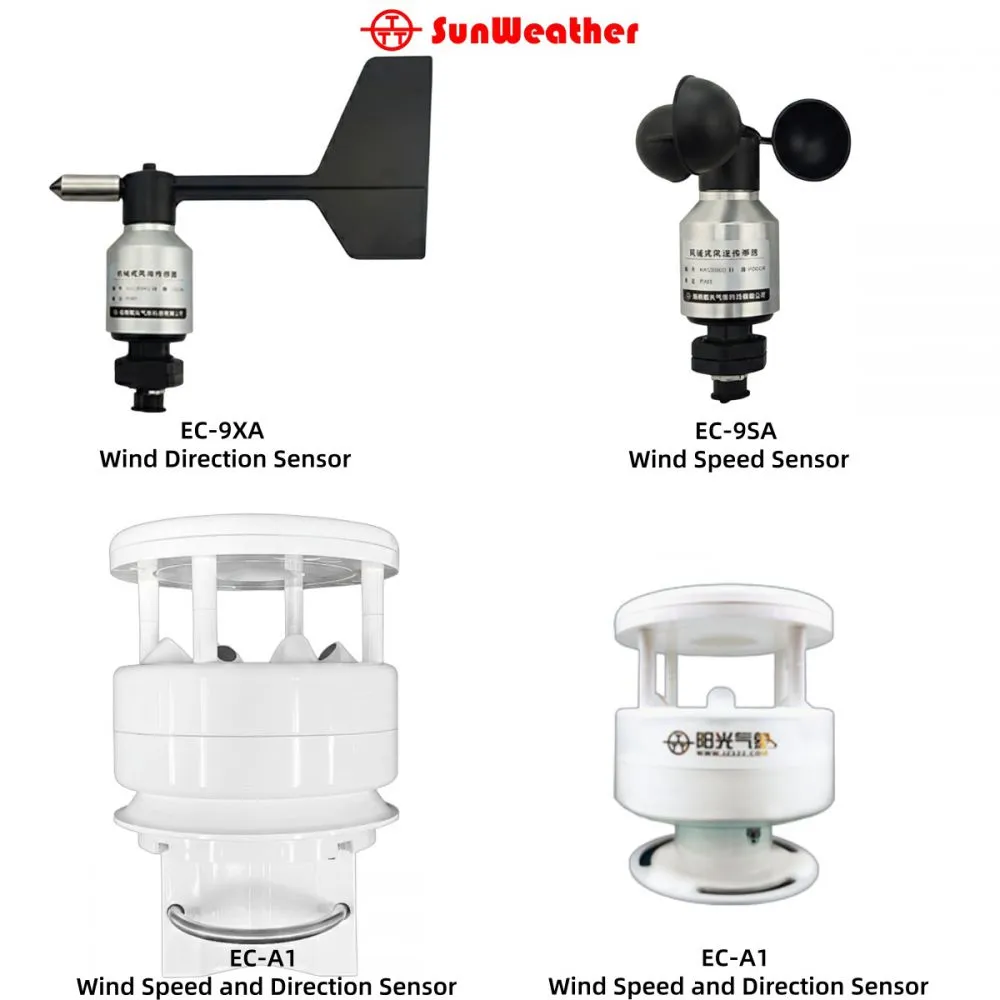

7. Other Types of Wind Sensor

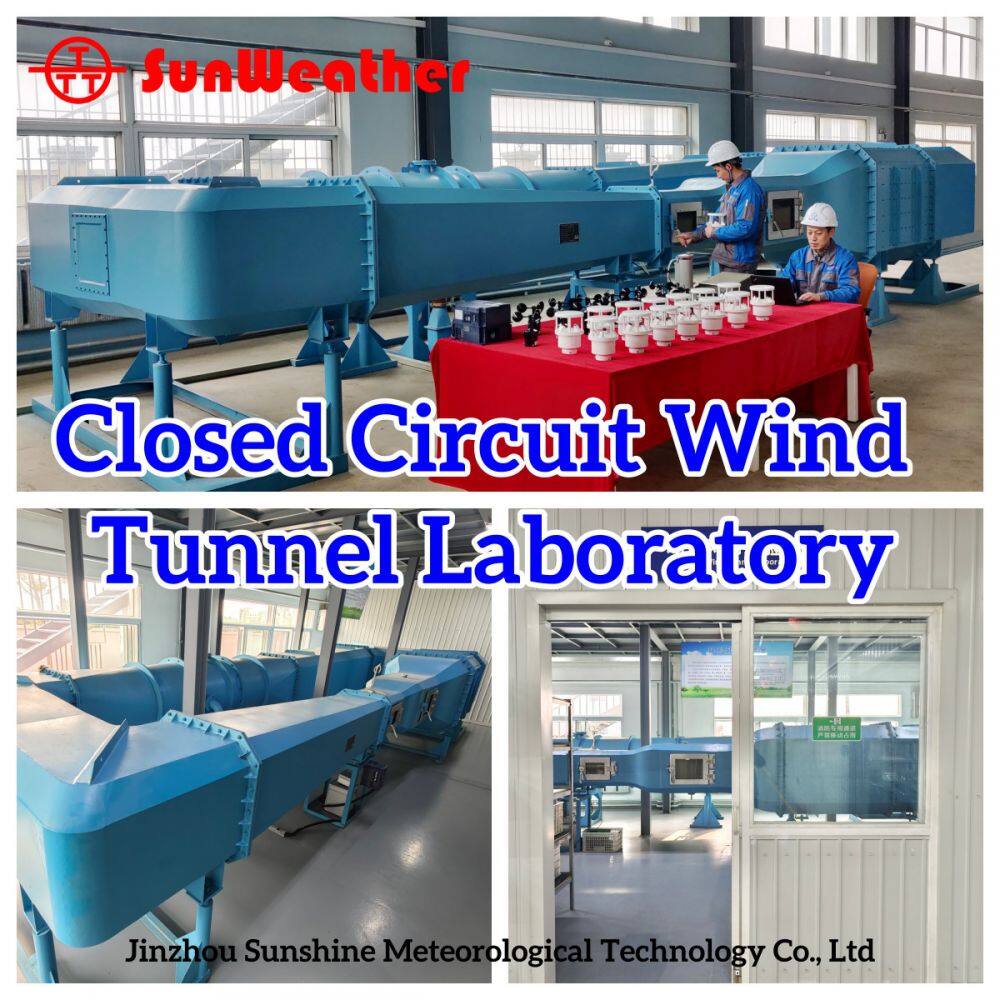

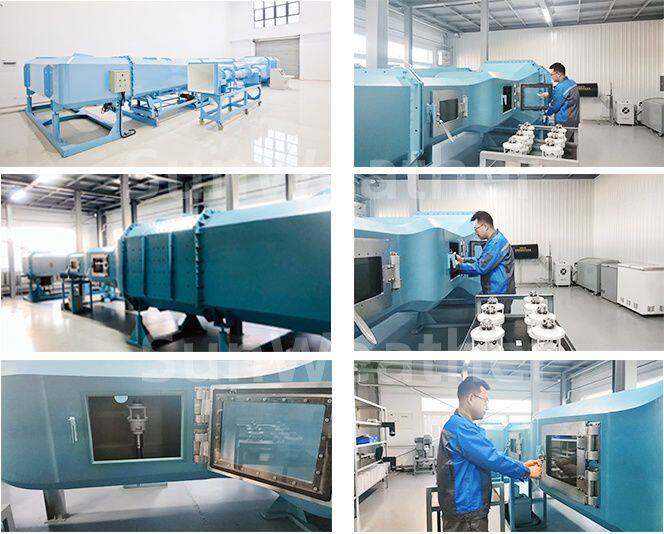

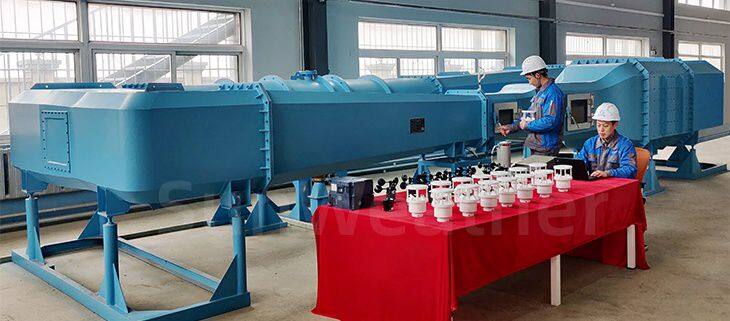

8. Wind Tunnel Laboratory Testing
SunWeather has a large-scale low-speed closed-loop wind tunnel laboratory. The wind tunnel facility can conduct comprehensive performance testing on all types of wind speed sensors produced by our company, providing strong assurance for delivering higher-quality, reliable, and standardized wind energy products to our customers.
9. About Company
Need more information? Feel free to leave a message or contact us.
Sales Manager: Xie Meng
Email: xiemenghit@gmail.com
Whats app: +1(416)8260959
Website: www.sunweather.ca
TikTok:
QQ: 619243274
WeChat: 619243274
