1. Product Overview
The L3 Tipping Bucket Rain Gauge is a high-precision instrument designed for accurate measurement of liquid precipitation, rainfall intensity, and rainfall duration. It is widely used in meteorological stations, hydrological monitoring, agriculture, national defense, highways, railways, and water conservancy sectors.
The sensor complies with the following standards:
SL61-94 Specification for Automatic Hydrological Telemetry System
GB/T21978.2-2014 Precipitation Observing Instruments — Part 2: Tipping Bucket Rain Gauge
With its robust structure, stable performance, and excellent compatibility, the L3 rain gauge is an ideal solution for real-time rainfall monitoring and data acquisition systems.
2. Working Principle

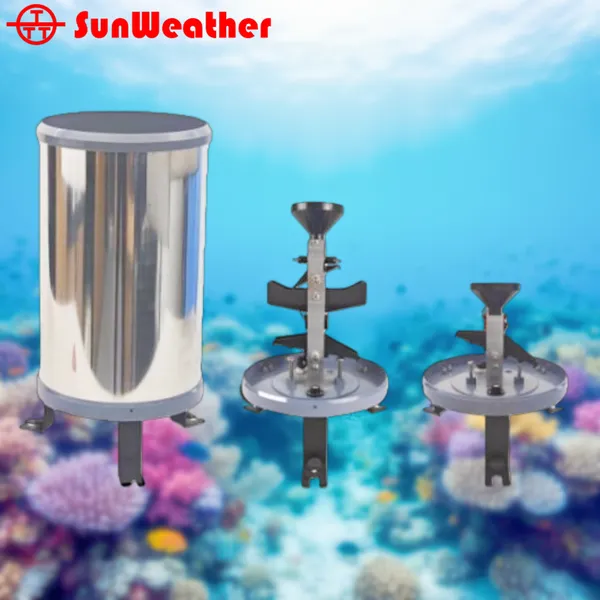

The tipping bucket mechanism collects rainfall through a stainless-steel funnel and filter mesh. When a preset amount of water accumulates in one side of the tipping bucket, it tips over under gravity, triggering a magnetic reed switch to generate a pulse signal. Each pulse corresponds to a fixed rainfall amount, which can be recorded and transmitted to data loggers or monitoring systems.
3. Key Features
3.1 High Measurement Accuracy
Extremely sensitive to small changes in rainfall, capable of detecting minute precipitation variations with minimal error.

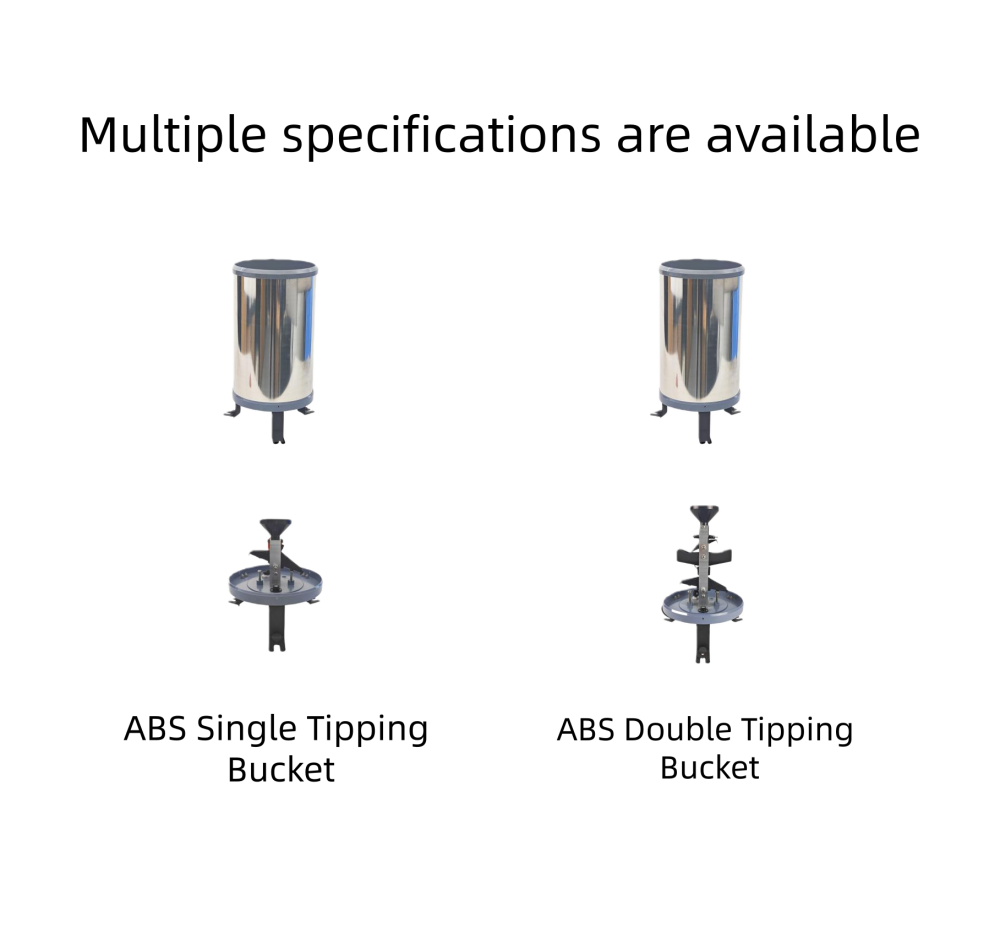

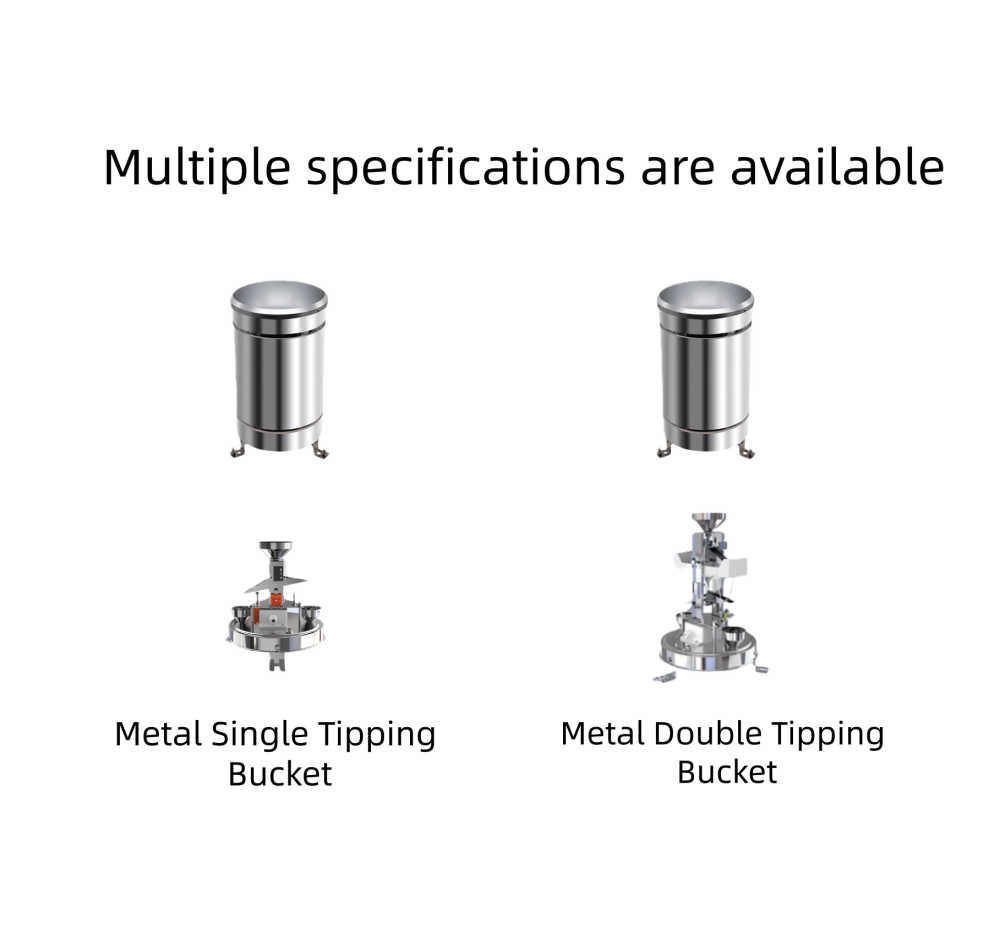

3.2 Durable Construction (Two Versions Available)
ABS Version: Lightweight, corrosion-resistant, and cost-effective for general outdoor applications.
Metal Version (Stainless Steel/Aluminum Alloy): High strength, superior corrosion and aging resistance, suitable for harsh environments such as high temperature, low temperature, high humidity, and strong wind conditions.
3.3 Easy Installation & Low Maintenance
Simple structure, quick installation, minimal maintenance requirements, reducing long-term operational costs.
3.4 High Compatibility
Seamlessly integrates with various data acquisition systems and monitoring platforms for real-time transmission, storage, and analysis.
4. Technical Specifications
| Parameter | Specification |
|---|---|
| Model | L3 |

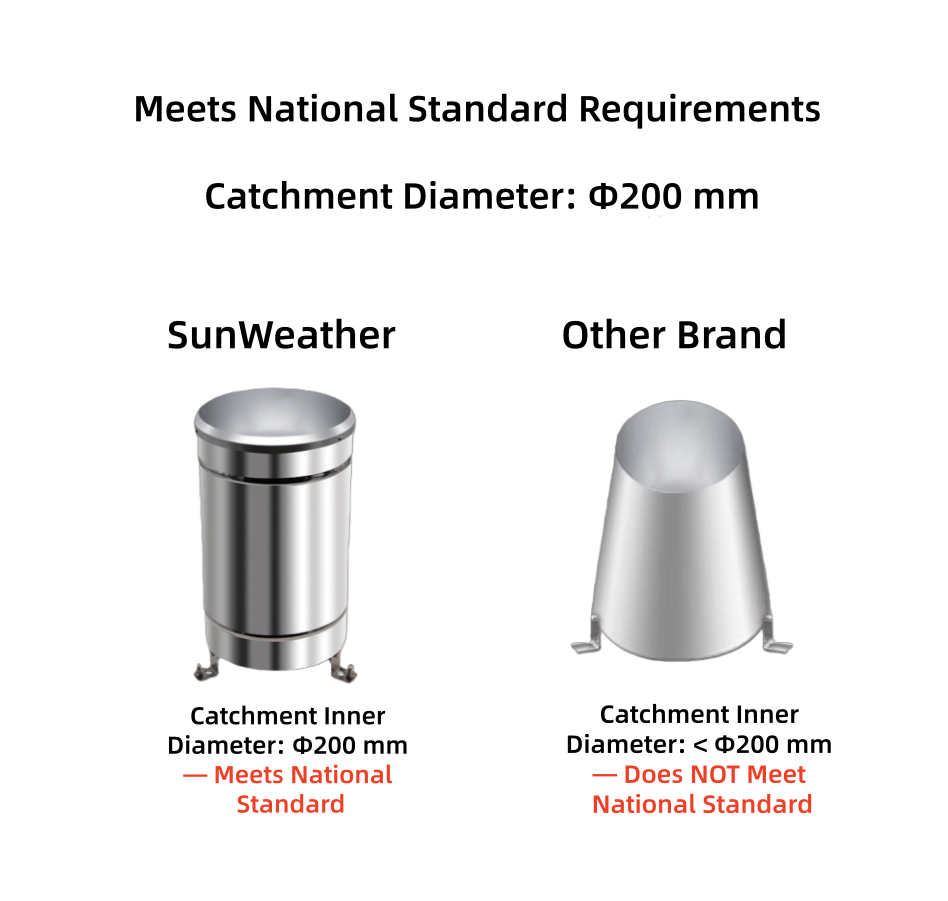

| Funnel Diameter | Φ 200 ± 0.6 mm |
| Measurement Range | ≤ 4 mm/min (operable up to 8 mm/min) |
| Accuracy | ±3% (indoor static test, rainfall intensity 2 mm/min) |
| Resolution | 0.1 mm / 0.2 mm (selectable) |
| Sensitivity | ≤ 0.02 mm |
| Output Signal | Dry reed switch or RS485 |
| Operating Temperature | -25°C to +50°C (cold regions: -40°C to +40°C) |
| Storage Temperature | -10°C to +50°C |
| Power Supply | DC ≤ 12V, ≤ 500mA |
| Contact Life | 1 × 10⁷ operations |
| Dimensions | Φ260 × 420 mm |
| Weight | Approx. 3 kg |
5. Applications
Meteorological stations and hydrological monitoring
Water conservancy and flood warning systems
Agricultural irrigation and soil moisture management
Environmental monitoring
Smart city drainage and urban flood control
Scientific research and climate studies
6. Why Choose L3?
Reliable performance in extreme environments
High precision and long-term stability
Flexible integration with monitoring networks
Available in both ABS and metal versions to suit different application needs

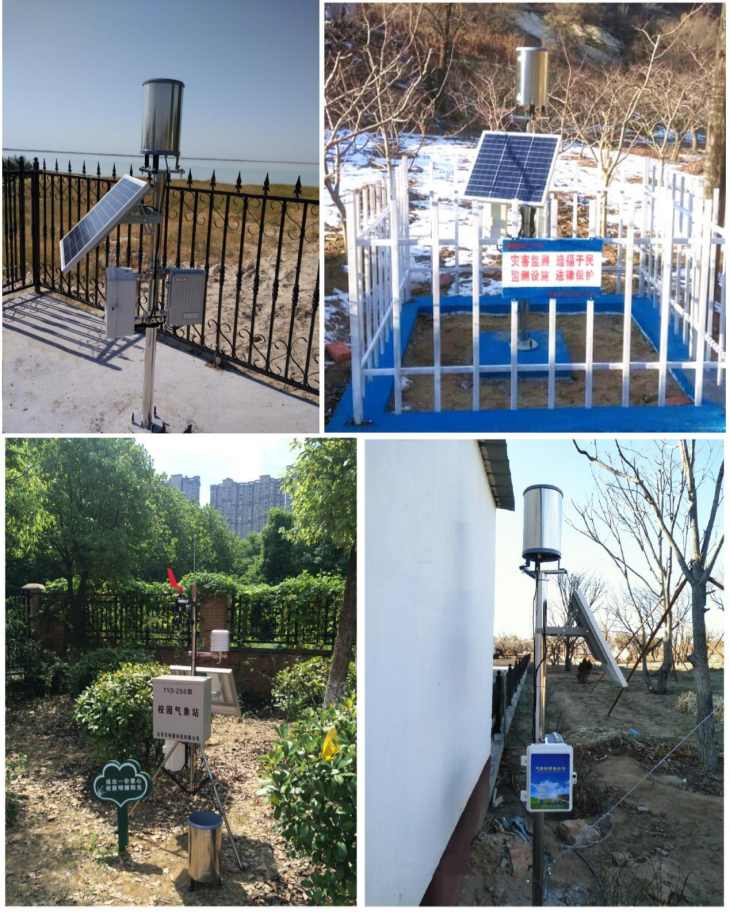

7. Application Cases

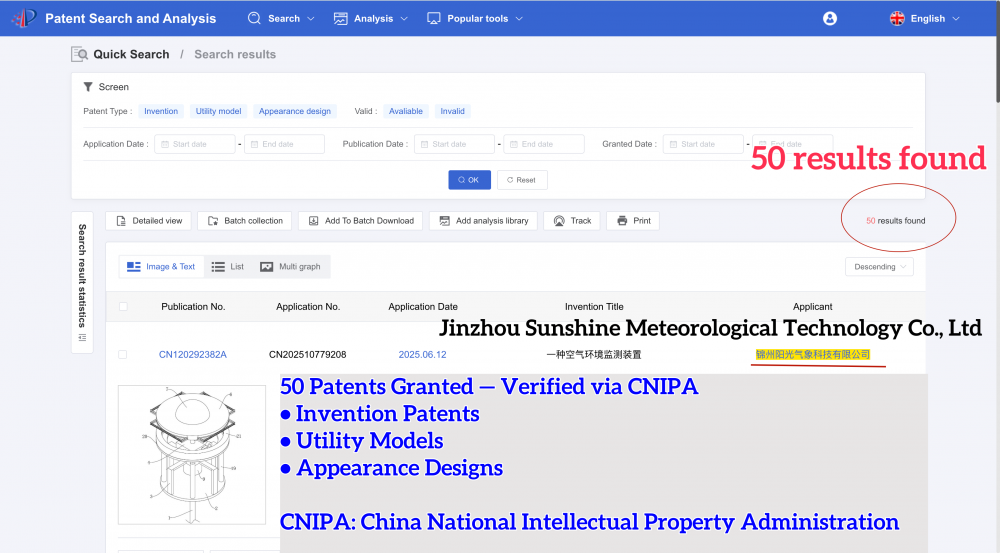

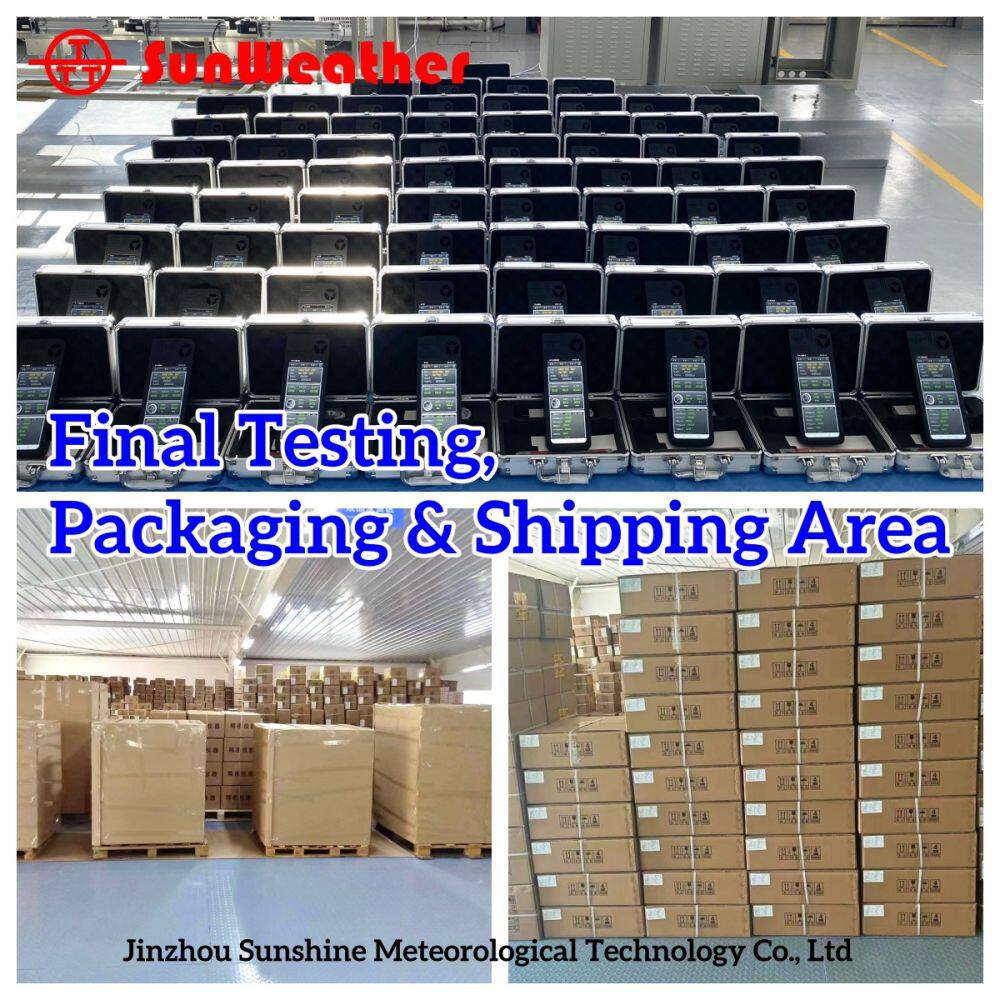

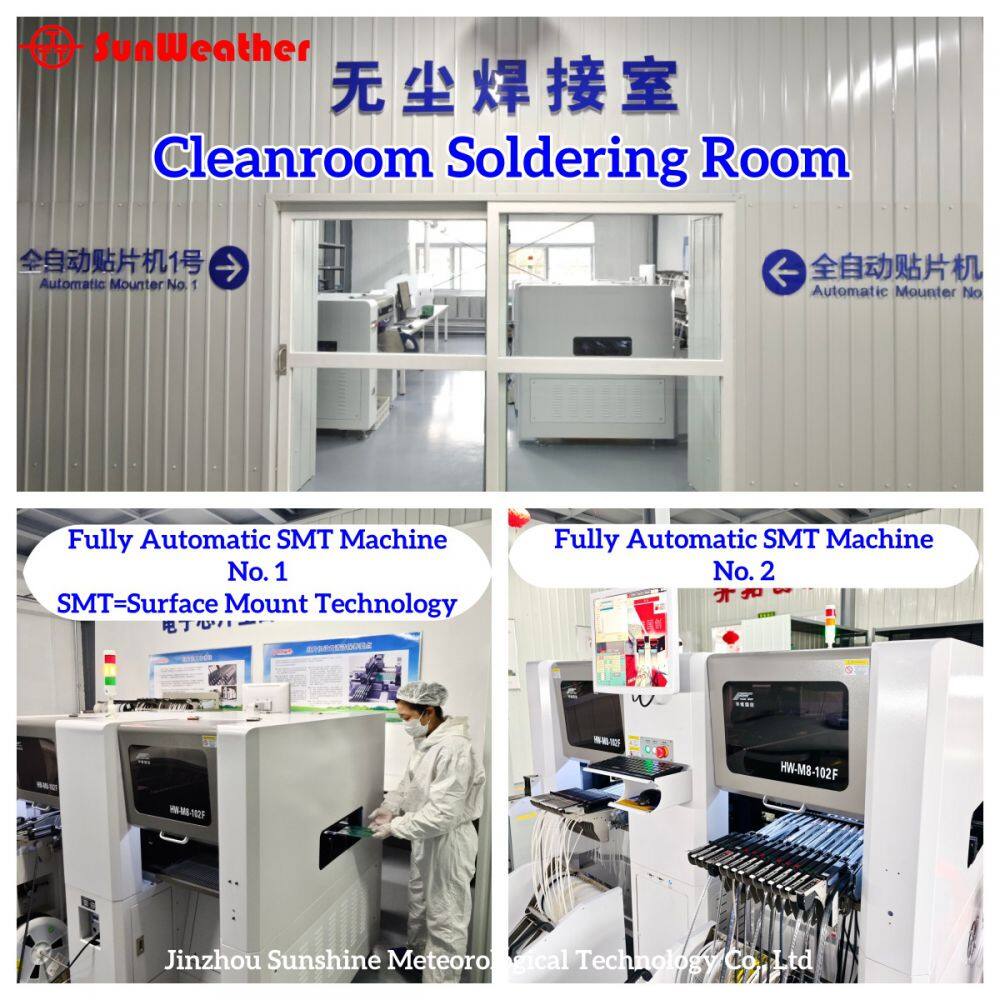

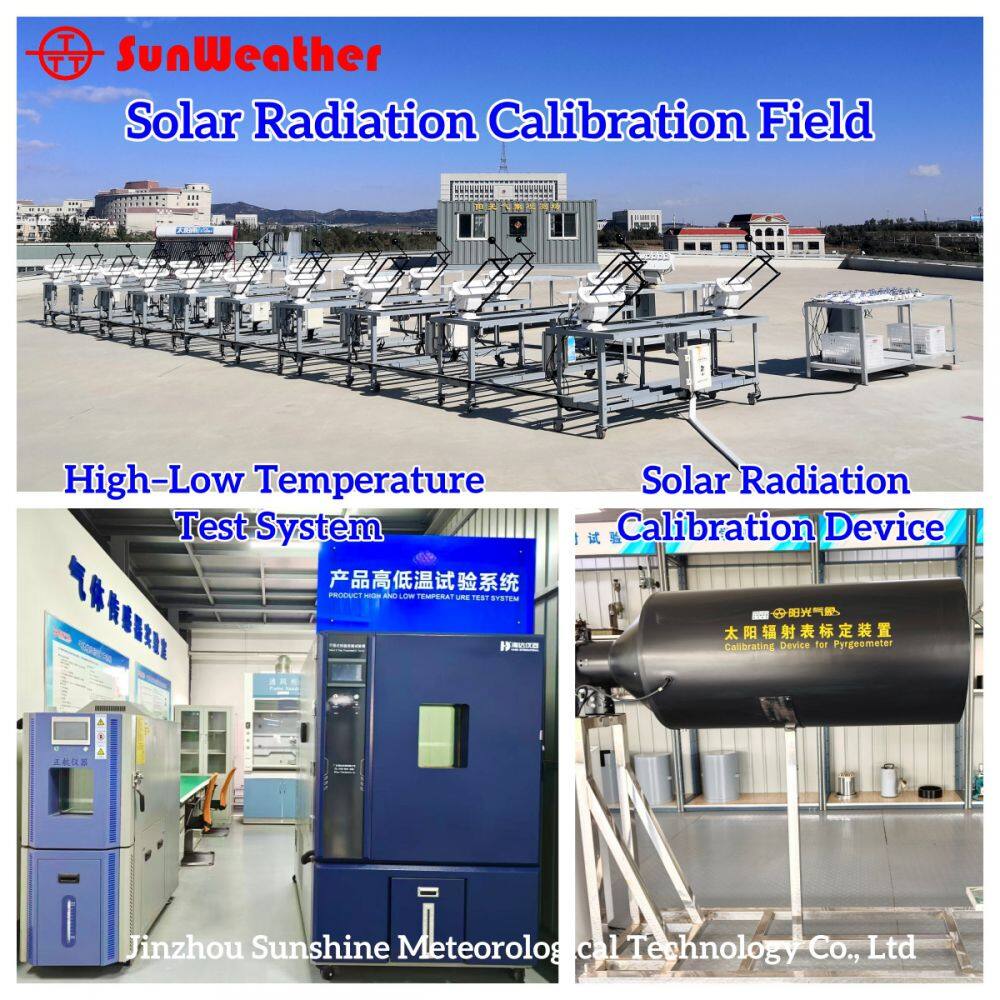

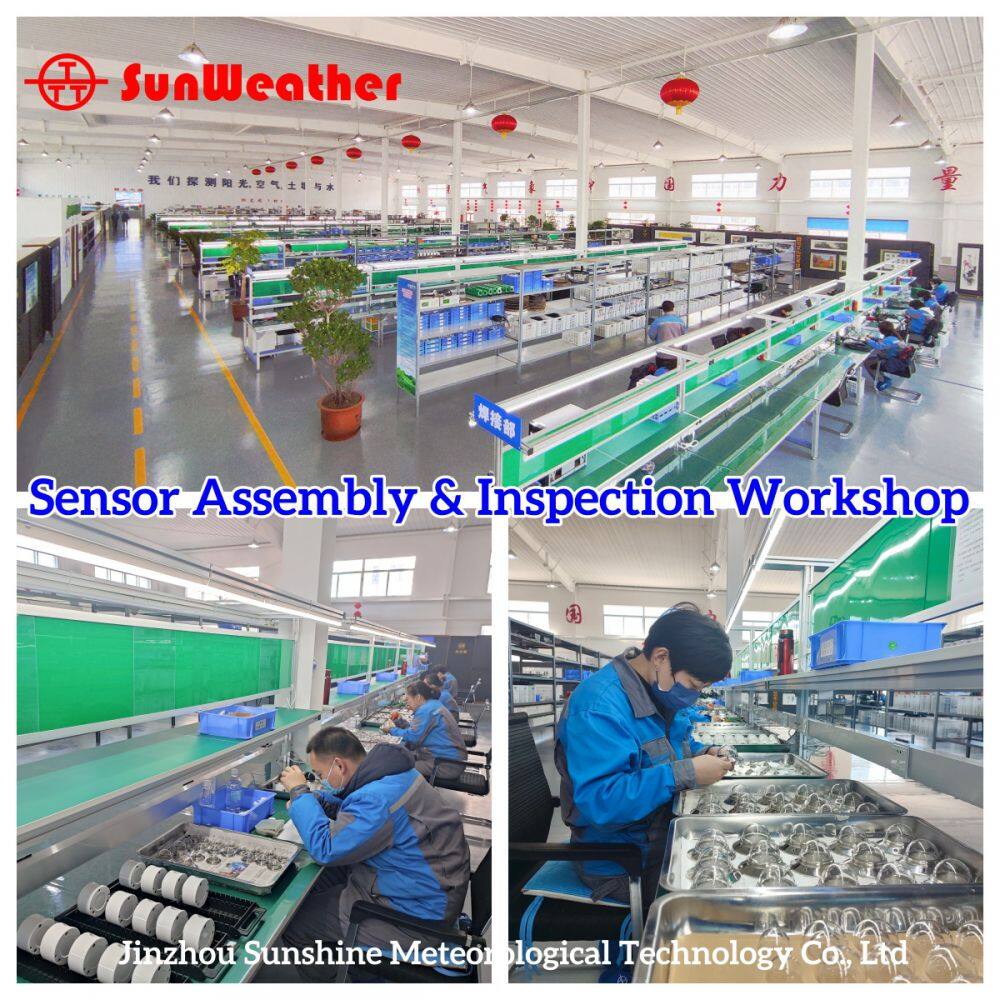

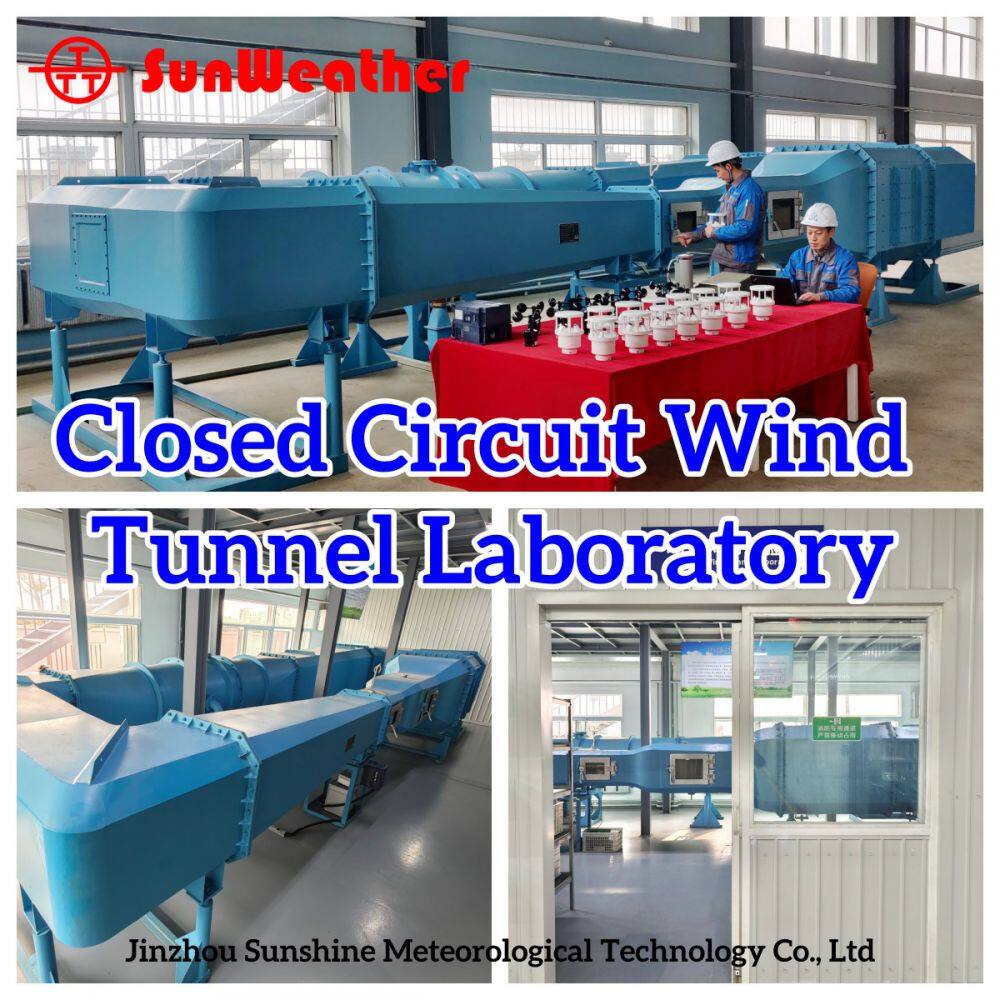

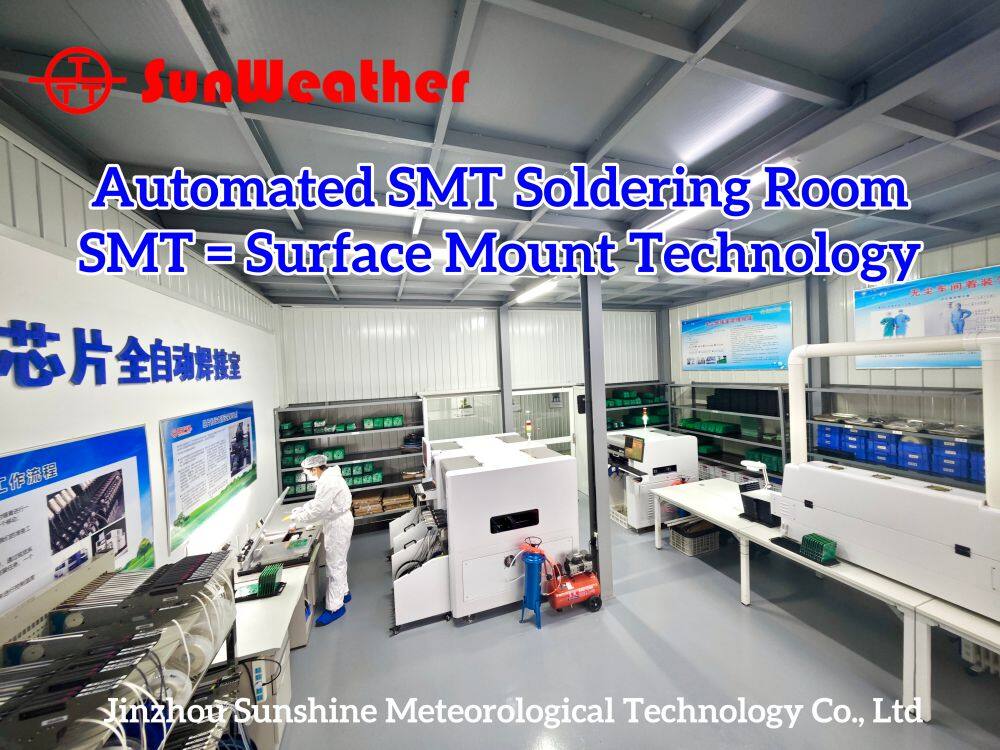

8. About Company
Need more information? Feel free to leave a message or contact us.
