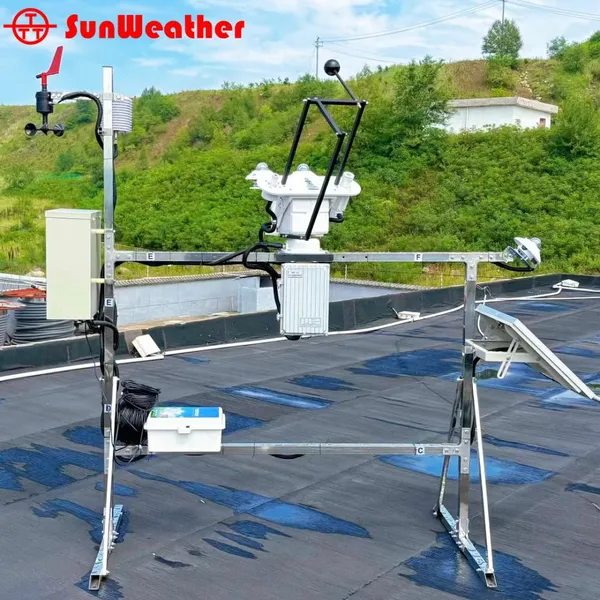

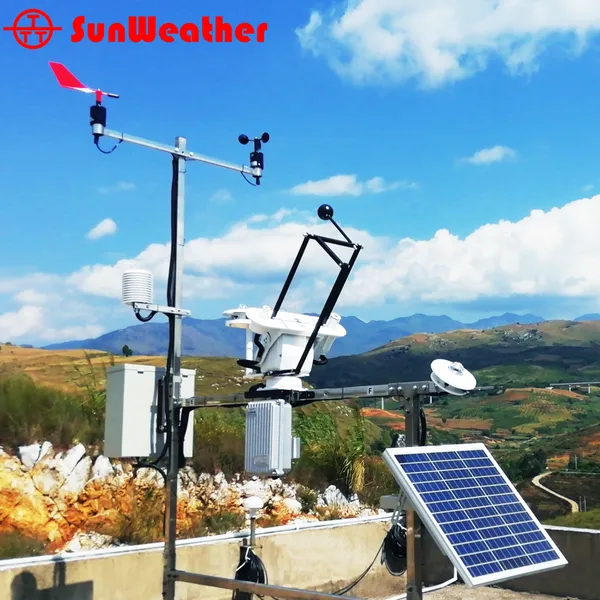

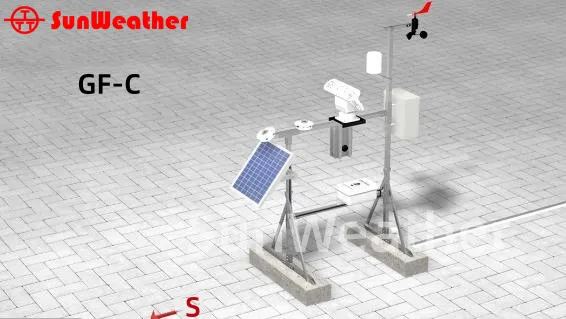

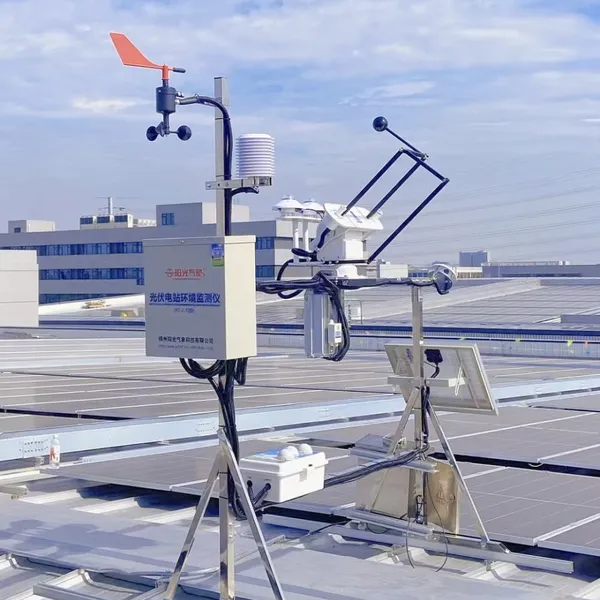

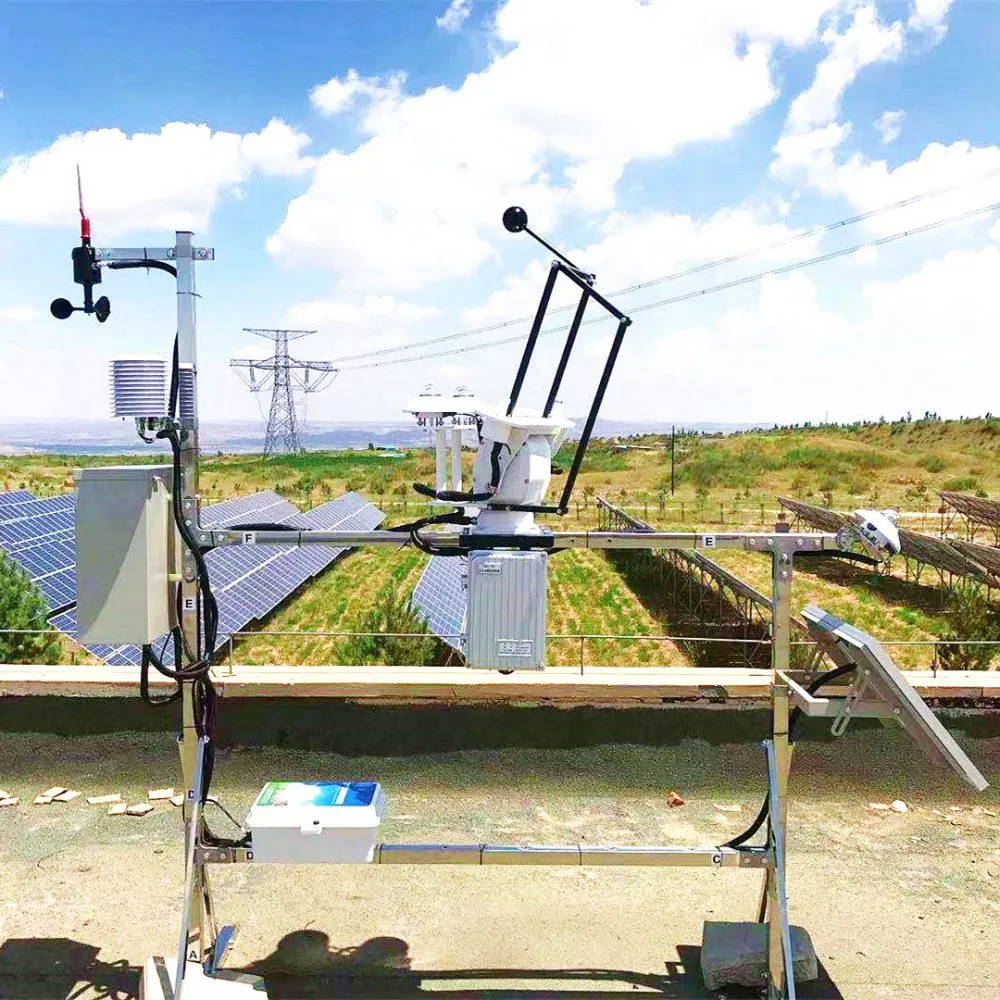

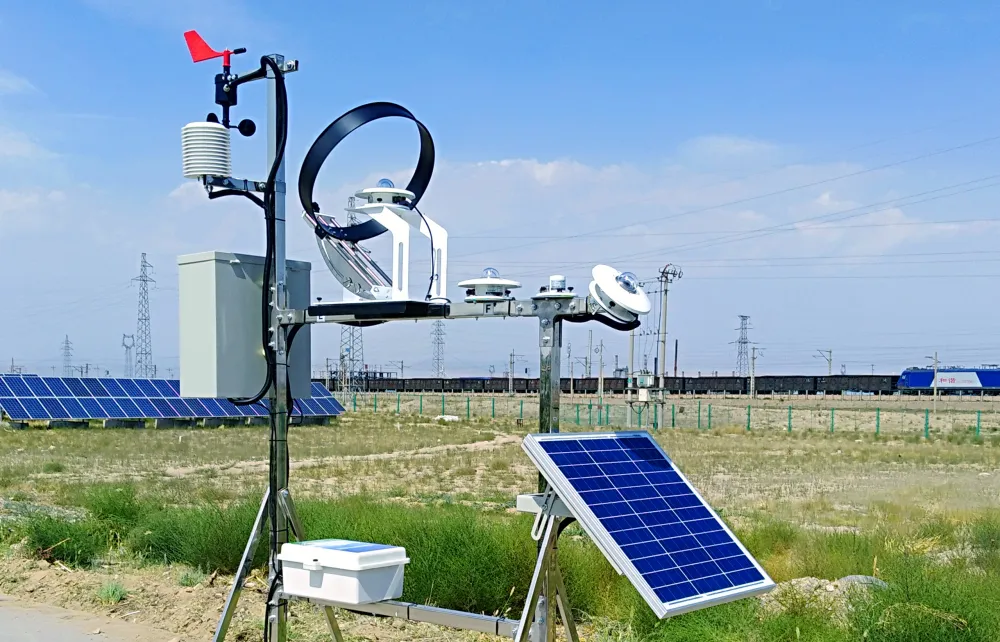

PC-2-T2 PV Environmental Monitoring Station-Weather Station

1.Product

PC-2-T2 instrument is designed for monitoring environmental temperature, environmental humidity, solar panel temperature, wind speed, wind direction, atmospheric pressure, solar pyranometer radiation, sunshine duration, horizontal total radiation, direct solar radiation, scattered radiation, and other environmental radiation indicators.

Suitable for solar radiation monitoring, environmental and climate monitoring, research institutions, as well as applications in meteorology, transportation, military, agriculture, forestry, hydrology, and large-scale engineering projects for various photovoltaic power plants.

Note: This product is a collection of multiple sensors. The types of measurement sensors can be customized and can be matched in any way. The price of the product also depends on the measurement parameters you need. If you want to ask for a quotation, please tell me what needs to be measured. Parameters, voltage, output mode, thank you!

2.Options

1)Free Software platform for data management.

2)Download data through RS232 communication interface or through the software platform.

3)Multiple communication options are available. Support standard RS232/485/USB communication, compatible with the standard MODBUS communication protocol.

4)It can be connected to a PV environmental monitoring station receiving server via various communication methods, including wired connection, local area network (LAN) connection, fiber optic connection, GPRS mobile communication, and digital transmission radio.

5)Multiple power supply options: AC & DC power sources, solar panels.

6)Power outage protection function: When AC power is cut off, the system automatically switches to battery power, ensuring uninterrupted operation for more than 72 hours.

7)Monitoring elements can be flexibly adjusted based on user requirements.

3.Performance

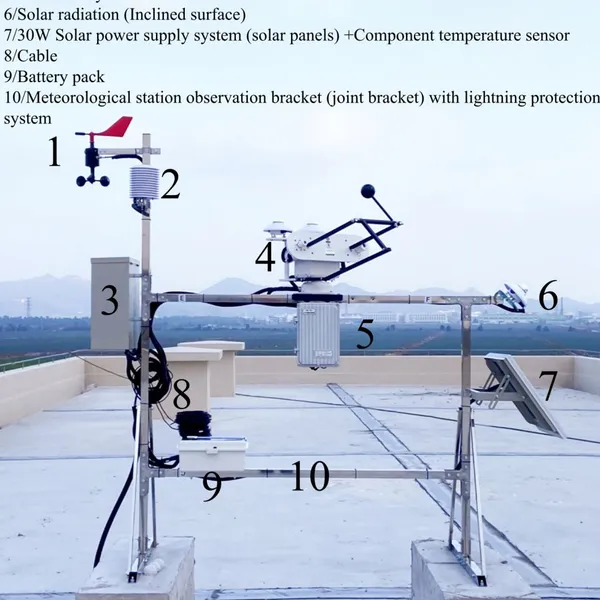

1)ES-9S Wind Speed Sensor utilizes a traditional three-cup structure to measure wind speed.

2)EC-9X Wind Direction Sensor is designed in the shape of a wind vane to measure wind direction.

3)TBS-YG5 Automatic Solar Tracker measures horizontal total radiation, direct solar radiation, scattered radiation, sunshine duration, and solar altitude angle.

4)The slope pyranometer could be adjusted to different angles, mainly measuring solar panel backplane temperature. It is used in conjunction with TBS-YG5.

5)PTS-3 Environmental Temperature and Humidity Sensor measures environmental temperature and environmental humidity. Its output could be analog or digital.

4.Technical Specifications

5.Feature

1)Stainless steel lightweight metal brackets and outdoor protective enclosures. Portable anti-vibration structure. Fully automated work in harsh conditions and in all climate zones.

2)Enclosure IP65.

3)Graphic LCD display.

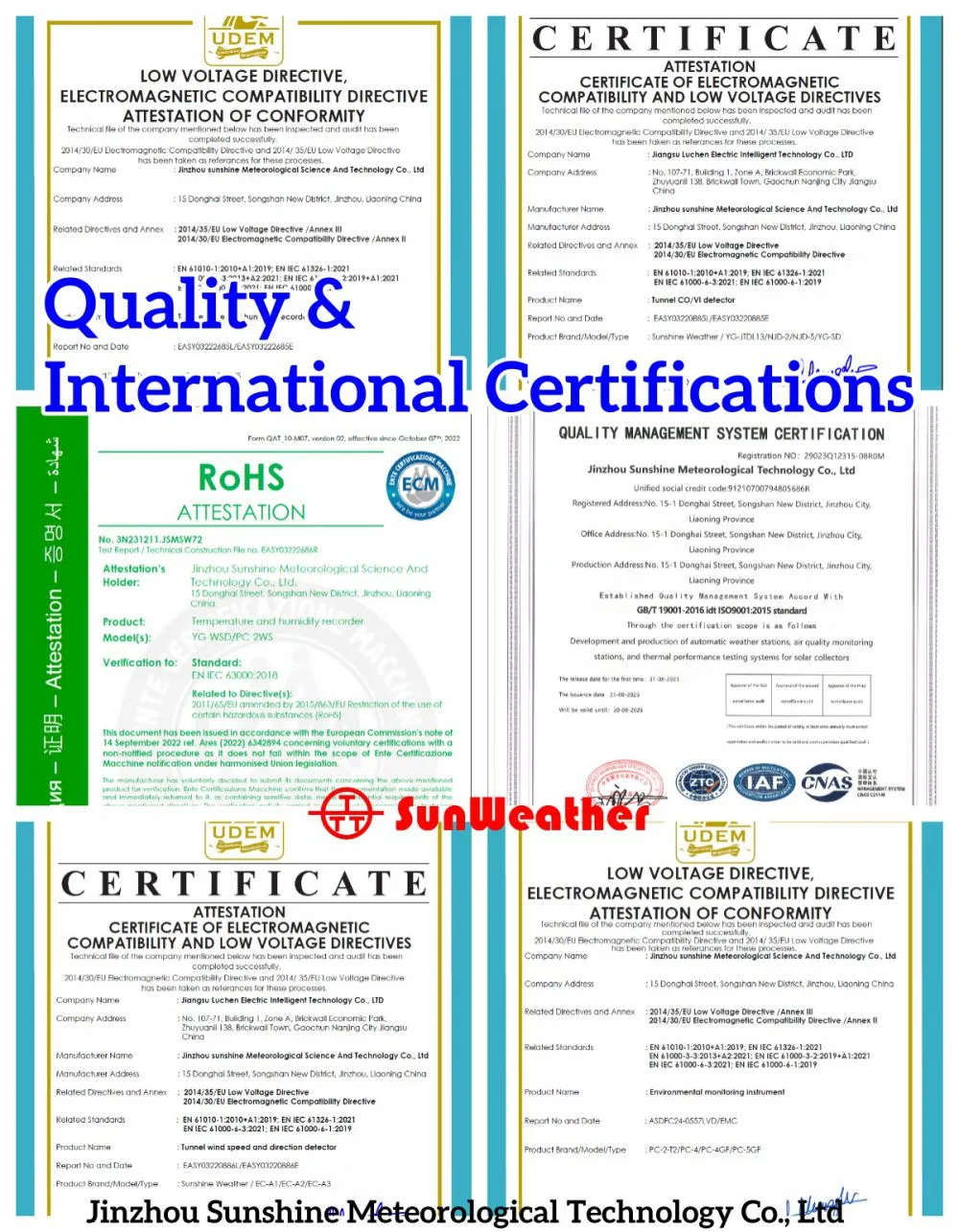

4)Qualified by the Chinese Meteorological Metrology Testing.

5)Software platform can run on Windows XP or later operating systems. It provides real-time display of various data and store data at a frequency of once per minute.

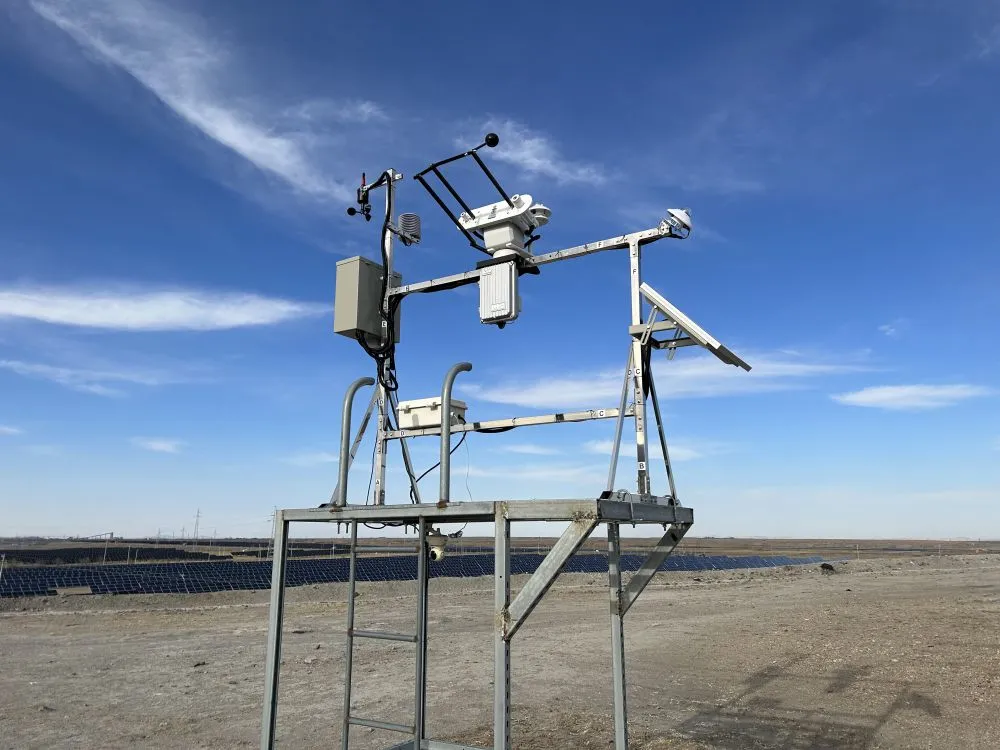

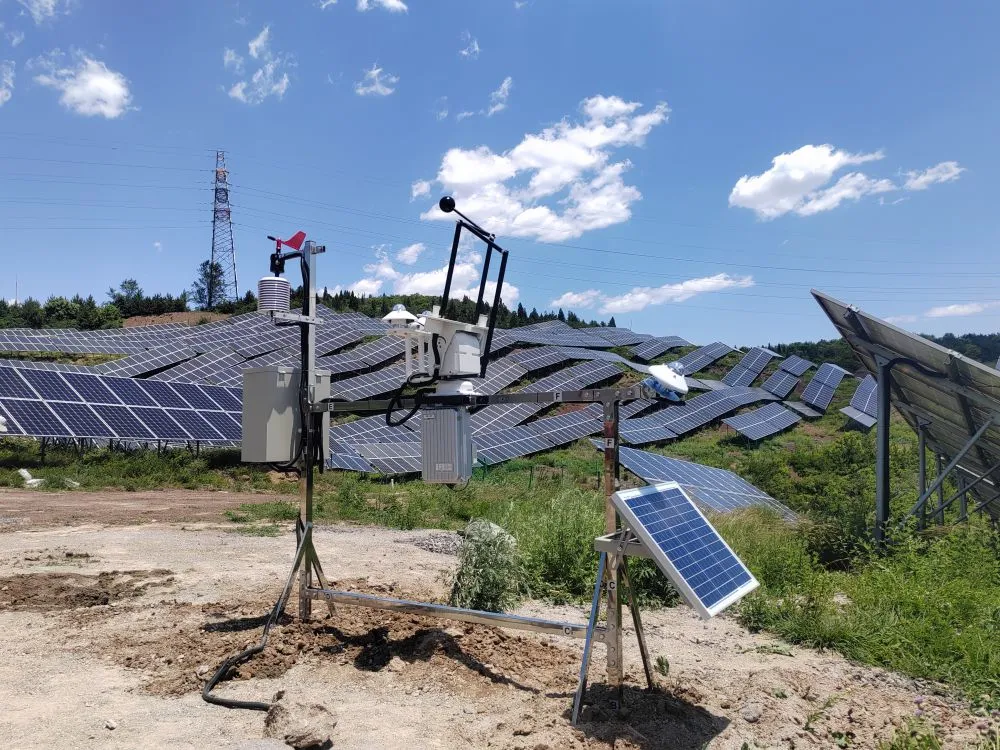

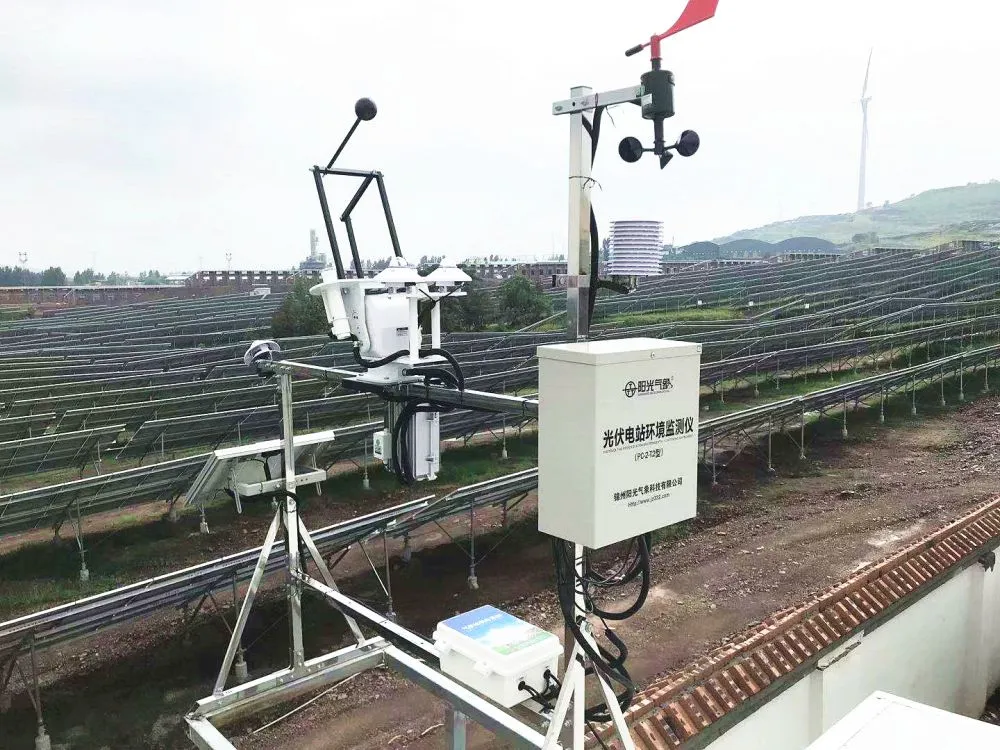

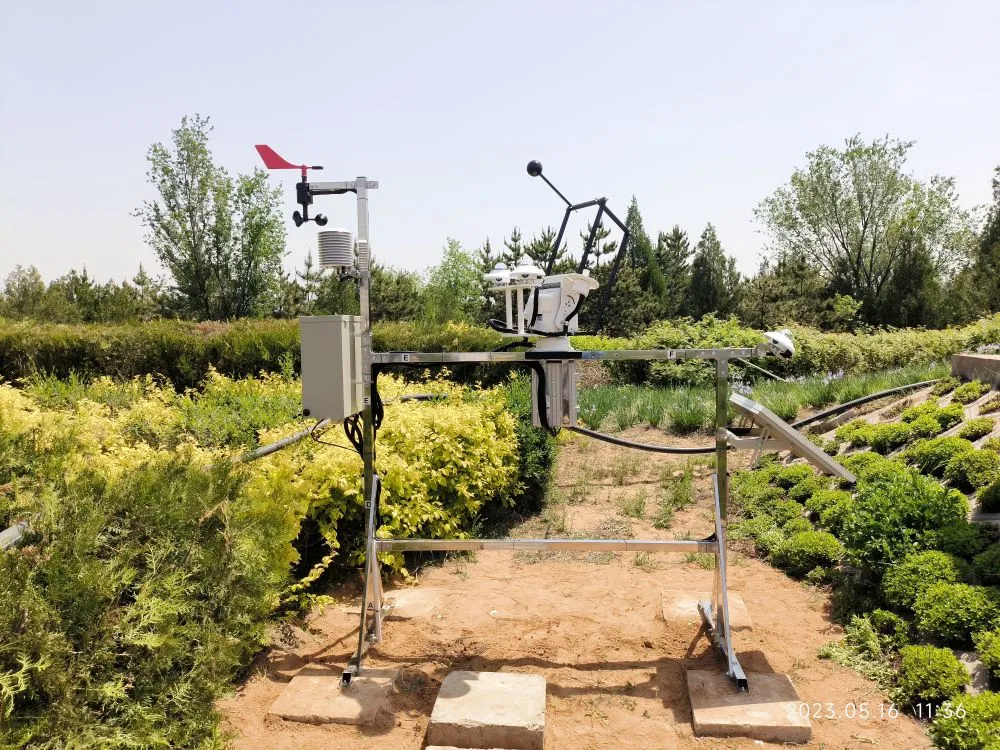

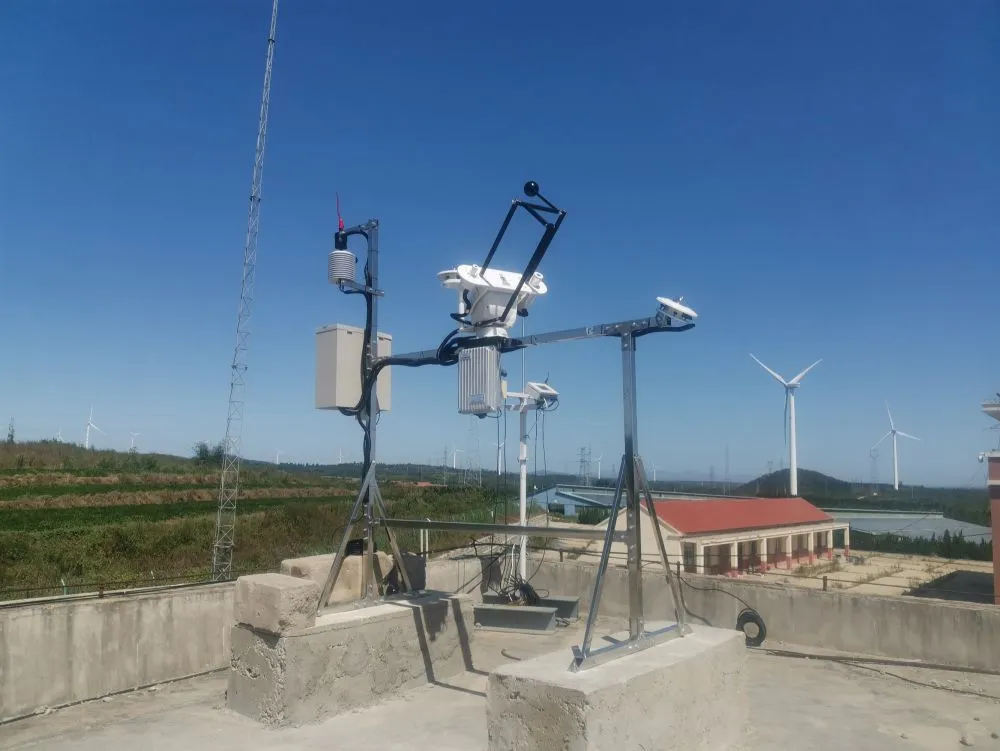

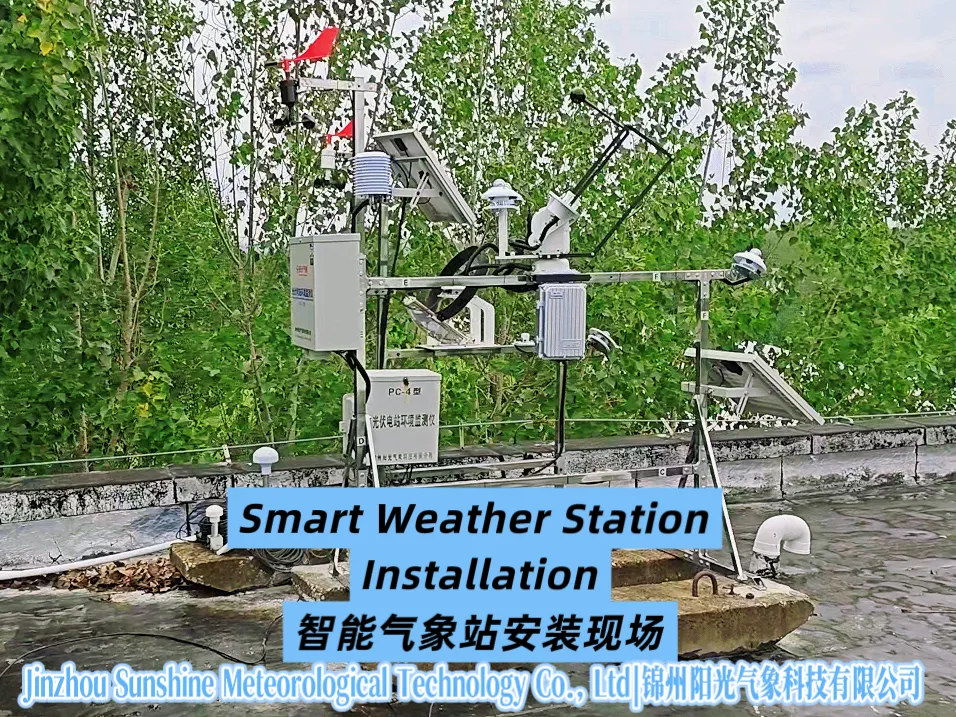

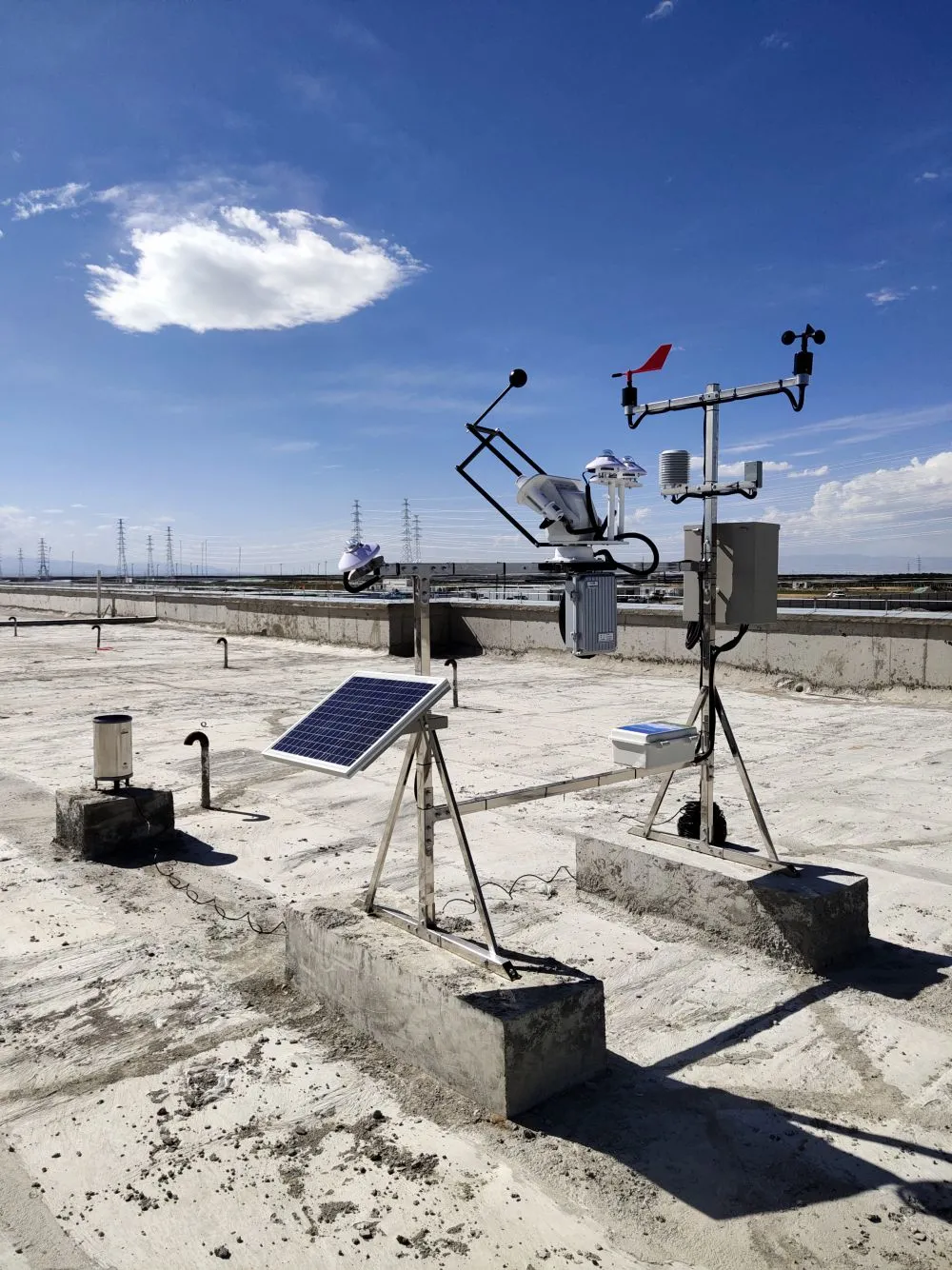

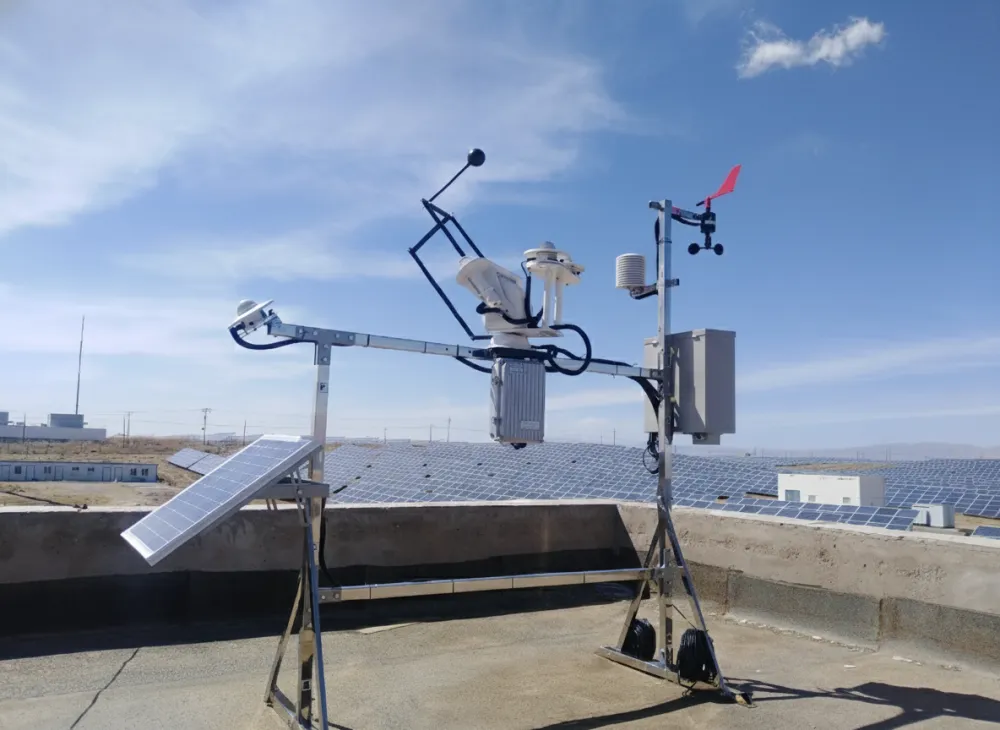

6.Application Cases
