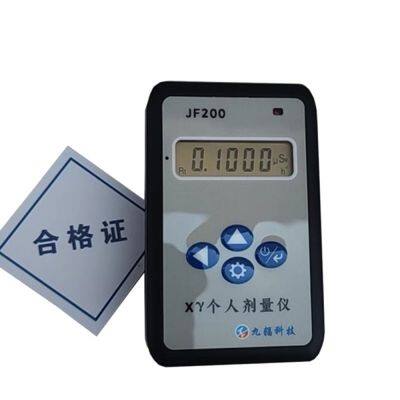

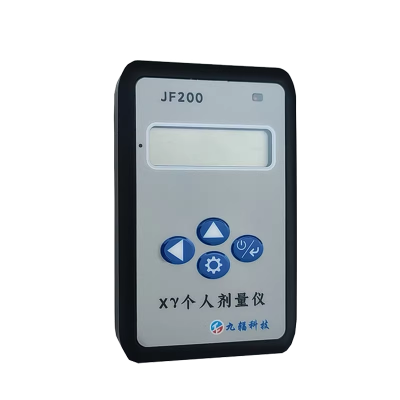

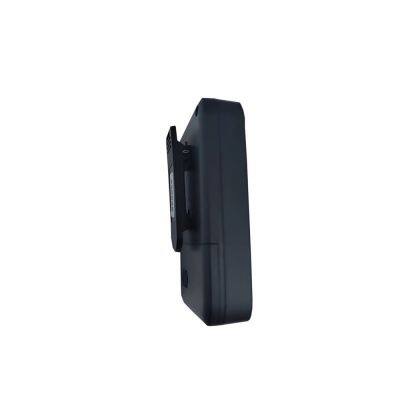

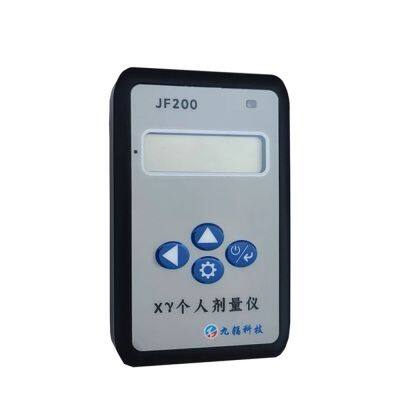

The JF200 personal radiation dose alarm is a multifunctional real-time XY radiation dose measuring instrument using a halogen GM counter tube as the detector. It is designed to be worn on the human torso to measure personal dose equivalent HP(10), and can also be used for radiation field surveys and detection.
Feature:
- Detector: Energy-compensated GM tube detector
- Energy Response: 38keV-3MeV
- Measurement Range:
Dose Equivalent Rate: Hp(10) 0.1 μSv/h-100mSv/h
Accumulated Dose Equivalent: Hp(10) 0.0 μSv-99.99 mSv
- Accumulated Dose Equivalent Response Error: <±15% (137Cs) within the measurement range
- Energy Response: Meets GB/T13161-2015 national standard requirements
- Power Consumption: Total power consumption less than 2mW, continuous use time of two AAA alkaline batteries greater than 400 hours
- Temperature and Humidity Characteristics: Error ≤±10% at -10ºC to +50ºC;
Error ≤±10% at 35ºC and humidity 0-95%RH (+35ºC)
- High-sensitivity detector with strong anti-interference capability
- Expandable into a series of products, with models offering wider measurement ranges and higher sensitivity.
- Alarm functions: Includes dose rate, cumulative dose, and other alarm functions; alarm thresholds are continuously adjustable.
- Data transmission: Measurement data can be transmitted to a computer via data cable (optional).
Application
Suitable for the protection and personal dose monitoring of workers in radioactive application fields such as industrial non-destructive testing, isotope applications, nuclear industry, hospitals, railways, civil aviation, and environmental protection.
