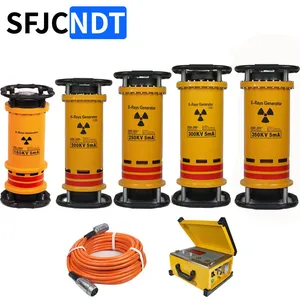

Help CenterPortable NDT Panoramic X-ray Flaw Detector Machine
Related Products
-
Portable NDT Directional X-ray Flaw Detector MachineNegotiableMOQ: 1 Unit -
X Ray Pipeline Inspecton CrawlerNegotiableMOQ: 1 Unit
-
Digital Radiography DR Panel Industrial NDT X-ray DetectorNegotiableMOQ: 1 Unit
-
XXG2505 Portable NDT Directional X-ray Flaw Detector MachineNegotiableMOQ: 1 Unit
-
Handheld/Mobile/Portable Xrf Spectrometers/Precious Metal Analyzer/Xrf Spectrum AnalyzerUS$ 14500MOQ: 1 Set
SFJC portable x-ray machine can be widely used in shipbuilding, machinery, manufacturing, aviation, rail, pressure vessels, boilers, oil, chemical, defense industry and other departments for non-destructive testing. Portable x-ray machine has light and small body. Particularly applicable to construction site operation and high-altitude operations.
Panoramic Portable X-ray Flaw Detector (with ceramic X-ray tube)
Model Output Input (kw) Foucus(mm) Beam angle Max. penetration Generator (kg) Dimension (mm)
XXGH-2505CLZ 130~250 2.5 1.0×3.5 30×360° 32 19 φ230×640
XXGH-3005CLZ 150~300 3.0 1.0×5.0 30×360° 42 24 φ260×670
Panoramic Portable X-ray Flaw Detector (with ceramic X-ray tube)
Model Output Input (kw) Foucus(mm) Beam angle Max. penetration Generator (kg) Dimension (mm)
XXGH-1605Z 30~160 1.5 1.0×3.5 30×360° 12 18 φ230×580
XXGH-2005Z 100~200 2.0 1.0×3.5 30×360° 22 18 φ230×580
XXGH-2505Z 130~250 2.5 1.0×3.5 30×360° 32 23 φ280×650
XXGH-3005Z 150~300 3.0 1.0×5.0 30×360° 42 32 φ320×660
XXGH-3505Z 200~300 3.5 1.0×6.0 30×360° 52 36 φ340×715
Application:
1, Detect whether there are internal defects such as white spots, pores, trachoma, cracks, inclusions and so on;
2, The welding seam of workpiece is qualified or not;
3, Detect whether the workpiece is damaged, and determine whether the workpiece is qualified.
4, AC/ DC double supply NDT X Ray machine is mainly used in the testing engineering,petroleum pipeline and site
x-ray generator
1.Adopt high temperature installation technology to improve 30% heat radiation. The aluminium radiator has features as high stretch, high density and high purity.
2.Small volume, light weight ,easy to take and simplicity of operation.
3.More safe and reliable design of SF6 gas insulator, grounded-anode.
4.Strictly followed with 1:1 working/ resting radio, eliminating the disoperation.
5.The HV coils made by imported enamel wire are applied in the x-ray generator, so as to make the quality of the complete equipment improved a great deal.
Controller
1.It can still work by applying special design of high frequency technology what can avoid the interference by power grid change.
2.All the signal wires in the controller are imported from South Korea to make sure the controller's quality.
3.We are using highpower electronic components,such as capacitance and power module with wide capability to greatly ensure the quality of the products.
4.Apply the isolation technology of low voltage and high voltage to ensure the controller working stablely.
5.Time delay function protect operator away from radiation
6.It has functions of troubleshooting automatically and pressure indication to guarantee the stability of working.
7. Equipped with voltage, current, temperature and other protections, reliable control, automatic machine training, and intelligent.
