Digital radiography (DR) is an advanced form of x-ray inspection which produces a digital radiographic image instantly on a computer. This technique uses x-ray sensitive plates to capture data during object examination, which is immediately transferred to a computer without the use of an intermediate cassette. The incident x-ray radiation is converted into an equivalent electric charge and then to a digital image through a detector sensor.
The DR imaging inspection system consists of a flat panel detector, a laptop and software. It can be used directly with the remote computer client developed by our company, which greatly helps cost control and ease of use. Compared with traditional film inspection, it saves film processing time, solves cost and pollution problems, and detects defects online in real time.
Application: Meet the latest GB47013-2023 X-ray digital imaging detection standard.
Casting inspection, on-site inspection and rescue of oil and gas pipelines, power system and high-voltage wire clamp inspection, boiler pressure vessels, high-altitude operations in the shipbuilding industry, aerospace industry, etc.
Advantage:
Our DR system can fit with all series X- ray flaw detector, use it directly with the remote computer client (or mobile APP) developed by our company, providing great help for cost control and convenient use.
Application:
Aerospace product examination
Detection of Corrosion Under Insulation (CUI) in petrochemical, oil and gas and power generation industries
Detection of Flow accelerated corrosion
Foreign object detection
Casting and weld inspection
Inspection of composites and fiber reinforced components

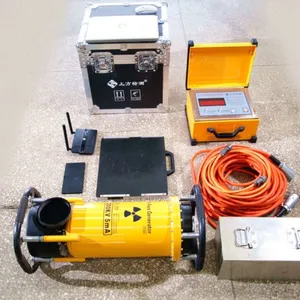

System Structure:
X-ray flaw detector
Dynamic Flat Panel detector（1013）
laptop computer and software
Main specifications:
Our X- ray tube can be installed to a variety of X-ray generators at dometic and abroad.
I DR 1013 Flat Panel

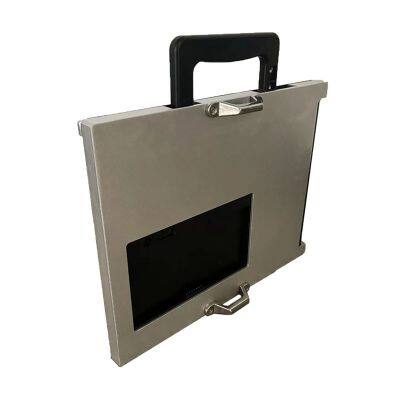

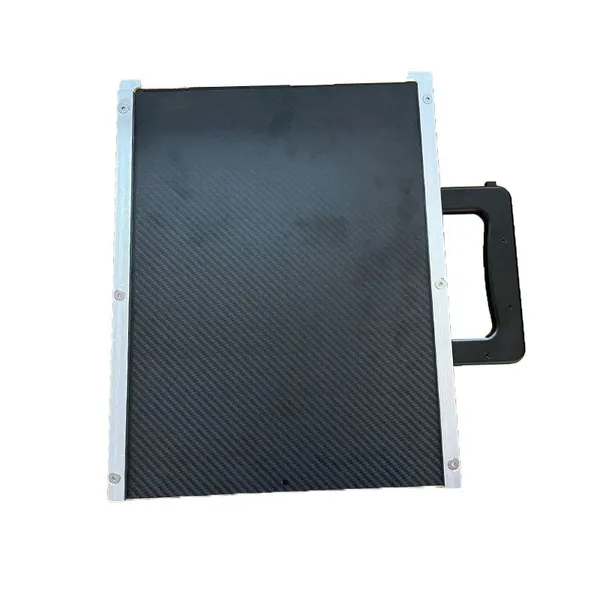

1013 Flat Panel Detector is a new generation of high performance flexible wireless 10×13 inch amorphous silicon flat panel detector configured with 100 μm pixel size, advanced flexible panel technology, lightweight design, IP67 protection rating, tray type battery charging, full screen AED control, and support for anytime exposure. With its excellent image quality is an excellent choice for industrial applications such as portable field inspection or portable X-ray suspicious object inspection devices.
Product Features
Adopts innovative flexible amorphous silicon sensor technology
252.8 x 331.8 mm² imaging area
100 μm pixels, 16-bit ADC image detail
180 second exposure window
Wired and 5G wireless data interface
Communication interface: Wired: GigE (≥100 Mbps) Wireless: 802.11 a/g/n (≥100mbps)
Background energy range (no need to add radiation protection): 40 ~ 370 kVp (Ir-192);
Thin and lightweight design with 7 / 7 / 9.6 mm narrow edges

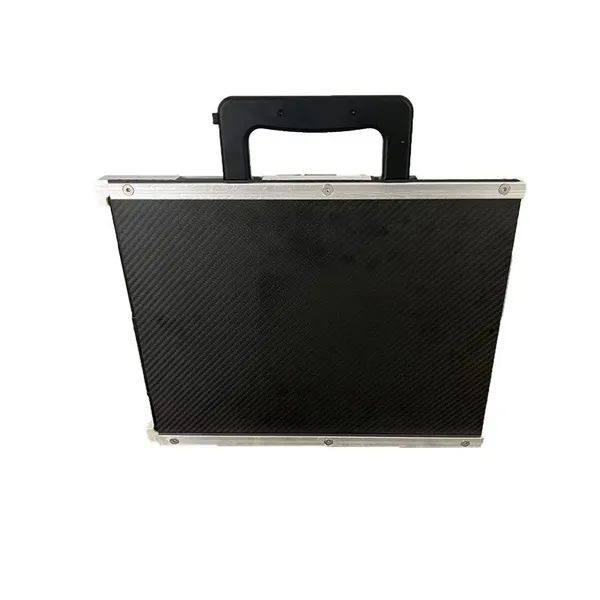

Equipped with a carbon fiber protective cover to better protect the flat panel.
Two removable lithium batteries,battery life over 8 hours
