Capsule Polishing Machine

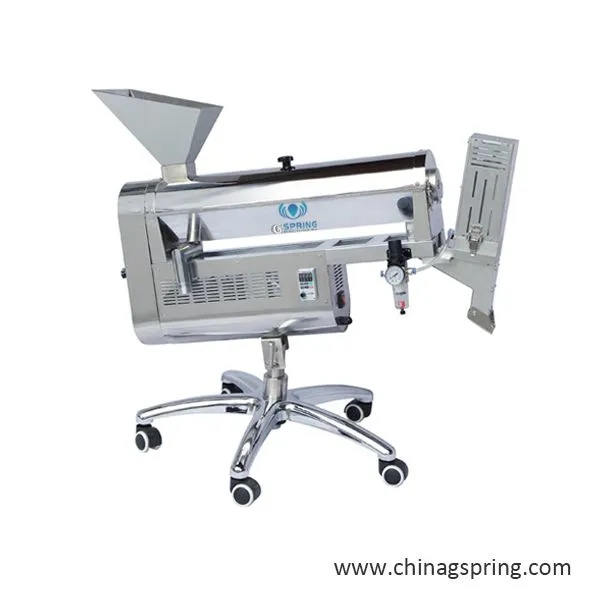

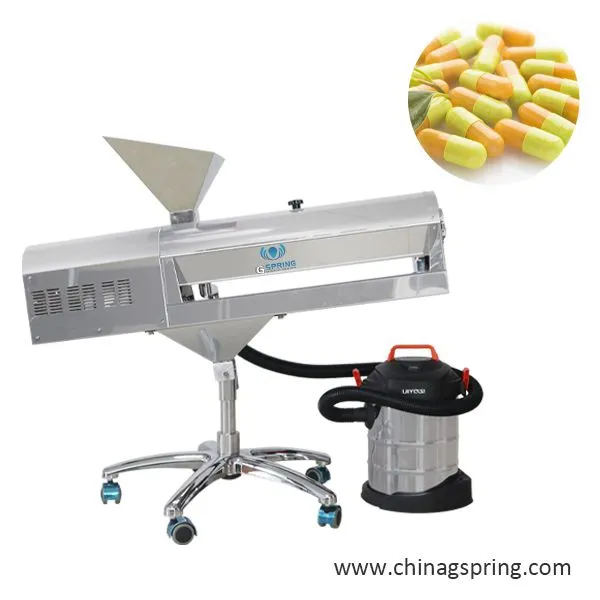

Capsule Polishing Machine photo-1

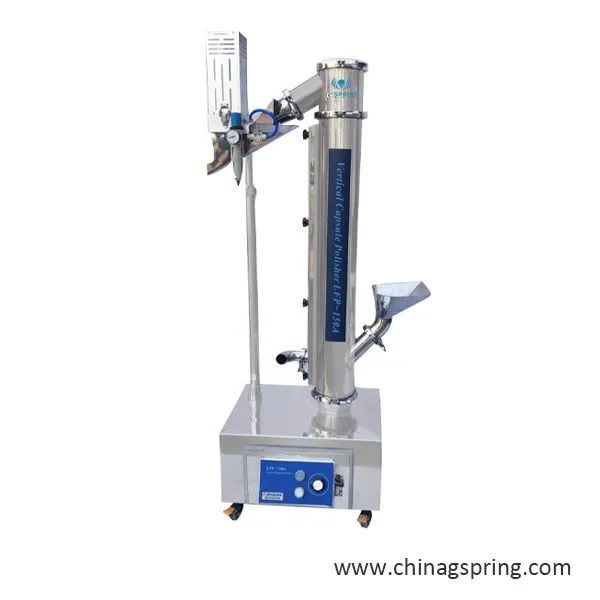

Capsule Polishing Machine photo-2
Capsule Polishing Machine photo-3
Capsule Polishing Machine photo-4
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao, China
Delivery Detail:
30 days
Origin China


Overview

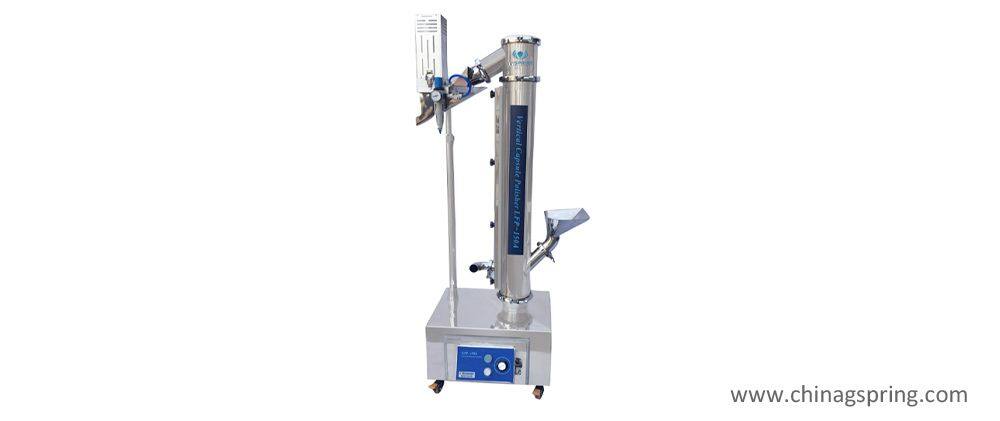

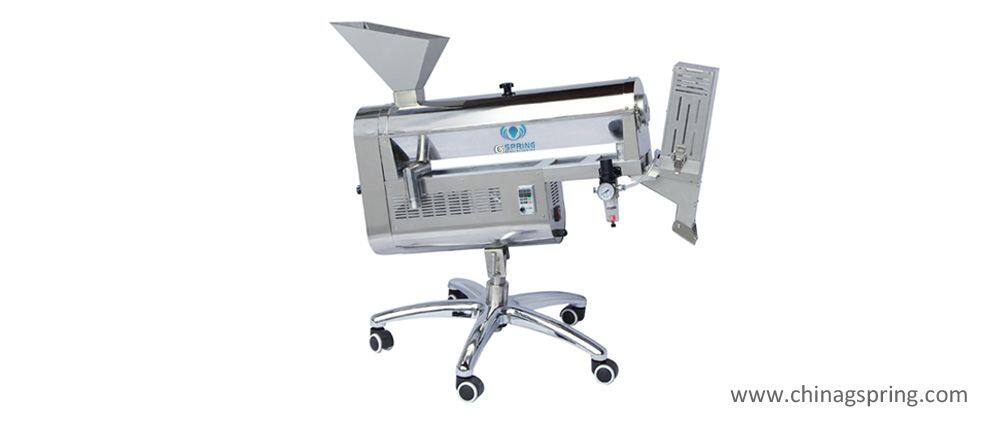

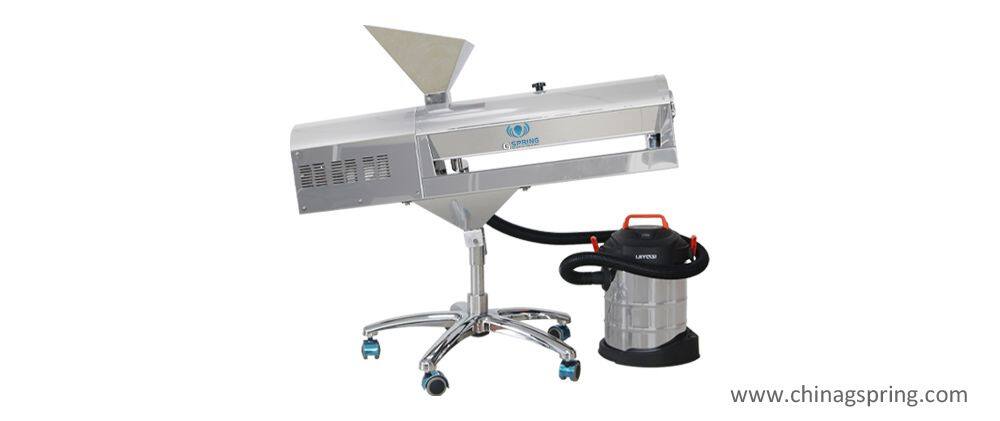

◆ The capsule polishing machine can be divided into ordinary type and model type.The ordinary type can remove the dust on the surface of the capsule,improve the

smoothness and eliminate static electricity.In addition to the functions of the ordinary type,the sorting type can also use the negative pressure waste removal device

to automatically remove the capsules with slight loading,empty shells,fragments and body cap separation,which is applicable to all types of capsules.

◆ The components of the machine can be quickly disassembled,cleaned and connected by using the quick connection device,  which is extremely convenient and fast.

The speed of variable frequency speed regulation is sensitive,reliable and stable, which can bear large starting torque,and the synchronous belt output power can realize

low noise operation.Equipped with special  blanking device,it can be connected with the automaticfling machine.The whole machine is made of 304 or 316 stainless steel

and fully complies with GMP standards.



Technical parameter

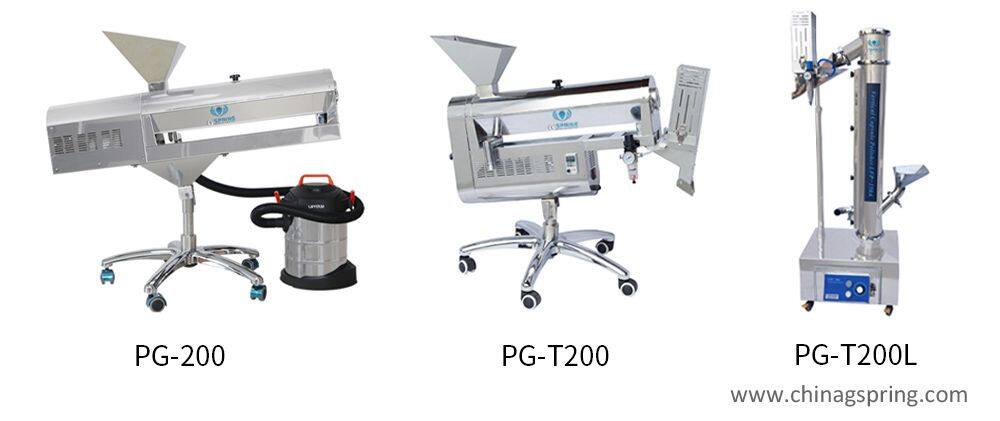

Model

PG-200

PG-T 200

PG-T 200L

Productivity

150000 pcs/hour

150000 pcs/hour

150000 pcs/hour

Power supply

220v-180W

220v-180W

220v-200W

Negative pressure

3m3/min -0.014MPa

3m3/min -0.014MPa

3m3/min -0.014MPa

Compressed air

/

0.3m3/min 0.3MPa

0.3m3/min 0.3MPa

Machine dimension(LxWxH)

800x550x1000(mm)

800x550x1000(mm)

740x510x1500(mm)

Machine weight

40Kg

45Kg

75kg
