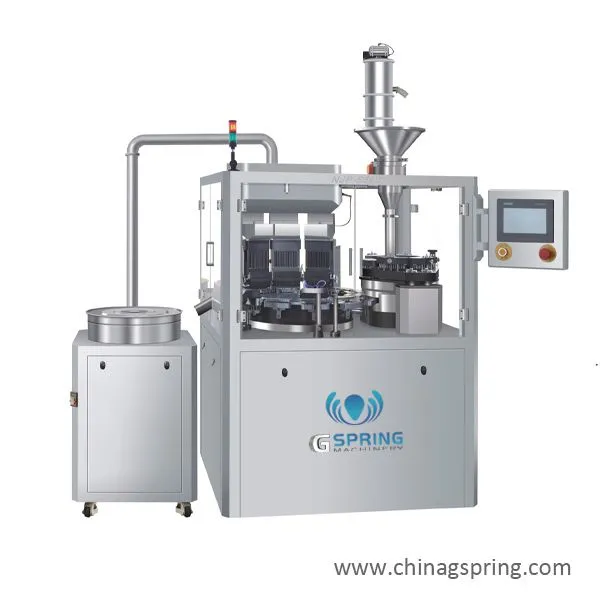

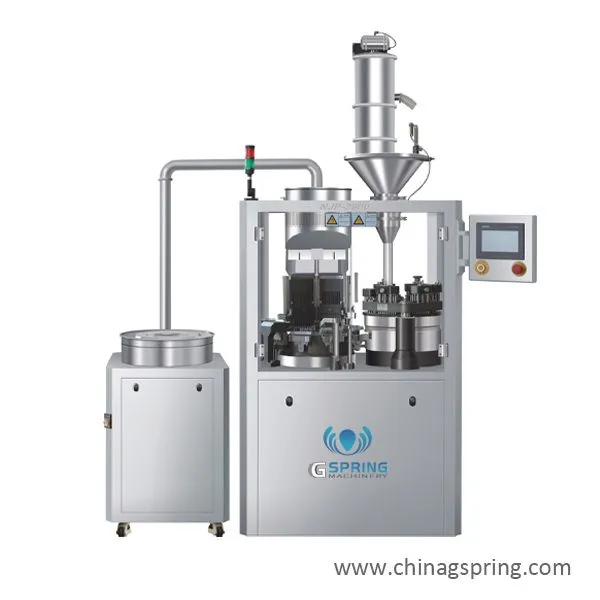

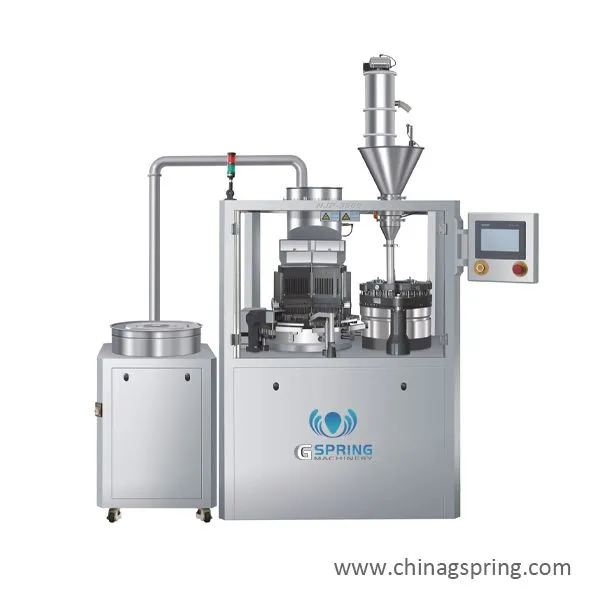

Help CenterNJP Series Automatic Capsule Filling Machine Pharmaceutical Capsule Filling Equipment for Pharmaceutical Health Supplement Production
Product Spotlights
Related Products
-
Automatic Hard Capsule Liquid Flling and Sealing MachineNegotiableMOQ: 1 Set -
Automatic Softgel Capsule Machine Industrial Softgel Encapsulation Equipment for Fish Oil Vitamin Pharmaceutical FillingNegotiableMOQ: 1 Set
-
Semi-automatic Capsule Filling Equipment Powder Capsule Herbal Capsule Vitamin Capsule Pharmaceutical Capsule Filling MachineNegotiableMOQ: 1 Set
-
YK Series Swing Granulator for Pharmaceutical and Food GranulationNegotiableMOQ: 1 Set
-
Stainless Steel Rotary Granulator XZL Series for Pharmaceutical and Food ProcessingNegotiableMOQ: 1 Set
New design Automatic Capsule Filling Machine Pharmaceutical Capsule Filling Equipment
for Pharmaceutical Health Supplement Production

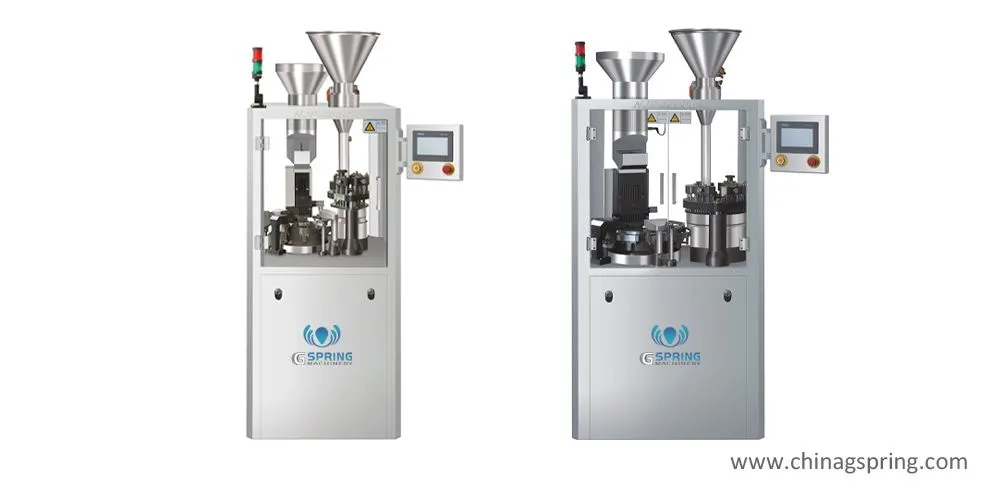

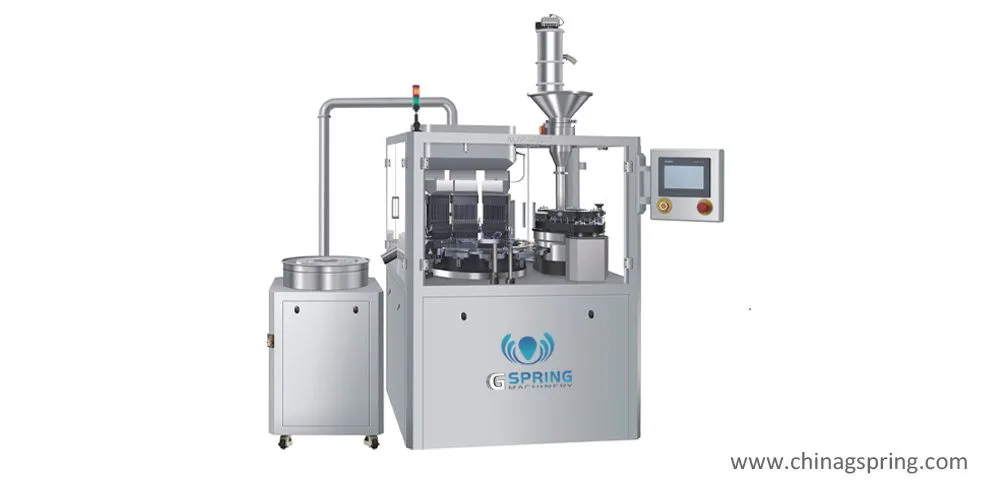

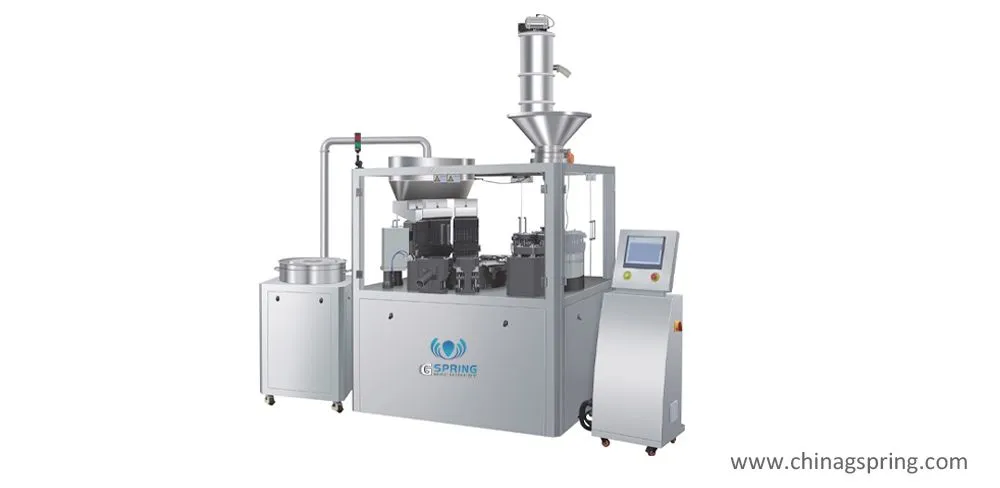

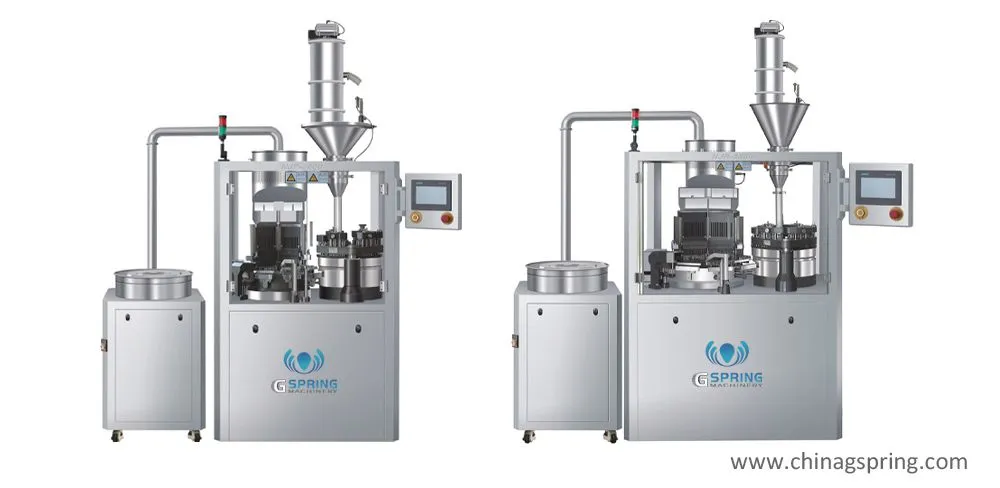

NJP series automatic capsule filing machine is a device that fils powder,particles or small pieces of materials into hollow capsules.
Main feature

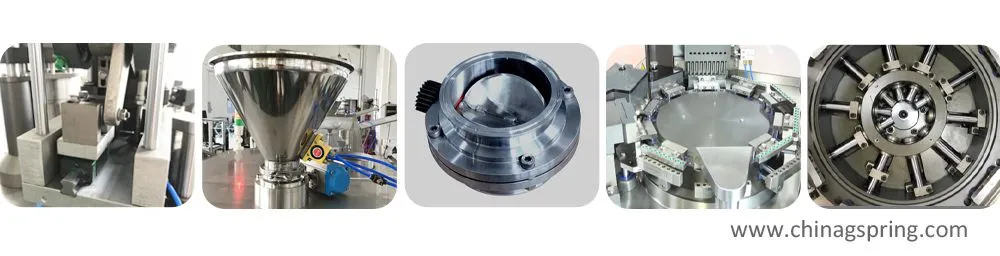

1.The closed turntable mechanism,whose upper and lower modules do one way movement,has good airtightness,and solves the problems of mold disassembly and cleaning,
difficult assembly accuracy,etc.
2.The new filing mechanism is easy to install,disassemble and clean,and it is convenient to quickly adjust the gap between the measuring plate and the copper gasket,thus reducing the phenomenon of powder leakage.
3.Powder and waste capsule separation device.
4.Equipped with automatic cleaning mold system to automatically clean the upper and lower mold holes,effectively improving the seeding effect.
5.Automatic alarm and automatic shutdown function when the hopper is short of bag and powder.
Apolegamy
1.Printing system,door control system,automatic lubricating oil supply system of some models.
2.Pellet device and tablet device.(Select one).
3.Vacuum loading,vacuum loading capsule.
Technical Parameters
Model |
NJP-200C |
NJP-400C |
NJP-800C |
NJP-1200C |
NJP-2500C |
NJP-3800C |
NJP-5500C |
Number of die holes |
2 |
3 |
6 |
9 |
18 |
25 |
43 |
Yield Particles/minute |
200 |
400 |
800 |
1200 |
2500 |
3800 |
5500 |
Power(kw) |
3 |
3 |
5 |
5.5 |
8 |
10.5 |
11 |
Host size(mm) |
1000×710×1900 |
1000×710×1900 |
1100×900×2050 |
1100×910×2100 |
1100×1200×2000 |
1500×1200×2200 |
1500×1250×2200 |
Host weight(kg) |
700 |
700 |
900 |
1000 |
1500 |
2200 |
3000 |
Power supply |
220V/380V-50Hz Three-phase Four-wire |
220V/380V-50Hz Three-phase Four-wire | 220V/380V-50Hz Three-phase Four-wire | 220V/380V-50Hz Three-phase Four-wire | 220V/380V-50Hz Three-phase Four-wire | 220V/380V-50Hz Three-phase Four-wire | 220V/380V-50Hz Three-phase Four-wire |
Applicable capsule |
00#-5# and safety capsules A-E |
00#-5# and safety capsules A-E | 00#-5# and safety capsules A-E | 00#-5# and safety capsules A-E | 00#-5# and safety capsules A-E | 00#-5# and safety capsules A-E | 00#-5# and safety capsules A-E |
Loading accuracy |
Western medicine ±3% Traditional Chinese medicine ±4% |
Western medicine ±3% Traditional Chinese medicine ±4% | Western medicine ±3% Traditional Chinese medicine ±4% | Western medicine ±3% Traditional Chinese medicine ±4% | Western medicine ±3% Traditional Chinese medicine ±4% | Western medicine ±3% Traditional Chinese medicine ±4% | Western medicine ±3% Traditional Chinese medicine ±4% |
Chance |
220V/380V-50Hz Three-phase Four-wire |
220V/380V-50Hz Three-phase Four-wire | 220V/380V-50Hz Three-phase Four-wire | 220V/380V-50Hz Three-phase Four-wire | 220V/380V-50Hz Three-phase Four-wire | 220V/380V-50Hz Three-phase Four-wire | 220V/380V-50Hz Three-phase Four-wire |
Adaptable filling range |
Powder, granule, pellet, tablet |
Powder, granule, pellet, tablet | Powder, granule, pellet, tablet | Powder, granule, pellet, tablet | Powder, granule, pellet, tablet | Powder, granule, pellet, tablet | Powder, granule, pellet, tablet |
Material |
The parts in contact with the capsules and drugs are made of 304 and 316L high-quality stainless steel |
The parts in contact with the capsules and drugs are made of 304 and 316L high-quality stainless steel | The parts in contact with the capsules and drugs are made of 304 and 316L high-quality stainless steel | The parts in contact with the capsules and drugs are made of 304 and 316L high-quality stainless steel | The parts in contact with the capsules and drugs are made of 304 and 316L high-quality stainless steel | The parts in contact with the capsules and drugs are made of 304 and 316L high-quality stainless steel | The parts in contact with the capsules and drugs are made of 304 and 316L high-quality stainless steel |
The parts in contact with the capsules and drugs are made of 304 and 316L high-quality stainless steel
Gspring Machine have more than 10 years experience on export, export to all over the world,like USA, Canada, Russia, India,
Sri Lanka, Turkey, Vietnam, Indonesia, Pakistan, Philippines, Brazil, Egypt, Czech, Singapore, Armenia,Iraq, Iran, Malaysia,Bangladesh,
Mexico, Peru, Algeria, Poland, Thailand, Nepal, Azerbaijan etc.
We can customized machinery specially based on your specific request. Welcome to contact grace@chinagspring.com to learn more.
