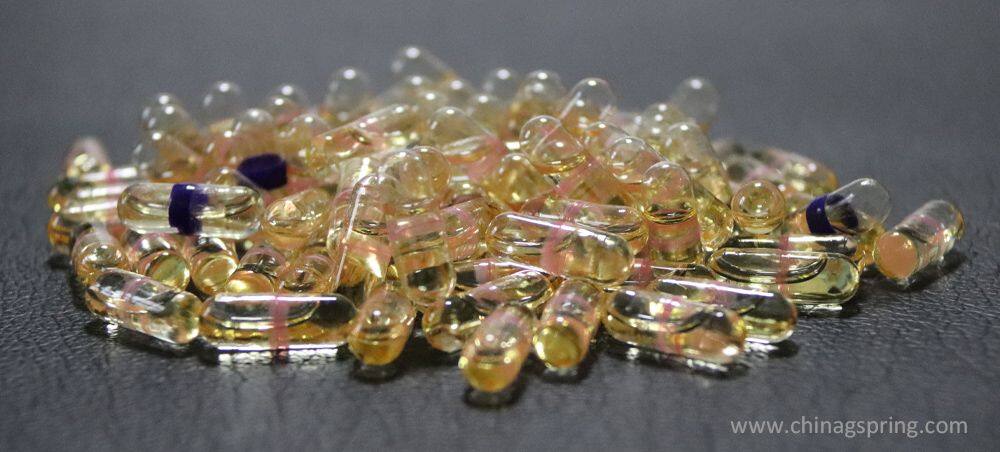

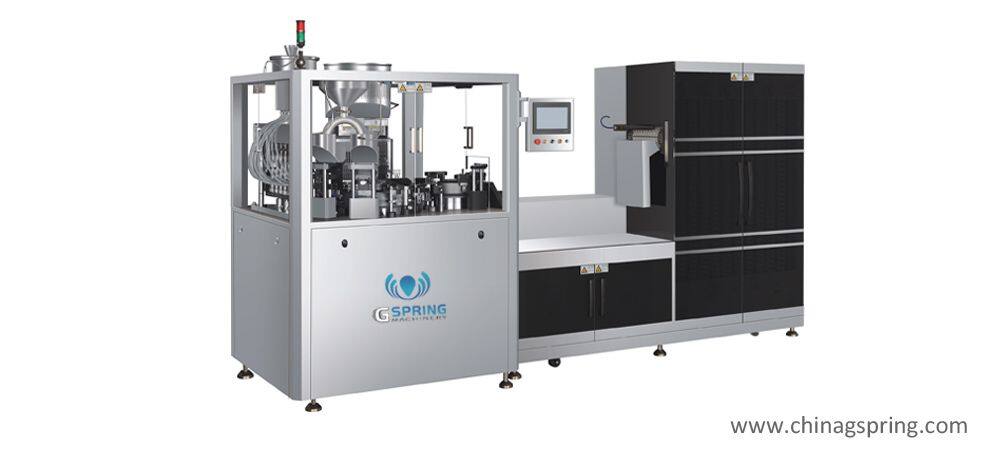

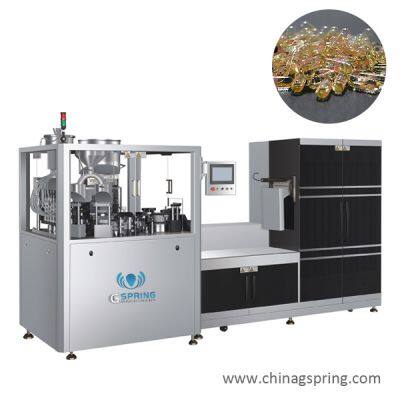

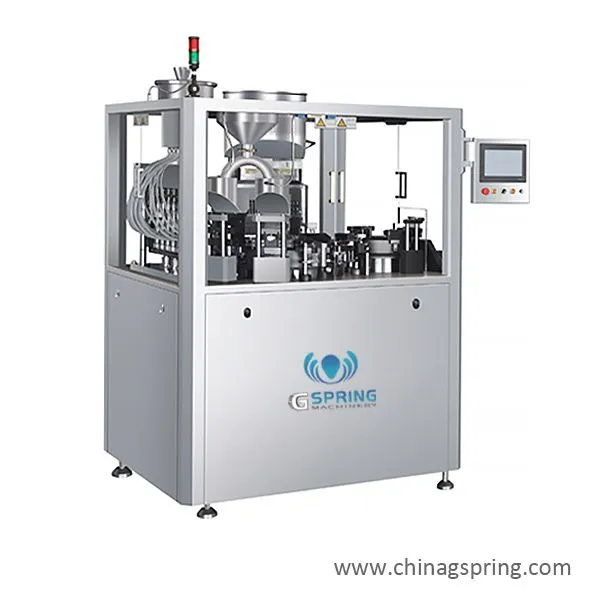

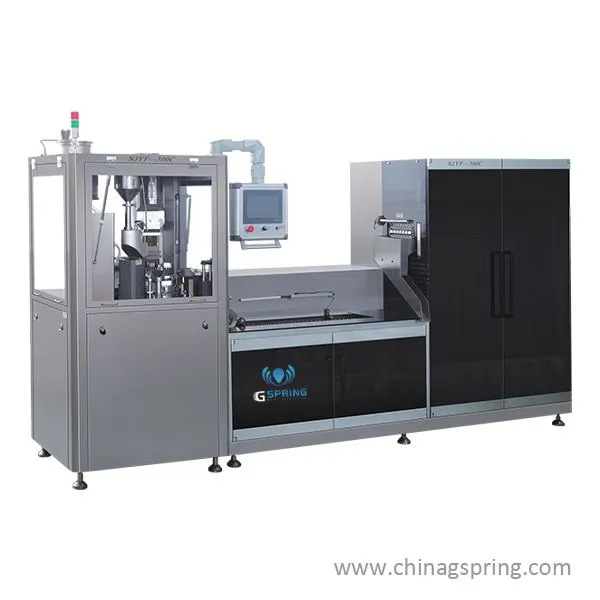

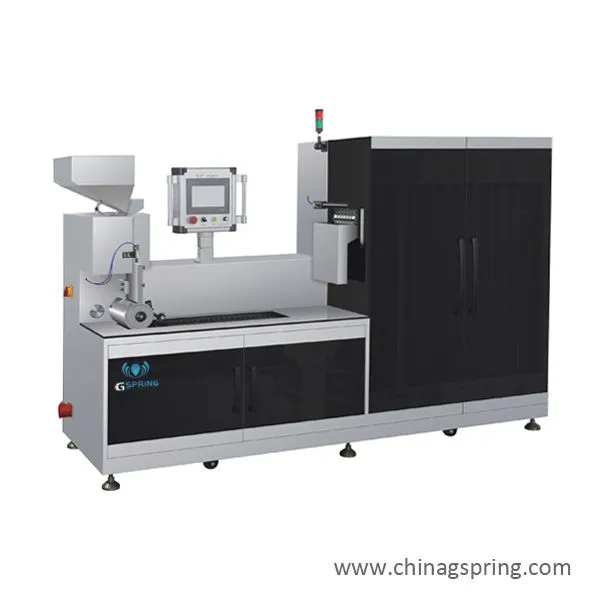

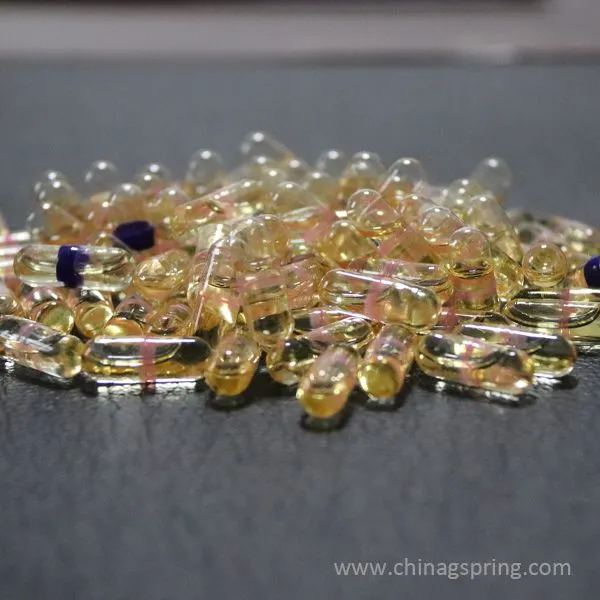

Fully automatic hard capsule liquid filing machine and sealing linkage line device,which can complete the fling of hard capsules (solution,suspension,
microemulsion or hot mel)and the sealing treatment of the joint part of the cap body of the capsule to make the capsule inside The materials are
always ina sealed state during packaging,transportation and use,which improves the stability and safety of the product.It can provide new administration
methods and improve the administration of many drugs.At the same time,it is also a lot of pharmaceutical companies and health products.The factory is
good for the development of some(highly active drugs,poorly soluble drugs)preparation products.

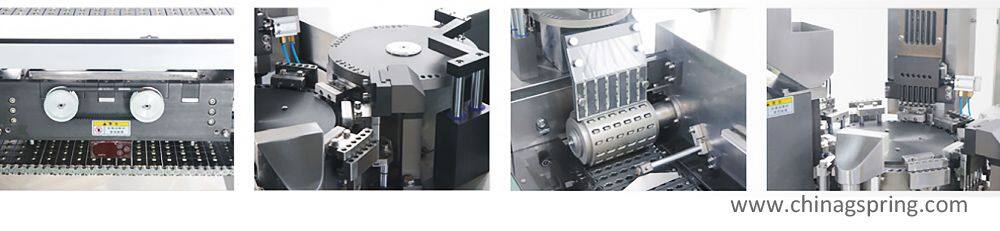

Main feature
1.The equipment adopts human-machine interface control system to automatically alarm for lack of capsules and materials.
2.The capsule loading machine has a vacuum positioning separation mechanism,which makes the capsule loading rate reach more than 99%.
3.Optical fiber automatic detection,identification of capsule missing in upper and lower mold holes.
4.The high-precision ceramic pump and servo motor filling system are used to control the filling difference within±2%,and the dosage is accurate.
5.The sealing mechanism adopts servo motor liting device,which can jog up and down and fine tune the rubber wheel to achieve the best effect of sealing the liquid layer.
6.The sealed liquid tank is designed as a sealed structure,and is equipped with a heating and insulation system to ensure the viscosity of the glue liquid and effectively
prolong the glue adding period.
7.The drying and curing mold of the finished product adopts a hanging and free rotation structure,which effectively improves the disassembly and unloading cleaning time.
Technical Parameters

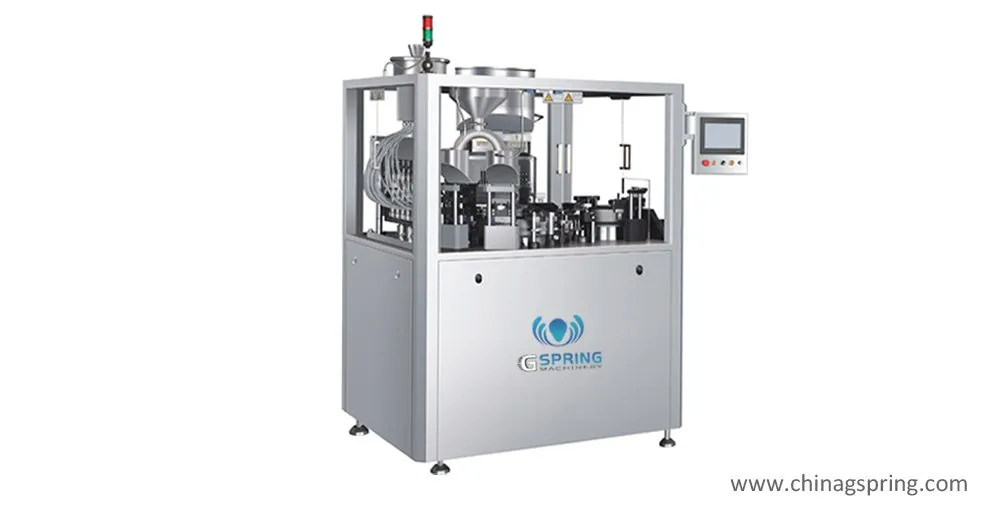

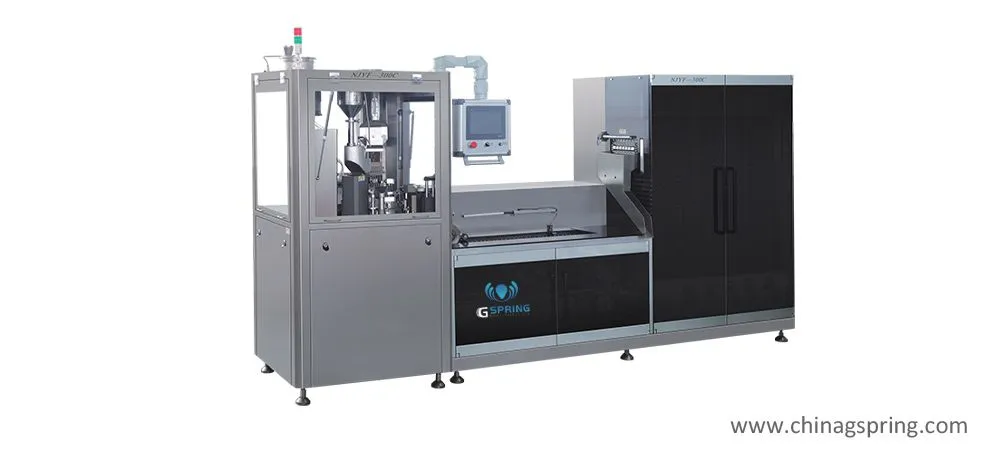

Name | Potting connection | Potting connection | Filling machine | Filling machine | Filling machine | Sealer |
Model | NJYF-300C | NJYF-1000 | NJY-100C | NJY300C | NJY-600C | NJF-600C |
Number of holes | 6 | 16 | 2 | 6 | 10 | 6 |
Applicable capsule | 00-4# Gelatin, Plant Capsules | 00-4# Gelatin, Plant Capsules | 00-4# Gelatin, Plant Capsules | 00-4# Gelatin, Plant Capsules | 00-4# Gelatin, Plant Capsules | 00-4# Gelatin, Plant Capsules |
Accuracy | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% |
Yield (pill/hour) | 18000 | 60000 | 6000 | 18000 | 36000 | 36000 |
Voltage(V) | Three-phase 380V/220V 50HZ | Three-phase 380V/220V 50HZ | Three-phase 380V/220V 50HZ | Three-phase 380V/220V 50HZ | Three-phase 380V/220V 50HZ | Three-phase 380V/220V 50HZ |
Power(kw) | 9 | 12 | 3.5 | 5 | 6 | 4 |
Weight (kg) | 2300 | 3000 | 600 | 750 | 1200 | 1200 |
Shaped outer dimensions (mm) | 380x90x190 | 410x130x215 | 70x80x170 | 100x86x180 | 101x86x180 | 280x90x190 |
