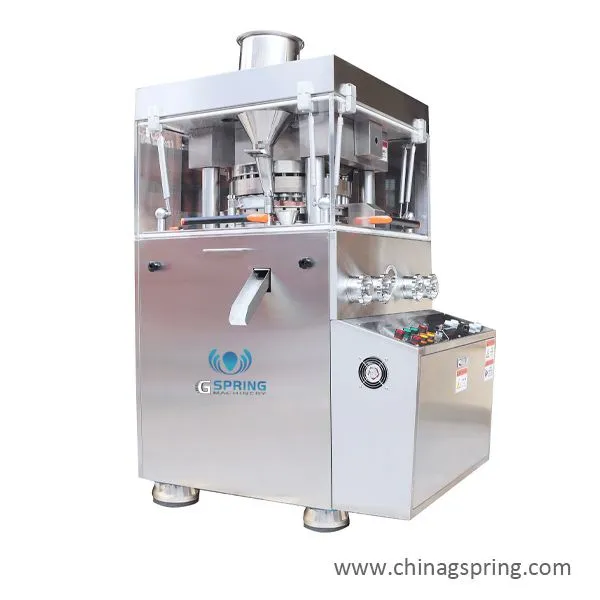

Help CenterAutomatic Rotary Tablet Press Machine Industrial Tablet Compression Machine for Pharmaceutical Candy Milk Tablets
Product Spotlights
Related Products
-
Automatic Rotary Tableting Machine Pharmaceutical Tablet Compression Press Machine Tablet Making Machine Pharmaceutical Tablet EquipmentNegotiableMOQ: 1 Set -
High Speed Rotary Tablet Press Machine Automatic Pharmaceutical Tablet Making Equipment Pharmaceutical IndustryNegotiableMOQ: 1 Set
-
15/17/19 Stainless Steel Automatic Rotary Tablet Machine Tablet Press Machine for Pharmaceutical Tablet EquipmentNegotiableMOQ: 1 Set
-
Automatic Hard Capsule Liquid Flling and Sealing MachineNegotiableMOQ: 1 Set
-
Automatic Softgel Capsule Machine Industrial Softgel Encapsulation Equipment for Fish Oil Vitamin Pharmaceutical FillingNegotiableMOQ: 1 Set
31/33/35 Automatic Tablet Compression Machine Candy Tablets Milk Tablet Machine

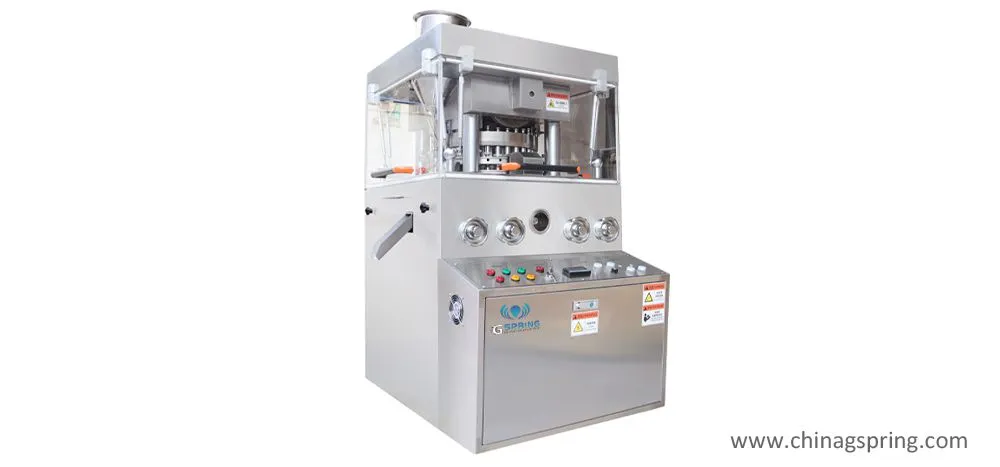

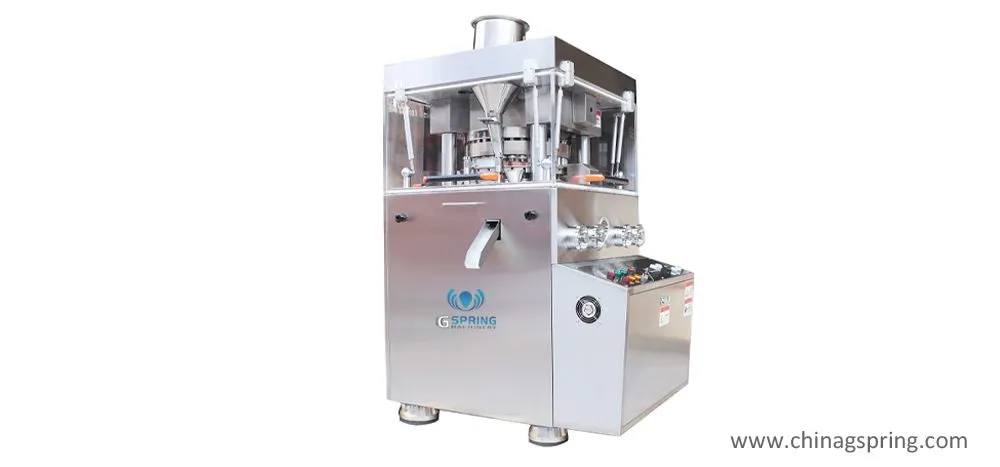

Rotary Tableting Machine Industrial Pharmaceutical Tablet Press Machine
1.It is suitable for the production of tablets in the pharmaceutical industry,as well as for the chemical,food,electronic and other industrial sectors.

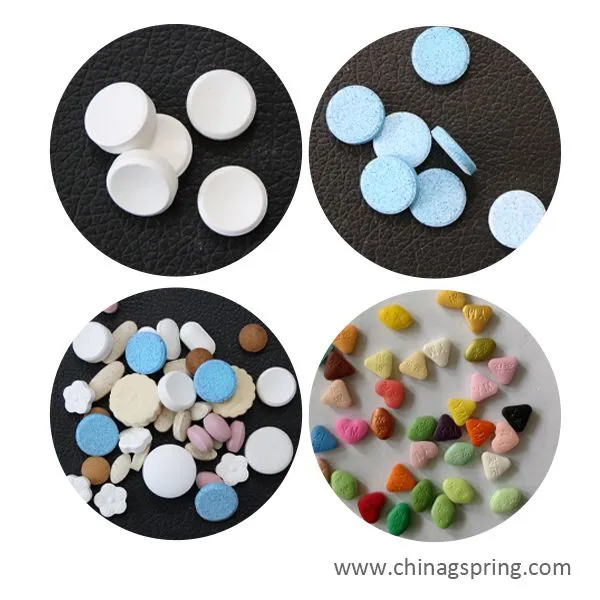

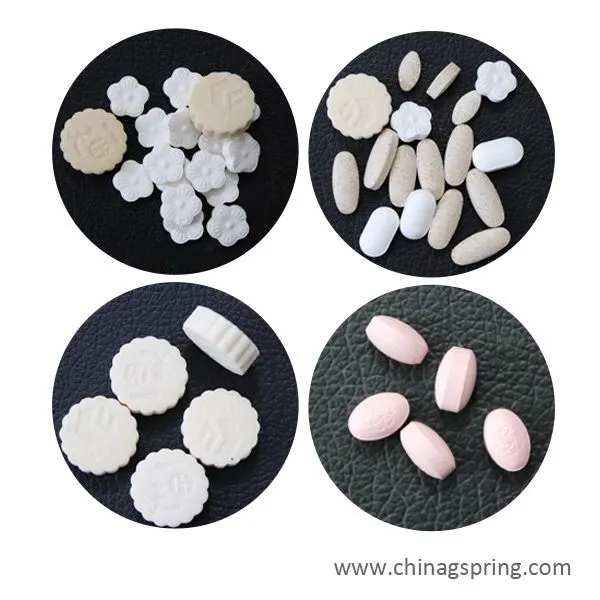

It can press various special-shaped tablet products.
2.The outer cover is fully enclosed stainless steel,and the inner table is made of stainless steel,which can maintain the surface gloss and prevent cross contamination,
and conforms to GMP.

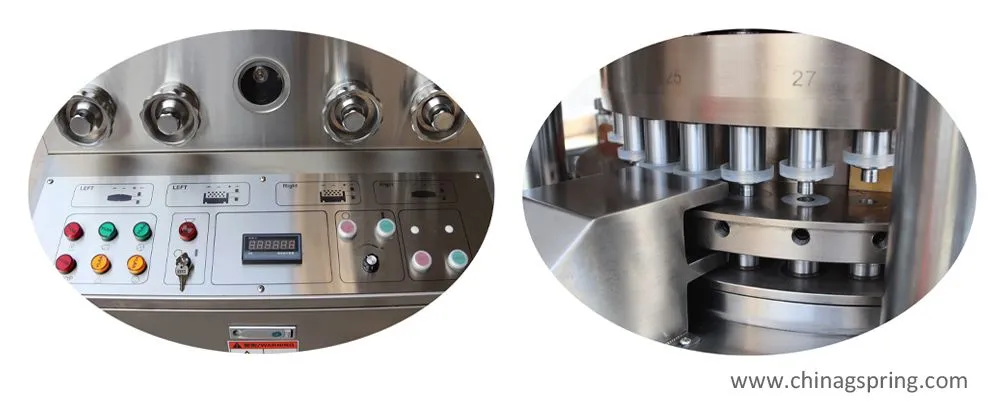

4.The transparent protective cover can clearly see the mechanical operation.
4.The speed is stepless speed regulation,which can be adjusted at will.
5.Under the main body of the machine.It is a safe and separate independent component,which will ot pollute each other.It also alows the transmission shat to penetrate
into the oil pool,get suficient lubrication,and reduce noise and wear.
6.Equipped with dust suction device,it can absorb the dust flying in the room.

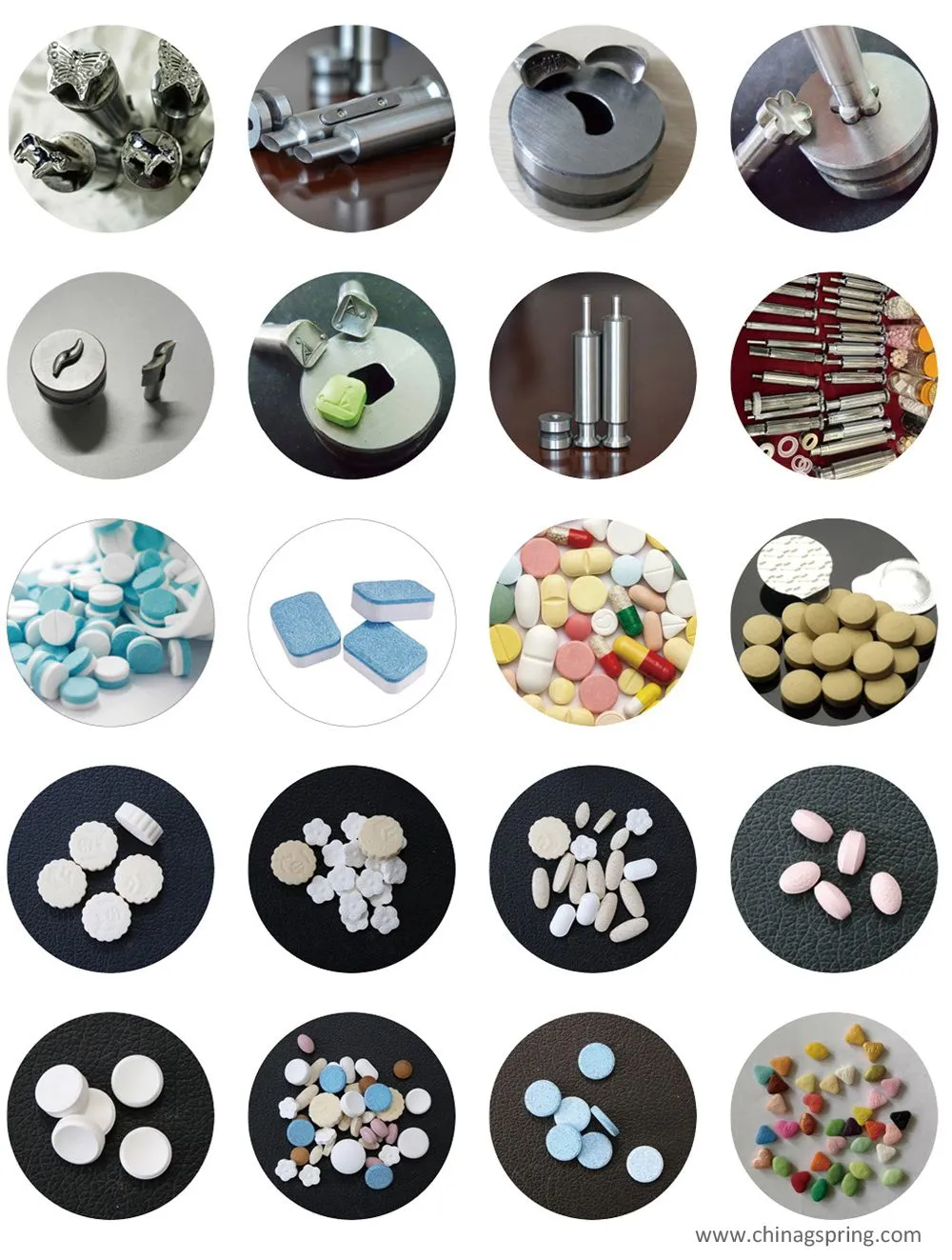

Tablet press series mold+sample
Technical parameter
Model |
XYP-29D |
XYP-31D |
XYP-35D |
XYP-41D |
Die number (to pay) |
29 |
31 |
35 |
41 |
Maximum tablet pressure(kn) |
80 |
80 | 80 | 80 |
Maximum tablet diameter(mm) |
24 |
22 |
13 |
13 |
Maximum filling depth(mm) |
15 |
15 | 15 | 15 |
Maximum tablet thickness(mm) |
6 |
6 | 6 | 6 |
Tumtable rotation speed (r/min) |
14-37 |
14-37 | 14-37 | 14-37 |
Production capacity (tablets / h) |
125000 |
135000 |
150000 |
170000 |
Power(kw) |
4 |
4 | 4 | 4 |
Shaped outer dimensions (mm) |
950×1230×1670 |
950×1230×1670 | 950×1230×1670 | 950×1230×1670 |
Weight(kg) |
1850 |
1850 | 1850 | 1850 |

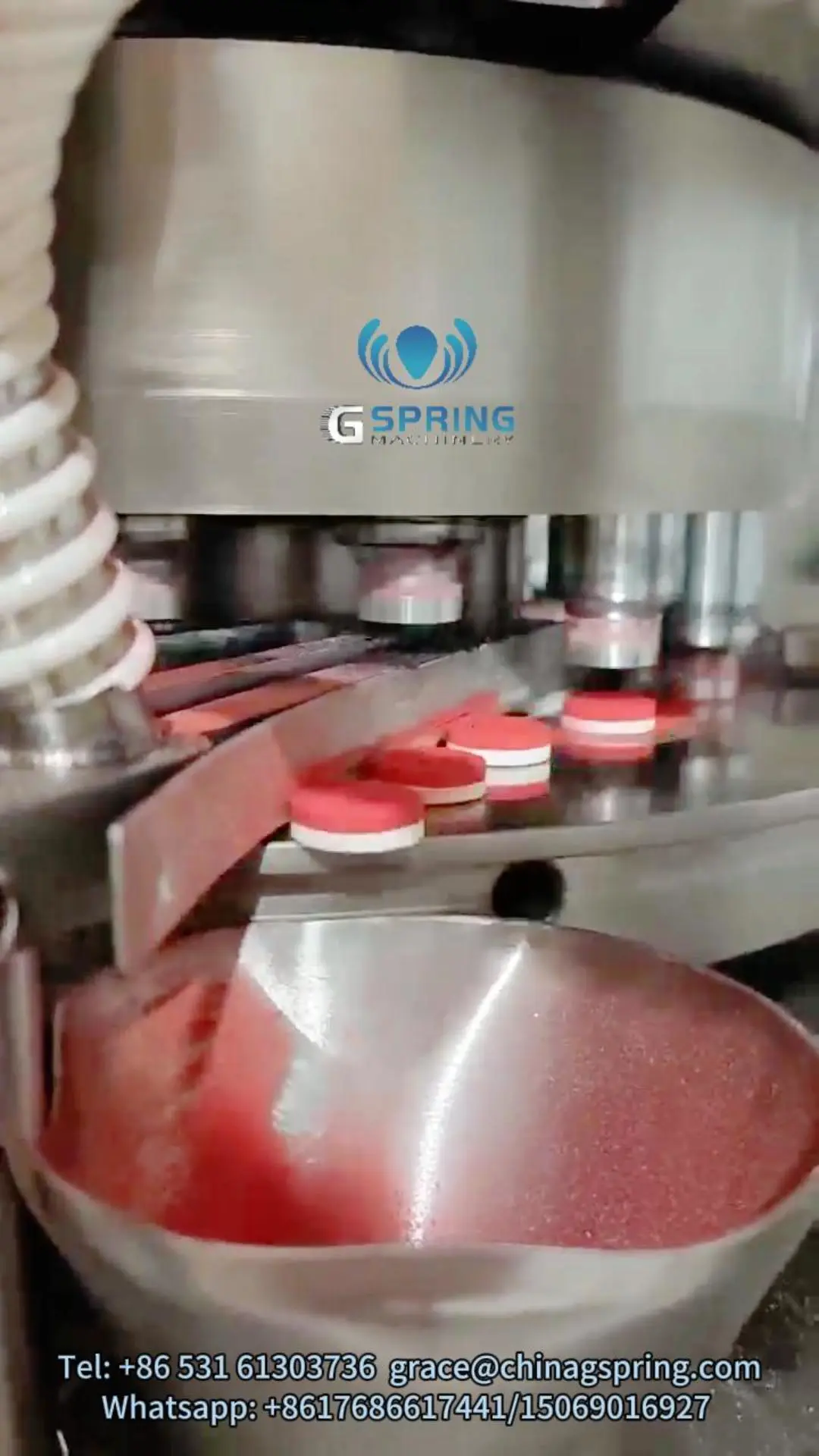

Double-layer slice can be customized, and the output can be halved
Gspring Machine have more than 10 years experience on export, export to all over the world,like USA, Canada, Russia, India,
Sri Lanka, Turkey, Vietnam, Indonesia, Pakistan, Philippines, Brazil, Egypt, Czech, Singapore, Armenia,Iraq, Iran, Malaysia,Bangladesh,
Mexico, Peru, Algeria, Poland, Thailand, Nepal, Azerbaijan etc.
We can customized machinery specially based on your specific request. Welcome to contact grace@chinagspring.com to learn more.
