Help CenterFollow - up Automatic Take - up Machine (Long 500)
Related Products
-
Hydraulic Wire Payoff Machine – Automatic Tension Control, Reeling/Paying-out Modes, Reciprocating Lead Screw for Safe & Efficient Cable ManagementUS$ 3800 - 3850MOQ: 1 Set -
CYYS500 Hydraulic Wire Payoff & Rewinding Machine – Auto Tension Control, Reciprocating Lead Screw, for Safe Cable & Rope HandlingUS$ 3750 - 3800MOQ: 1 Set
-
CYYS500 Hydraulic Wire Payoff Machine – Smart Auto-Tension & Speed Sync, Reciprocating Lead Screw, 26 m/min, for Safer Cable & Rope HandlingUS$ 3700 - 3800MOQ: 1 Set
-
Electric Cable Winch Drum 5T Pulling Force (power 7.5kw)US$ 1900 - 2000MOQ: 1 Combo
-
LiJian - 4 Stepless Speed Winch With 40KN Max Pulling ForceUS$ 1650 - 1700MOQ: 1 Combo
Product Details

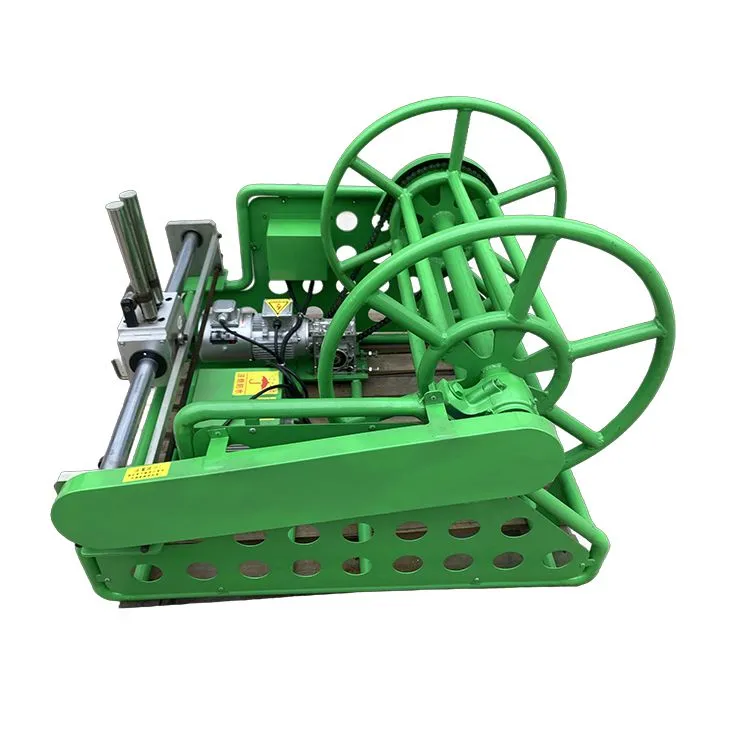

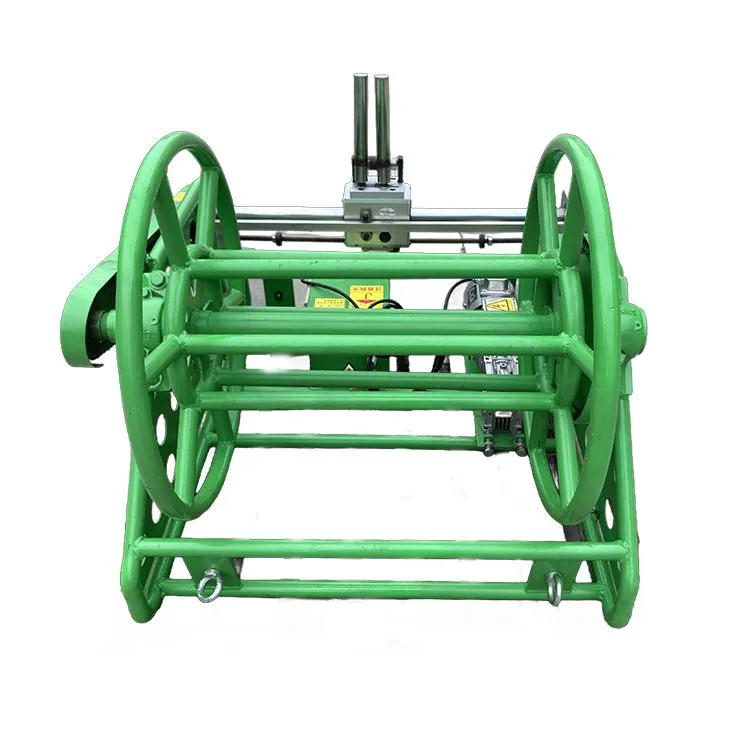

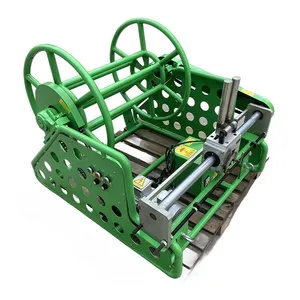

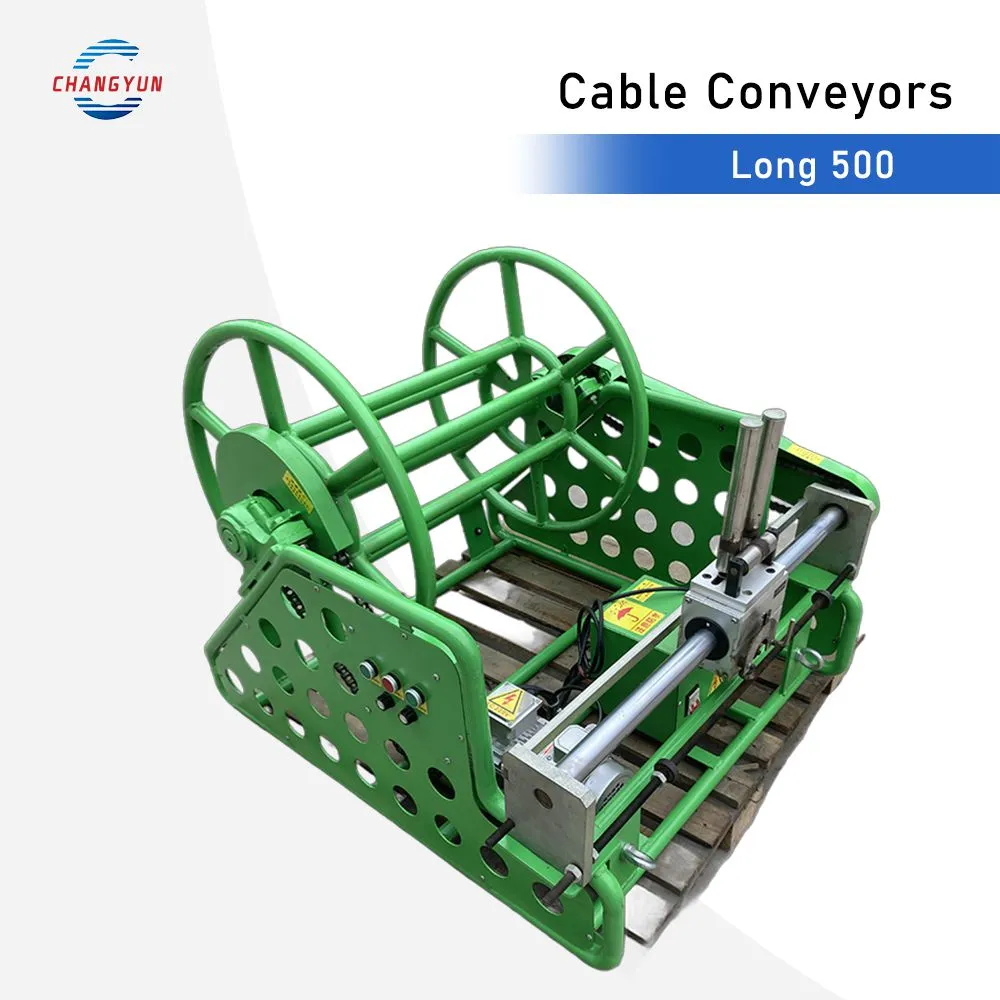

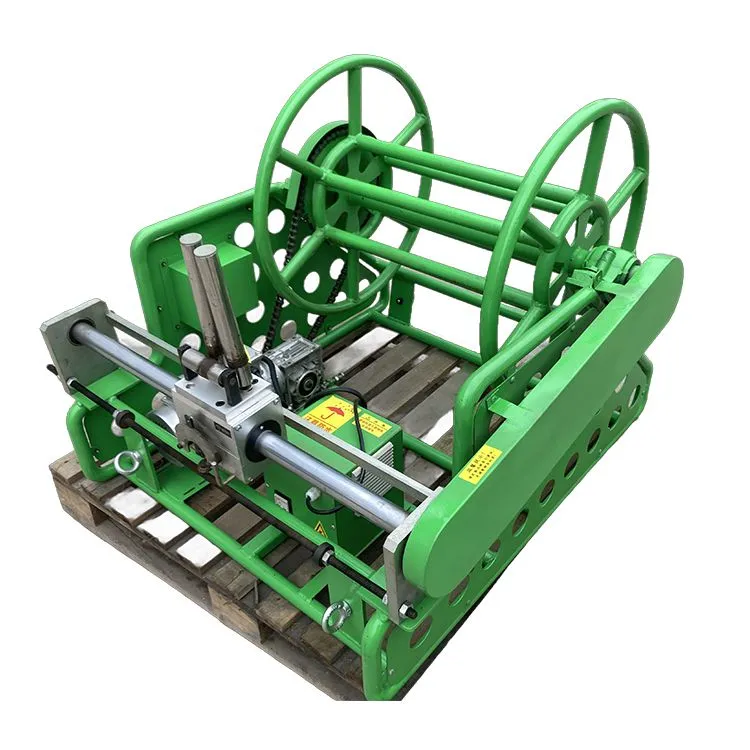

The follow - up automatic take - up machine, model Long 500, is a high - quality and efficient wire winding solution provided by Changyun Technology.
Technical Parameters
-
Traction Force: Its traction force ranges from 0 to 510N, which can meet the different working requirements for winding various wires.
-
Power: With a power of only 0.4kW, it has the advantage of energy conservation while ensuring stable operation.
-
Speed: The wire - take - up speed can be adjusted within the range of 0 - 23M/min, allowing for flexible control according to different production rhythms.
-
Voltage: It operates at a standard voltage of 220V, making it suitable for most common electrical environments.
-
Capacity: It can hold up to 260M of 16mm steel wire rope, providing ample space for wire winding tasks.
-
External Dimensions: The external dimensions are 104X98X76cm, and it weighs 72Kg, which is relatively compact and easy to place in different workspaces.
Features
-
Simple Structure, Powerful Function: Despite its simple structure, this take - up machine has very powerful functions. It can ensure neat wire arrangement and can be adjusted at any time to meet different wire - winding precision requirements.
-
Practical and Easy - to - Operate: The operation of Long 500 is very intuitive. With encoder tracking technology, the front - and - rear speeds remain consistent, improving the quality of wire winding. In addition, it can be matched with wire - laying machines of any speed, enhancing its versatility in different production lines.
-
Please note that the above parameters are based on laboratory routine data. When the usage method is improper, slipping occurs, or it is affected by the environment, there may be differences in the parameters. For enterprises engaged in wire production, processing and related industries, this follow - up automatic take - up machine is an ideal choice, providing reliable and efficient wire winding support.
