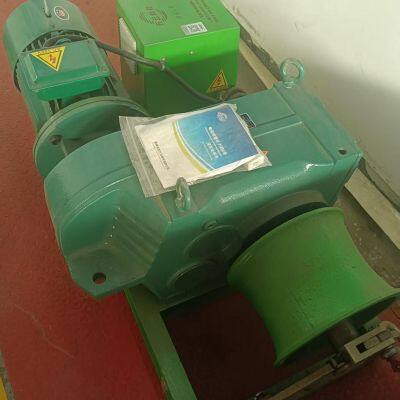

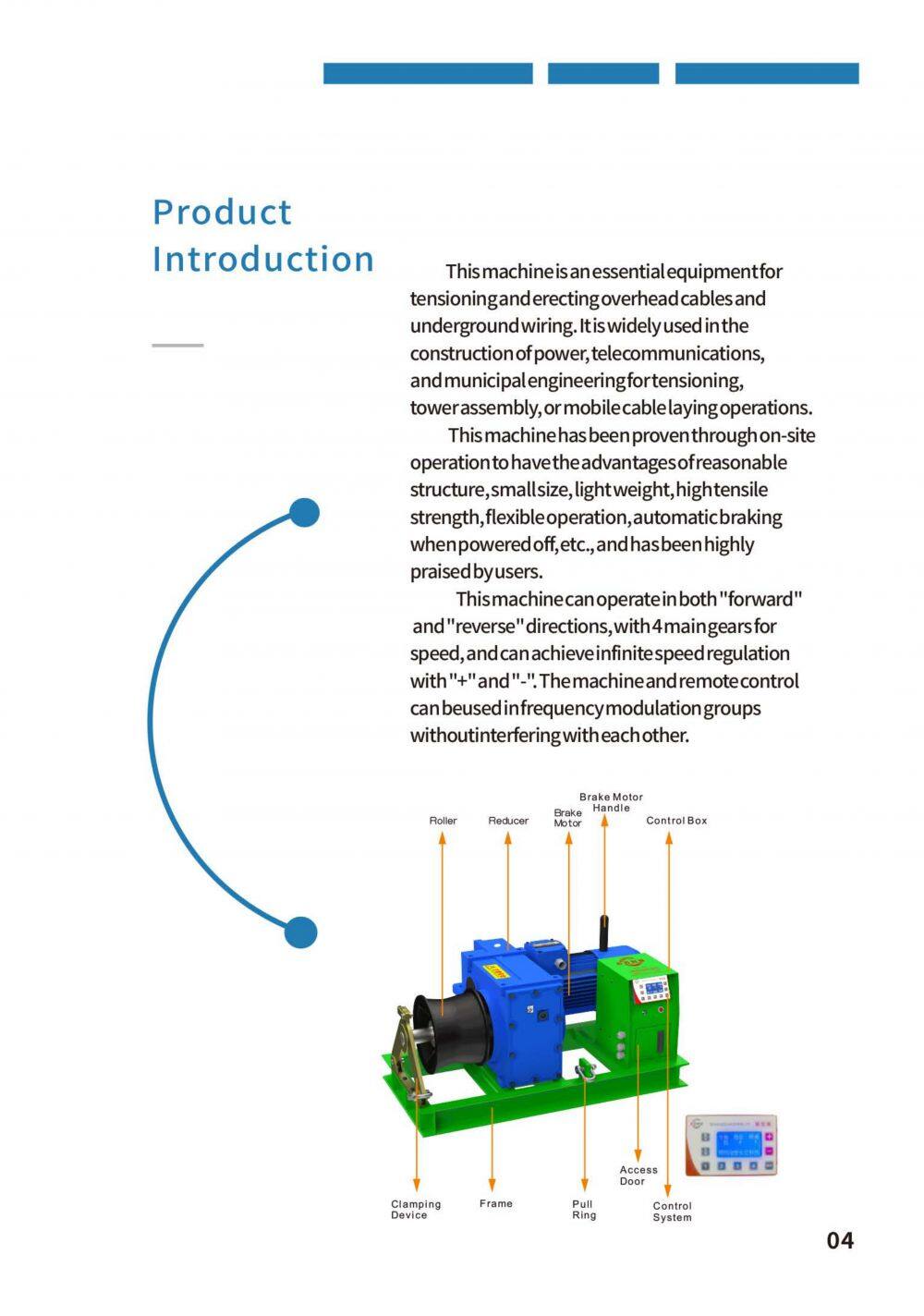

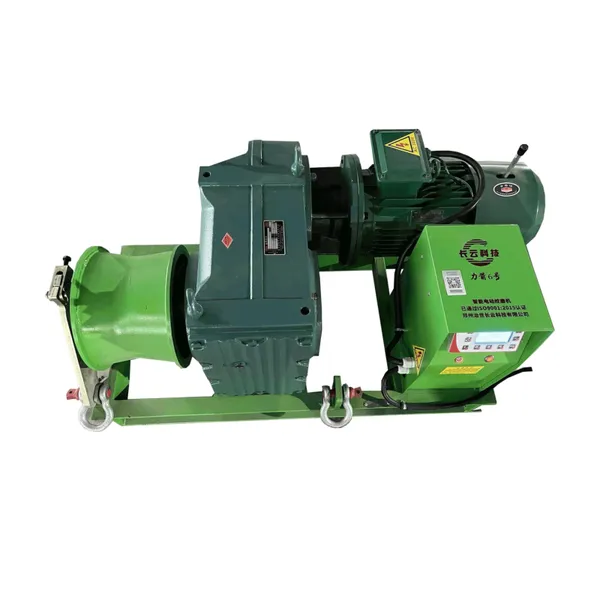

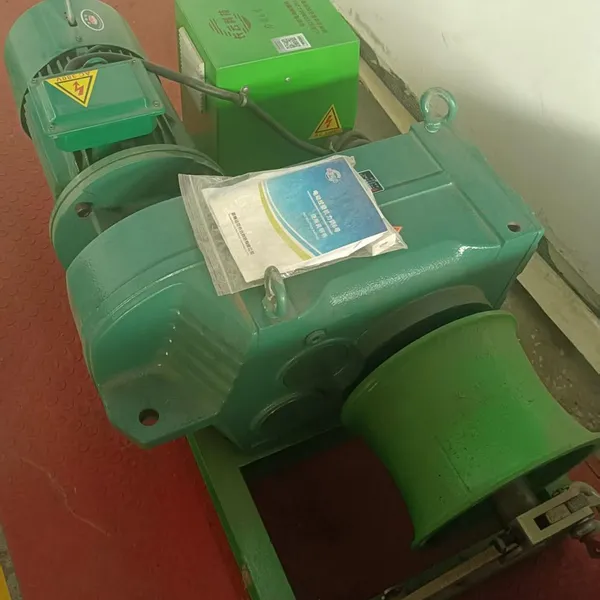

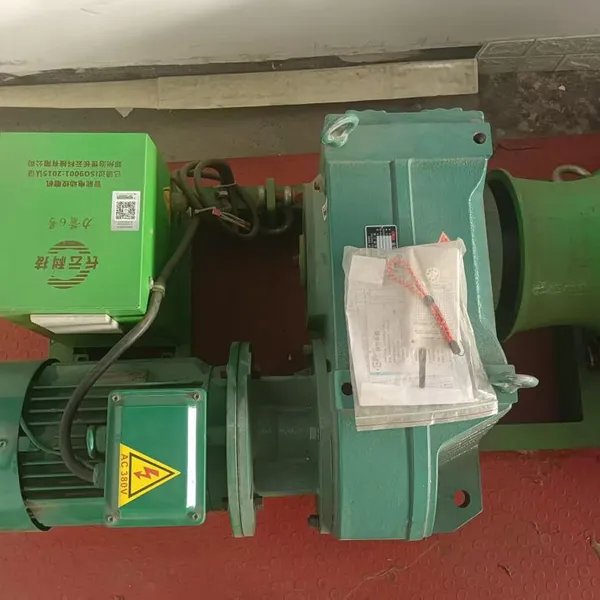

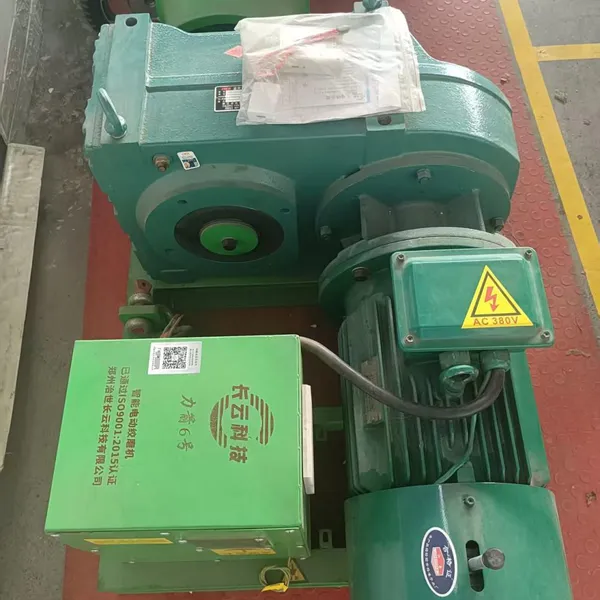

This product is the LiJian 6 Electric Motor Grinder, a powerful and easy-to-operate grinding device. Equipped with a high-quality copper-core motor, it features high pulling force, fast speed, and stable operation. It is suitable for various applications requiring traction or lifting.

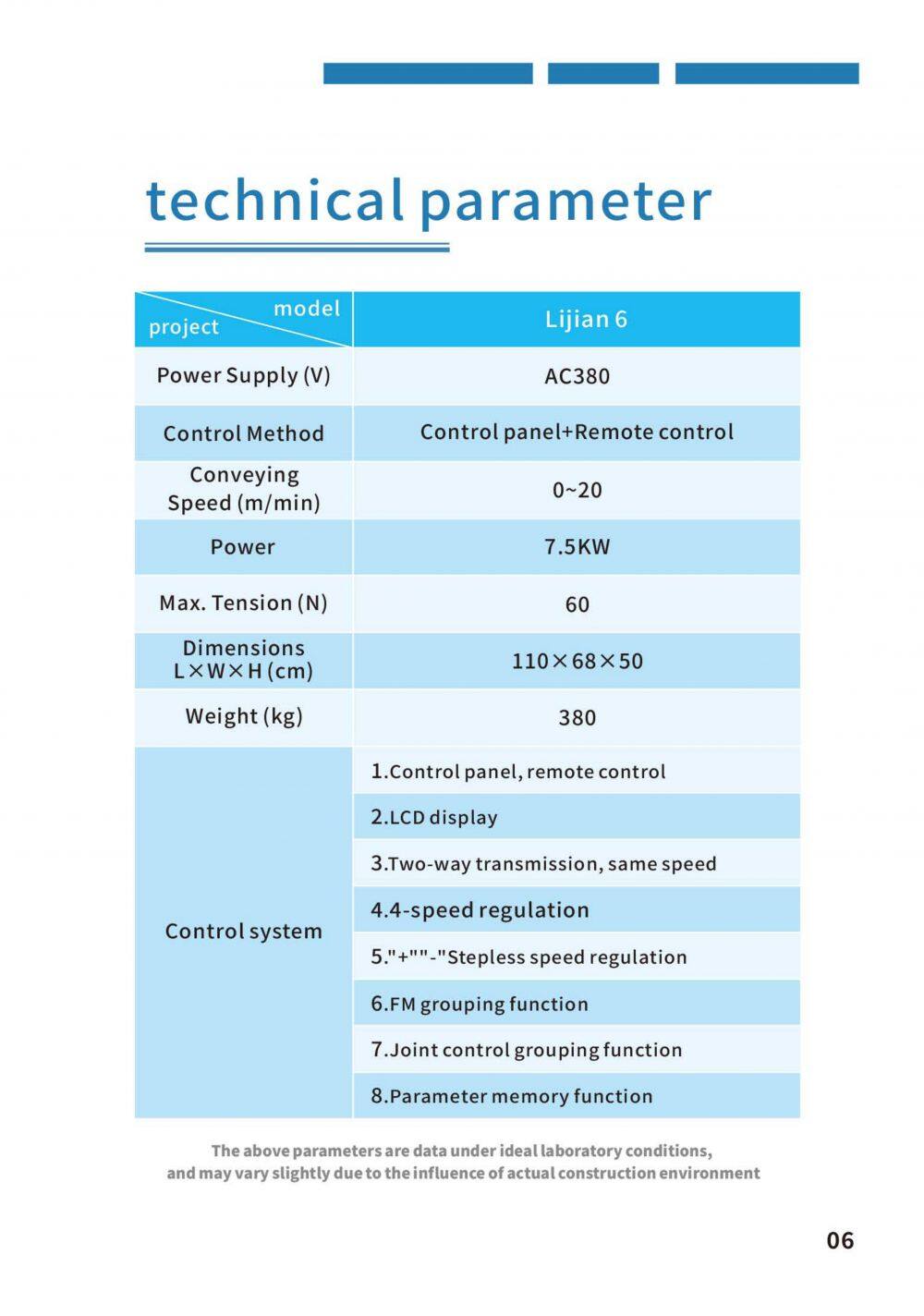

Technical Specifications
Model: LiJian 6
Maximum Pulling Force: 60KN
Speed Range: 0~20m/min
Power: 7.5kw
Power Supply: AC380V
Speed Regulation Mode: Stepless speed regulation
Control Mode: Control panel + remote control
Motor Configuration: Automatic brake upon power-off
Dimensions: 110X68X50cm
Net Weight: 380kg
Operating Instructions
Pre-operation Check: Before use, check whether all parts of the machine are intact, whether the fasteners are loose, and whether the power supply voltage matches the machine requirements.
Startup: Connect the power supply, turn on the power switch, and use the control panel or remote control to start the machine. Select the appropriate speed according to actual needs.
Operation: During operation, pay attention to observing the working status of the machine. If any abnormality is found, stop the machine immediately for inspection.
Shutdown: After use, first stop the machine's operation through the control panel or remote control, then turn off the power switch and disconnect the power supply.
Safety Precautions
The machine must be grounded reliably during use to prevent electric shock accidents.
Non-professional personnel are prohibited from disassembling or repairing the machine.
When the machine is in operation, do not touch the moving parts with your hands to avoid personal injury.
In case of sudden power failure during operation, the machine will automatically brake to ensure safety.
Maintenance
Regularly check the wear and tear of the machine's parts, especially the grinding roller, and replace severely worn parts in time.
Keep the machine clean and regularly clean up dust and debris inside and outside the machine.
Regularly check the lubrication of the transmission parts and add lubricating oil as appropriate.
Note
1. Due to its excessive power and the lack of suitable accessories, the force arrow screw mill does not support customization of 220 volts.
2. The fuel-powered grinding mill can be started with electricity, at an additional cost of 500RMB.
