CYYS500 Hydraulic Wire Payoff & Rewinding Machine – Automation That Eliminates Manual Risks & Boosts Efficiency
Tired of unstable rope tension, manual tail-rope hazards, and tangled cable messes? The CYYS500 Hydraulic Wire Payoff & Rewinding Machine is engineered to transform your wire rope handling — delivering automated, synchronized, and safe reeling and paying-out for power line, telecom, and industrial projects.
Why Choose CYYS500?
-
Automatic Speed Matching – Instantly follows winch speed up to 26 m/min on the innermost layer, far beyond manual consistency.
-
Rock-Solid Tension Control – Hydraulic system holds steady pull force, erasing slip or equipment faults caused by human variability.
-
Zero Physical Risk – Replaces dangerous manual tail-rope pulling with mechanical operation, removing entanglement or snapping injuries.
-
Built for Performance & Durability

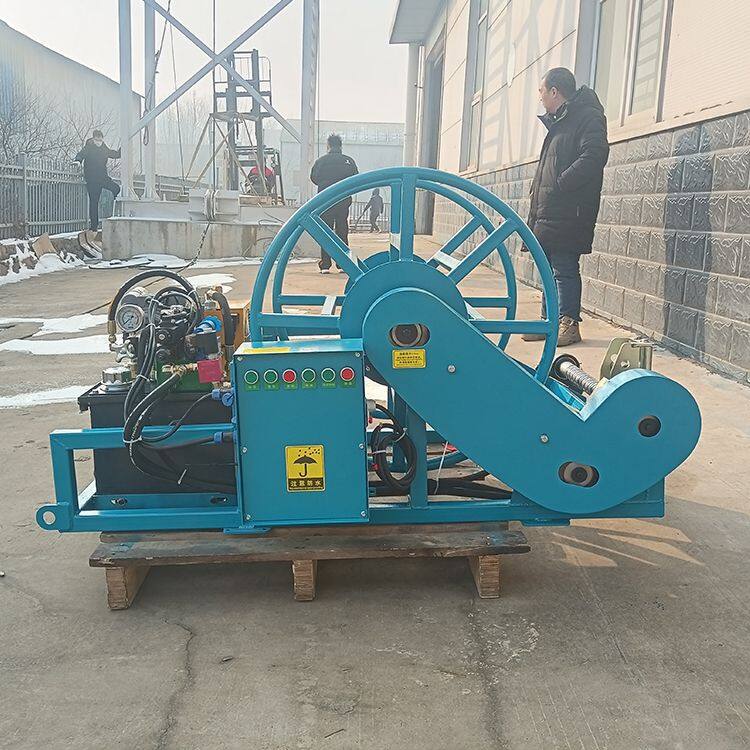

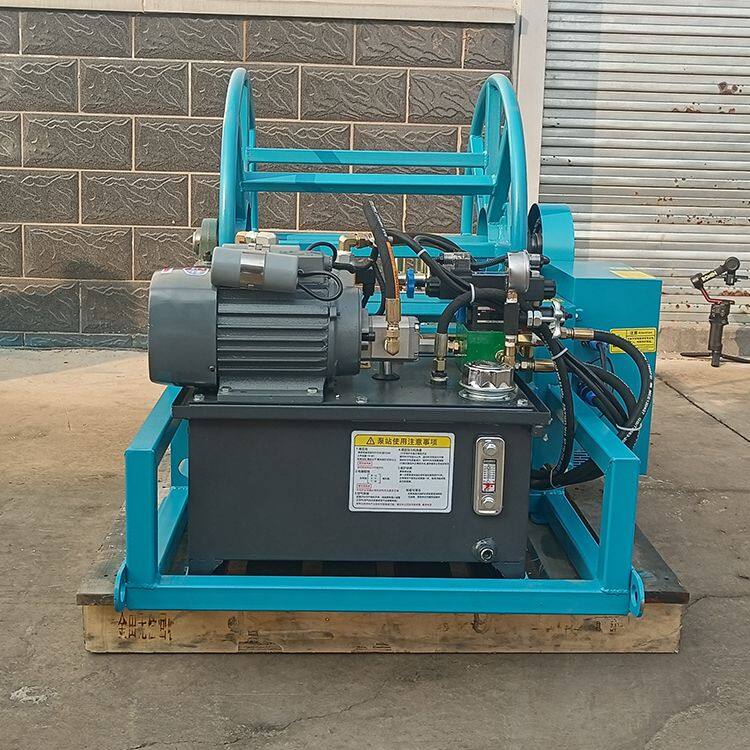

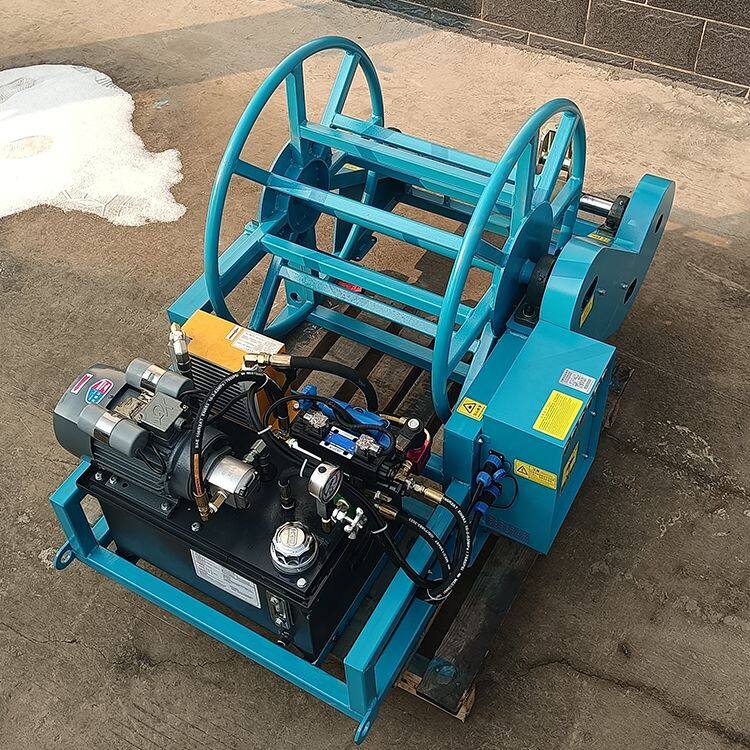

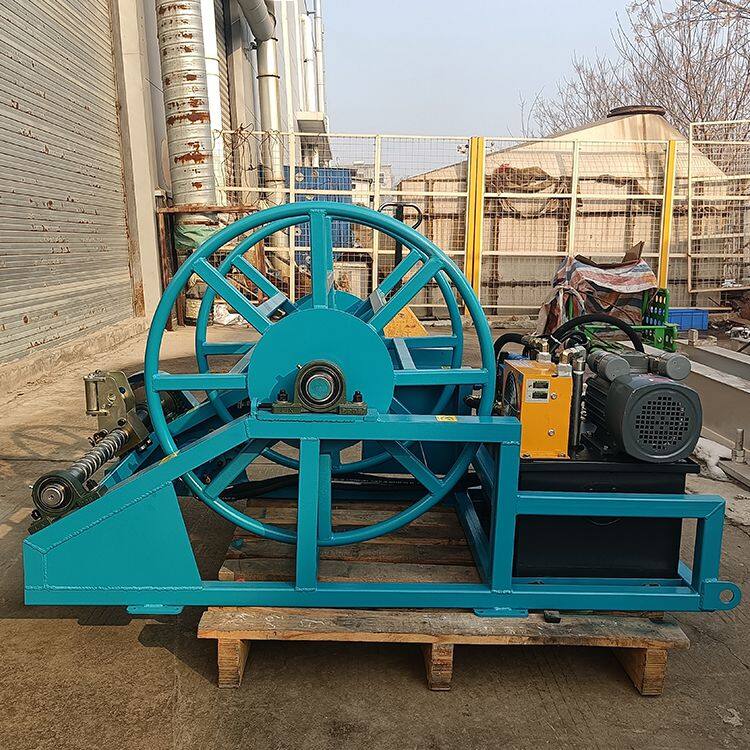

At its heart is a hydraulic station, electric control box, payoff reel, drive chains, drive wheel, payoff chain, and reciprocating screw payoff device — all precision-matched for seamless coordination.
-
Reinforced Structure – Thickened steel framework ensures high load capacity and long service life in harsh job sites.
-
Weather-Ready – Powder-coated housing resists corrosion and moisture for outdoor reliability.
-
Smart Multi-Mode Operation
-
Reeling Mode – Press “Reel Rope” to engage hydraulic motor via 3-position valve. Payoff reel syncs with winch speed; excess flow releases through relief valve, applying controlled grip force.
-
Pressure-Hold Mode – On winch stop or passive payout, solenoid centers, sealing motor ports. Relief valve backpressure creates safe resistance torque, enabling stable passive release without pump power.
-
Paying-Out Mode – Hold “Pay-Out” for active reverse rotation; manual guidance required.
-
Depressurizing Mode – Temporarily disengage pressure for free wheel rotation in special cases.
-

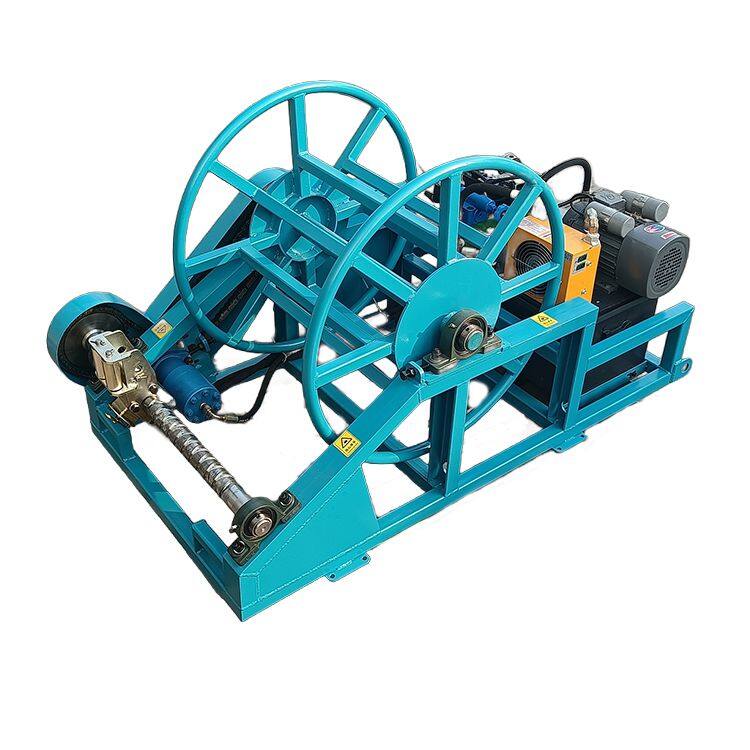

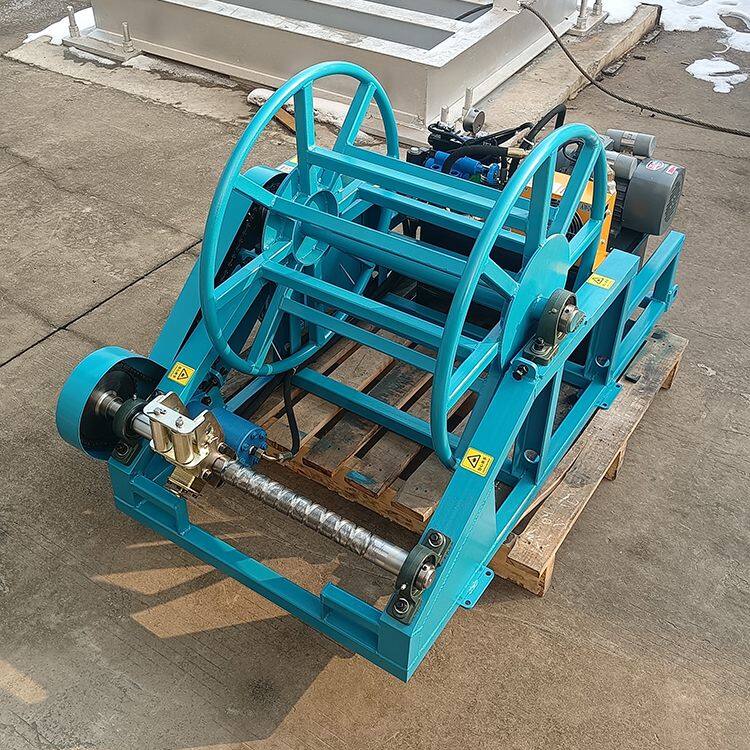

Reciprocating Lead Screw Arranging Device – Guarantees orderly lay. Nut moves one rope diameter per revolution; special spiral groove reversing sections flip direction automatically. Matched gear teeth & screw pitch synchronize linear motion with reel rotation, preventing winding/tangling and extending rope life.
Technical Highlights
-
Max Inner-Layer Speed: 26 m/min
-
Outer-Layer Rated Tension: 1000 N (adjustable downward)
-
Dimensions: 1400 × 800 × 820 mm
-
Rope Capacity (by diameter):
-
Ø14 mm → 49 teeth → 11 layers, 620 m
-
Ø16 mm → 43 teeth → 10 layers, 500 m
-
Ø18 mm → 39 teeth → 9 layers, 400 m
Where It Excels
-
Overhead power line stringing
-
Telecom & fiber optic cable deployment
-
Construction hoisting & industrial cable management
-
Mining & infrastructure projects demanding fast, safe payoff
With hydraulic auto tension, variable speed sync, and smart reciprocating screw arrangement, the CYYS500 turns chaotic rope handling into a smooth, predictable process. Factory direct pricing and custom configurations make it the smart investment for contractors who value safety, speed, and reliability.
