Product Description and Instruction Manual:

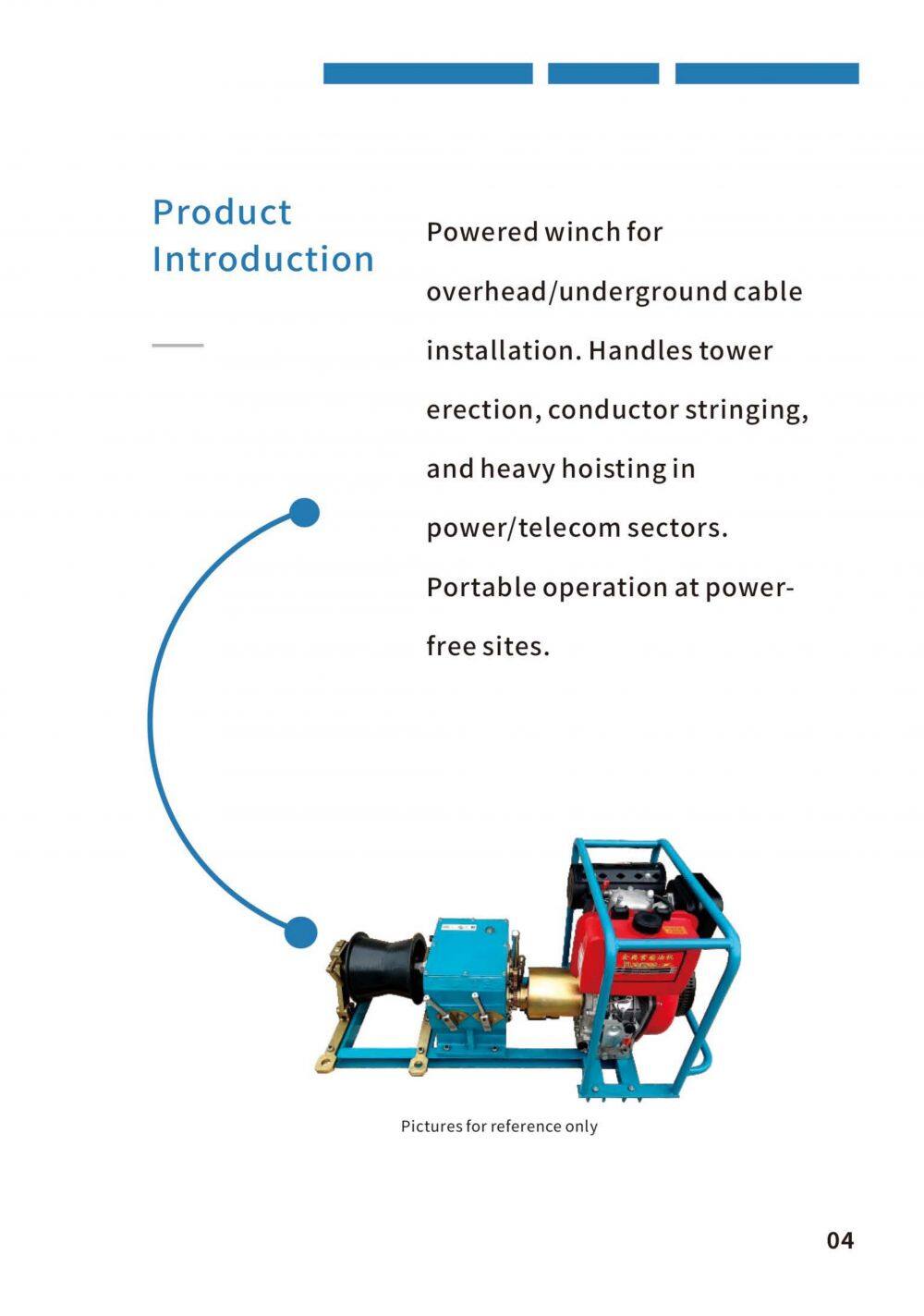

Product Overview:

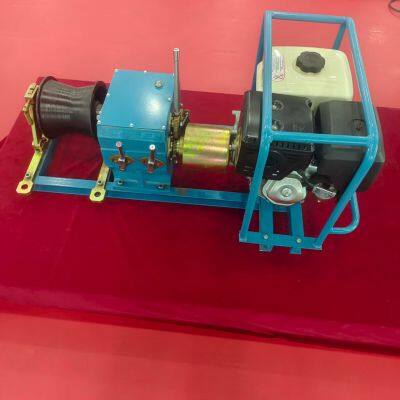

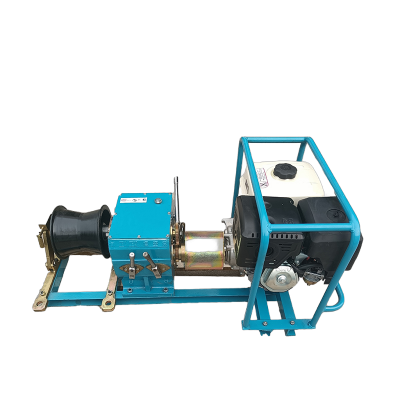

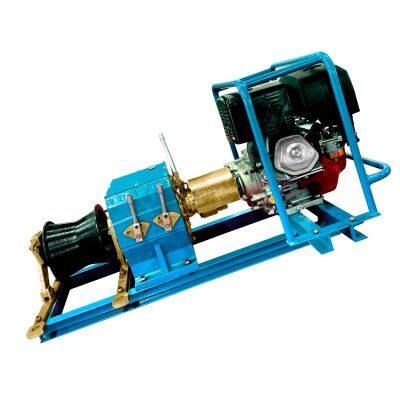

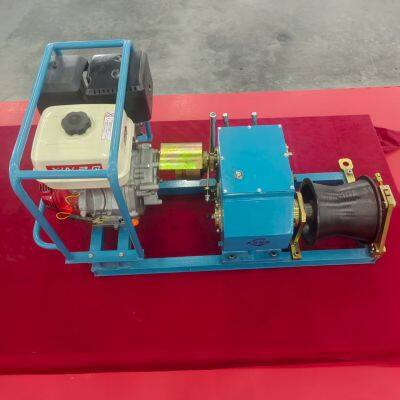

The 5T Gasoline Winch is a shaft-driven motorized grinder designed to deliver powerful performance in demanding environments. With a rated pulling force of 50KN and multiple speed settings, this winch is perfect for use in challenging sites where reliability and strength are crucial. It offers flexibility with both gasoline and diesel options, catering to diverse operational needs.

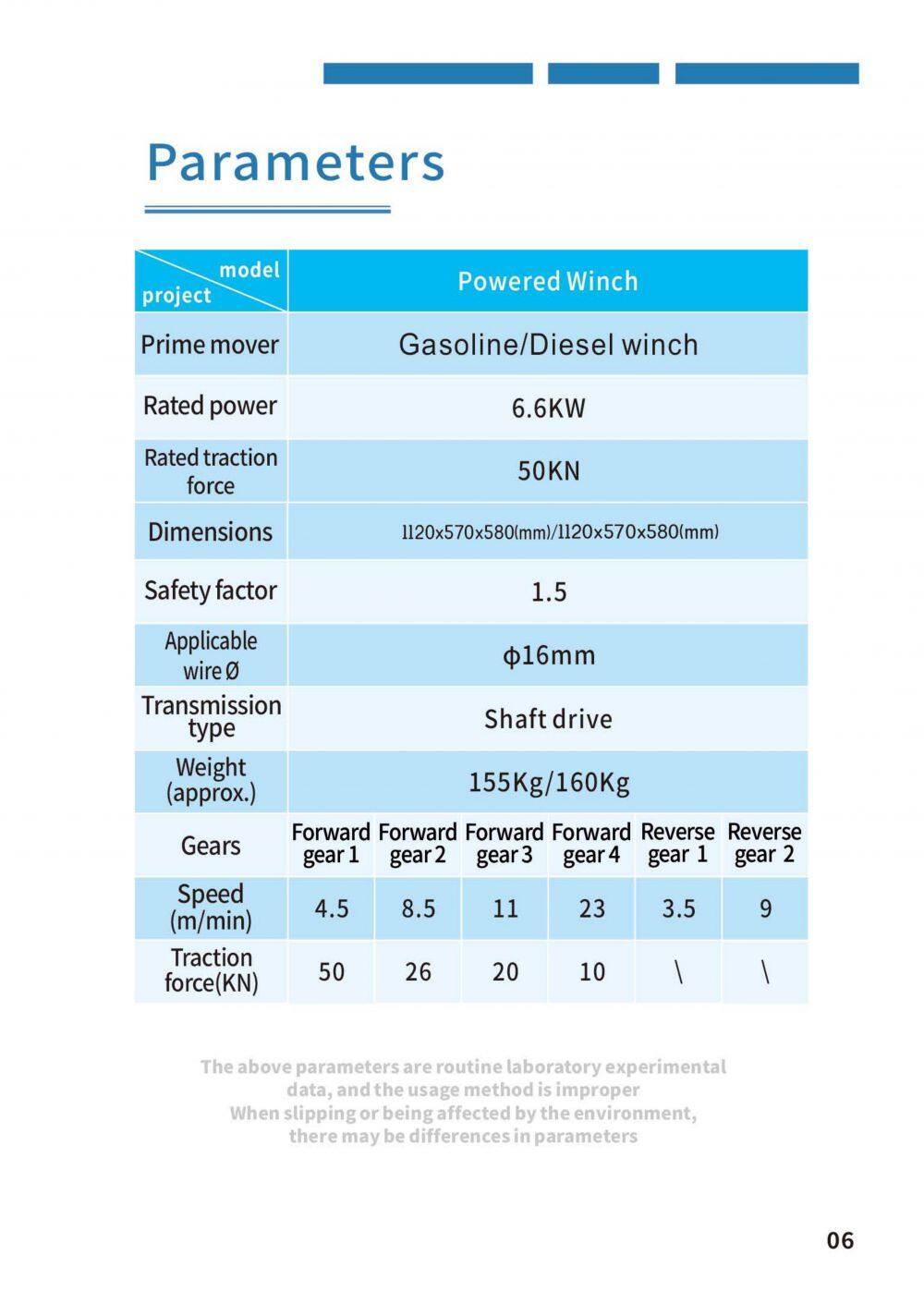

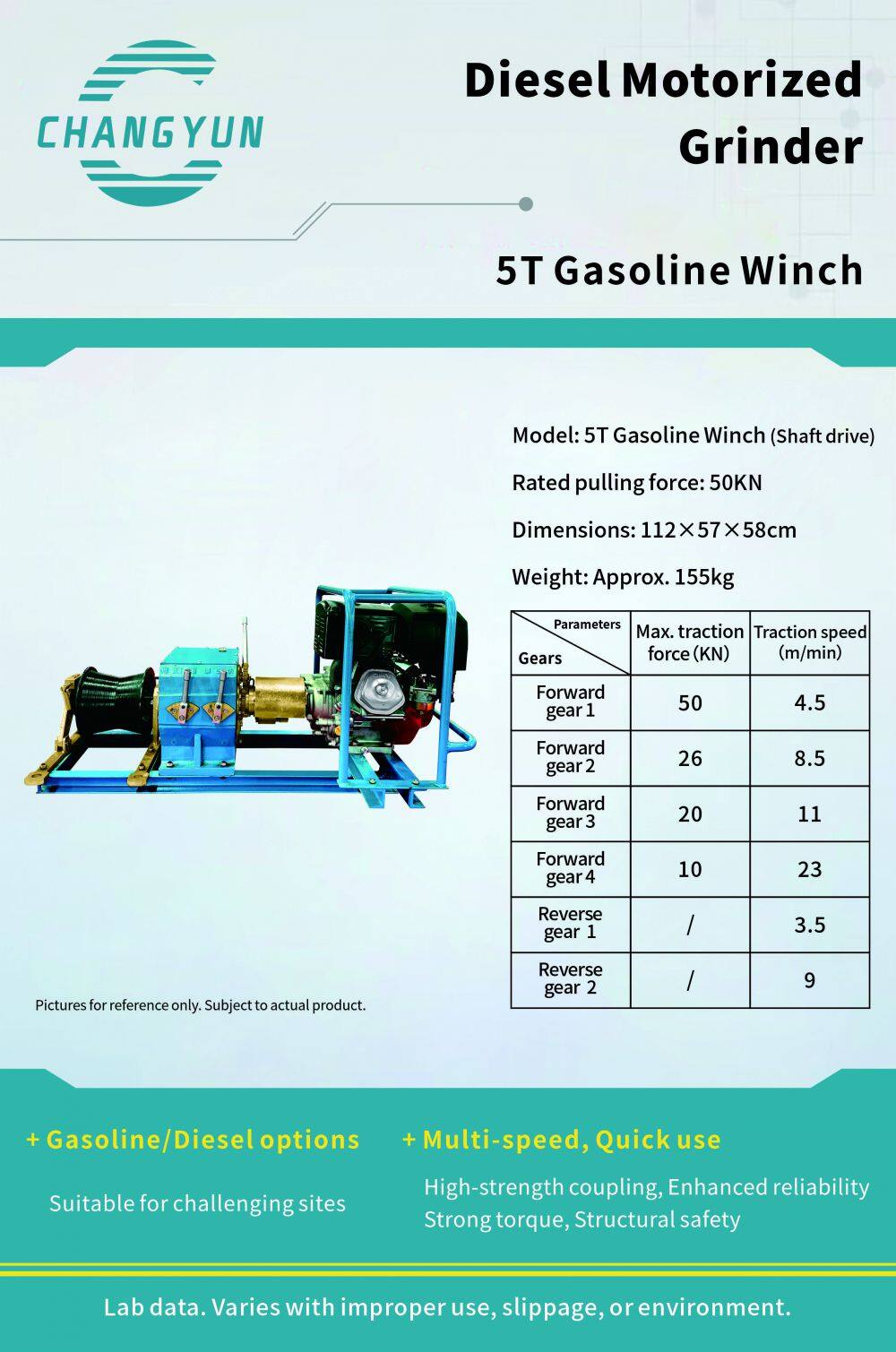

Technical Specifications:
Model: 5T Gasoline Winch (Shaft drive)
Rated Pulling Force: 50KN
Dimensions: 112×57×58cm
Weight: Approximately 155kg
Power Options: Gasoline/Diesel
Gear Parameters:
| Gears | Max. Traction Force (KN) | Traction Speed (m/min) |
|---|---|---|
| Forward 1 | 50 | 4.5 |
| Forward 2 | 26 | 8.5 |
| Forward 3 | 20 | 11 |
| Forward 4 | 10 | 23 |
| Reverse 1 | / | 3.5 |
| Reverse 2 | / | 9 |

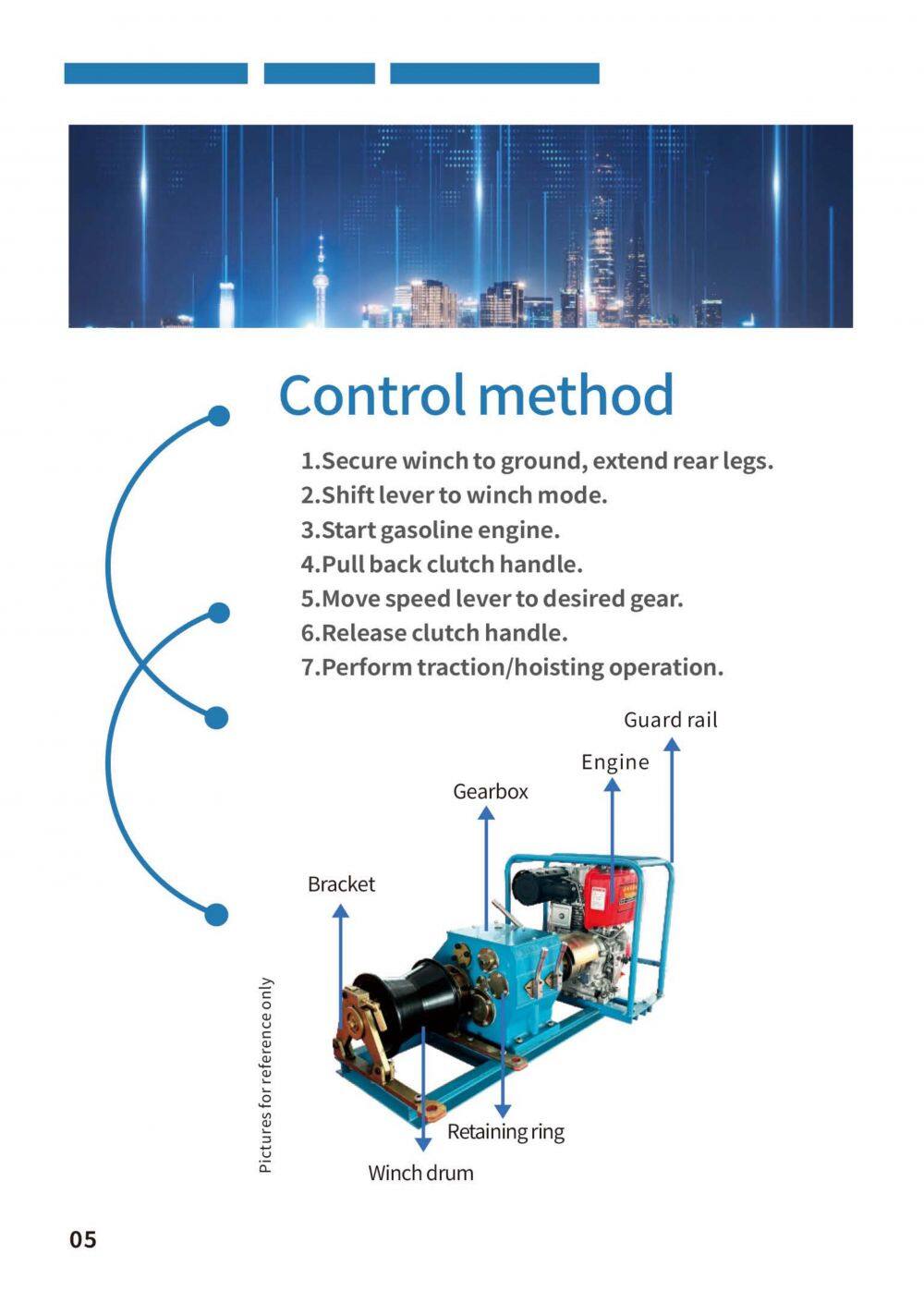

Operating Instructions:
Pre-Use Inspection:
Ensure all components are intact and securely fastened.
Check fuel and oil levels, topping up as necessary.
Inspect the cable or rope for frays or damage.
Starting Procedure:
Open the fuel valve.
Use the pull-start or electric start (if equipped) to start the engine.
Allow the engine to idle for a few minutes to warm up.
During Operation:
Select the appropriate gear for the task, considering both traction force and speed requirements.
Apply load gradually to prevent undue stress on the winch.
Continuously monitor the operation to ensure safety and efficiency.
Shutting Down:
Gradually release the load.
Shift to neutral and turn off the engine.
If applicable, disconnect any external power sources.
Safety Precautions:
Always use appropriate personal protective equipment (PPE).
Do not exceed the winch's rated pulling force.
Keep bystanders at a safe distance during operation.
Regularly inspect and maintain the winch to ensure safe and optimal performance.

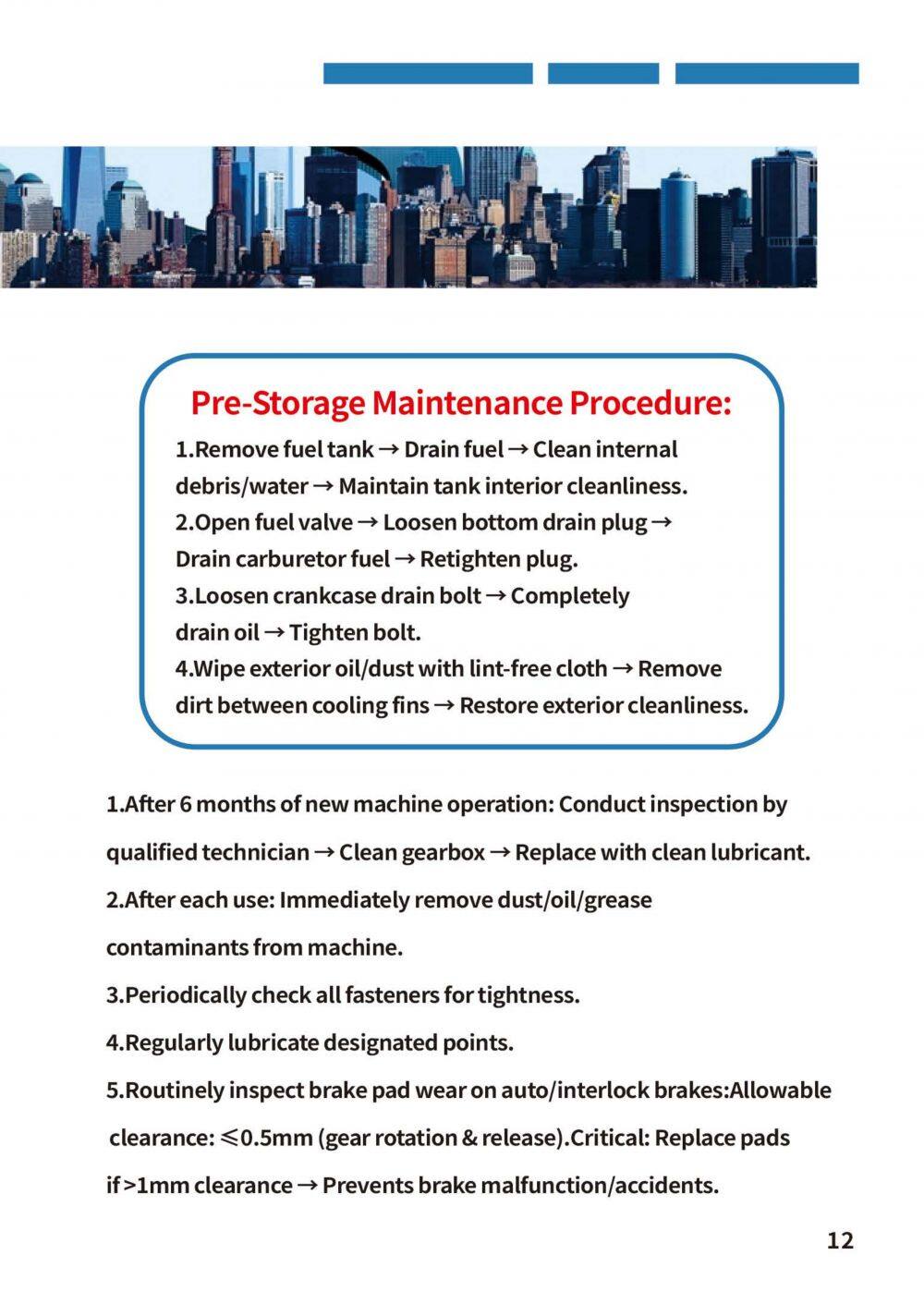

Maintenance Guidelines:
Regularly inspect and replace any worn or damaged parts.
Clean the winch regularly to prevent the buildup of dirt and debris.
Lubricate all moving parts according to the manufacturer's schedule.
Store the winch in a sheltered, dry location when not in use.
