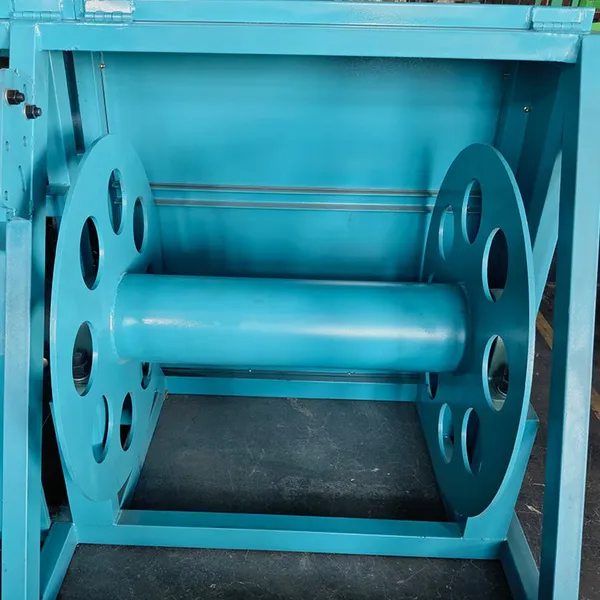

Bamboo Winch - Water-Cooled Diesel Engine Powered, High Reliability

Product Description and Instruction Manual:

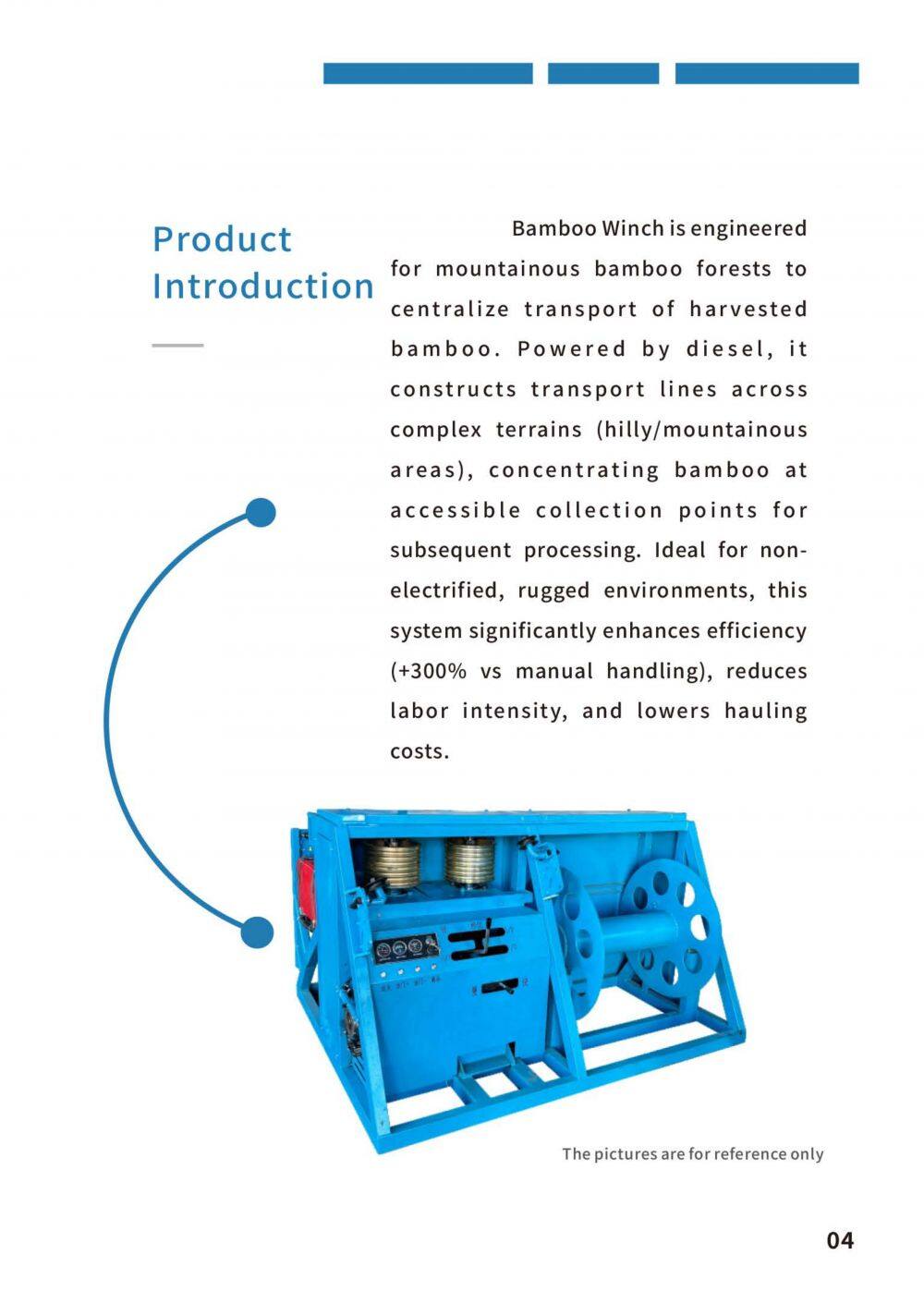

Product Overview:

The Bamboo Winch is a robust and reliable machine powered by a water-cooled diesel engine. With a rated power of 42KW and a maximum traction force of 54KN, this winch is designed to handle demanding tasks in mountainous areas and field operations. Its simple design ensures high reliability and a low failure rate, while its high versatility and operational efficiency make it an ideal choice for various applications.

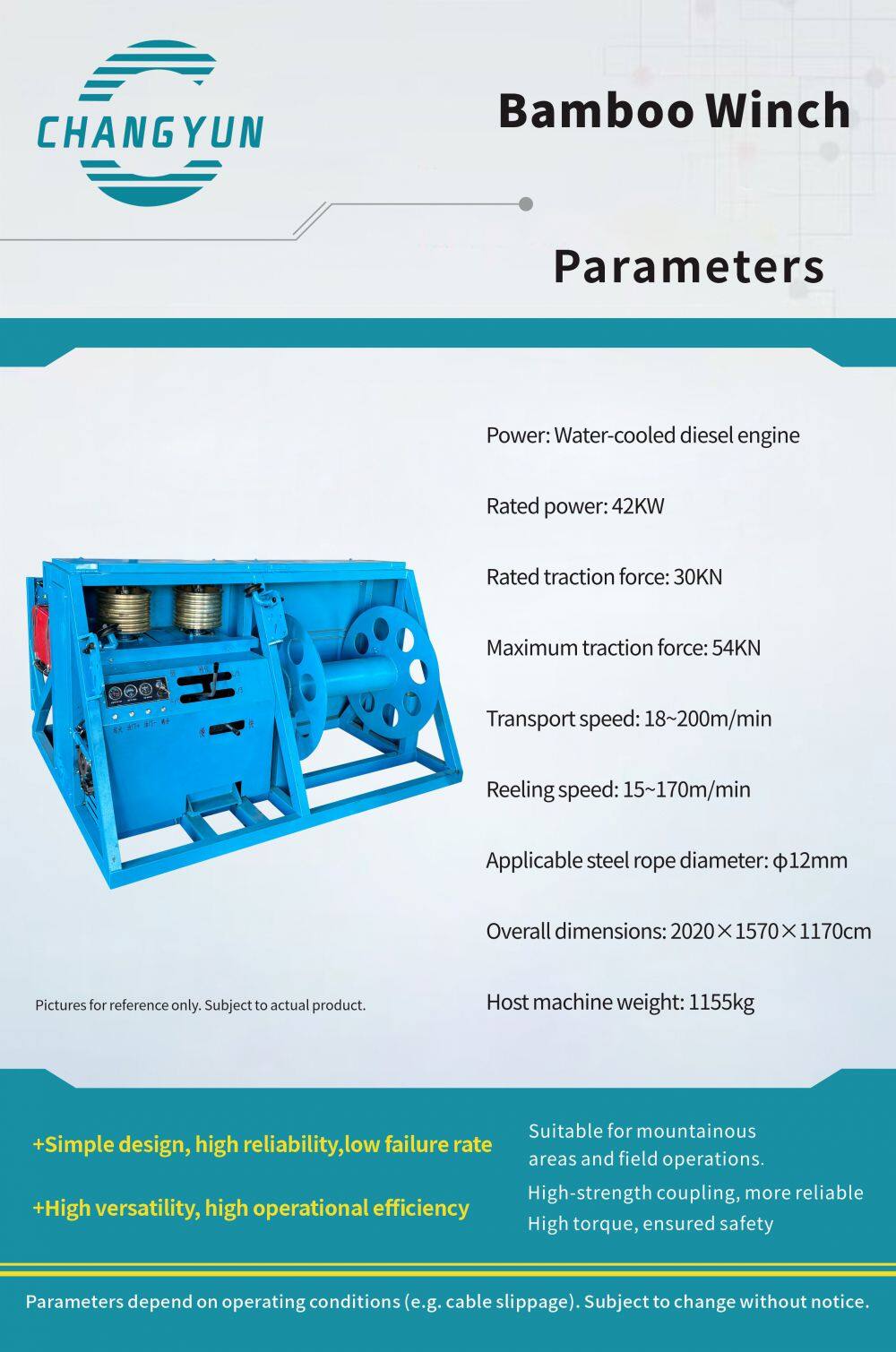

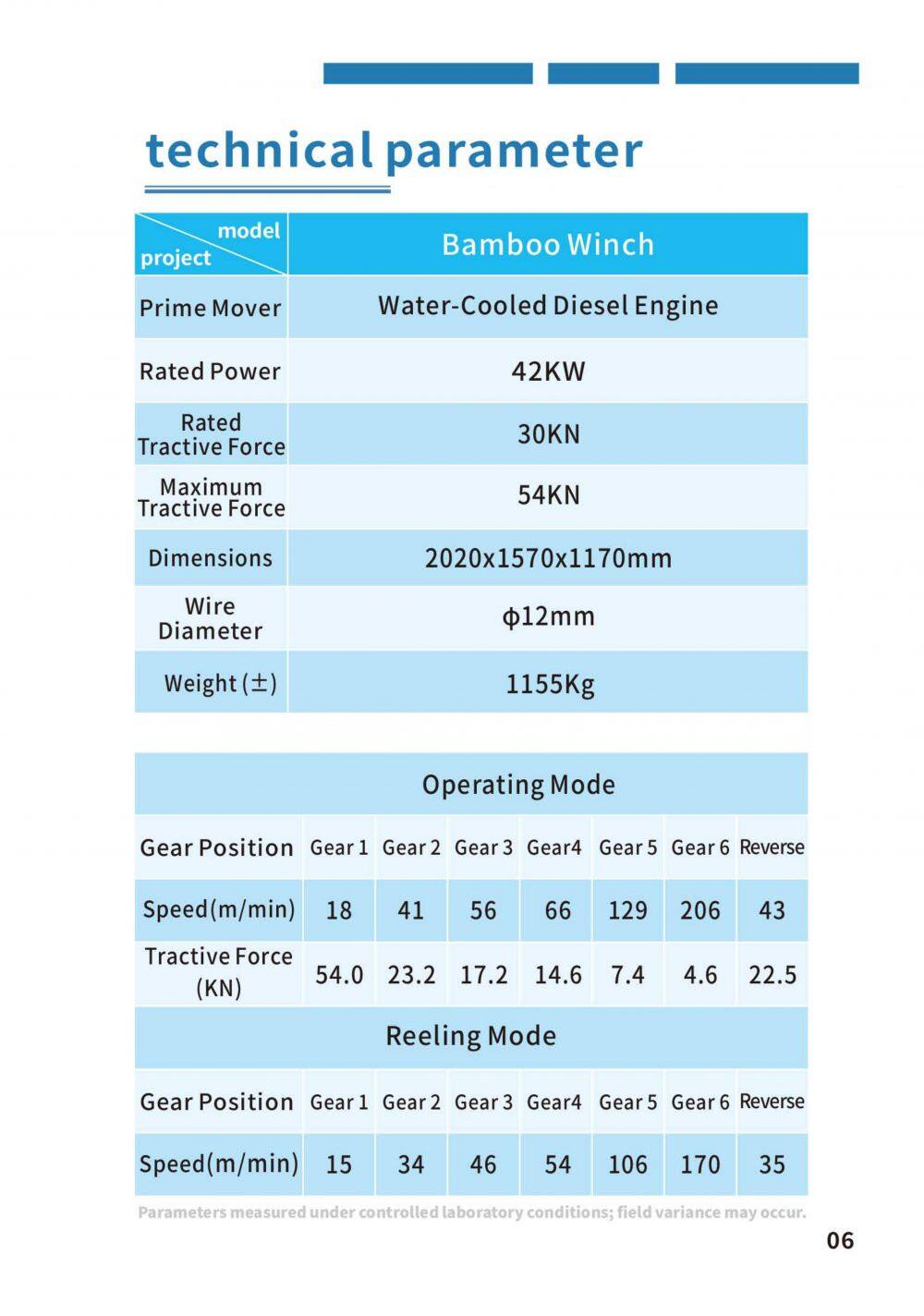

Technical Specifications:

• Power Source: Water-cooled diesel engine

• Rated Power: 42KW

• Rated Traction Force: 30KN

• Maximum Traction Force: 54KN

• Transport Speed: 18~200m/min

• Reeling Speed: 15~170m/min

• Applicable Steel Rope Diameter: φ12mm

• Overall Dimensions: 2020×1570×1170cm

• Host Machine Weight: 1155kg

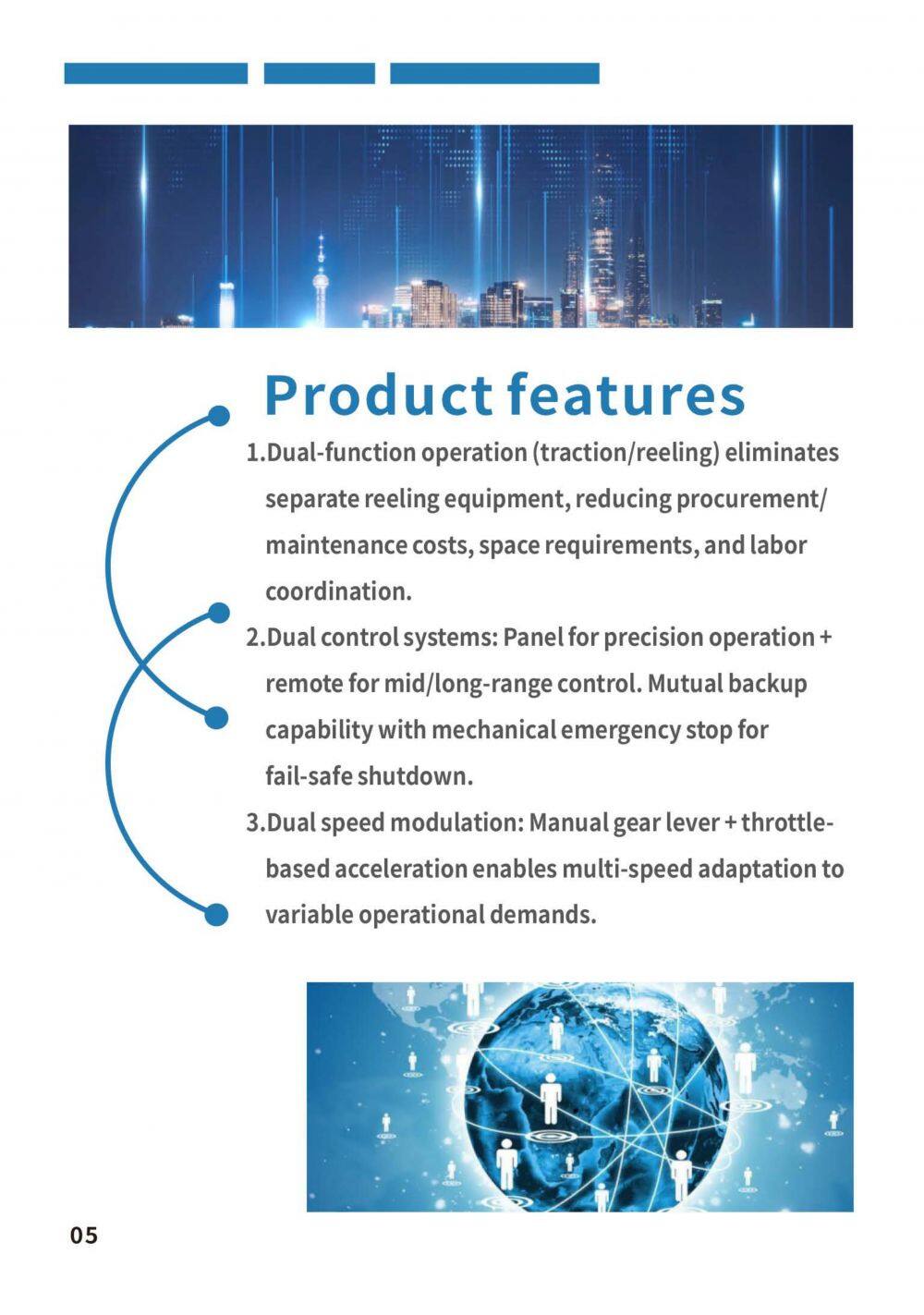

Key Features:

• Simple Design: Ensures high reliability and a low failure rate.

• High Versatility: Suitable for a wide range of applications.

• High Operational Efficiency: Optimized for performance in challenging environments.

• High-Strength Coupling: Provides more reliable operation.

• High Torque: Ensures safety and effective power transmission.

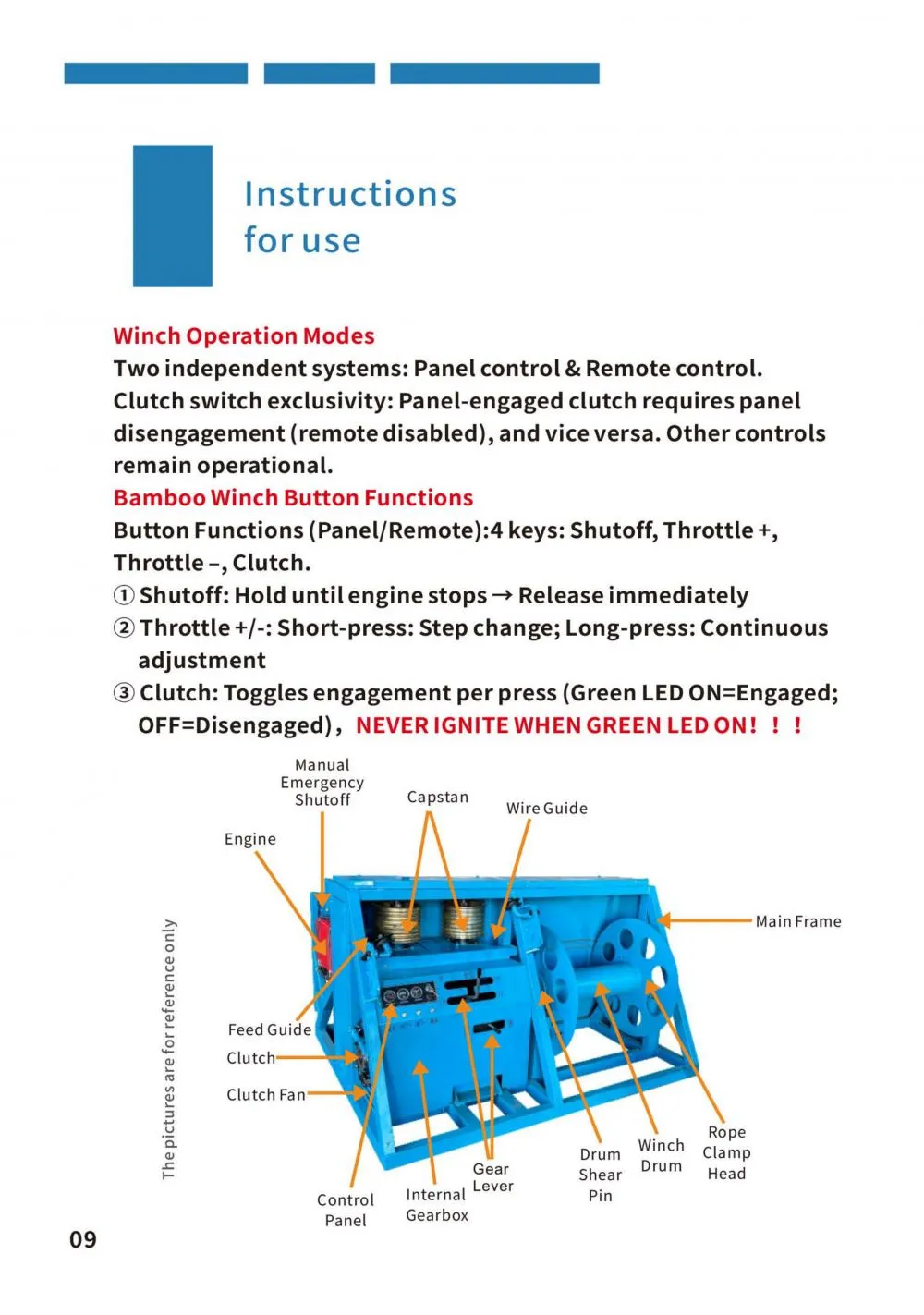

Operating Instructions:

1. Pre-Operation Checks:

• Inspect the winch for any visible damage or wear.

• Check the diesel engine's oil and coolant levels.

• Ensure the steel rope is in good condition and properly seated on the drum.

2. Starting the Winch:

• Turn on the fuel supply.

• Start the diesel engine following the manufacturer's instructions.

• Allow the engine to reach operating temperature before applying load.

3. Operating Procedures:

• Select the appropriate transport or reeling speed based on the task requirements.

• Gradually apply the load, ensuring not to exceed the rated traction force.

• Continuously monitor the winch's operation to ensure smooth and safe performance.

4. Stopping the Winch:

• Gradually reduce the load.

• Turn off the diesel engine.

• Secure the winch and disconnect any external power sources if applicable.

Safety Precautions:

• Always wear appropriate personal protective equipment (PPE).

• Ensure the load is within the winch's rated capacity.

• Keep bystanders at a safe distance during operation.

• Regularly inspect and maintain the winch to ensure safe and reliable performance.

Maintenance Guidelines:

• Regularly check and replace worn or damaged parts.

• Clean the winch and engine components to prevent dirt buildup.

• Follow the manufacturer's schedule for lubrication and fluid changes.

• Store the winch in a dry, protected environment when not in use.
