Product Overview
The Red 60 Gallon Combustible Liquid Cabinet is a compact yet robust solution for storing flammable liquids (e.g., paints, thinners, or solvents) in industrial or commercial environments. Its red finish—standard for highly flammable materials—enhances visibility for quick identification, while its three-point linkage lock and factory-direct model ensure safety and cost-effectiveness. Like other HN-EX series cabinets, it combines durability, safety, and flexibility to meet medium-sized storage needs.
Core Features & Construction

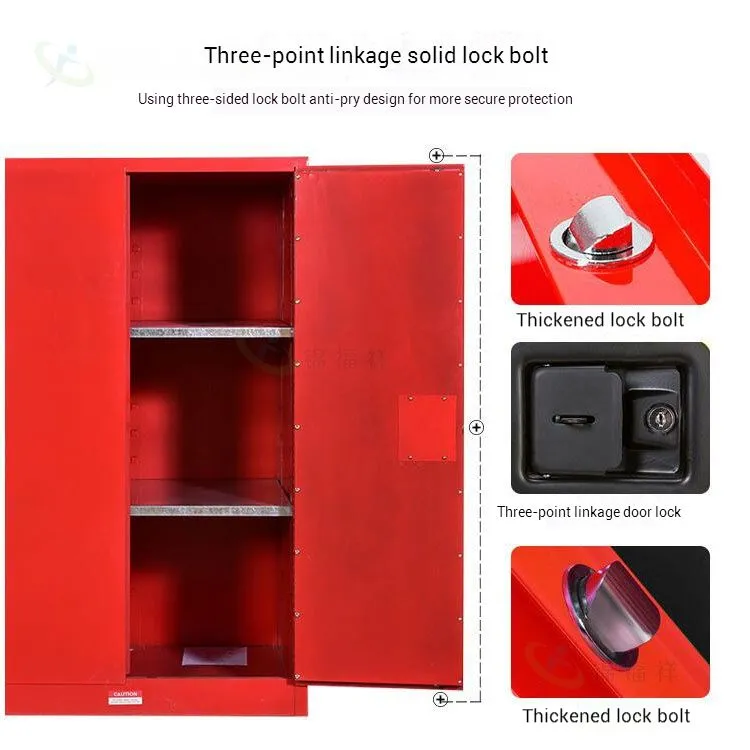

Three-Point Linkage Lock: The cabinet uses a three-point linkage locking mechanism, which locks the door at three points for stronger resistance to forced entry compared to single-point locks. Paired with an electronic password and dual keys, this system provides multi-layered security.
Double-Wall Fire Protection: The cabinet features a double-layered fireproof steel plate structure with a 38mm air gap, slowing heat transfer to reduce fire risks. The 1.2–2.0mm cold-rolled steel exterior is molded at high temperatures to enhance durability.
Adjustable Internal Shelving: The interior uses galvanized steel plates that can be adjusted in height, allowing users to efficiently organize containers of various sizes (e.g., paint cans, solvent bottles).
Leak-Proof Sump: A 5cm-high sump at the base collects accidental spills, preventing flammable liquids from spreading and reducing fire hazards.
Static-Safe Ventilation: Equipped with two external flame arrester devices, these vents regulate internal pressure while preventing the spread of flames and static discharge.
Application Scenarios
The Red 60 Gallon Combustible Liquid Cabinet is suitable for:
Industrial Facilities: Storing paints, thinners, or solvents in manufacturing plants.
Warehouses: Organizing flammable liquids in compliance with safety regulations.
Small Businesses: Managing flammable supplies for painting or cleaning services.
Educational Institutions: Storing flammable materials for art or science classes.
| Feature | Details |
|---|---|
| Material | 1.2–2.0mm cold-rolled steel |
| Air Gap | 38mm (double-walled) |
| Interior Lining | Galvanized steel (height-adjustable) + Epoxy resin (high-temp treated) |
| Base Sump Height | 5cm (leak-proof) |
| Lock Type | Three-point linkage + electronic password + dual keys |
| Door Design | 180° full-opening |
| Capacity | 60 gallons |
| Color | Red (highly flammable) |
Safety Precautions
Store only compatible flammable liquids; avoid mixing incompatible chemicals.
Regularly inspect the lock and ventilation system for proper functionality.
Ensure the cabinet is placed in a well-ventilated area away from heat sources or open flames.
