1. The Critical Role of Safety Containment in the Oil and Gas Sector
In the global energy sector, particularly within the Oil and Gas industry, the storage of hazardous materials is a high-stakes operation. Whether on an offshore drilling rig in the North Sea or a vast refinery in the UAE, the presence of volatile hydrocarbons, flammable reagents, and corrosive chemicals necessitates a storage solution that is as robust as it is reliable. Our Ventilated Explosion Proof Chemical Storage Cabinet, constructed from premium 1.2mm to 2.0mm steel, is specifically engineered to meet these extreme demands.
This cabinet serves as a vital firebreak, ensuring that in the event of an external ignition, the chemicals stored inside remain isolated. By preventing the escalation of a localized fire into a catastrophic explosion, these cabinets protect billions of dollars in infrastructure and, more importantly, the lives of the facility personnel.
2. Advanced Structural Integrity: The 1.2mm Steel Benchmark
Structural durability is the foundation of any explosion-proof cabinet. Our units are manufactured using a double-wall construction method, featuring two layers of high-strength, cold-rolled steel.
Insulating Air Gap: Between the 1.2mm steel walls lies a 38mm (1.5-inch) insulating air space. This gap is not merely empty; it acts as a thermal barrier. In a fire, heat must penetrate the outer steel, cross the air gap, and then heat the inner wall. This slows down the internal temperature rise significantly.
90-Minute Fire Resistance: Our structural design is engineered to provide a fire resistance time of ≥90 minutes. This duration is the industry gold standard, offering enough time for emergency suppression systems to activate or for site evacuation.

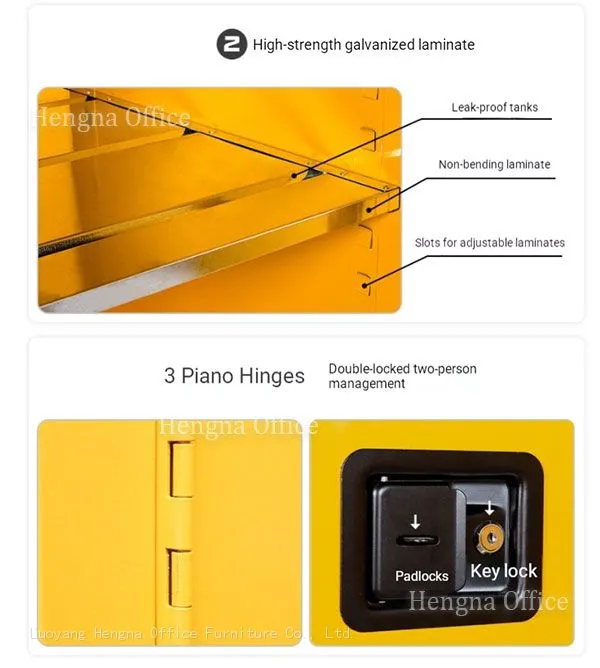

Continuous Piano Hinges: The doors are mounted on heavy-duty continuous piano hinges. Unlike standard hinges that can sag and create gaps, the piano hinge ensures the door remains perfectly aligned and airtight for the entire lifespan of the cabinet.
3. Comprehensive Technical Specifications Table
| Technical Parameter | Industrial Specification Details |
| Material Thickness | 1.2mm to 2.0mm Heavy-Duty Cold-Rolled Steel |
| Fire Rating Structure | Double-Walled with 38mm Insulating Air Space |
| Internal Shelf Adjustment | 25mm Increments for Flexible Configuration |
| Spill Containment Sump | 50mm Deep Liquid-Tight Safety Reservoir |
| Locking System | Three-Point Linkage + Double Lock (Key + Padlock) |
| Ventilation System | Dual High/Low Vents with Built-in Flame Arresters |
| Surface Treatment | Lead-Free, Chemical-Resistant Epoxy Powder Coating |
| Static Grounding | Integrated Static Grounding Lead Connection Port |
Export to Sheets
4. Ventilation and Explosion Prevention Mechanisms
Accumulation of flammable vapors is a primary cause of internal explosions in storage units. Our Ventilated Explosion Proof design addresses this through a scientific approach to gas concentration management.
Dual Vent Placement: Vents are located at the bottom-left and top-right of the cabinet. Since different vapors have different densities (some sink, some rise), this cross-ventilation ensures that all hazardous fumes can be purged.
Flame Arresters: Each vent is equipped with a high-performance flame arrester. This device allows gases to move freely but prevents an external flame or spark from traveling through the vent into the cabinet interior, effectively "extinguishing" the fire at the entry point.
Gas Concentration Reduction: By facilitating airflow, the cabinet maintains vapor levels well below the Lower Explosive Limit (LEL), drastically reducing the risk of a pressurized explosion within the unit.
5. Spill Containment: The 50mm Liquid-Tight Sump
Environmental safety is a major concern in the Oil and Gas industry. A single cracked container can lead to a hazardous spill that contaminates the facility or poses a slip hazard. Our cabinet features a 50mm deep leak-proof safety bottom sump. This reservoir is designed to contain at least 25% of the total storage capacity of the cabinet. This high-capacity sump ensures that even a major container failure is contained within the unit, allowing for safe and controlled cleanup without impacting the surrounding work environment.
6. Security and Access Control: The Double-Lock Protocol
In high-security sectors like petrochemicals, access to certain reagents must be strictly controlled.
Three-Point Linkage Lock: This mechanism secures the door at the top, center, and bottom with a single turn of the handle, providing superior structural rigidity.

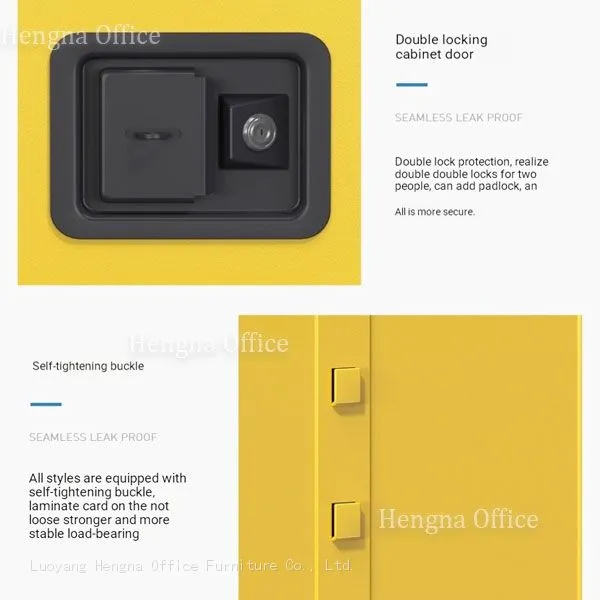

Double Lock System: To support "Two-Person, Two-Lock" management protocols, the cabinet includes both an integrated key lock and a dedicated padlock hole. This allows managers to ensure that two authorized personnel must be present to open the cabinet, preventing unauthorized use or theft.
7. Customization and Ergonomics: 25mm Shelf Adjustment
Workflows in oil refineries often involve a variety of container sizes, from small 500ml testing bottles to large 20L Jerry cans.
25mm Pitch Adjustment: The galvanized steel shelves can be moved up or down in 25mm (approx. 1 inch) increments. This fine-tuned adjustment ensures that you can maximize every inch of vertical space, accommodating diverse chemical inventories without wasted room.
Corrosion Resistance: The shelves are galvanized to prevent rusting even if small amounts of chemicals are spilled on them, ensuring a long service life in harsh environments.
8. Why Global Procurement Managers Choose Our Solutions
Buying for B2B industrial projects requires more than just a product; it requires a logistics and support partner.
Global Export Packaging: Every unit is crated in reinforced, fumigated plywood to prevent damage during long-distance sea freight to major hubs like Singapore, Houston, or Dubai.
Technical Documentation: We provide full structural drawings, material test reports, and installation guides to assist EHS managers with site audits.
OEM Capabilities: We offer customized dimensions for 110-gallon units or specialized configurations for offshore laboratory use.
