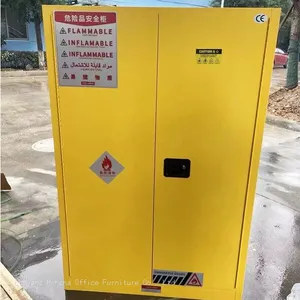

Help Center60 Gallon Explosion Proof Cabinet|Double Door With 3-Point Linkage Lock |for Chemical Plant Safety Standards
Related Products
-
Heavy Duty Explosion Proof Cabinet |2.0mm Steel Thickness |for Chemical Plant With 3-Point Linkage Lock |Safety StandardsUS$ 50 - 400MOQ: 10 Sets -
Flammable Liquid Storage Cabinet| for Chemical Plant| With Leak Proof Sump and Ventilation| Meeting Safety StandardsUS$ 50 - 400MOQ: 10 Sets
-
Safety Solvent Storage Cabinet for Labs & Workshops | 30 Gallon, 1.2mm Reinforced Steel | Fireproof Box With Anti-static GroundingUS$ 50 - 400MOQ: 10 Sets
-
High-Capacity 90 Gallon Hazmat Storage Locker for Oil Refineries| Double-Walled Explosion-Proof Cupboard With 40mm Fire Insulation GapUS$ 50 - 400MOQ: 10 Sets
-
60 Gallon Industrial Fireproof Cupboard| for Pharmaceutical Plants| Double Door Flammable Liquid Safety Bin| With Anti-static ProtectionUS$ 50 - 400MOQ: 10 Sets
1. The Critical Role of Safety Storage in Modern Chemical Plants
In the complex ecosystem of a chemical plant, the difference between a routine shift and a catastrophic event often lies in how hazardous materials are stored. A 60 Gallon Explosion Proof Cabinet is not merely a piece of furniture; it is a critical safety barrier. As global safety standards like NFPA 30 and OSHA 1910.106 become more stringent, plant owners must invest in storage solutions that provide fire resistance, vapor control, and physical security.
2. Technical Anatomy: Built for Resilience
Our 60-gallon model is engineered with a focus on "Defense in Depth."

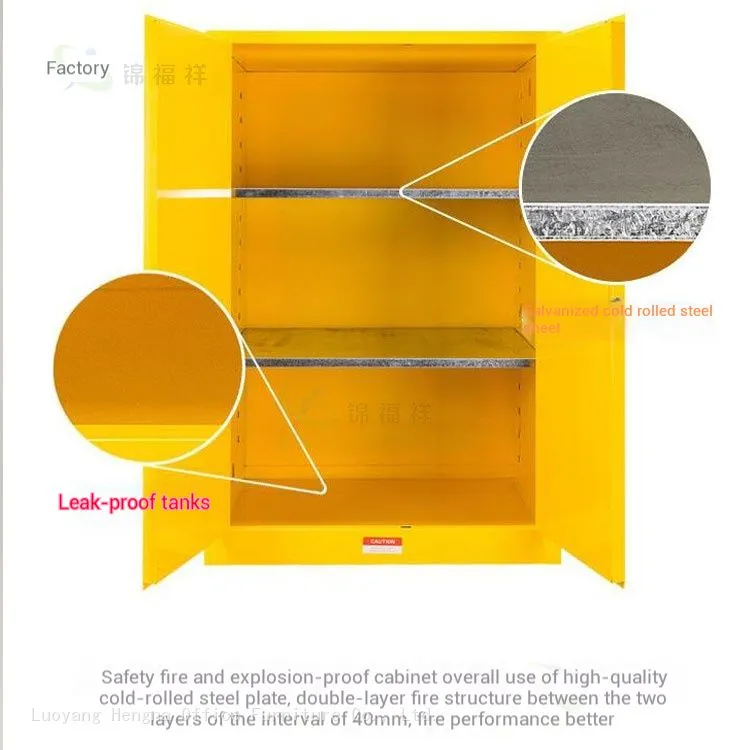

18-Gauge Double-Wall Steel: We use 1.2mm (18-gauge) high-quality cold-rolled steel. The double-wall construction creates a 40mm (1.5-inch) insulating air gap. This gap is scientifically proven to slow thermal transfer, keeping the internal temperature below the ignition point of most industrial solvents for a critical window during a fire.
The 3-Point Linkage System: Unlike standard cabinets, our 3-point latching system secures the door at the top, middle, and bottom. This is vital because, in an explosion or high-heat scenario, metal tends to warp. A single-point lock would fail, but a 3-point system keeps the door sealed, preventing oxygen from feeding an internal fire.
3. Compliance and International Safety Standards
When we talk about "Safety Standards," we refer to a framework that protects your liability.
Fire Rating: Designed to provide at least 10-30 minutes of fire protection, allowing personnel to evacuate.
Spill Containment: The 51mm (2-inch) leak-proof sump ensures that even if a 20-liter drum leaks entirely, the chemicals remain contained within the cabinet, preventing environmental contamination and slip hazards.
4. Comprehensive Product Specifications Table
| Parameter | Detailed Specification | Business Value |
| Model Capacity | 60 Gallons / 227 Liters | High ROI per square foot of floor space |
| External Dimensions | 1650 x 860 x 860 mm (Standard) | Optimized for industrial aisle widths |
| Material Grade | CR Steel (ASTM A1008) | Ensures structural longevity > 10 years |
| Shelf Loading | 100 kg (220 lbs) per shelf | Supports heavy bulk chemical containers |
| Color/Finish | Lead-free Epoxy Powder Coat | Resists peeling and chemical corrosion |
Export to Sheets
5. Optimized Application in Chemical Plants
The 60-gallon double-door design is the most popular choice for:
Solvent Storage: Storing Ethanol, Acetone, and IPA near production lines.
Waste Management: Holding hazardous waste before transport to disposal areas.
Point-of-Use Storage: Reducing the distance employees must carry flammable liquids, thereby reducing the risk of transit spills.
6. Maintenance and Safety Checklist
To ensure your cabinet remains compliant with international safety standards, we recommend the following:
Leveling: Use the adjustable leveling feet to ensure the cabinet is perfectly horizontal.
Grounding: Always attach the static grounding wire to the dedicated screw on the cabinet side.

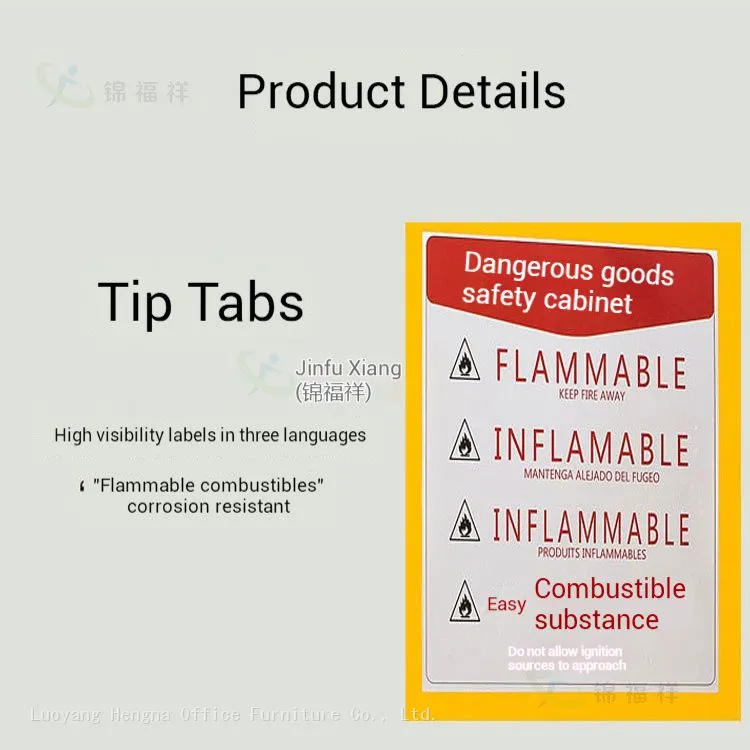

Labeling: Keep the "Flammable - Keep Fire Away" labels clean and visible.
