1. The Science of Vapor Management in Chemical Storage
In a chemical plant, the liquid isn't always the primary danger—the vapors are. Volatile Organic Compounds (VOCs) can accumulate inside a sealed cabinet, creating an explosive atmosphere. Our Flammable Liquid Storage Cabinet with Ventilation addresses this "invisible" risk directly.

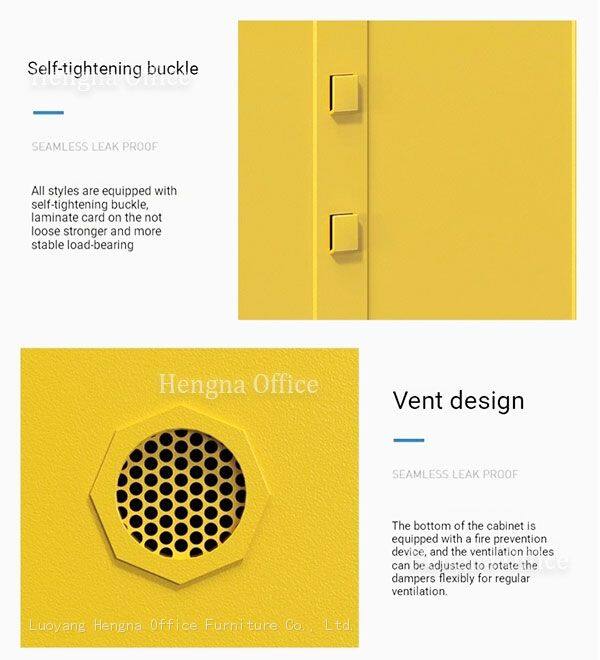

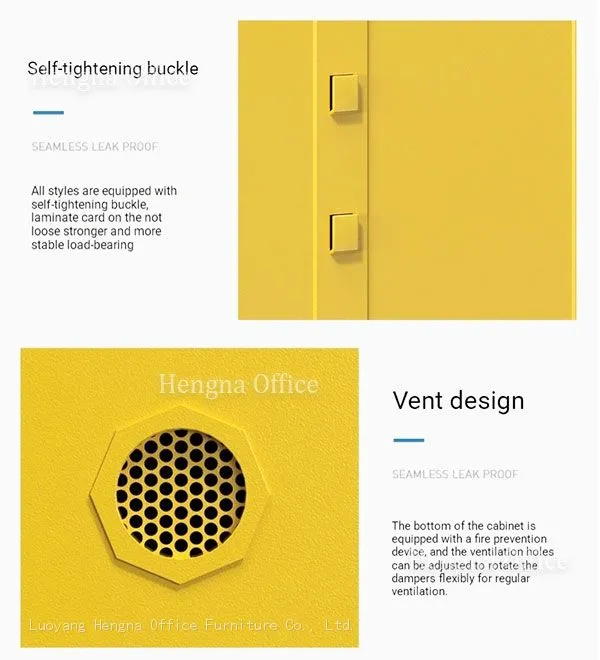

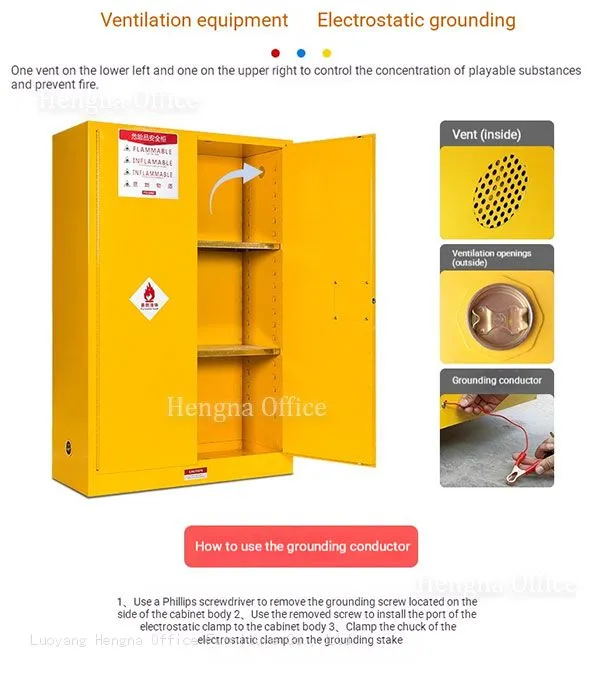

2. Dual-Ventilation System with Flame Arresters
Our cabinets are equipped with two strategically placed vents (one high, one low) to facilitate natural or forced convection.
Flame Arresters: These are not just holes. Each vent is fitted with a stainless steel mesh flame arrester that allows air/vapor to pass but prevents an external flame from "flashing back" into the cabinet.
Connection to Exhaust: For highly toxic or foul-smelling chemicals, these vents can be easily connected to the plant’s central ventilation system.
3. Secondary Containment: The 2-Inch Leak-Proof Sump
The leak-proof sump is a non-negotiable requirement for environmental compliance.
Design: The bottom 51mm (2 inches) of the cabinet is a seamless, welded reservoir.
Function: In the event of a container failure, the sump captures the spill. This prevents the chemical from flowing under other cabinets or into floor drains, which could lead to a massive EPA/Environmental fine or a wider fire.
4. Key Components and Their Safety Functions

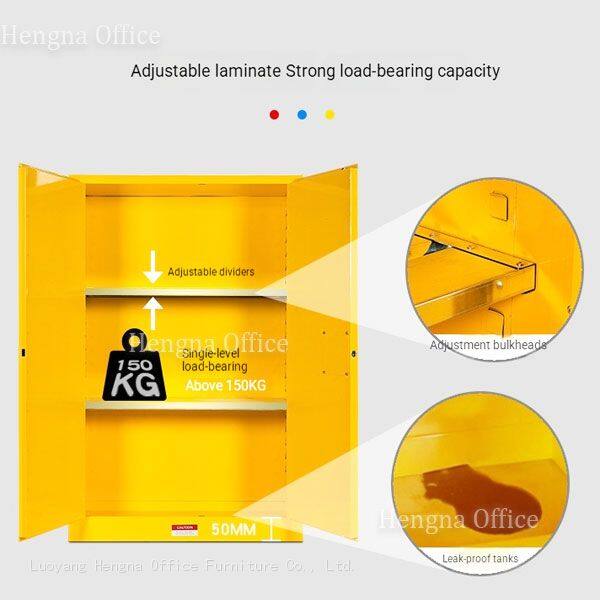

Adjustable Galvanized Shelves: These shelves are perforated to allow for airflow and are designed to direct spills toward the back of the cabinet into the sump.
Static Grounding Bolt: A critical feature for any chemical plant. Static sparks are the leading cause of solvent fires. Our grounding system ensures the cabinet and its contents remain at the same electrical potential as the earth.
Reflective Warning Labels: In a smoke-filled room or during a power outage, our high-visibility reflective labels help firefighters identify the hazard immediately.
5. Technical Data Sheet
| Component | Material / Specification | Benefit |
| Vent Diameter | 2-inch (50mm) NPT Standard | Compatible with industrial HVAC ducting |
| Sump Material | Welded 1.2mm Steel with Coating | Leak-proof and corrosion-resistant |
| Shelf Support | Heavy-duty Zinc Plated Clips | No-slip, high-load security |

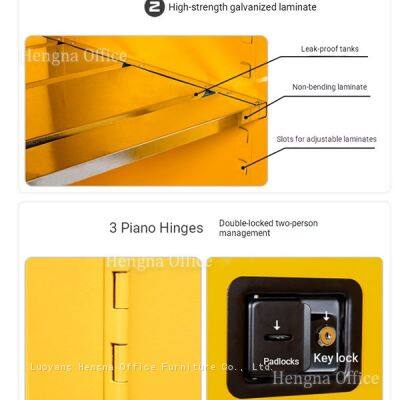

| Hinges | Full-length Continuous Piano Hinges | Ensures smooth door operation for years |
Export to Sheets
6. Installation Best Practices
To maximize the effectiveness of the ventilation and sump:
Do not block vents: Ensure there is at least 10cm of clearance around the vent ports.
Sump Maintenance: Check the sump weekly. If any liquid is present, use specialized spill kits to neutralize and remove it immediately.
Bonding: When pouring liquids inside the cabinet, ensure the containers are bonded to the cabinet to prevent static buildup.
