1. Introduction: Superior Safety for High-Risk Industrial Environments
In the demanding industrial ,the safe storage of volatile materials is a non-negotiable priority. Our Heavy Duty 45 Gallon Yellow Flammable Storage Cabinet is engineered to provide a robust, fire-resistant sanctuary for hazardous liquids, solvents, and chemicals.
Managing flammable substances requires more than just a storage box; it requires a certified safety system. This 2-Door Chemical Safety Cabinet is designed to prevent small localized fires from escalating into catastrophic industrial disasters, protecting both your personnel and your high-value infrastructure. By implementing this high-grade storage solution, factories can ensure compliance with both local civil defense regulations and international safety standards.
2. Key Features and Product Benefits
A. Reinforced Double-Walled Construction
The core of our "Heavy Duty" promise lies in the structure. The cabinet is built using 18-gauge (1.2mm) cold-rolled steel. It features a 38mm (1.5-inch) insulating air space between the inner and outer walls. This double-wall design acts as a thermal barrier, significantly slowing the temperature rise inside the cabinet during an external fire, which is crucial for preventing the auto-ignition of stored solvents.

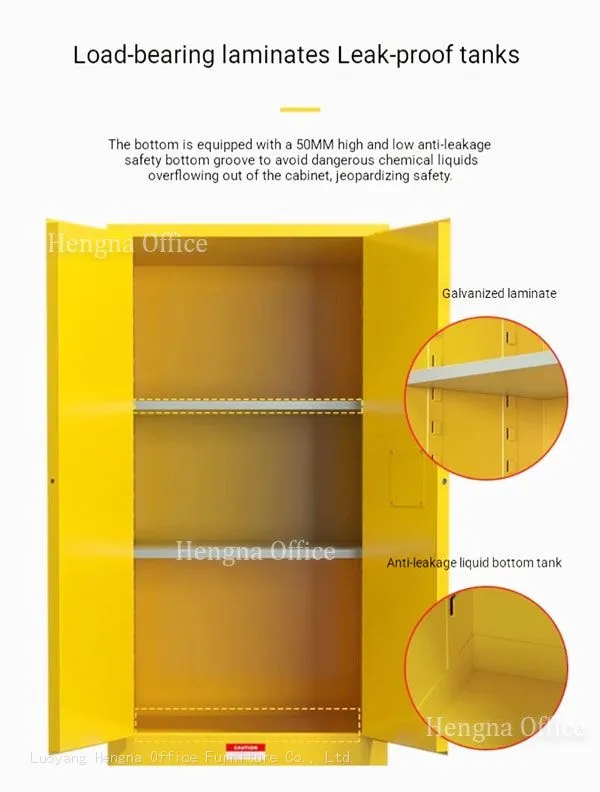

B. Leak-Proof Sump and Spill Control
Accidental leaks are inevitable in a busy factory. Our cabinet includes a 50mm (2-inch) deep liquid-tight sump at the bottom. This area is specifically designed to contain spills, ensuring that corrosive or flammable liquids do not spread across the factory floor, thereby reducing the risk of slips, chemical reactions, and environmental contamination.
C. Industrial-Grade Epoxy Powder Coating
To withstand the humid and saline-rich environment of the UAE coast, the cabinet is finished with a lead-free, chemical-resistant epoxy powder coating. This high-visibility yellow finish is not only an international indicator for flammable materials but also provides a high level of resistance to abrasion, corrosion, and chemical splashes.

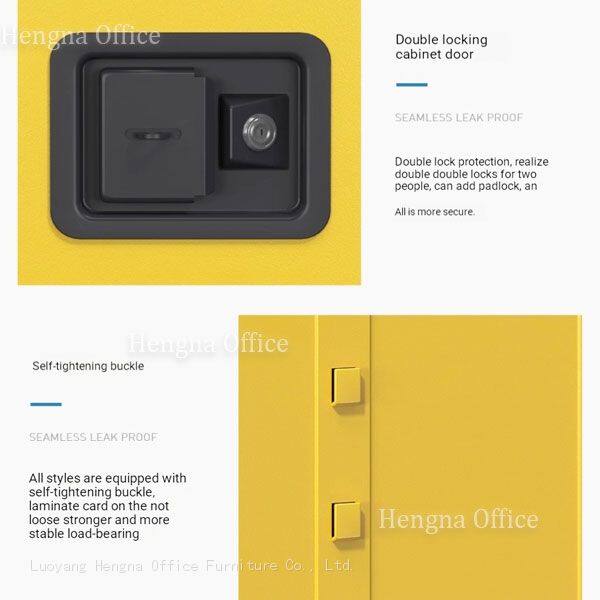

D. Secure Three-Point Locking System
Security is paramount when handling hazardous materials. The Manual Close 2-Door system is equipped with a high-strength, three-point linkage locking mechanism. This ensures that the doors are sealed tightly at the top, middle, and bottom, preventing unauthorized access and ensuring the integrity of the fire seal.
3. Technical Specifications Table
| Specification Item | Detailed Data / Parameter |
| Product Model | HD-YEL-45G-MC |
| Capacity | 45 Gallons (Approx. 170 Liters) |

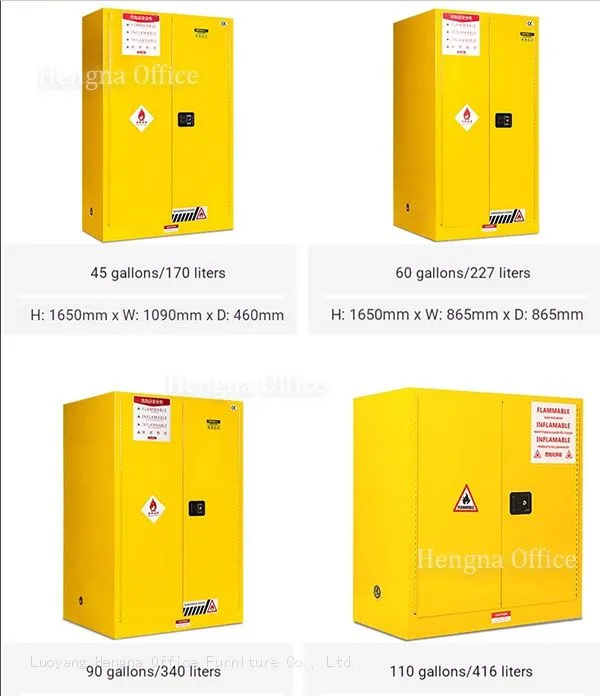

| External Dimensions | 1650mm (H) x 1090mm (W) x 460mm (D) |
| Construction Material | 1.2mm Double-Walled Industrial Steel |
| Door Configuration | Dual Doors, Manual Close (180° Swing) |

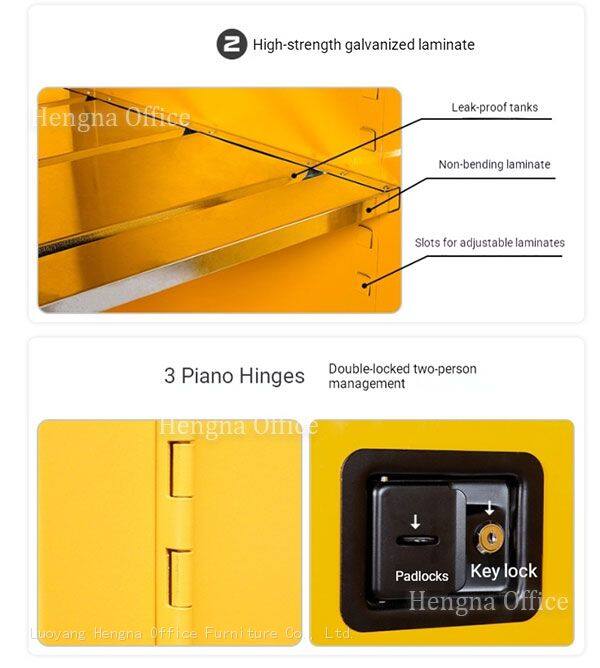

| Shelf Type | Adjustable Galvanized Steel Shelves |
| Shelf Loading Capacity | 100 kg per shelf (Uniformly Distributed) |
| Color | Safety Yellow (Gloss Finish) |
| Vents | Dual 2" Flame Arrester Vents (Left & Right) |
| Weight | Approx. 140 kg |
5. Why Factories Prioritize Our Heavy Duty Design
Extreme Climate Resilience
The factory experiences extreme summer temperatures. Standard storage units may fail to maintain internal stability. Our heavy-duty insulation and ventilated design are specifically suited for these high-ambient-temperature regions, keeping internal vapors below their flash points more effectively than single-walled alternatives.
Optimized for Oil & Gas and Construction
Whether you are storing lubricants on a construction site or volatile samples in an oil laboratory, the 45-gallon size is the "Golden Ratio." It offers high capacity without occupying excessive floor space, making it easy to integrate into existing production lines.
6. Strategic Placement and Installation Guide
To maximize the effectiveness of your Yellow Flammable Storage Cabinet, we recommend the following B2B best practices:

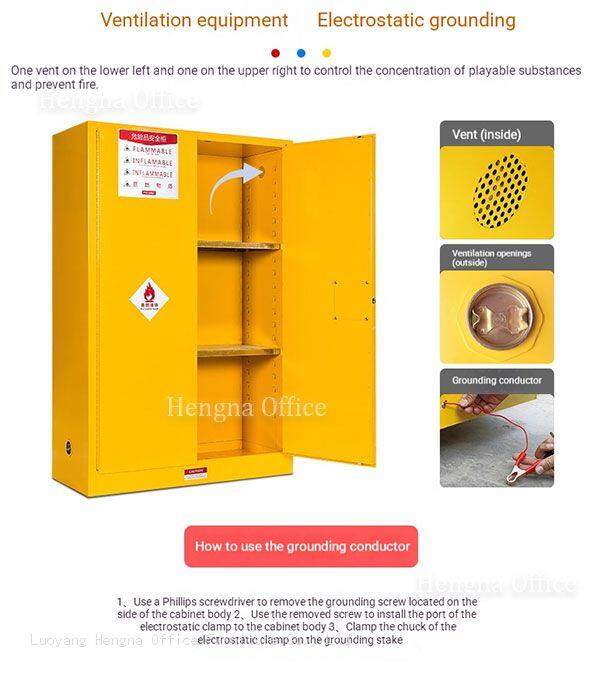

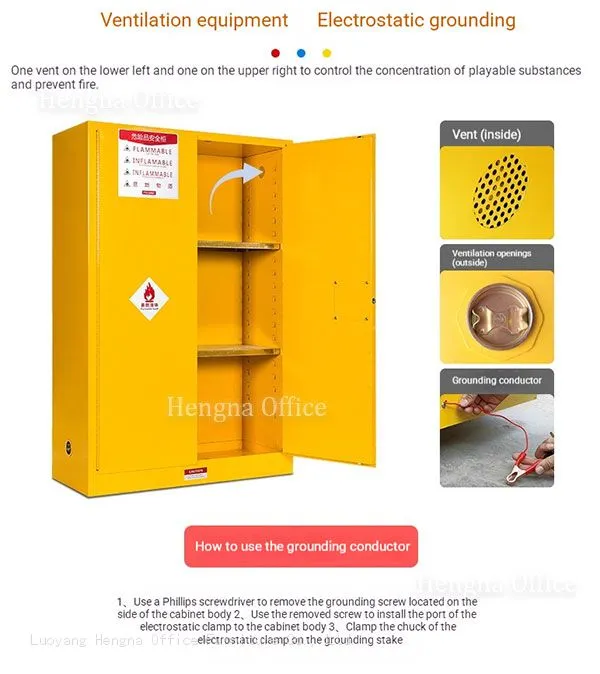

Grounding: Always utilize the built-in grounding bolt to connect the cabinet to the factory's earth ground. This prevents the accumulation of static electricity, which is a major cause of ignition during liquid transfer.
Venting: If the stored chemicals produce toxic or highly volatile vapors, use the dual vents to connect the cabinet to an outdoor exhaust system.
Segregation: Ensure that incompatible chemicals (like acids and flammables) are not stored in the same cabinet. The yellow cabinet should be reserved strictly for flammables.
7. B2B Purchase and Global Logistics Information
Bulk Ordering for Industrial Projects
As a specialized manufacturer, we cater to large-scale procurement for industrial zones . We provide volume-based discounts and can coordinate with EPC (Engineering, Procurement, and Construction) contractors for project-specific labeling and color-coding.
Export-Standard Packaging
We understand the risks of international shipping. Every 45 Gallon Safety Cabinet is shipped using:
Multi-layer corrugated cardboard protection.
Internal foam corner guards to prevent denting.
Fumigated Plywood Pallets to ensure stability and ease of movement via forklift.
Moisture-proof shrink wrapping for sea freight.
8. Frequently Asked Questions (FAQ)
Q: Can this cabinet be used outdoors in the UAE?A: While the epoxy coating is highly durable, we recommend placing the cabinet under a shelter or indoors to avoid direct solar radiation, which can unnecessarily raise the internal temperature.
Q: Is the manual close door better than the self-closing door?A: Manual close doors are preferred in many factories because they allow the doors to stay open at 180 degrees for easier loading and unloading. However, they must be manually latched to provide fire protection.
Q: What is the lead time for a bulk order (e.g., 50 units)?A: For standard yellow 45-gallon models, we maintain a rolling stock. Bulk orders typically ship within 10-15 business days from our factory.
9. Conclusion: Invest in Safety, Invest in Longevity
The Heavy Duty 45 Gallon Yellow Flammable Storage Cabinet is more than just furniture; it is a critical safety investment. By choosing our reinforced, Manual Close 2-Door design, you are choosing a product that stands up to the rigors of the UAE Industrial environment while keeping your facility compliant and your workers safe.
Contact our sales team today for a customized quote or to discuss your specific chemical storage requirements.
