Home > Manufacturing & Processing Machinery > Mining Machinery > Leaching Tank > Leaching Tank

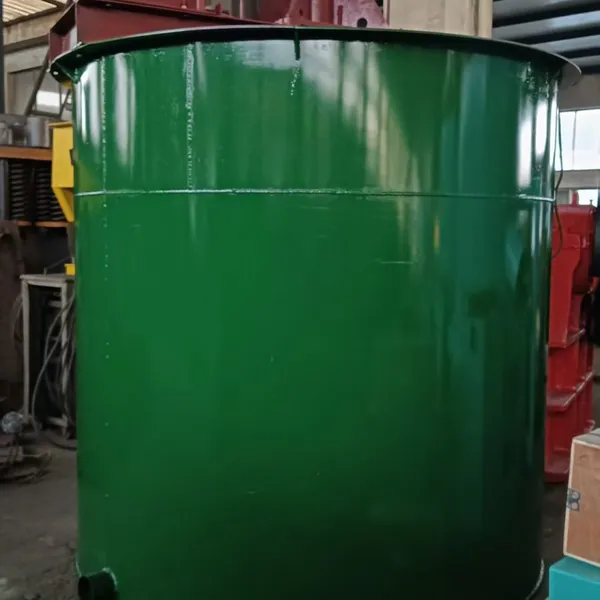

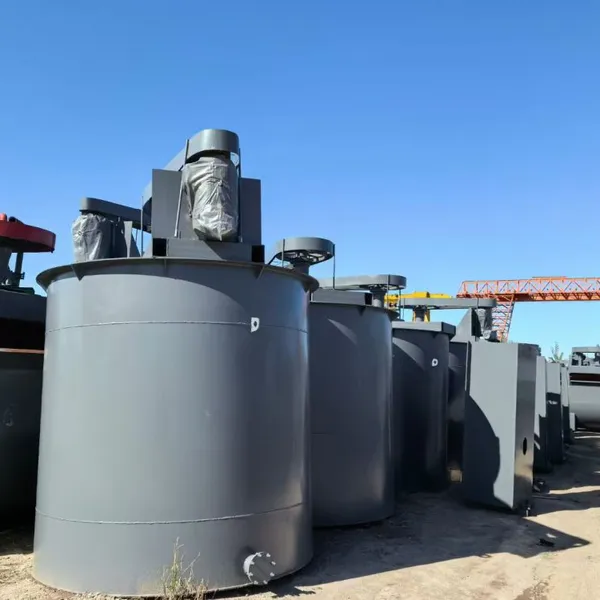

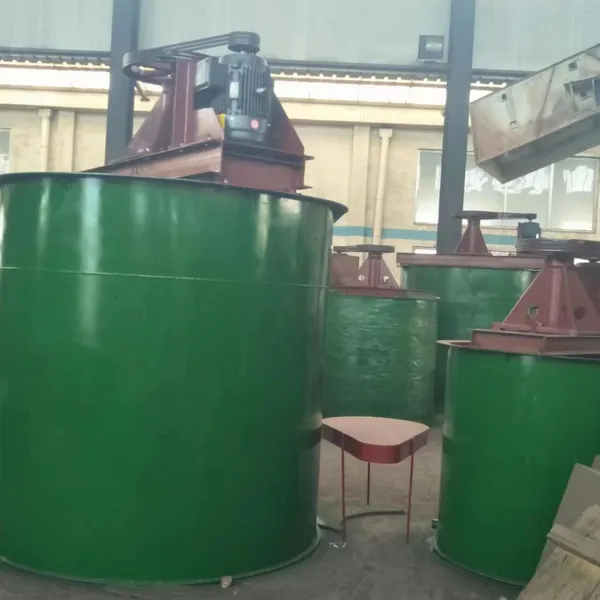

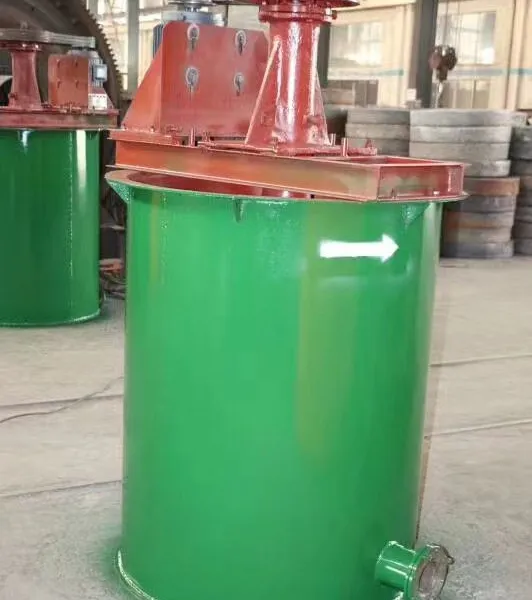

Leaching Tank

US$ 5000 ≥1 Set

Key Specifications

Get Latest Price

Type:

Percolation Tank

Warranty:

12 Months

Motor Power:

4.0kw

Contact Supplier Request Quote Chat Now

Shandong Qiansheng Mining Equipment Co.,ltd

Payment & Shipping

Payment Methods:

Port of Shipment:

QINGDAO

Delivery Detail:

10 days

Product Details
Company Profile
Contact Us

Type Percolation Tank

Warranty 12 Months

Motor Power 4.0kw

Customized Customized

Automation Manual

Condition New

Motor Type AC Motor

Mining Object Gold

Impeller Type Single Impeller

Specification RJ

Trademark QIANSHENG

Origin CHINA

　Advantages:

　　1. The power consumption is small, the axial speed is large, the radial speed is small, the stirring intensity is large, and the mixing effect is good.

　　2. The impeller is above the “slurry sedimentation zone” and the starting is light, so the starting power is small, which greatly reduces the labor intensity of the operator.

　　3. The effective volume is large and the floor space is small.

　　4, the impeller material is novel, long service life

　　working principle:

　　The single impeller is immersed in the slurry during clockwise rotation (from top to bottom), and pushes and squeezes the slurry, so that the slurry flows into the blade from the upper part of the circulation cylinder, and flows upward along the circulation cylinder through the guide vane. After circulating the cylinder, it will move into a trough, then flow upward along the outer wall of the circulation cylinder, and then return to the upper part of the circulation cylinder to form a closed loop. As the new slurry continues to be fed into the tank, the qualified pulp that is thoroughly mixed by the agent and air will continue to be continuously The discharge from the discharge port (overflow port) completes the leaching operation of the tank.

RJ single impeller mixing tank technical parameters
Model specification	Inner dimensions of the groove (mm)	Effective volume (m3)	Stirr stirrrer	Motor motor	Dimensions (mm) dimension	Weight (kg)
standard model	diameter dia	high	effective volume	（mm）dia	（r/min） speed	model	power	lengh	height	weight
RJ5	500	500	0.078	150	690	Y80M2-4	0.75	720	874	110
RJ7	750	750	0.26	240	530	Y90L-4	1.5	939	1241	228
RJ10	1000	1000	0.58	240	530	Y90L-4	1.5	1080	1665	350
RJ12	1200	1200	1.14	400	320	Y90L-4	1.5	1540	1858	765
RJ15	1500	1500	2.2	400	320	Y132S-6	3	1690	2171	1360
RJ20	2000	2000	5.5	550	230	Y132M2-6	5.5	2381	3046	1655
RJ25	2500	2500	11	625	230	Y160M-6	7.5	2881	3546	2766
RJ30	3000	3000	19.1	900
