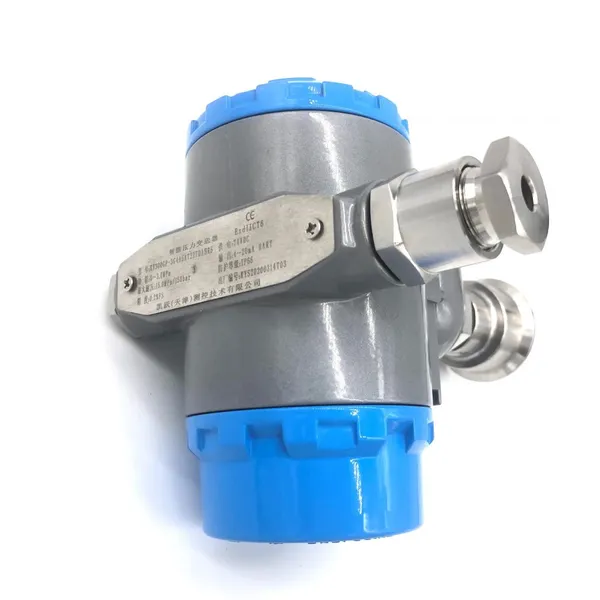

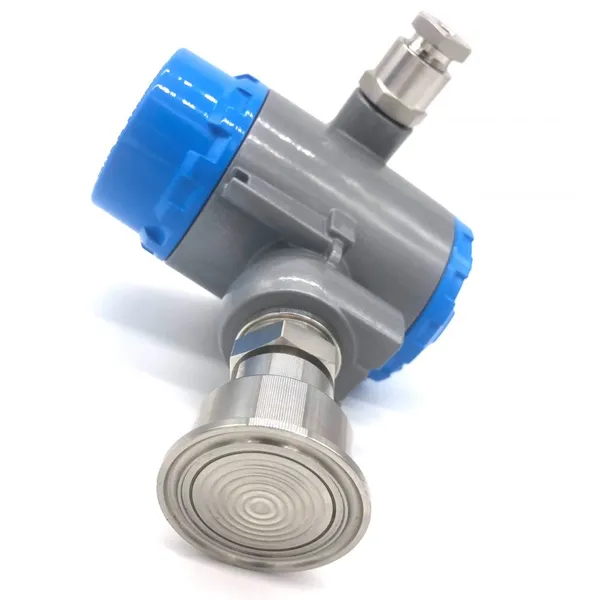

KY5005 Sanitary Pressure Transmitter for Food Beverage Industry Hygienic Pressure Sensor 0.1-200MPa IP65 Waterproof
US$ 40
1 - 9 Piece
US$ 38
≥10 Piece
Key Specifications
Get Latest Price
Certification:
CE
Measuring Medium:
Other, liquid ,gas
Accuracy Grade:
Other, 0.5% F.S ,0.2%F.S
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
20 days
Related Products
-
Kyue OEM High-Precision Online Density Meter (Differential Pressure Method) Differential Pressure TransmitterNegotiableMOQ: 1 Set -
High Quality Cost-effective Anti-corrosion Petroleum Industry Well Submersible Level Gauges Oil Pressure Transmitter SensorUS$ 40MOQ: 1 Unit
-
Original New SIEMENS P320/P420 Pressure Transmitter 0.075% F.S 0.6-63bar Silicone Oil Filled Differential Pressure TransmitterUS$ 750MOQ: 1 Piece
-
Kyue Industrial 4~20mA Hart Differential Pressure Transmitter Monocrystalline Silicon Dp Transmitter High Accuracy 0.075%US$ 140 - 400MOQ: 1 Piece
-
KY100 SD Differential Pressure Switch Explosion-proof SPDT DPDT 316SS NBRUS$ 150 - 155MOQ: 1 Piece
Certification
CE
Measuring Medium
Other, liquid ,gas
Accuracy Grade
Other, 0.5% F.S ,0.2%F.S
Structure Type
Diffused Silicon Pressure Transmitter
Customized
Customized
Type
Explosion-proof Pressure Transmitter
IP Rating
IP65
Pressure range
Other, -0.1-0-200MPa
Transport Package
carton
Trademark
Kyue
Origin
Tianjin
1. Product Overview (Integrated with LCD transmitter )
The KY5005 sanitary pressure transmitter sereis is a professional pressure measurement instrument designed for high sanitary standards and challenging conditions involving scale-prone or complex media. It adopts an integrated 316L stainless steel flat membrane structure, fundamentally addressing industry pain points such as sanitary dead corners, media residue, and clogging commonly found in traditional pressure transmitters.
2.Technical specifications
| Item | Specifications |
|---|---|
| Measuring Range | -0.1 ~ 0 ~ 200 MPa (full range coverage, customizable) |
| Pressure Type | Gauge, Absolute, Sealed Gauge (optional) |
| Accuracy Class | ±0.5% F.S. (standard) / ±0.2% F.S. (high-accuracy option) |
| Output Signal | 4~20mA Two-wire (default), customizable |
| Power Supply | 12~36 VDC |
| Process Connection | 50.5mm Sanitary Clamp (e.g., DIN 11851, customizable) |
| Diaphragm Material | 316L Stainless Steel |
| Seal Material | Fluorocarbon Rubber (FKM) |
| Electrical Connection | Hirschmann Connector |
| Response Time | ≤ 1 ms (to 90% FS) |
| Overload Capacity | 200% of range |
| Operating Temperature | -40℃ ~ +125℃ |
| Protection Rating | IP65 |
| Media Compatibility | Various liquids, gases compatible with 316L stainless steel (non-highly corrosive) |
3. Typical Applications
The KY5005 is precisely focused on industries with stringent requirements for equipment cleanliness, reliability, and media compatibility:
| Industry | Typical Application Scenarios |
|---|---|
| Biopharmaceuticals | Fermentation tank / bioreactor pressure monitoring, filtration systems (UF/MF), CIP/SIP cleaning systems, purified water & WFI systems. |
| Food & Beverage | Filling machines, homogenizers, mixing tanks, pipeline pressure monitoring, CIP stations, beer/beverage brewing and storage tanks. |
| Brewing Industry | Fermentation tanks, storage tanks, pressure monitoring at filter (diatomaceous earth/membrane filter) inlets/outlets. |
| Other Industries | Water treatment (slurries, dosing), pressure measurement in pipelines and vessels for viscous or crystallizing media in light chemical industries. |
4.Please contact us for specific product selection or more detailed documentation.
