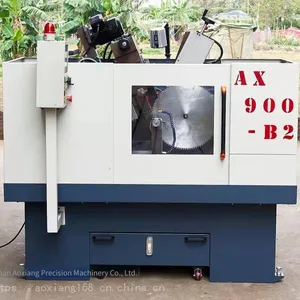

Factory Direct Sale Alloy Saw Blade Front and Rear Angle Gear Grinding Machine - Aoxiang Machinery
US$ 8923.08
1 Unit
US$ 8738.46
2 Unit
US$ 8153.85
≥3 Unit
Key Specifications
Get Latest Price
Main Markets:
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe, Central America, Northern Europe, Southern Europe, South Asia, Domestic Market
Location:
Foshan, Guangdong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Aoxiang Factory Direct Sale Automatic Alloy Saw Blade Tooth Grinding Machine Ax900 - B2, Cnc TypeUS$ 8923.08 - 9692.31MOQ: 1 Unit -
Aoxiang Factory Direct Sale Fully Automatic Alloy Circular Saw Blade GrinderUS$ 10000 - 10461.54MOQ: 1 Unit
-
Aoxiang Ax900-b2 Servo Feed Automatic Gear Grinding Machine for Woodworking Saw Blade SharpeningUS$ 8153.85MOQ: 1 Unit
-
Factory Direct Sales of Aoxiang Alloy Saw Blade Tooth Grinding Machine, Fully Automatic Tooth Grinding Machine, Front and Rear Angle Tooth Grinding MachineUS$ 10000 - 10461.54MOQ: 1 Unit
-
Aoxiang Ax900-b2 Fully Automatic Alloy Circular Saw Blade Grinding EquipmentUS$ 8153.85 - 8923.08MOQ: 1 Unit
The fully automatic alloy saw blade tooth grinding machine is a mechanical equipment for grinding alloy circular saw blades. It can grind and shape various tooth shapes such as flat teeth, triangular teeth, high-low teeth, trapezoidal teeth,, combined teeth, left-right teeth, left flat and right teeth, etc. included in the rake angle and clearance angle of the alloy saw blade. It is one of the most advanced saw blade grinding equipment in the current market.
Technical parameters
| Grinding outer diameter: φ80 - φ800mm Saw blade inner diameter: φ12 - φ80mm Number of grinding teeth: 1 - 999 teeth Tooth pitch: 7 - 100mm Saw blade thickness: 8mm Rake angle grinding: -10° to +40° Tooth surface swing angle: -15° to +15° Clearance angle grinding: 6 - 45° Tooth tip swing angle: -45° to +45° Grinding stroke: 1 - 28mm (stepless speed change) Working speed: 18 - 30 teeth/min Grinding wheel outer diameter: φ125mm Grinding wheel inner diameter: φ32mm Grinding wheel rotation speed: 5800/min Cooling device: 50kl/min Total electric power: 1.64kw Machine net weight: 980kg Gross weight in packing: 1180kg Machine body size: 1700×1280×1780mm
|
