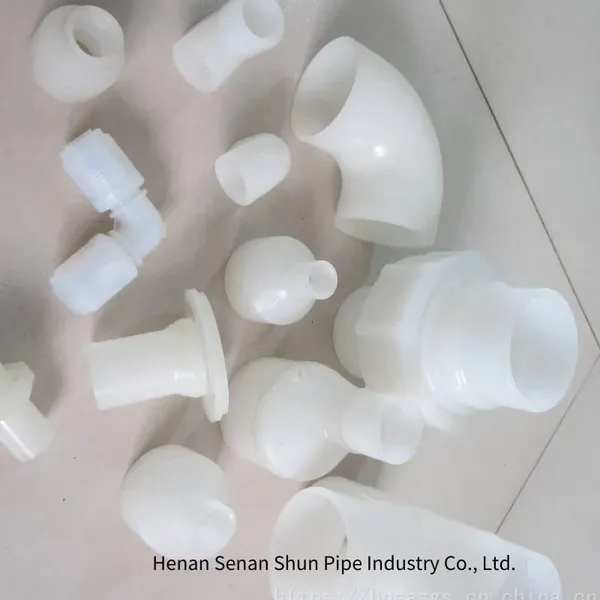

Help CenterPvdf Butt-welded Elbow
Related Products
-
Upvc Butterfly Valve, Upvc Wafer Butterfly Valve, Price of Upvc Butterfly ValveUS$ 10 - 13.08MOQ: 1 Piece -
Pph Pneumatic Ball Valve, Price of Pph Pneumatic Ball Valve, Specifications of Pph Pneumatic Ball ValveUS$ 101.23 - 105.85MOQ: 1 Piece
-
Pph Pipes, Pph Fittings, Pph ValvesUS$ 0.77 - 0.89MOQ: 5 Meters
-
Industrial-grade Electroplating and Pickling Pph PipesUS$ 0.86 - 0.89MOQ: 5 Meters
-
Industrial-grade Pph Diaphragm Valve, Industrial-grade Diaphragm ValveUS$ 93.85 - 96.92MOQ: 1 Piece

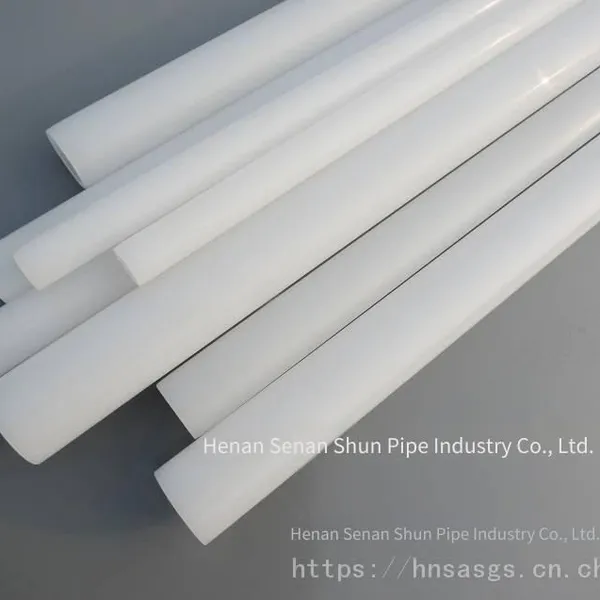

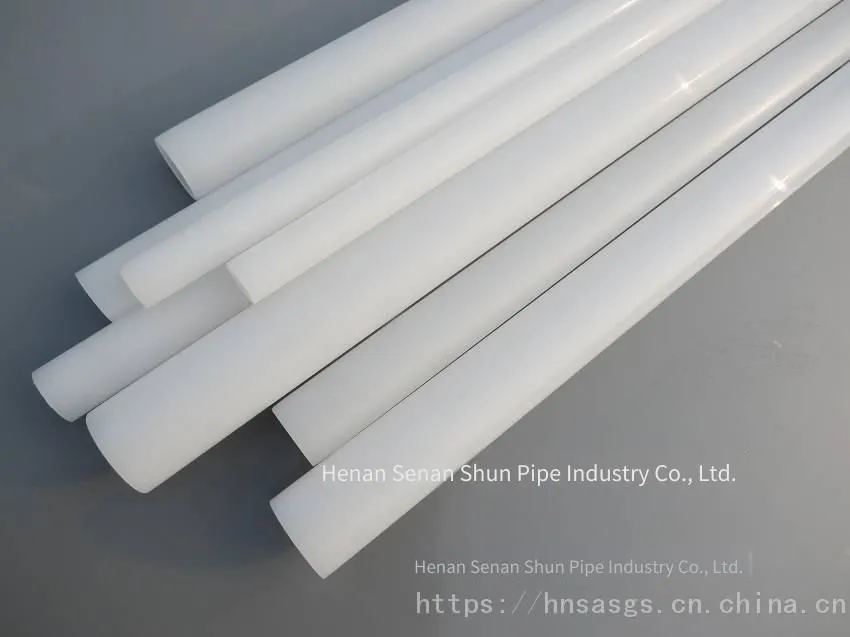

PVDF chemical stability, cleanliness, and smoothness
The materials for the pipelines of high-purity water and ultrapure water transportation are all made of PVDF pipes.
Due to the good chemical stability, clean
liness, smoothness and other properties of PVDF pipes, they have been widely used in the microelectronics industry and
achieved good social and economic benefits.
PVDFChemical resistance
PVDF materials have good chemical stability and super weather resistance. For
general acids, alkalis, and salts, they have good anti-corrosion effects, and are particularly suitable
for pipelines of corrosive media such as strong acids and mixed acids. Therefore, they are often used in the
petrochemical, power electronics, semiconductor industry, high-purity chemical and other industries.
Infrared (IR) welding is a butt welding connection method with non-contact convective heating:
Use the heat radiated by the infrared heating plate to heat the connection surfaces of pipes and fittings to the specified
temperature and time to reach the molten state. Then use the pressurization method to connect the pipes and pipes
Press and connect the connecting surfaces of the pipes and fittings. Since the connecting surfaces of the infrared welded pipes and fittings are not in direct contact with the heating plate during the heating process. Therefore, the weld after welding is smaller, and the joint is more beautiful. Infrared welding is suitable for ultrapure water pipes with high purity requirements or biopharmaceutical systems.
The after-sales service commitment of Henan Senanshun Pipe Industry Co., Ltd. is as follows:
1. Provide free technical training on the company's products for the technical and installation personnel of the construction unit.
Free distribution of technical samples and construction manuals.
2. Warranty period: Within 12 months after the delivery is accepted and qualified or 18 months after the goods arrive at the site
(whichever comes first). During the warranty period, if there are quality problems caused by non-human factors when the user uses the company'spro
ducts normally, the products with quality problems will be replaced for free.
3. The after-sales service personnel will arrive at the site within 24 hours and must solve the problem within 48 hours.
Sincerity, Professionalism, Trustworthiness, Responsibility
Coding Code, Dimension (DN) Dimension D mm, Details s mm L mm, L1 mm R mm, Weight (Kg)
